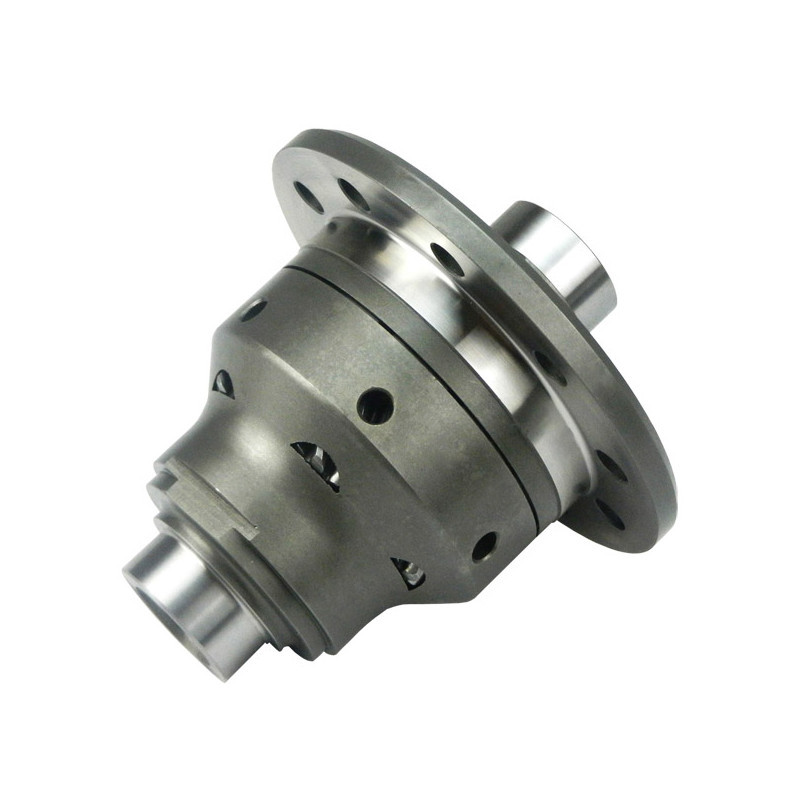

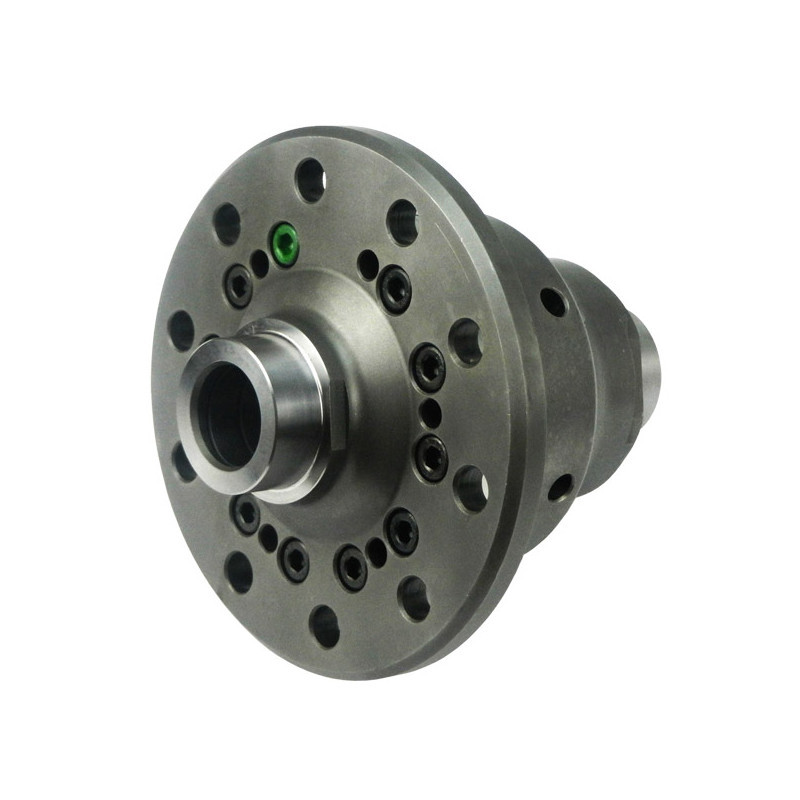

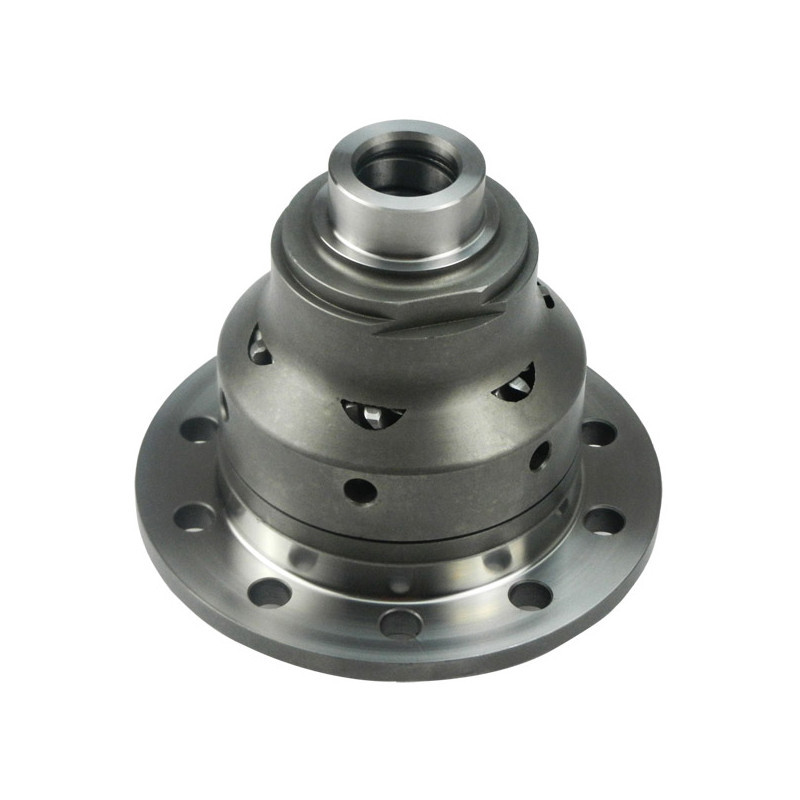

Blackline limited slip differential - BMW 188K Axle 1 Series - 3 Series - 5 Series - Z4 - X3

The Blackline limited slip differential for the BMW 1 Series, 3 Series, 5 Series, Z4, and X3 with the 188K differential—also known as an LSD (Limited Slip Differential)—improves traction by distributing torque between the two-wheel drive drive wheels based on available grip.

Its helical gear design allows the limited slip differential to transmit more torque to the wheel with the best traction. As torque increases, the gears exert pressure against the differential housing and generate the internal friction necessary for this torque distribution. The system can thus handle a significant difference in drive force between the two wheels, particularly during heavy acceleration out of a turn or when traction is limited.

Under light loads, the helical limited slip differential maintains smooth, progressive, and quiet operation. The wheels can continue to rotate at different speeds when necessary, particularly when cornering. This feature improves traction during spirited driving while maintaining handling suitable for road use.

The Blackline limited slip differential uses a parallel-shaft helical gear architecture optimized to distribute forces. Its 5:1 torque split means that when one wheel loses traction, the wheel with the most traction can receive up to five times the torque transmitted to the spinning wheel.

As with any helical-gear limited slip differential, a minimum amount of resistance must remain on the wheel with the least grip to allow torque transfer. It is therefore most effective when both wheels maintain a minimum level of resistance. This technology also works particularly well in conjunction with modern ABS systems.

The Blackline HLF024 limited slip differential is designed for various BMW models equipped with the 188K differential. Compatibility depends on the model, engine, and transmission type. The ring gear offset of 103.5 mm is also an important factor to check to confirm compatibility before mounting. Its housing and gears are made of high-resistance 8620 steel.

Technical Specifications of the Blackline limited slip differential for BMWs with the 188K differential

Manufacturer Part Number: HLF024
Quaife application match: QDF14N
Type: Helical-gear limited slip differential
BMW 1 Series Compatibility: Compatible applications equipped with the 188K differential, depending on engine and transmission
BMW 3 Series Compatibility: Compatible models equipped with the 188K differential, depending on engine and transmission
BMW 5 Series Compatibility: Compatible models equipped with the 188K differential, depending on engine and transmission
BMW Z4 Compatibility: Compatible models equipped with the 188K differential, depending on engine and transmission
BMW X3 Compatibility: Compatible models equipped with the 188K differential, depending on engine and transmission
Type of Differential: BMW 188K

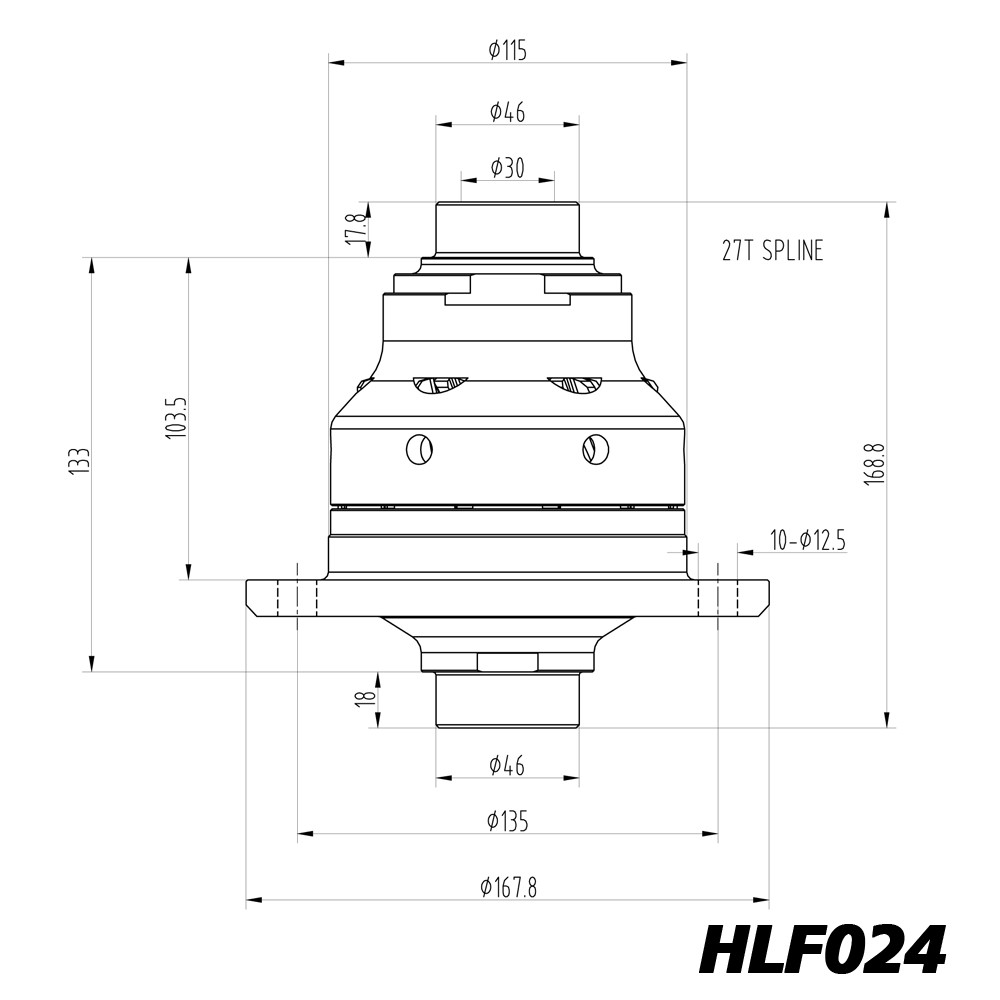

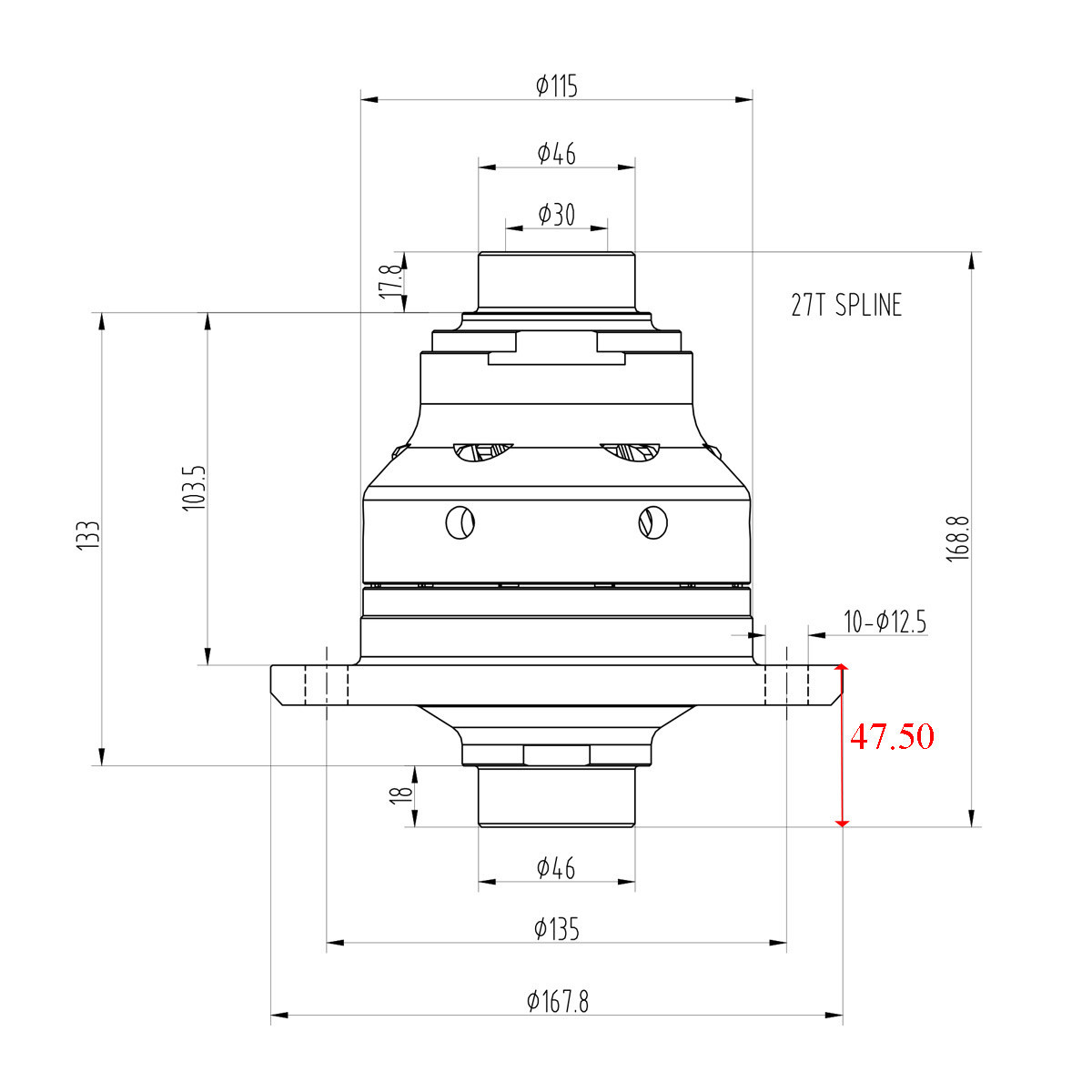

Ring gear offset: 103.5 mm
Torque split ratio: 5:1
Housing and gear material: High-resistance 8620 steel
Mounting: Direct replacement for the original differential on compatible models

Key features of the Blackline limited slip differential for BMW with 188K differential

• Torque split between the wheels based on available traction.
• Delivers more torque to the wheel with the best traction.
• Immediate and progressive reaction to changes in traction.
• Smooth, progressive, and quiet operation.
• No friction discs for reduced maintenance requirements.
• Power delivery that is easily controllable, especially during spirited driving and drifting.
• Housing and gears made of high-resistance 8620 steel.
• Direct mounting for the original differential.
