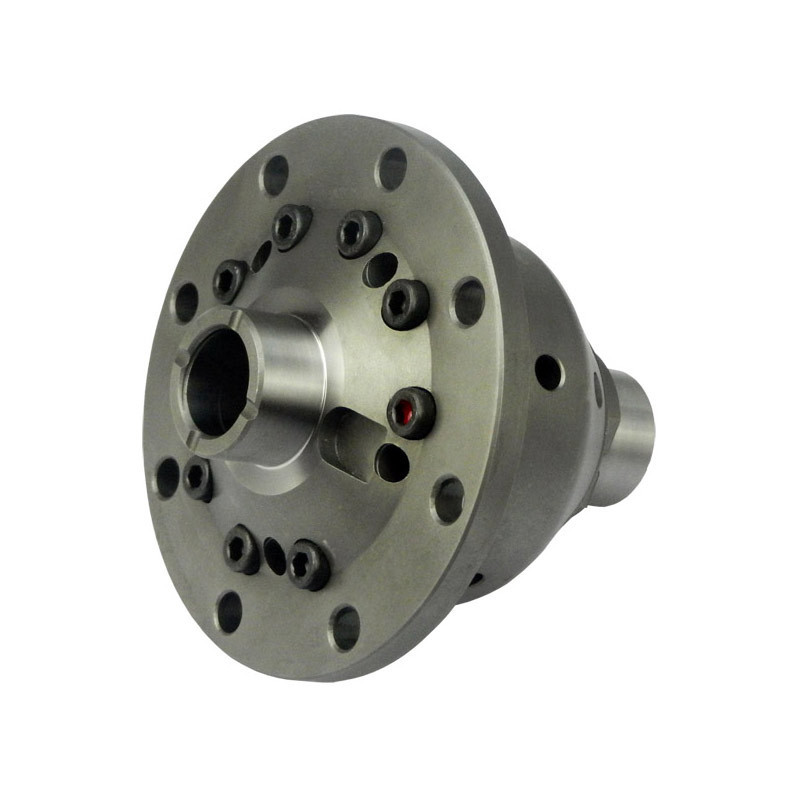

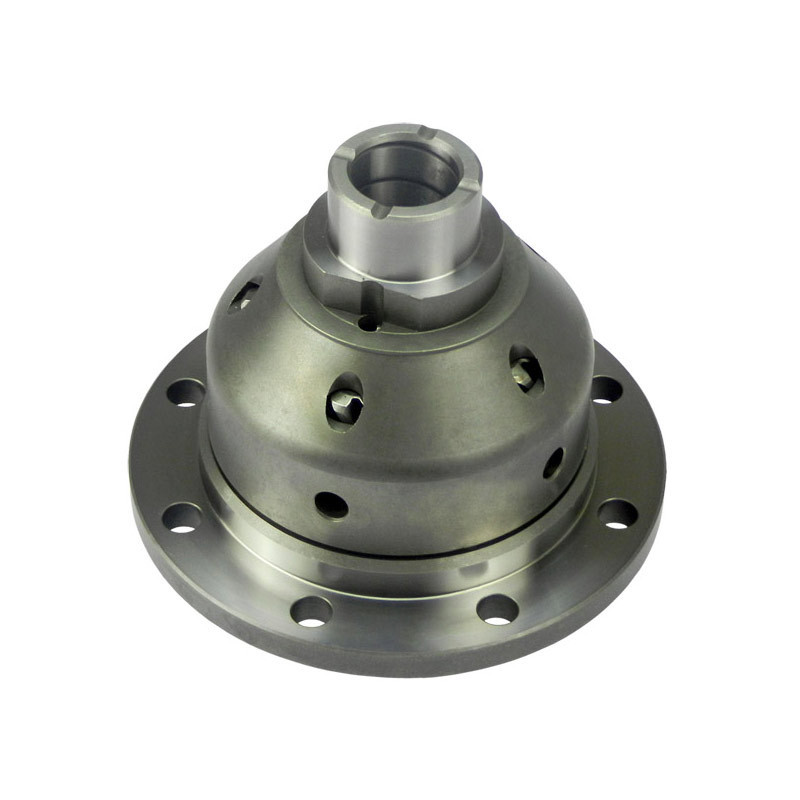

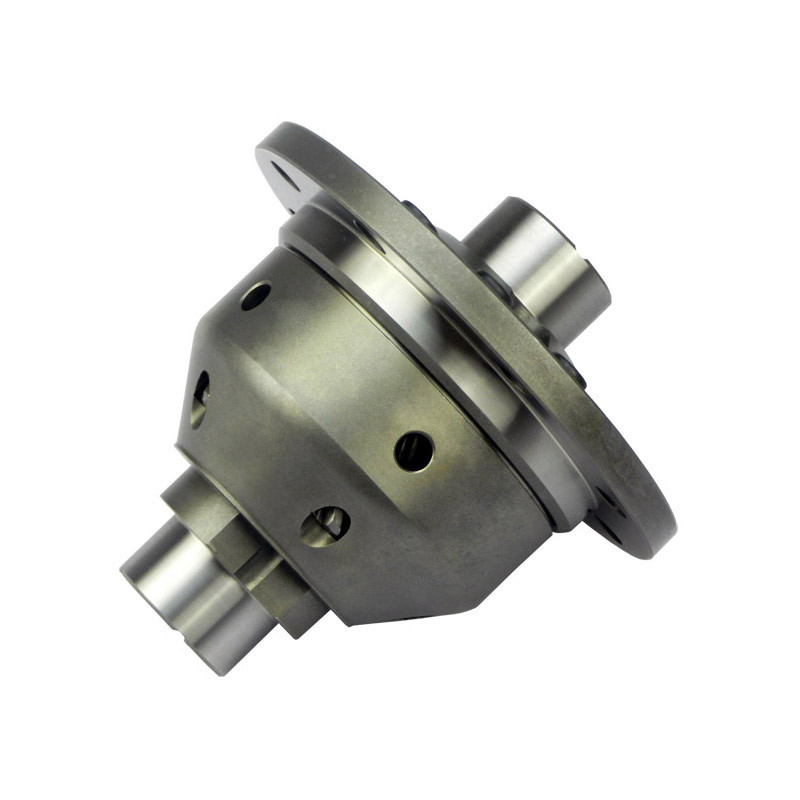

Blackline Limited-Slip Differential - Volkswagen Golf - Corrado - Jetta - Vento - 02A Transmission with Crimped Connectors

The Blackline limited slip differential for the Volkswagen Golf Mk3, Golf Mk4, Corrado, Jetta, and Vento with 02A transmission—also known as an LSD (Limited Slip Differential)—improves traction by distributing torque between the two-wheel drive drive wheels based on available grip.

Its helical gear design allows the limited slip differential to transmit more torque to the wheel with the best traction. As torque increases, the gears press against the differential housing and generate the internal friction necessary for this torque distribution. The system can thus handle a significant difference in drive force between the two wheels, particularly during heavy acceleration out of a turn or when traction is limited.

Under light loads, the helical limited slip differential maintains smooth, progressive, and quiet operation. The wheels can continue to rotate at different speeds when necessary, particularly when cornering. This feature improves traction during spirited driving while maintaining handling suitable for on-road use.

The Blackline limited slip differential uses a parallel-shaft helical gear architecture optimized to distribute forces. Its 5:1 torque split means that when one of the wheels loses traction, the wheel with the most traction can receive up to five times the torque transmitted to the spinning wheel.

As with any helical-gear limited slip differential, a minimum amount of resistance must remain on the wheel with the least traction to allow torque transfer. Its effectiveness is therefore optimal when both wheels maintain a minimum level of traction. This technology also works particularly well in conjunction with modern ABS systems.

The Blackline HLF060 limited slip differential is designed for the Volkswagen Golf Mk3, Golf Mk4, Corrado, Jetta, and Vento equipped with a 02A transmission with interlocking flanges. It installs as a direct replacement for the original differential. Its housing and gears are made of high-strength 8620 steel.

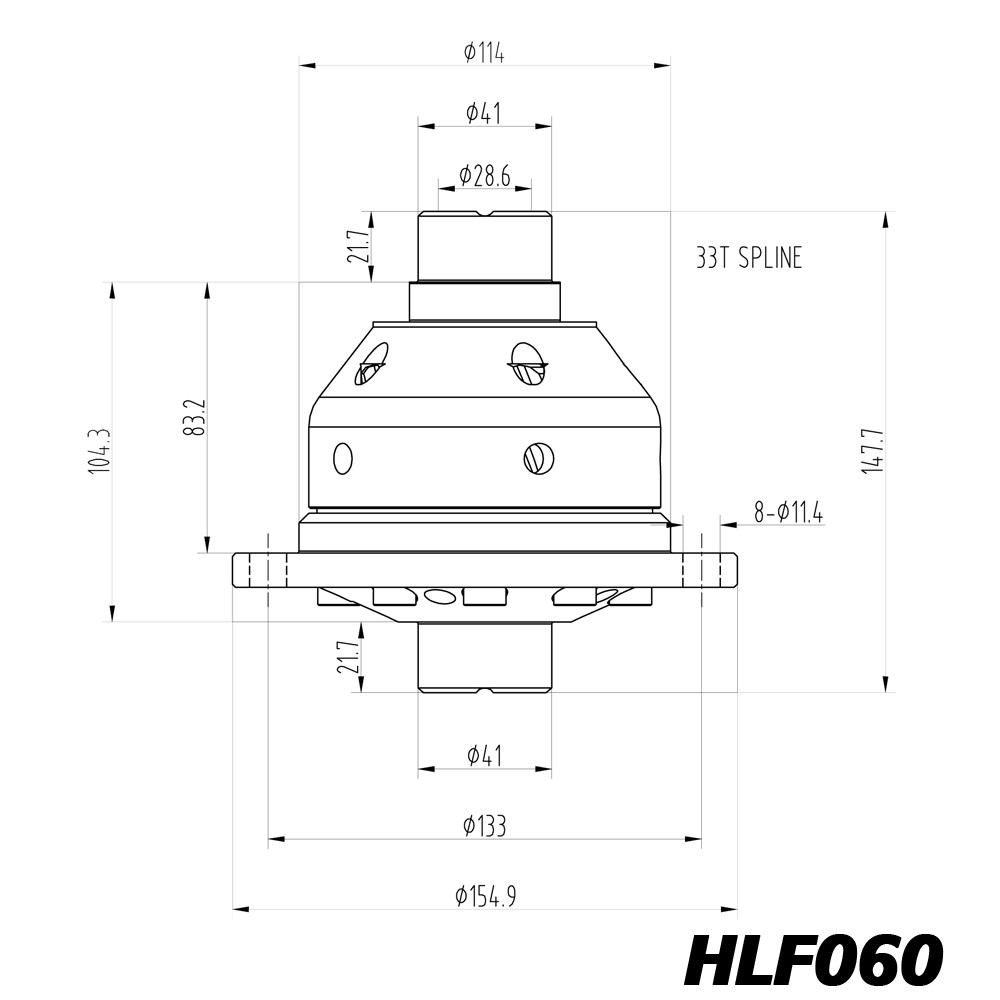

Technical Specifications of the Blackline Limited Slip Differential for Volkswagen Golf, Corrado, Jetta, and Vento with 02A Transmission

Manufacturer Part Number: HLF060
Quaife application code: QDF8R
Type: Helical-gear limited slip differential
Vehicle compatibility: Volkswagen Golf Mk3, Golf Mk4, Corrado, Jetta, and Vento
Transmission type: 02A - 5 gearbox ratios
Fitting type: Press-fit ring gear
Torque split ratio: 5:1
Housing and gear material: High-resistance 8620 steel
Mounting: Direct replacement for the original differential

Key features of the Blackline limited slip differential for Volkswagen with 02A housing

• Torque split between the wheels based on available traction.
• Transmits more torque to the wheel with the best traction.
• Immediate and progressive reaction to changes in traction.
• Smooth, progressive, and quiet operation.
• No friction discs for reduced maintenance requirements.
• Power delivery that is easily controllable, especially during spirited driving and drifting.
• Housing and gears made of high-resistance 8620 steel.
• Direct mounting for the original differential.
