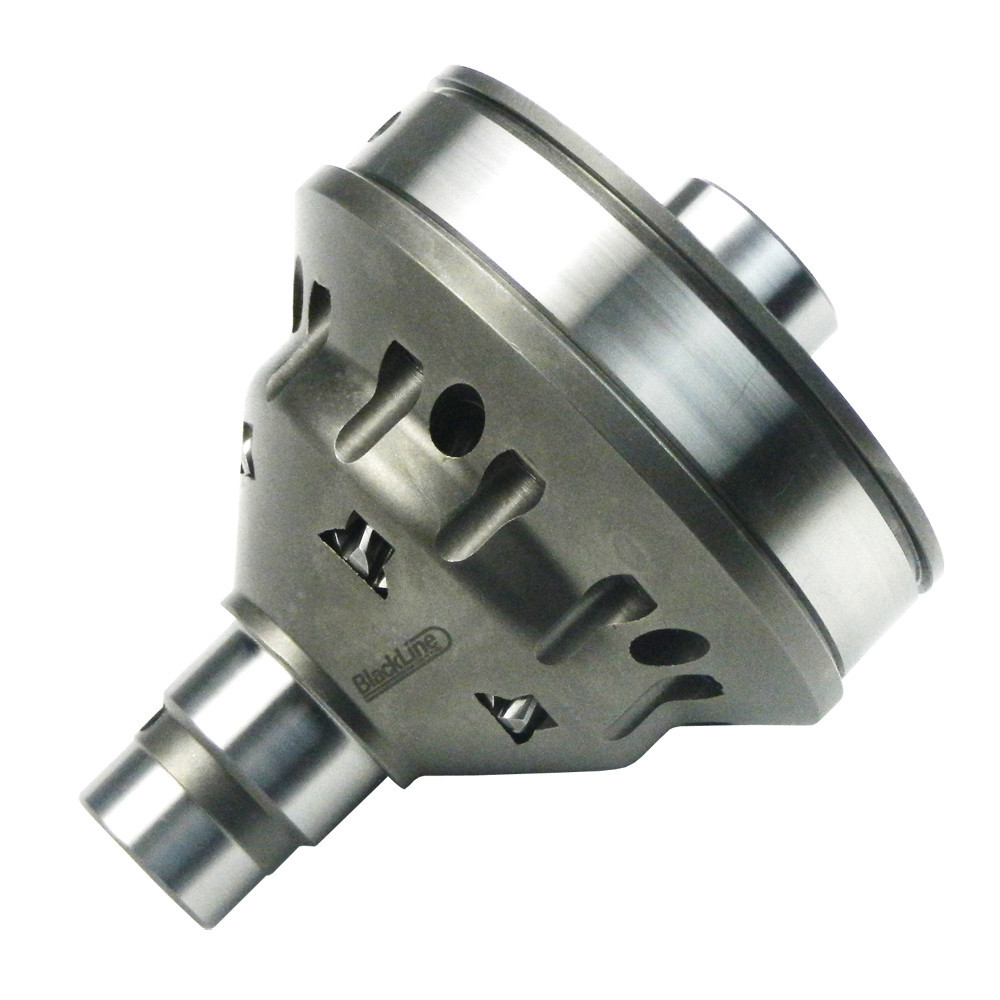

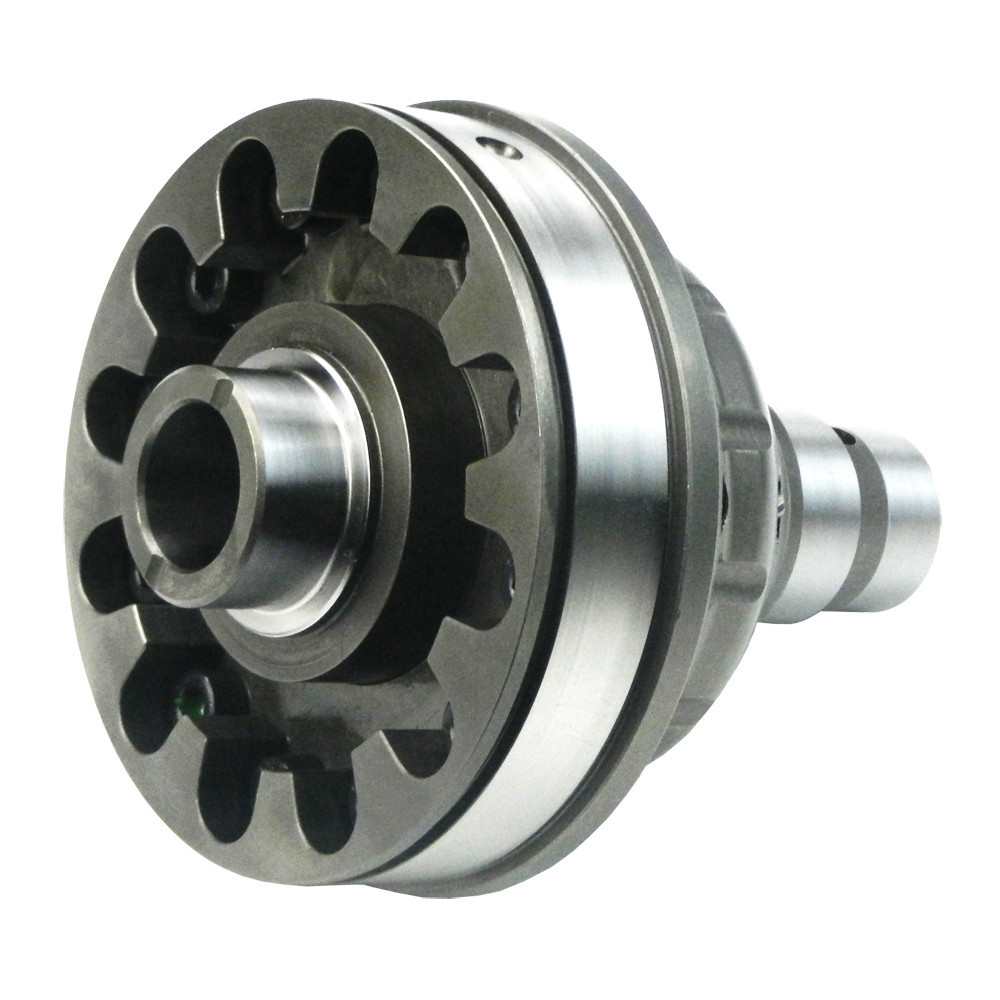

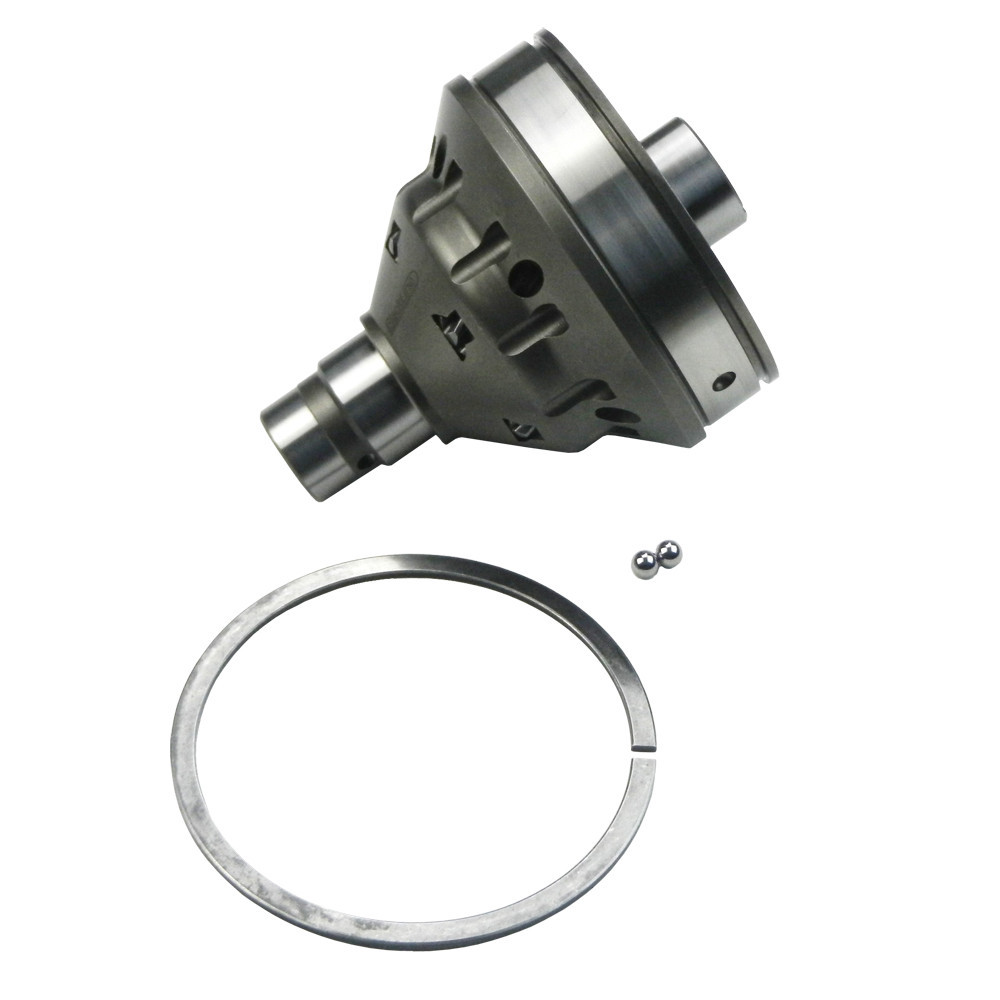

Blackline Limited-Slip Differential - Citroën - Peugeot MA Transmission

The Blackline limited slip differential for the manual transmission in the Citroën AX, C2, Saxo, Peugeot 106, 205, and MG ZR 105—also known as an LSD (Limited Slip Differential)—improves traction by distributing torque between the two-wheel drive drive wheels based on available grip.

Its helical gear design allows the limited slip differential to transmit more torque to the wheel with the best traction. As torque increases, the gears exert pressure against the differential housing and generate the internal friction necessary for this torque distribution. The system can thus handle a significant difference in drive force between the two wheels, particularly during heavy acceleration out of a turn or when traction is limited.

Under light loads, the helical limited slip differential maintains smooth, progressive, and quiet operation. The wheels can continue to rotate at different speeds when necessary, particularly when cornering. This feature enhances traction during spirited driving while maintaining handling suitable for on-road use.

The Blackline limited slip differential uses a parallel-axis helical gear architecture optimized to distribute forces. Its 5:1 torque split means that when one wheel loses traction, the wheel with the most traction can receive up to five times the torque transmitted to the spinning wheel.

As with any helical-gear limited slip differential, a minimum amount of resistance must remain on the wheel with the least grip to allow torque transfer. Its effectiveness is therefore optimal when both wheels maintain a minimum level of resistance. This technology also works particularly well in conjunction with modern ABS systems.

The Blackline HLF051 limited slip differential is designed specifically for the Citroën AX, C2, Saxo VTR and VTS, MG ZR 105, as well as the Peugeot 106 and 205 with MA transmission. It fits as a direct replacement for the original differential on compatible vehicles. Its housing and gears are made of high-resistance 8620 steel.

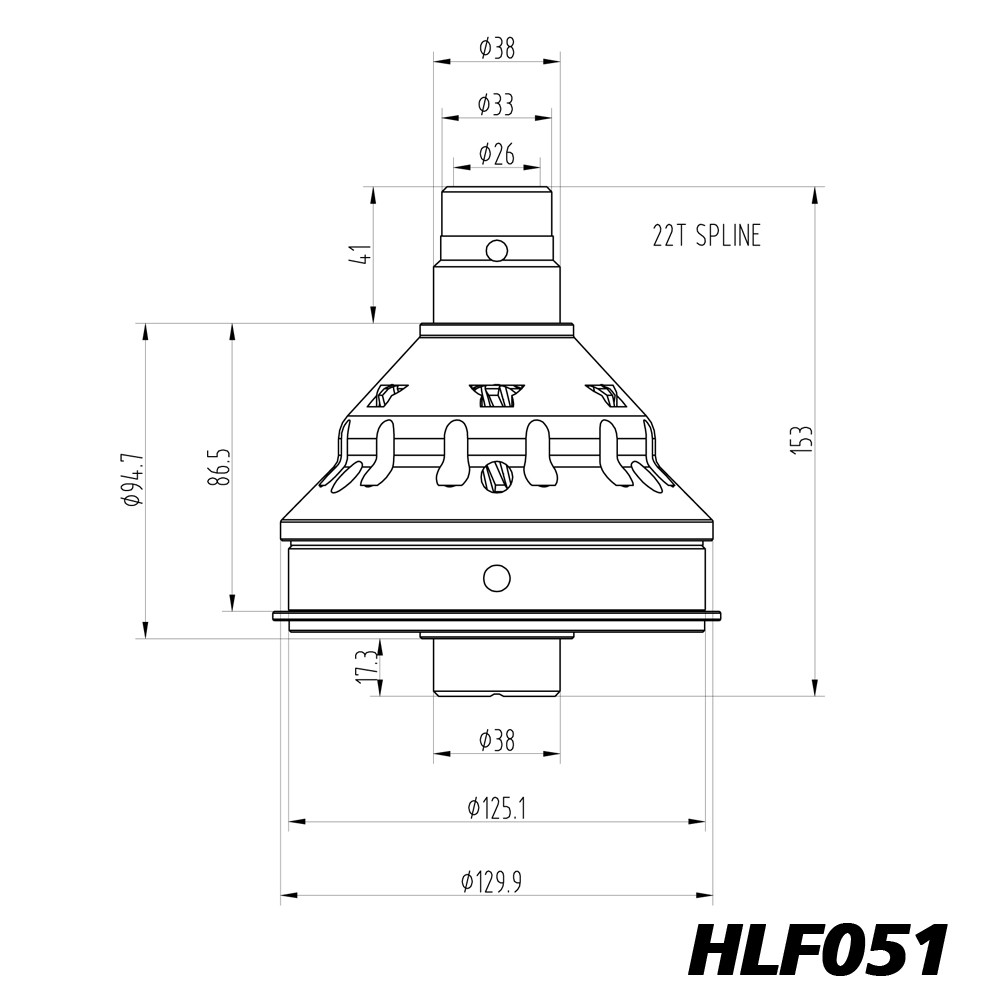

Technical Specifications of the Blackline Limited Slip Differential for Citroën AX, C2, Saxo, Peugeot 106, 205, and MG ZR 105

Manufacturer Part Number: HLF051
Quaife application code: QDF9H
Type: Helical-gear limited slip differential
Citroën compatibility: Citroën AX, C2, Saxo VTR, and Saxo VTS
Peugeot compatibility: Peugeot 106 and Peugeot 205 with MA transmission
MG compatibility: MG ZR 105
Type of box: MA for the listed Peugeot applications
Torque split ratio: 5:1
Housing and gear material: High-resistance 8620 steel
Mounting: Direct replacement for the original differential on compatible models

Key Features of the Blackline Limited Slip Differential for Citroën, Peugeot, and MG

• Torque split between the wheels based on available traction.
• Delivers more torque to the wheel with the best traction.
• Immediate and progressive reaction to changes in traction.
• Smooth, progressive, and quiet operation.
• No friction discs for reduced maintenance requirements.
• Power delivery that is easily controllable, especially during spirited driving and drifting.
• Housing and gears made of high-resistance 8620 steel.
• Direct mounting for the original differential.
