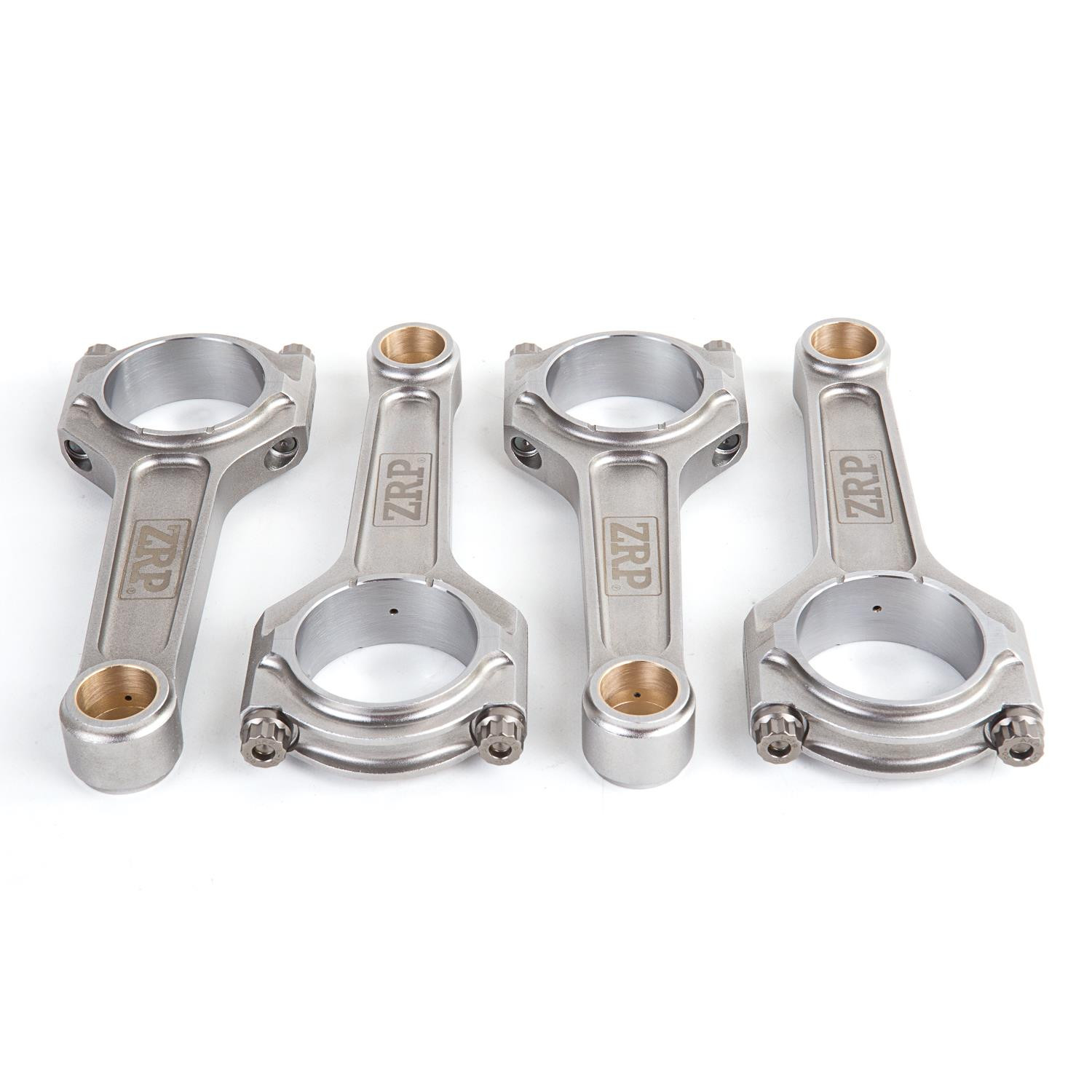

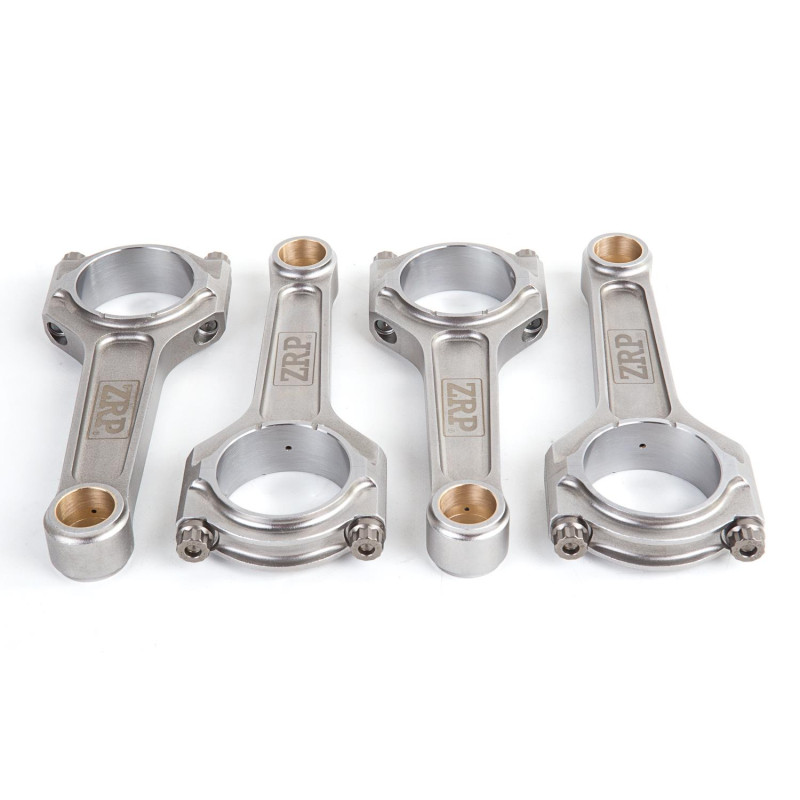

ZRP I-Beam Forged Connecting Rods for VW Audi 2.0 TSI EA888 - R-VW-008-IR
Reference:
ZRP-R-VW-008-IR
Supplier Ref.:
R-VW-008-IR
The ZRP Heavy-Duty I-Beam connecting rods for VW/Audi 2.0 TSI EA888 engines (May 2011-on) are designed for high-performance engine builds and demanding rebuilds.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The Heavy-Duty I-Beam design delivers exceptional strength for high-boost and high-power applications.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for VW/Audi EA888 2.0 TSI engines.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The Heavy-Duty I-Beam design delivers exceptional strength for high-boost and high-power applications.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for VW/Audi EA888 2.0 TSI engines.
-
Engine codeCADA
CAEA
CAEB
CAWB
CCTA
CCZA
CCZC
CDNB
CDNC
CDZA
CESA
CETA
CHHC
CJXC
CJXF
CJXG
CNBC
CNCB
CNCD
CNCE
CPMA
CPSA
CUHA
CULB
CULC
CVKB
CVLA
CWZA
CYNB
CYPA
CYRB
DAXB
DJHA
DKTA
DKTB
DLBA
DLG
DLVB
DMSA
DMSB
DMT
DNFC
DNNA
DNPA
DNU
DNUE
DRFA
DRYA
X-ray Computed Tomography (X-ray CT) -
Vehicle makeAUDI / VOLKSWAGEN
-
Conrod ShapeH-Beam Conrod
-
Center-to-center length in mm144,00
-
Piston pin diameter in mm23,00
-
Conrod head diameter in mm50,60
-
Conrod head width in mm21,85
-
Threads on conrod bolts3/8"
-
Type of fasteners includedARP2000
-
Type of conrodStandard Forged Conrod
