ZRP I-Beam Forged Connecting Rods for VW Audi 1.6 TDI - R-VW-011-I

Reference: ZRP-R-VW-011-I

Supplier Ref.: R-VW-011-I

Learn more

€715.20 Tax included

Available to order

Unavailable in store (Montpellier)

Within 15 days on average.

€715.20 (tax incl.)

Earn 715 loyalty points (that is €25.00 in vouchers)

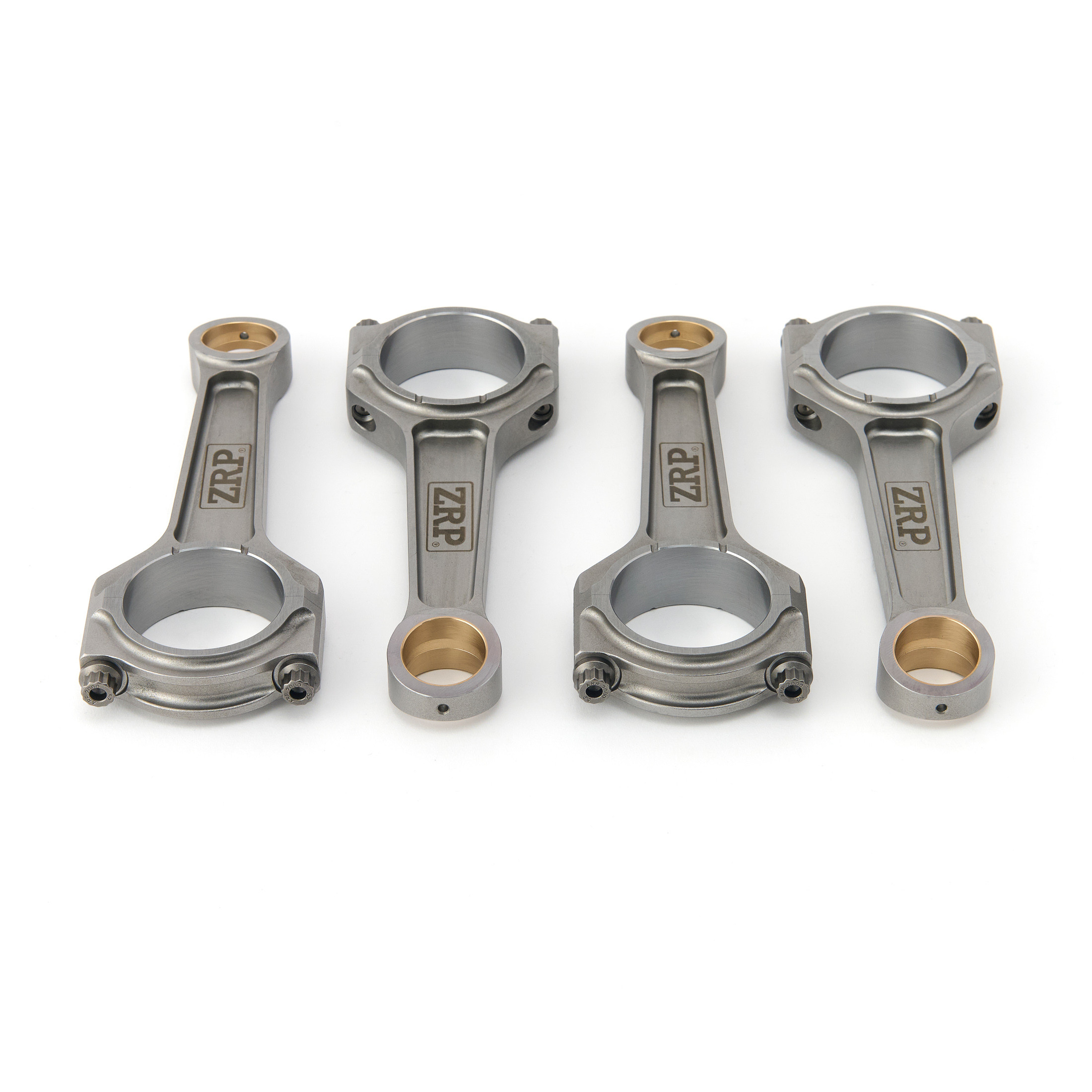

The ZRP I-Beam connecting rods for VW/Audi 1.6L TDI (2012-on) are designed for high-performance engine builds and demanding rebuilds.

Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The I-Beam profile delivers an excellent balance of strength and reduced weight.

Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.

They are the ideal solution for VW/Audi 1.6 TDI engines.

Engine code

CAYB
CAYC
CFWA
CLHA
CLHB
CLNA
CRKB
CXMA
CXXA
CXXB
DBKA
DCXA
DCZA
DDYA
DGDA
DGDB
Weight in kg

0,54
Vehicle make

AUDI / VOLKSWAGEN
Conrod Shape

H-Beam Conrod
Center-to-center length in mm

152,00
Piston pin diameter in mm

26,00
Conrod head diameter in mm

50,60
Conrod head width in mm

24,90
Threads on conrod bolts

5/16"
Type of fasteners included

ARP2000
Type of conrod

Standard Forged Conrod
