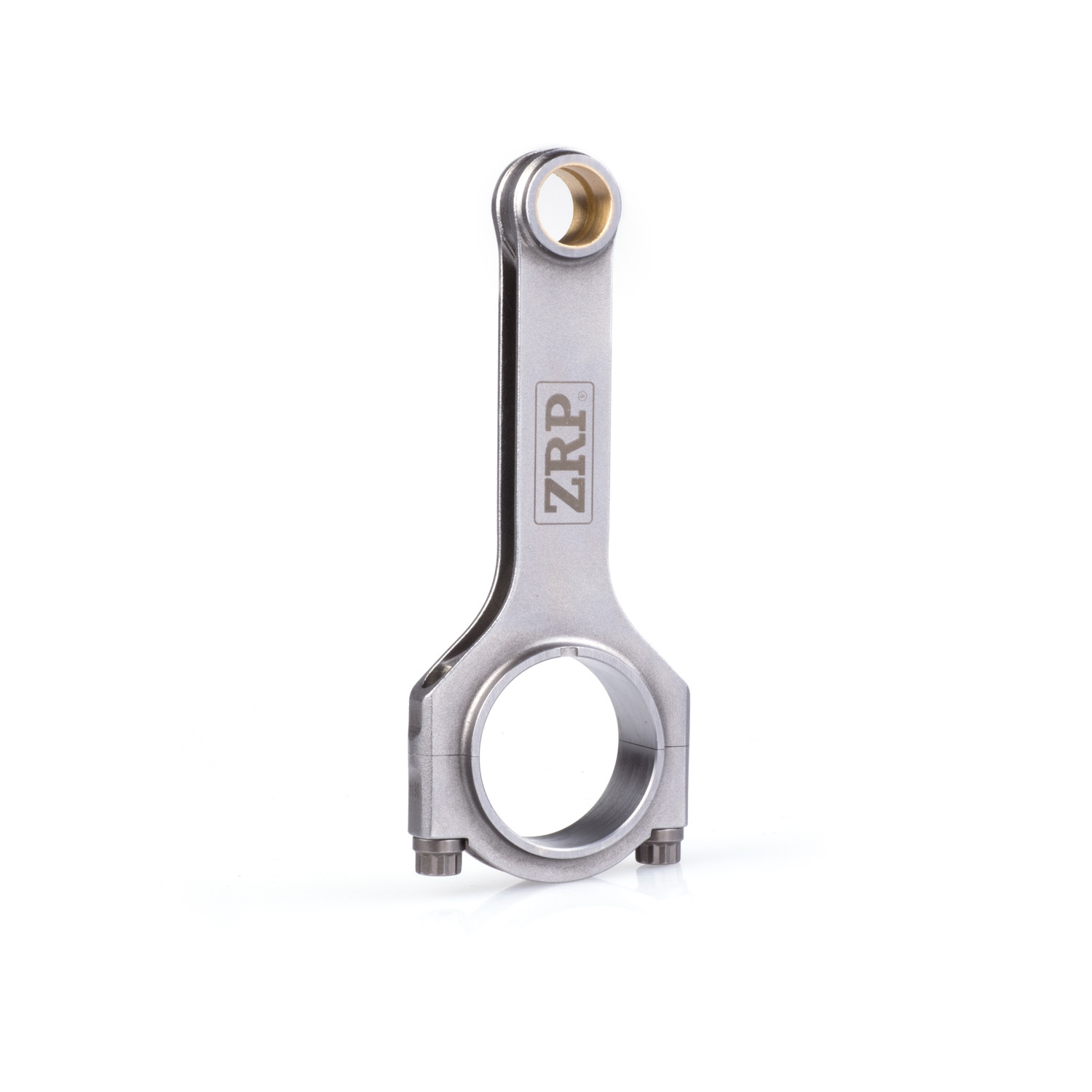

The H-shaped ZRP forged connecting rods for the Peugeot 206 RC 2.0 L 16V with EW10J4S (RFK) engine are designed for engine tuning applications requiring mechanical resistance and high-RPM durability. Manufactured from high-strength 4340 steel, they feature a center distance of 139 mm and accommodate 21 mm gudgeon pins.

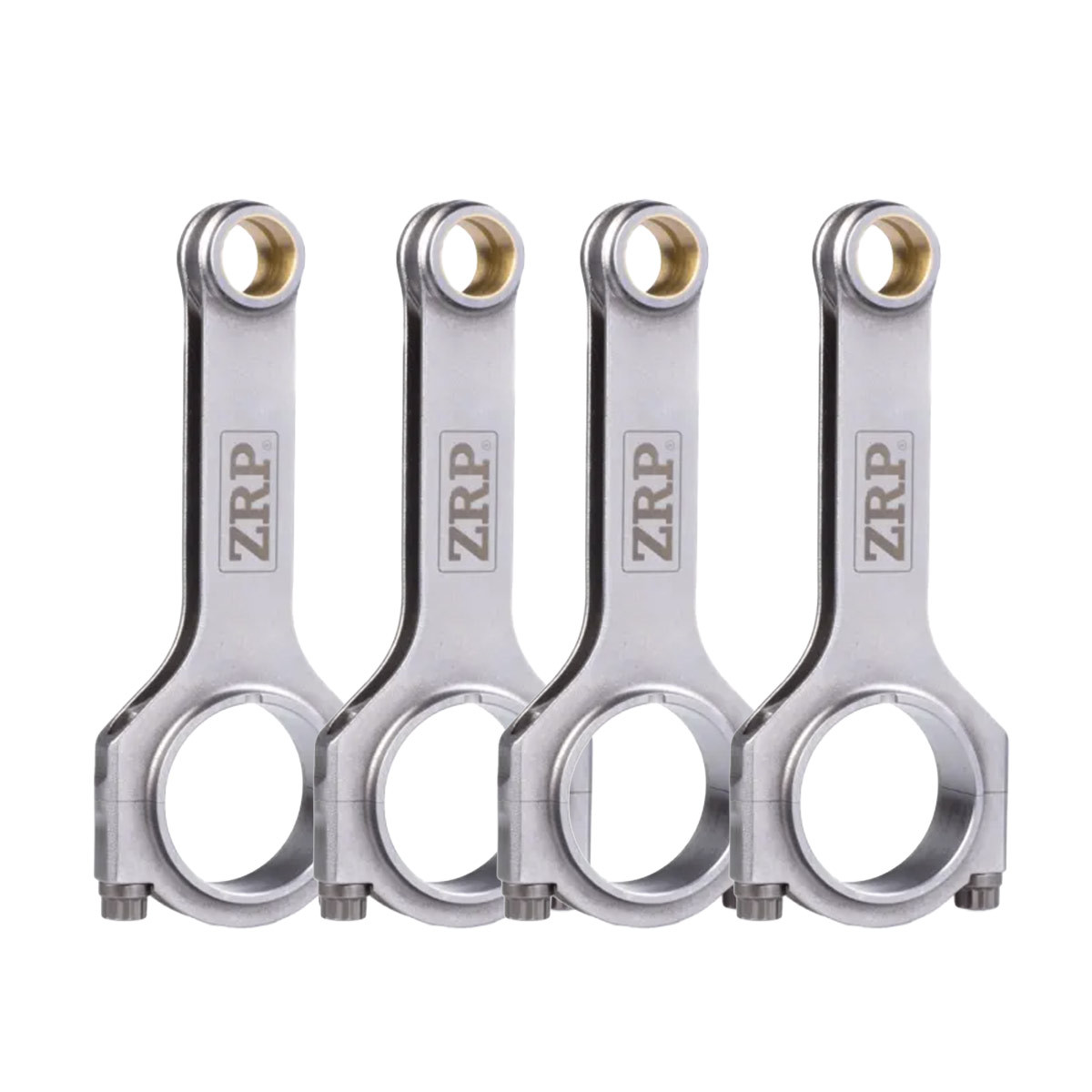

Their ribbed connecting rod small end minimizes deformation under inertial forces while keeping weight in check. The bushings feature a radial groove that serves as an oil reservoir. The set of 4 connecting rods (R-PEU-003H) includes 3/8" ARP2000 fasteners, ARP mounting lubricant, and instructions.
Technical Specifications
- Brand: ZRP
- Manufacturer Part Number: R-PEU-003H
- Application: Peugeot 206 RC 2.0 L 16V
- Engine Code: EW10J4S (RFK)
- Range: Standard Series
- Profile: H-shaped, H-beam
- Material: 4340 forged steel
- Center-to-center length: 139.00 mm
- Gudgeon pin diameter: 21.00 mm
- Conrod head width: 24.18 mm
- Connecting rod small end: ribbed
- Connecting rod small end rings: alloy bronze with oiling groove
- Fasteners: 3/8" ARP2000
- Rated resistance to tension of fasteners: 220,000 psi
- Rated weight per connecting rod: 493 g
- Weight matching: ± 1 g
- Packaging: set of 4 connecting rods
Design and Manufacturing
- Separately forged body and cap: two-piece construction.
- Ribbed connecting rod small end: improved resistance to inertial forces.
- Double-ribbed, hump-shaped connecting rod caps: reinforced connecting rod top end.
- Centering sockets: precise repositioning of the cap during reassembly.
- Grooves on the bearing flanks: weight reduction in the affected areas.
- Multi-stage heat treatments: resistance, dimensional stability, and fatigue resistance.
- Shotpeening: improved fatigue resistance.
- Magnetic particle inspection: detection of defects in forged parts.
- CNC machining: specified precision of up to 0.0002", or approximately 0.005 mm.
- Center distance tolerance: less than 0.001", or 0.0254 mm.
- Bending and torsion testing: verification of geometry.
- Finite element analysis: computer-aided stress analysis.
Mounting on EW10J4S engine
Before assembly, verify that the pistons, shafts, bearings, and crankpins match the sizes of the connecting rods. Check the operating clearances and clearance between moving parts. Follow the oiling and tightening instructions for the supplied ARP2000 fasteners.
Key Features
- 4340 forged steel and H-shaped profile.
- Ribbed connecting rod small end.
- 139 mm center distance and 21 mm gudgeon pin diameter.
- ARP2000 fasteners included.
- Set of 4 connecting rods matched in weight to within ± 1 g.
