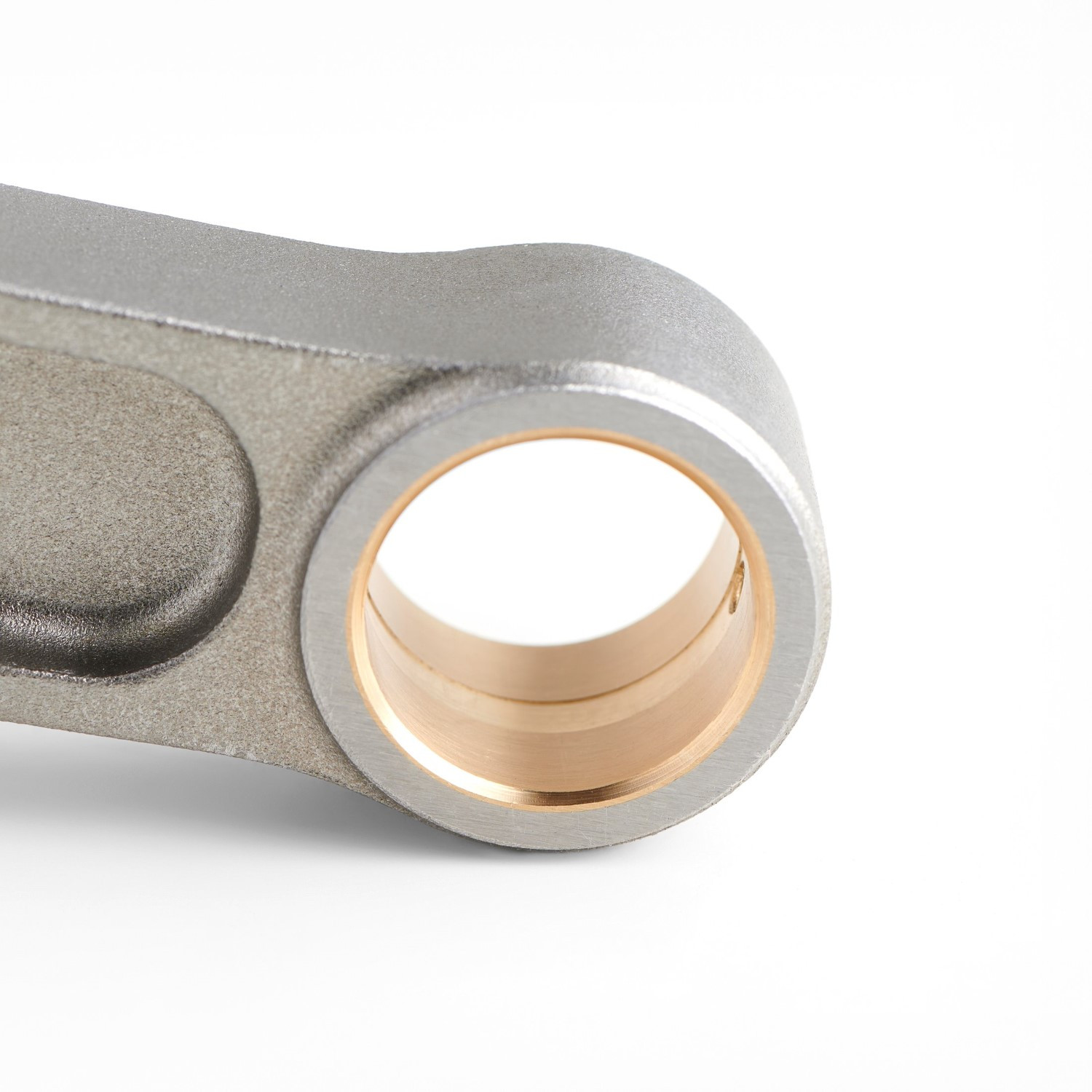

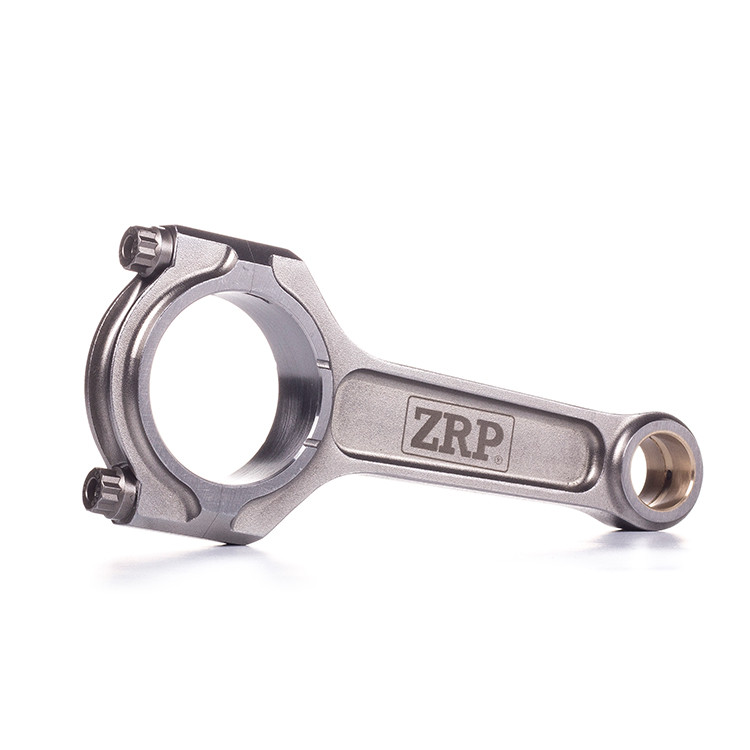

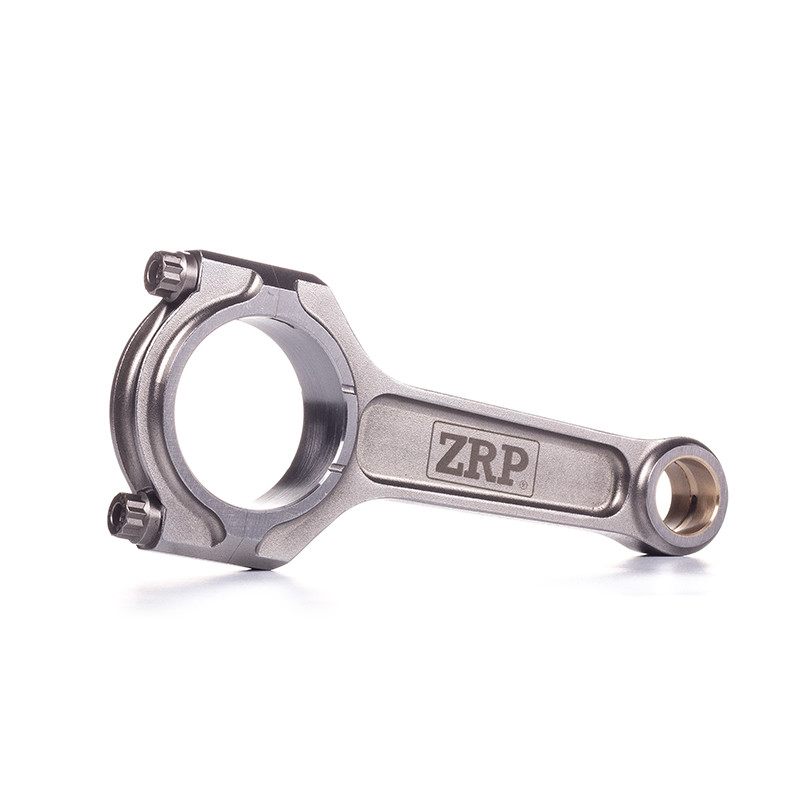

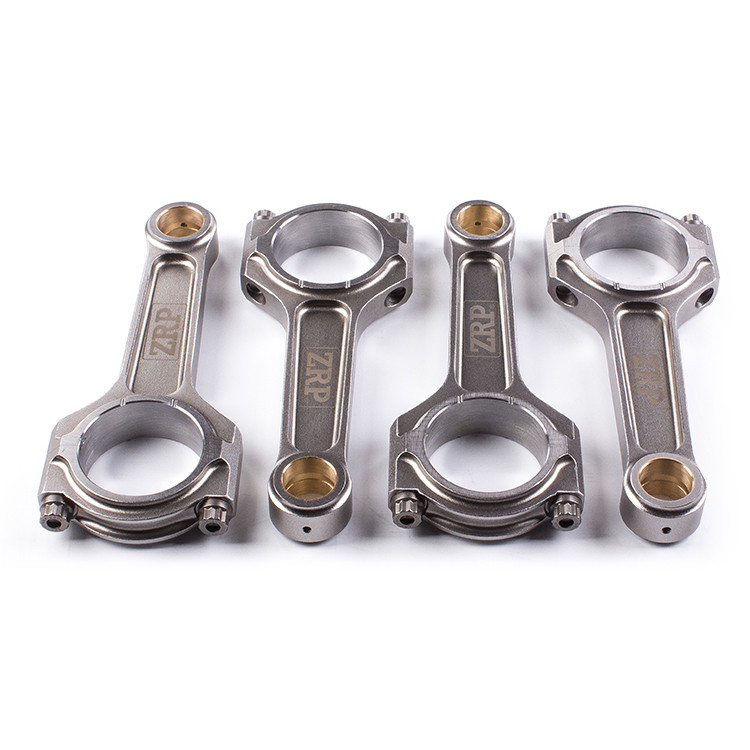

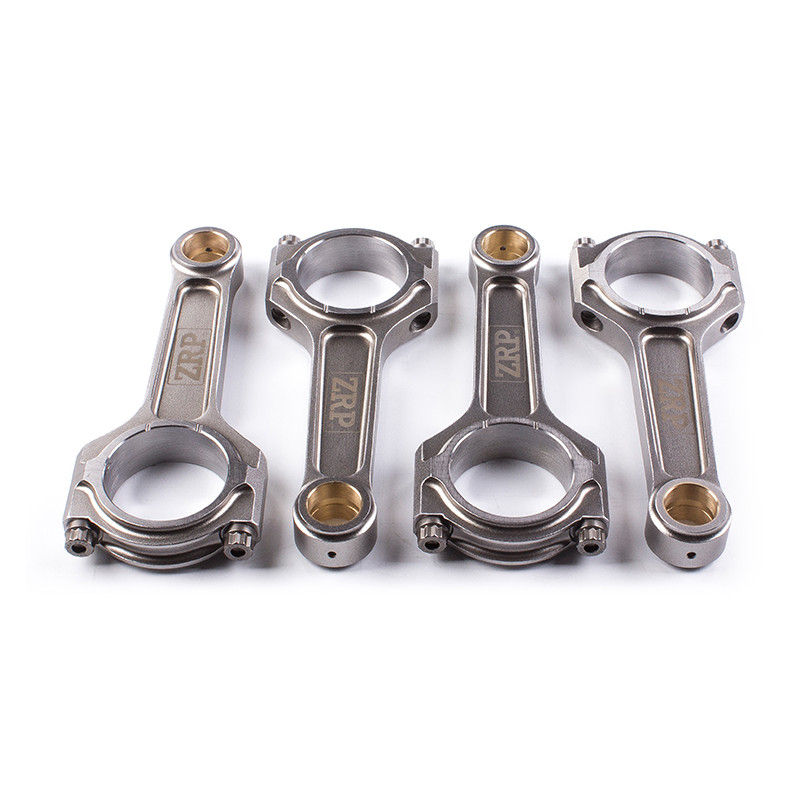

ZRP I-Beam Forged Connecting Rods for BMW M3 S14B23 & S14B25 - R-BMW-001-I
Reference:
ZRP-R-BMW-001-I
Supplier Ref.:
R-BMW-001-I
The ZRP Heavy-Duty I-Beam connecting rods for BMW M3 S14B23 & S14B25 engines are designed for high-performance engine builds and demanding rebuilds.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The Heavy-Duty I-Beam design delivers exceptional strength for high-boost and high-power applications.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for BMW S14B23 & S14B25 engines.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The Heavy-Duty I-Beam design delivers exceptional strength for high-boost and high-power applications.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for BMW S14B23 & S14B25 engines.
-
Engine codeS14B23
S14B25 -
Weight in kg0,57
-
Vehicle makeBMW
-
Conrod ShapeH-Beam Conrod
-
Center-to-center length in mm144,00
-
Piston pin diameter in mm22,00
-
Conrod head diameter in mm52,00
-
Conrod head width in mm23,90
-
Threads on conrod bolts3/8"
-
Type of fasteners includedARP2000
-
Type of conrodStandard Forged Conrod
