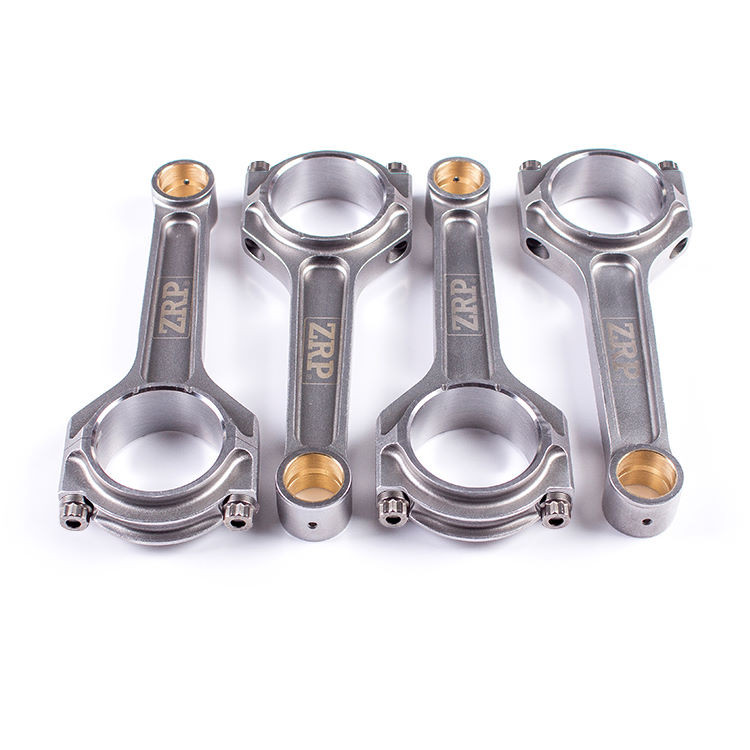

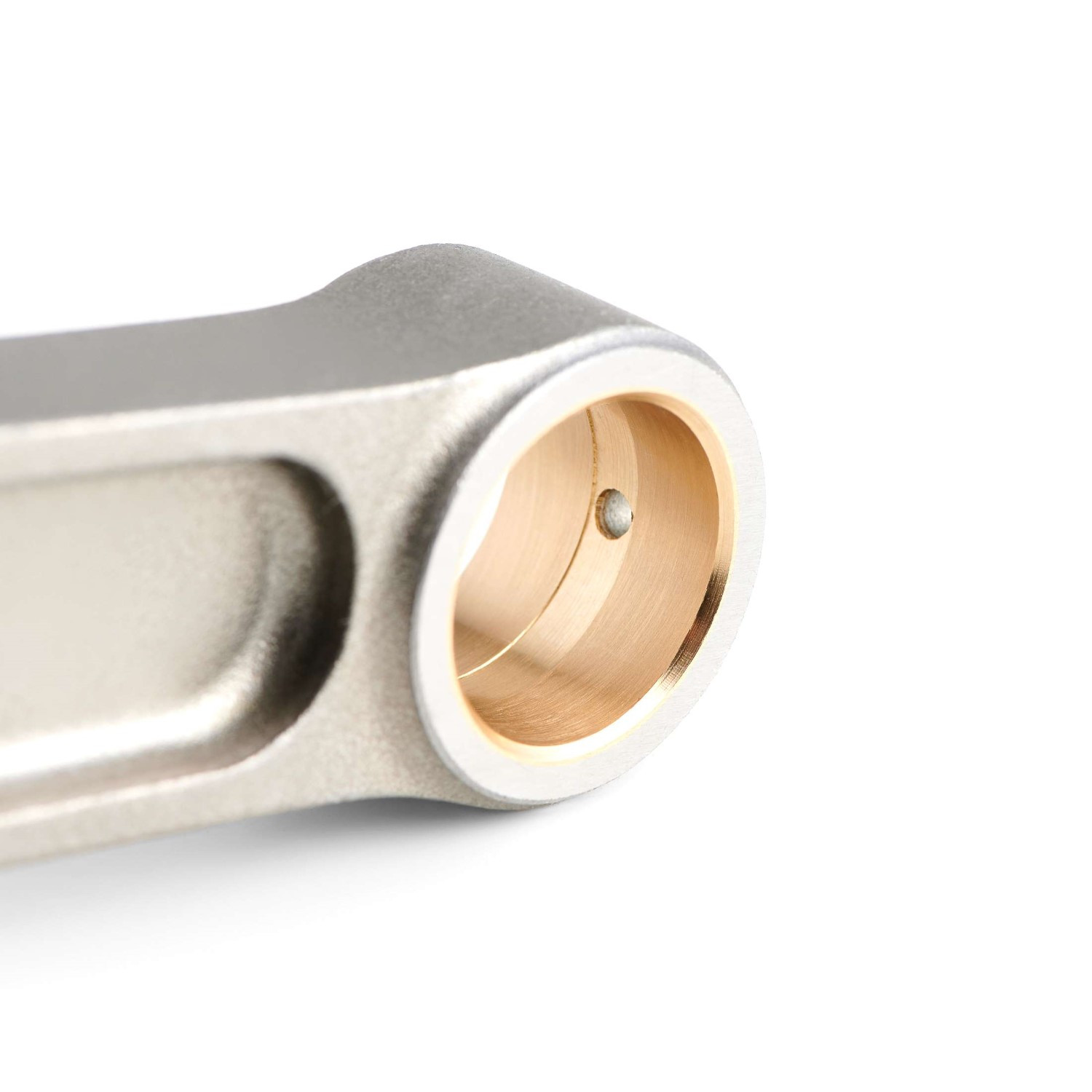

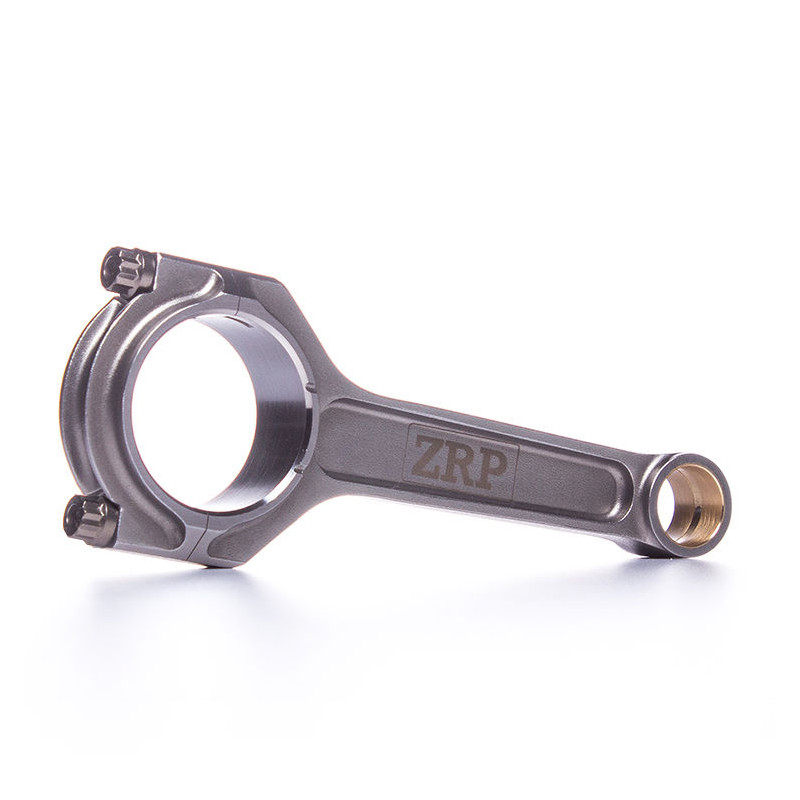

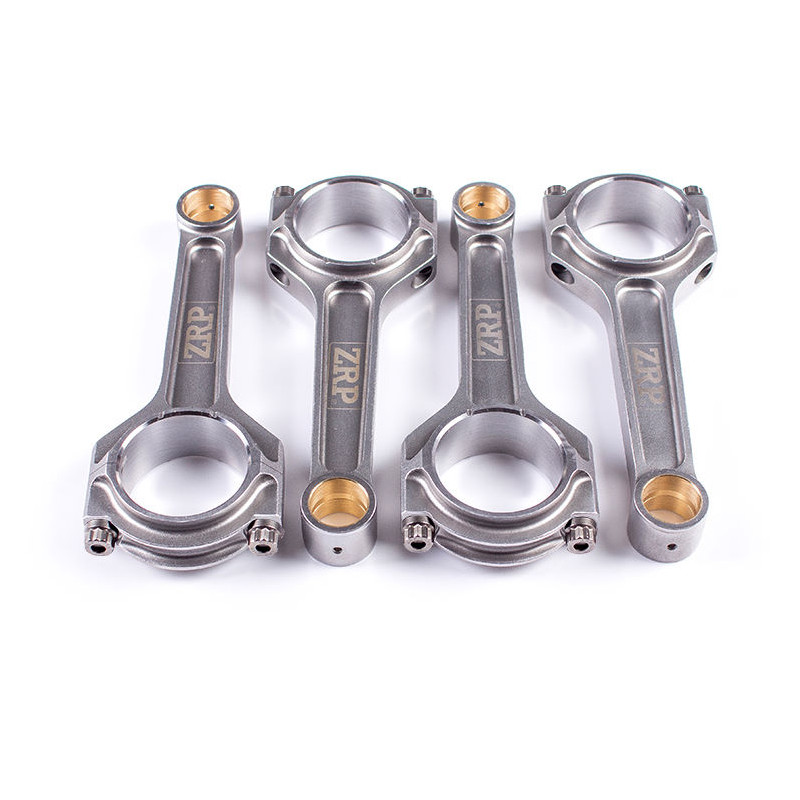

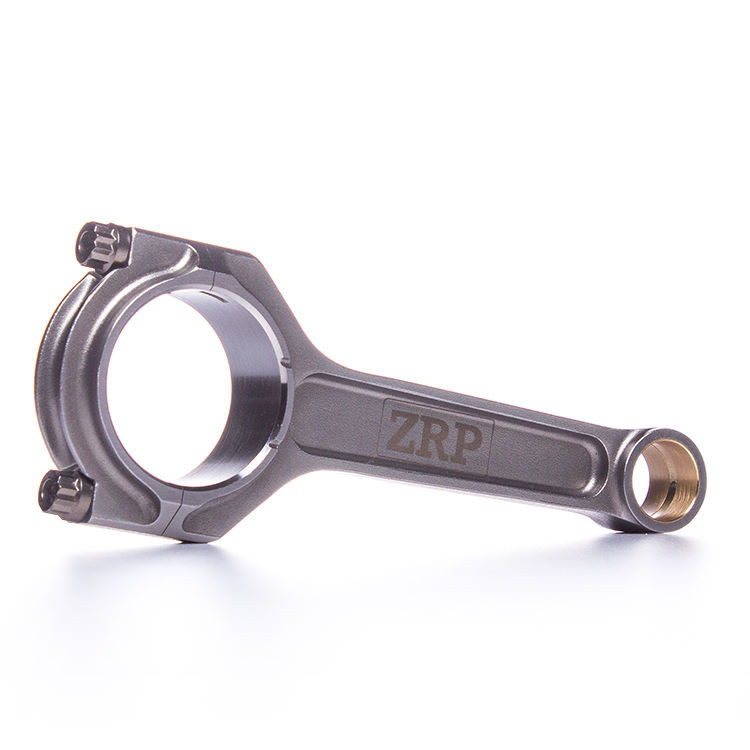

ZRP I-Beam Forged Connecting Rods for Volvo B230 & B234 Long Rod - R-VOL-004-I
Reference:
ZRP-R-VOL-004-I
Supplier Ref.:
R-VOL-004-I
The ZRP I-Beam connecting rods for Volvo B234F 2.3L 16V & B230 2.0L 8V engines are designed for high-performance engine builds and demanding rebuilds.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The I-Beam profile delivers an excellent balance of strength and reduced weight.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for Volvo B234F & B230 engines.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The I-Beam profile delivers an excellent balance of strength and reduced weight.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for Volvo B234F & B230 engines.
-
Engine codeB230
B234F -
Weight in kg0,60
-
Vehicle makeVOLVO
-
Conrod ShapeH-Beam Conrod
-
Center-to-center length in mm158,00
-
Piston pin diameter in mm23,00
-
Conrod head diameter in mm52,00
-
Conrod head width in mm29,46
-
Threads on conrod bolts3/8"
-
Type of fasteners includedARP2000
-
Type of conrodStandard Forged Conrod
