AP Racing 4 pistons brake caliper 25.4mm LHT CP334 Front Left
AP RACING

AP Racing 4 pistons brake caliper 25.4mm LHT CP334 Front Left

Pre-order
Shipped from our warehouse
Within 60 days on average.
Store availability
Montpellier Unavailable

Description

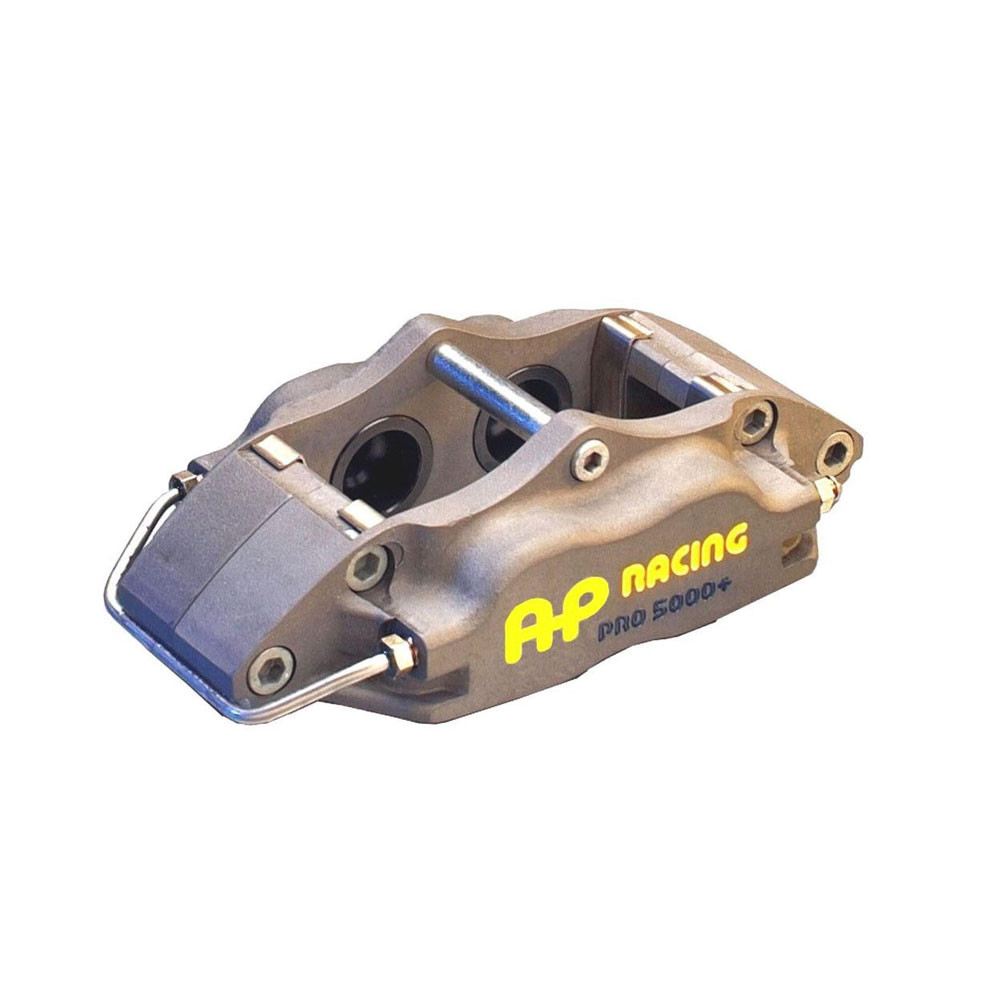

The AP Racing CP5040 4-piston disc brake caliper is designed for use in competition and offers reliable, high-performance braking on the track. Part of the Pro 5000 range, it benefits from AP Racing's experience in motorsport.

Its radial mounting ensures excellent rigidity and rapid braking response, providing good pedal feel. This front left caliper is compatible with Ø280 or Ø295 mm discs (25.4 mm thick) and features four Ø38.1 mm pistons, which guarantee powerful and well-modulated braking.



Specifications:
  • Piston diameter (mm): Ø38.1 × 4
  • Total piston surface area: 45.6 cm²
  • Weight (without pads): 1.9 kg
  • Hydraulic thread: M10 × 1.0
  • Mounting type: radial
  • Mounting centre distance (mm): 130.0
  • Mounting offset (mm): 43.2
  • Mounting hole diameter (mm): 10.2
  • ‘PL’ dimension (mm): 53.0
  • Bleeding screw tightening torque: 17 N·m
  • Position: Front
  • Side: Left

Details Brake pad:
Pad reference: CP3345D44
Friction surface: 43.4 cm²
Pad depth: 44.1 mm
Thickness: 16.0 mm

Spare parts – Caliper
Pistons:
— Aluminium: CP3215-113
— Stainless steel: CP5560-110
Seal repair kit: CP4518-JJ
Stainless steel piston kit: CP5040-42
Pad retention:
—Retaining screw: CP5100-116 × 1
—Retaining bolt: CP5100-125
Wear plates (Wear Plates)
— CP5100-210 × 2
— CP5100-211 × 2
Piston knock-back prevention spring kit: CP6518-4LBLL
Bleed screw: CP3720-173
Hydraulic connection/header us manifold: CP5000-54

Disc details:
— Ø295 × 25.4 mm: CP5000-510 / CP5000-511CG8
— Ø280 × 25.4 mm: CP5000-312 / CP5000-313CG8

Schéma techniques : (cliquez ici)
Products designed to adapt vehicles for competition use may prohibit them from being driven on roads open to public traffic, insofar as they significantly modify the characteristics of the vehicles as described in the type-approval report issued by the mines department: noise, pollution, maximum speed, tire size, etc.
