AP RACING

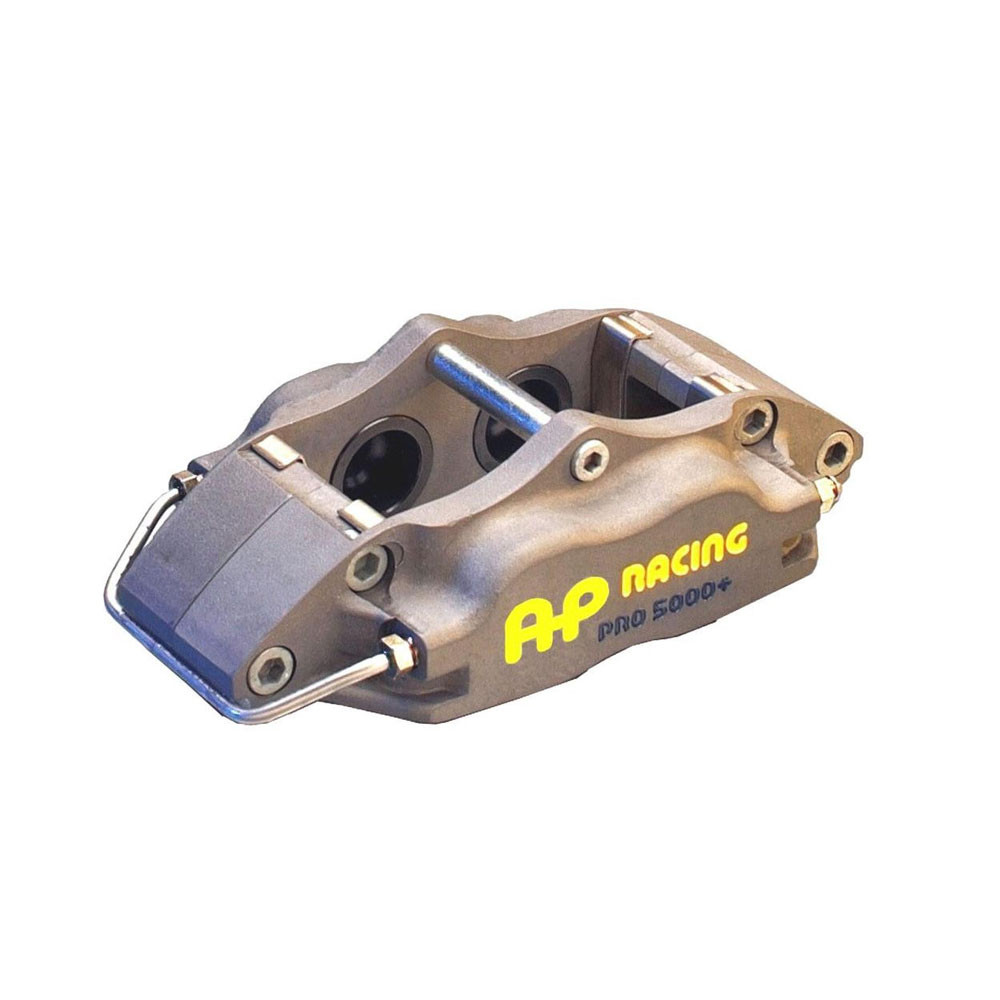

AP Racing 4 pistons brake caliper 25.4mm RHT CP334 Front Right

Pre-order
Shipped from our warehouse
Within 60 days on average.

Description

The AP Racing CP5040 4-piston brake caliper has been designed for competition use and offers reliable, high-performance braking on the track. Part of the Pro 5000 range, it benefits from AP Racing's expertise in motorsport.

Its radial mounting ensures excellent rigidity and rapid braking response, for good pedal feel. This front right caliper is compatible with Ø280 or Ø295 mm discs (25.4 mm thick) and has four Ø38.1 mm pistons, guaranteeing powerful and well-modulated braking.


Specifications:
  • Piston diameter (mm): Ø38.1 × 4
  • Total piston surface area: 45.6 cm²
  • Weight (without pads): 1.9 kg
  • Hydraulic thread: M10 × 1.0
  • Mounting type: radial
  • Mounting centre distance (mm): 130.0
  • Mounting offset (mm): 43.2
  • Mounting hole diameter (mm): 10.2
  • ‘PL’ rib dimension (mm): 53.0
  • Bleeding screw tightening torque: 17 N·m
  • Position: Front
  • Side: Right

Details Brake pad:
Pad reference: CP3345D44
Friction surface: 43.4 cm²
Pad depth: 44.1 mm
Thickness: 16.0 mm

Spare parts – Caliper
Pistons:
— Aluminium: CP3215-113
— Stainless steel: CP5560-110
Seal repair kit: CP4518-JJ
Stainless steel piston kit: CP5040-42
Pad retention:
—Retaining screw: CP5100-116 × 1
—Retaining bolt: CP5100-125
Wear plates (anti-wear plates)
— CP5100-210 × 2
— CP5100-211 × 2
Piston knock-back prevention spring kit: CP6518-4LBLL
Bleed screw: CP3720-173
Hydraulic connection/header us manifold: CP5000-54

Disc details:
— Ø295 × 25.4 mm: CP5000-510 / CP5000-511CG8
— Ø280 × 25.4 mm: CP5000-312 / CP5000-313CG8


Technical diagrams  : (cliquez ici)

Products designed to adapt vehicles for competition use may prohibit them from being driven on roads open to public traffic, insofar as they significantly modify the characteristics of the vehicles as described in the type-approval report issued by the mines department: noise, pollution, maximum speed, tire size, etc.
€763.00 TTC
Tax included
AP-CP5040-10S4
CP5040-10S4
Quantity
View Detail
This product will be specially ordered for you from our supplier.

Empreinte carbone

Empreinte carbone : 8.8 kg CO₂

card_giftcard Earn 763 loyalty points (i.e., €25.00 in vouchers)

Any question? mail Contact us by e-mail phone or by phone +33 4 67 13 88 10
