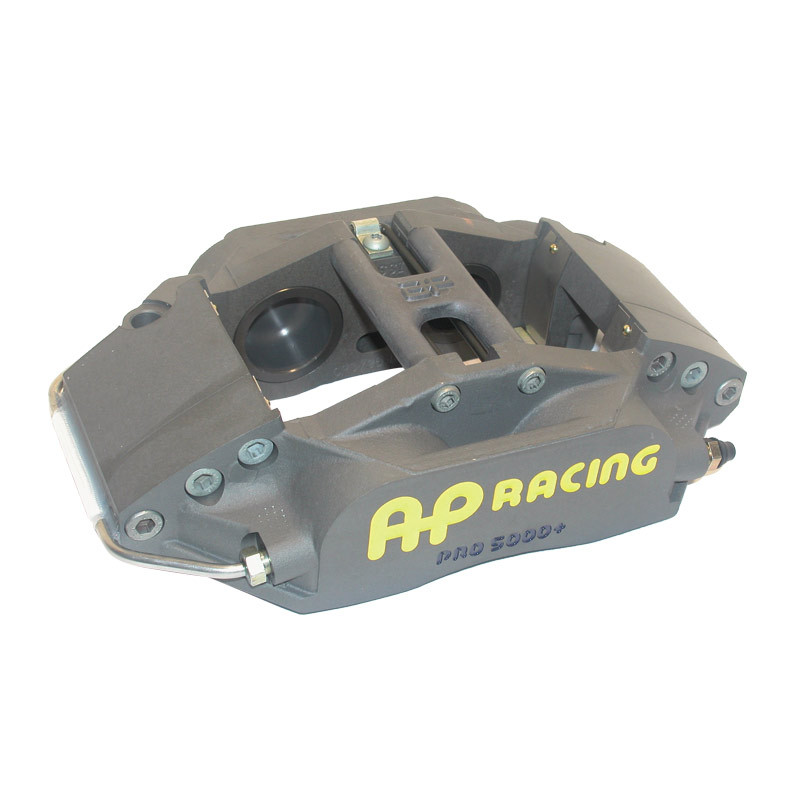

AP-Racing 32mm 4 pots brake caliper left hand side tailling

Improve your vehicle's braking performance with the AP RACING front left brake caliper.

Significantly improve your vehicle's braking performance with this AP Racing CP5040 brake caliper, designed for demanding sports and competition applications. Part of the Pro 5000 range, this 4-piston caliper benefits from the expertise of AP Racing, a global leader in motorsport.

Designed to deliver high brake power and precise reaction, the CP5040 caliper ensures even pad pressure distribution, guaranteeing effective, consistent and perfectly controlled braking, even in the most demanding conditions.

• Piston diameter (mm): Ø38.1 × 2 / Ø44.5 × 2

• Total piston area: 53.8 cm²

• Weight (without pads): 2.4 kg

• Hydraulic thread: M10 × 1.0

• Mounting type: radial

• Mounting centre distance (mm): 180.0

• Mounting offset (mm): 42.0

• Mounting hole diameter (mm): 12.15

• ‘PL’ dimension (mm): 57.74

• Bleeding screw tightening torque: 17 N·m

• Position: Front

• Side: Out-of-round

— Pad reference: CP2279D50

— Friction surface: 57.4 cm²

— Pad depth: 50.3 mm

— Thickness: 20.4 mm

— Aluminium: CP3636-107

— Stainless steel: CP5040-112

— Aluminium: CP3394-110

— Stainless steel: CP5040-111

Stainless steel piston kit: CP5040-44

Seal repair kits: CP4518-JL

Pad retainers: Cross member (H-Piece): CP3795-101

Retaining screws: CP3439-111

— CP3799-110 × 1

— CP3799-111 × 1

— CP3846-101 × 2

Piston knock-back prevention spring kit: CP6518-4LBLL

Bleed screw: CP3720-173

Hydraulic connection/header us manifold: CP5040-7

— Ø330 × 32 mm: CP5000-206 / CP5000-207CG8

— Ø356 × 32 mm: CP5000-218 / CP5000-219CG8

Schéma techniques : (cliquez ici)
