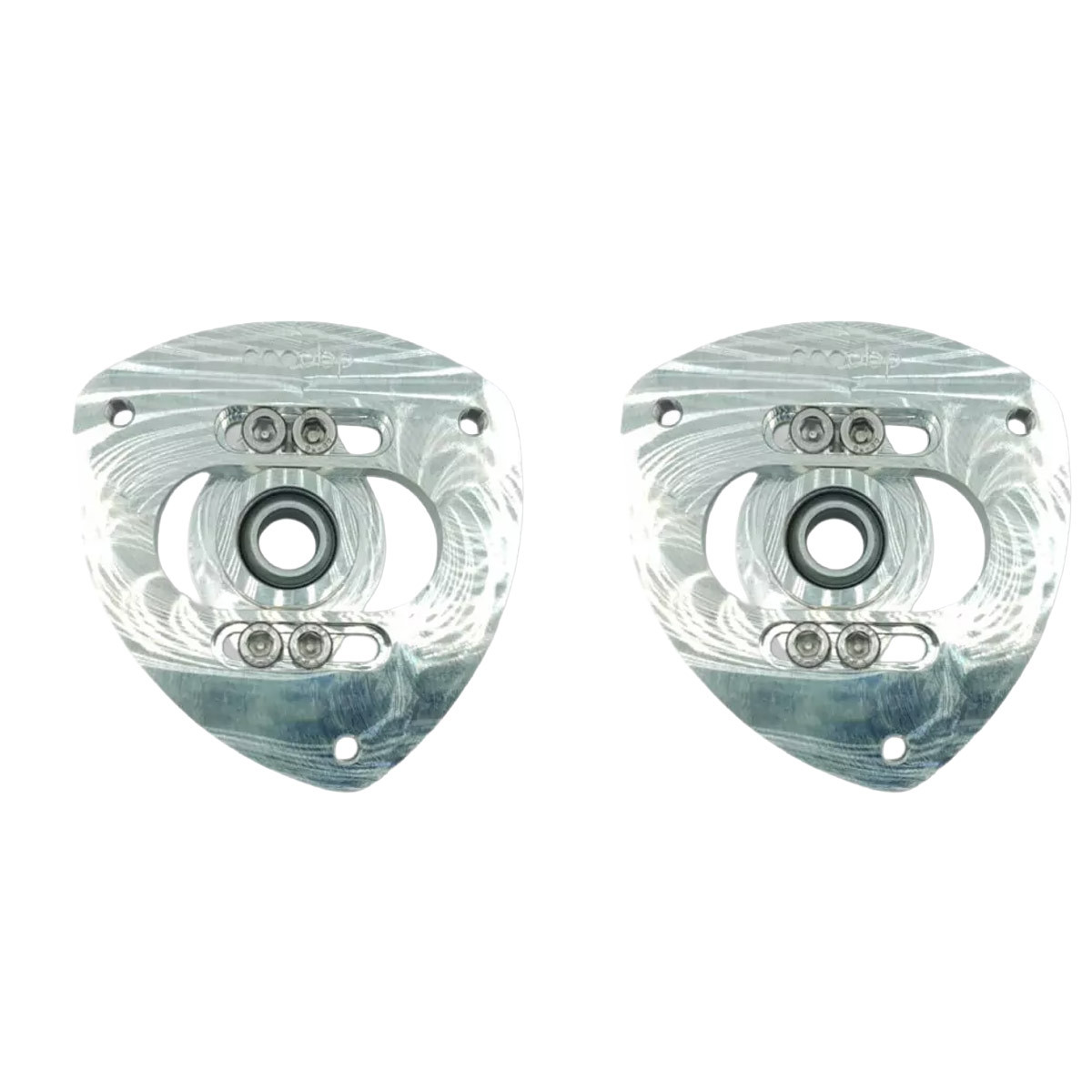

Pair of Adjustable Rod End Bushings for Honda Civic MK7 / Type R & CR-V

This pair of OBP adjustable rod end cups for the Honda Civic MK7 / Type R and Honda CR-V replaces the upper shock absorber top mounts on the front axle while allowing for wheel camber adjustment. Designed specifically for vehicles equipped with a sport suspension or threaded coilovers, they enable fine-tuning of the front suspension geometry for sport driving, track use, or competition.

Wheel camber adjustment allows you to modify the angle of the front wheels to adapt the geometry to ride height, tires, and the desired handling characteristics. On a tuned Honda Civic, this adjustment allows for more precise tuning of front axle handling and tire grip during cornering.

These shock absorber top mounts use PTFE-coated carbon steel rod ends. This design ensures a more direct connection at the shock absorber’s upper mounting point and minimizes unwanted movement compared to a mounting using more flexible components.

The OBP cups are machined from solid 6061 aluminum and then anodized. They feature a 17 mm rod end bore. Reducer inserts are available separately to adapt the mounting when the diameter of the shock absorber rod requires it.

Sold in pairs to equip the entire front axle, these OBP adjustable rod end cups are compatible with the 2000–2005 Honda Civic MK7 / Civic Type R and the 2001–2007 Honda CR-V. They come with 6 M8 mounting bolts.

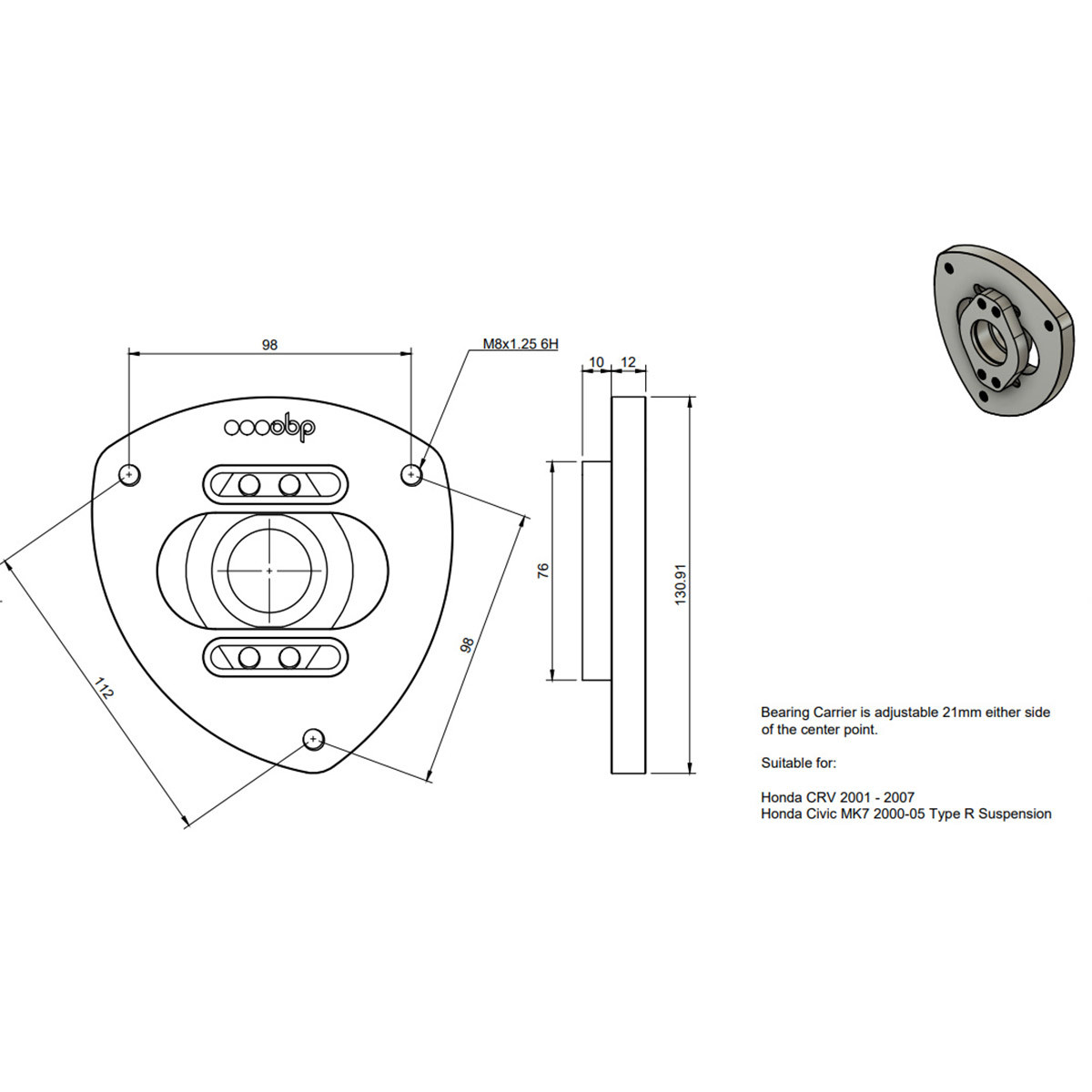

Installation tip: Before placing your order, be sure to carefully check the sizes of your mounting using the technical diagram, particularly the diameter and length of the shock absorber rod, as well as the various measurements required for installing the top mounts.

Specifications for the OBP Adjustable Rod End Cups for Honda Civic MK7 / Type R & CR-V

• Type: Upper shock absorber top mount cups
• Position: Front axle
• Adjustment: Adjustable wheel camber
• Compatibility: Honda Civic MK7 / Civic Type R 2000–2005 / Honda CR-V 2001–2007
• Material: Solid-machined 6061 aluminum
• Finish: Anodized
• Rod ends: Carbon steel spherical joints with PTFE trim
• Rod end bore: 17 mm
• Reducer inserts: Available separately
• Fasteners: 6 M8 bolts included
• Weight: 0.97 kg
• Packaging: Pair
• Manufacturer Part Number: OBPTM009F
