Pair of Adjustable Rod End Cups for OBP Ford Focus MK1 / Fiesta ST / Mazda 2

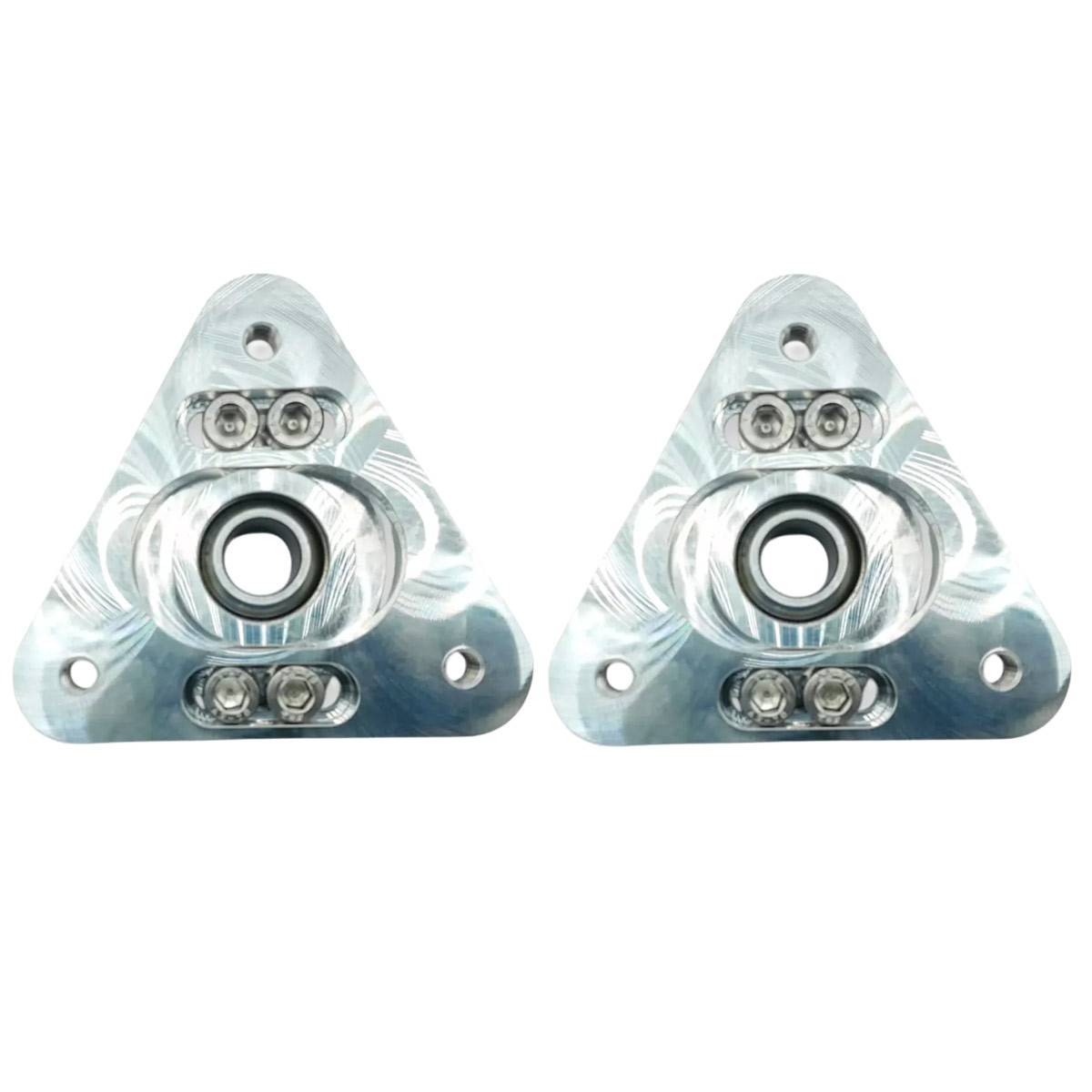

The OBP pair of adjustable rod end cups for the Ford Focus MK1, Ford Fiesta, and Mazda 2 replaces the upper shock absorber top mounts on the front suspension while allowing for wheel camber adjustment. Designed specifically to complement a sport suspension or threaded coilovers, they enable fine-tuning of the vehicle’s front suspension geometry for sport driving or racing.

Wheel camber adjustment allows you to change the angle of the front wheels to adapt the chassis behavior to ride height, tires, suspension, and driving conditions. This makes it possible to fine-tune the geometry for greater precision and to optimize tire performance when cornering.

These ball-joint shock absorber top mounts are equipped with PTFE-coated carbon steel rod ends. This mounting creates a more direct connection at the shock absorber’s upper mounting and helps minimize unwanted movement compared to a cup using more flexible components.

OBP cups are machined from solid 6061 aluminum and then anodized. The rod end has a 17 mm bore, and reducer inserts are available separately when adaptation to the shock absorber rod diameter is required.

Sold in pairs to equip the entire front axle, they are compatible, according to OBP, with the Ford Focus MK1, Ford Fiesta MK1 and MK2, Ford Fiesta ST, and Mazda 2.

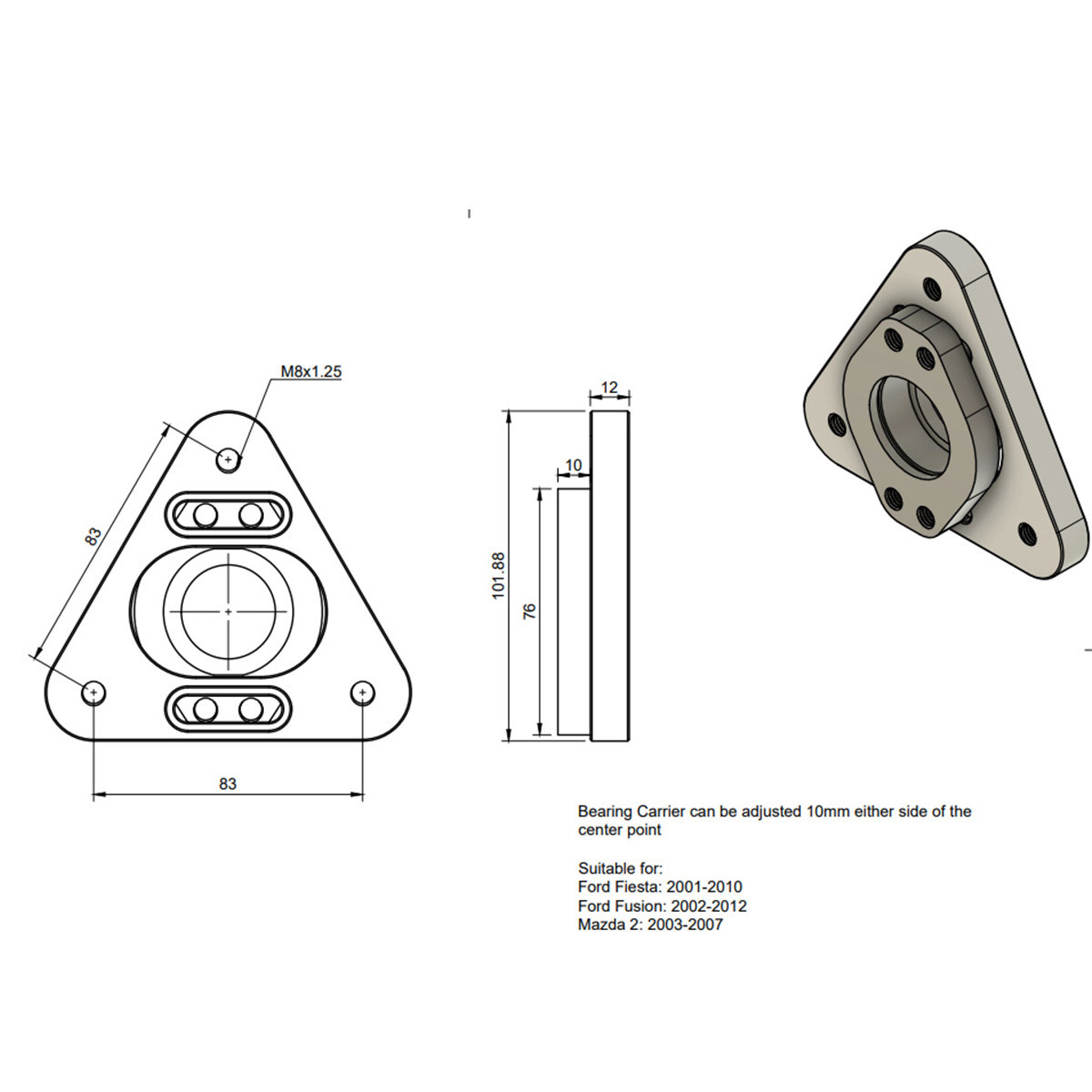

Installation tip: Before placing your order, be sure to carefully check the sizes of your mounting using the technical diagram, particularly the diameter and length of the shock absorber rod, as well as the various measurements required for installing the top mounts.

Features of the OBP Ford Focus MK1 / Fiesta / Mazda 2 Adjustable Rod End Cup Set

• Type: Upper shock absorber top mount
• Position: Front axle
• Adjustment: Adjustable wheel camber
• Compatibility: Ford Focus MK1 / Ford Fiesta MK2 & MK3 / Ford Fiesta ST / Mazda 2
• Material: Solid-machined 6061 aluminum
• Finish: Anodized
• Rod ends: Carbon steel spherical rod ends with PTFE trim
• Rod end bore: 17 mm
• Reducer inserts: Available separately
• Fasteners: 6 M8 bolts included
• Weight: 0.7 kg
• Packaging: Pair
• Manufacturer part number: OBPTM011F
