Pair of Adjustable Rod End Cups (OBP) for Citroën Saxo / Peugeot 106

The pair of OBP rod end-mounted adjustable cups for the Citroën Saxo and Peugeot 106 replaces the upper shock absorber top mounts on the front axle while adding wheel camber adjustment. Particularly well-suited for sport suspensions and threaded coilovers, they allow for fine-tuning the geometry for sport driving, rallying, track use, or racing.

Adjustable wheel camber allows you to modify the angle of the front wheels and adapt the geometry to ride height, tires, and the desired handling characteristics. This adjustment is particularly beneficial on a tuned Saxo or 106 to optimize tire performance in corners and refine front suspension geometry.

These shock absorber top mounts use PTFE-coated carbon steel rod ends. This design provides a more direct connection at the shock absorber’s upper mounting point and minimizes unwanted movement compared to an assembly using more flexible components.

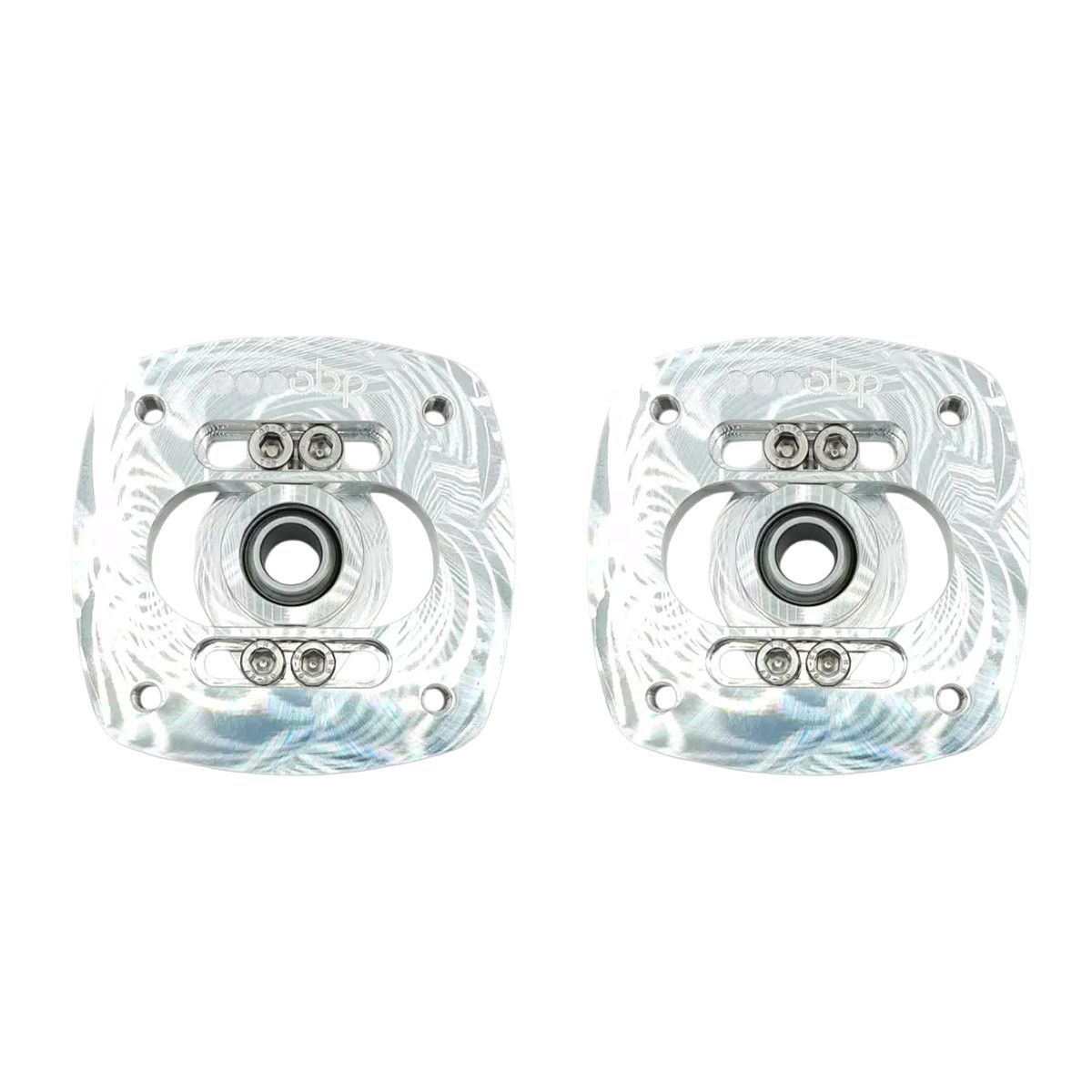

The OBP cups are machined from solid 6061 aluminum and then anodized. They feature a rod end with a 17 mm bore. Reducer inserts are available separately to adapt the mounting when the diameter of the shock absorber rod requires it.

Sold in pairs to fit the entire front axle, these OBP adjustable rod end cups are designed for the 1996–2004 Citroën Saxo and Peugeot 106. They come with 6 M8 mounting bolts.

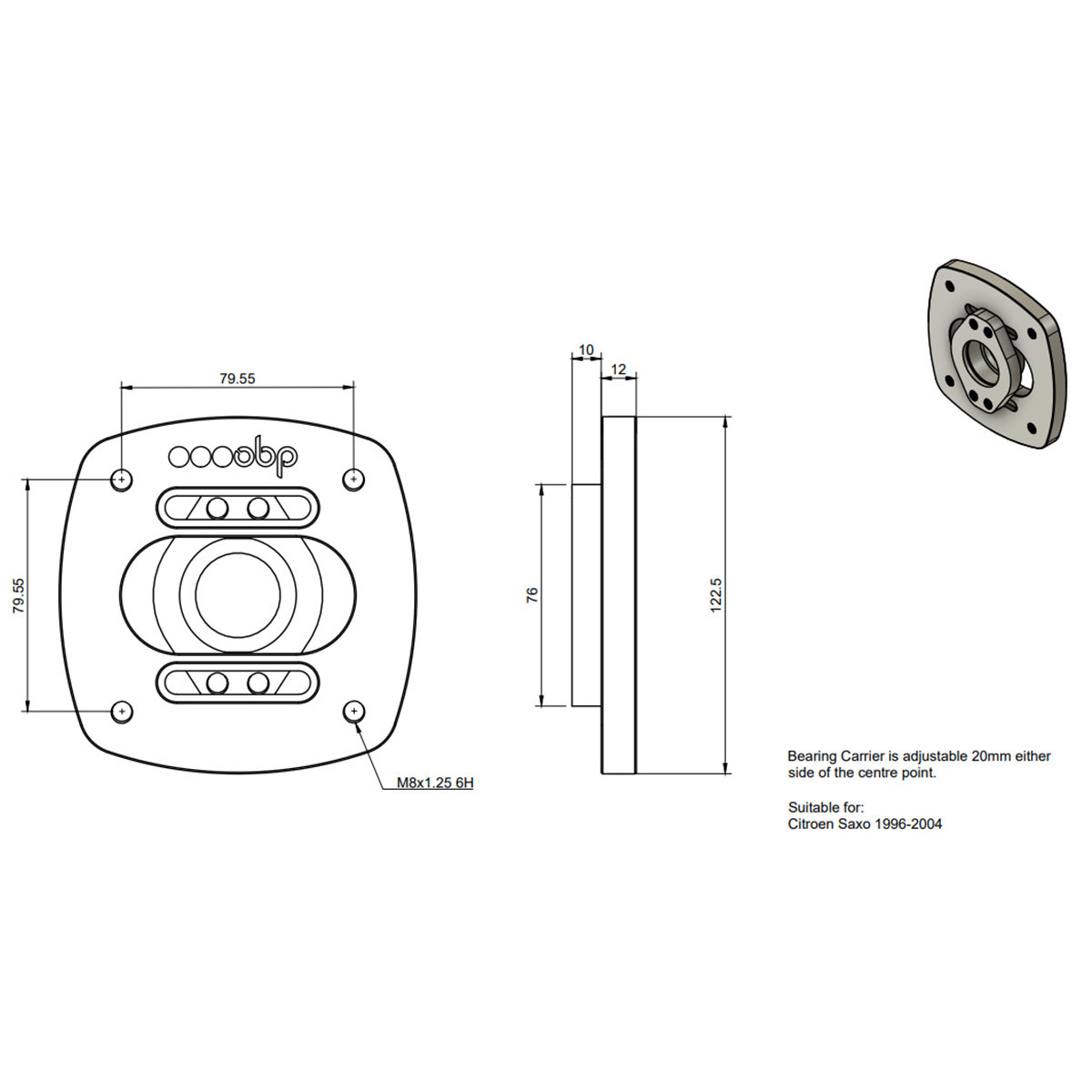

Installation tip: Before placing your order, be sure to carefully check the sizes of your mounting using the technical diagram, particularly the diameter and length of the shock absorber rod, as well as the various measurements required for installing the top mounts.

Specifications for the pair of OBP adjustable rod end cups for Citroën Saxo / Peugeot 106

• Type: Upper shock absorber rod end mount
• Position: Front axle
• Adjustment: Adjustable wheel camber
• Compatibility: Citroën Saxo 1996–2004 / Peugeot 106
• Material: Solid-machined 6061 aluminum
• Finish: Anodized
• Rod ends: Carbon steel spherical rod ends with PTFE trim
• Rod end bore: 17 mm
• Reducer inserts: Available separately
• Fasteners: 6 M8 bolts included
• Weight: 1 kg
• Packaging: Pair
• Manufacturer part number: OBPTM010F
