Cartek FIA LED Rain Light with steady illumination for vertical mounting

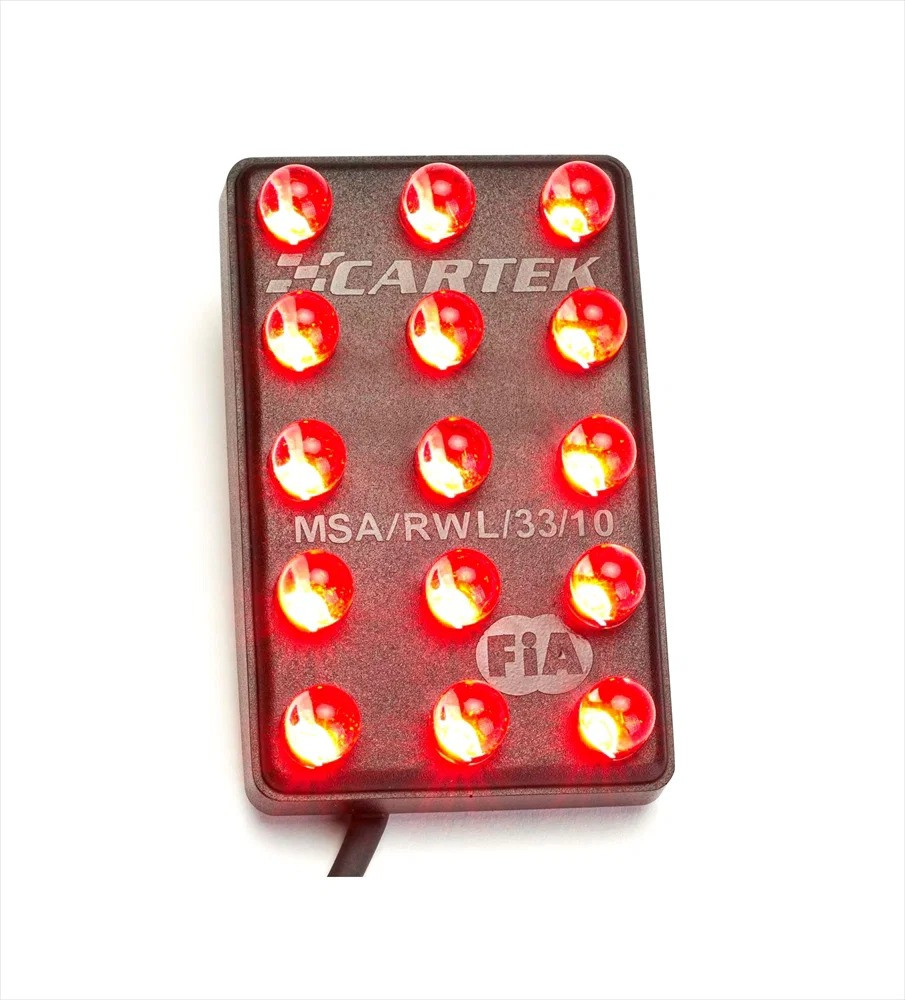

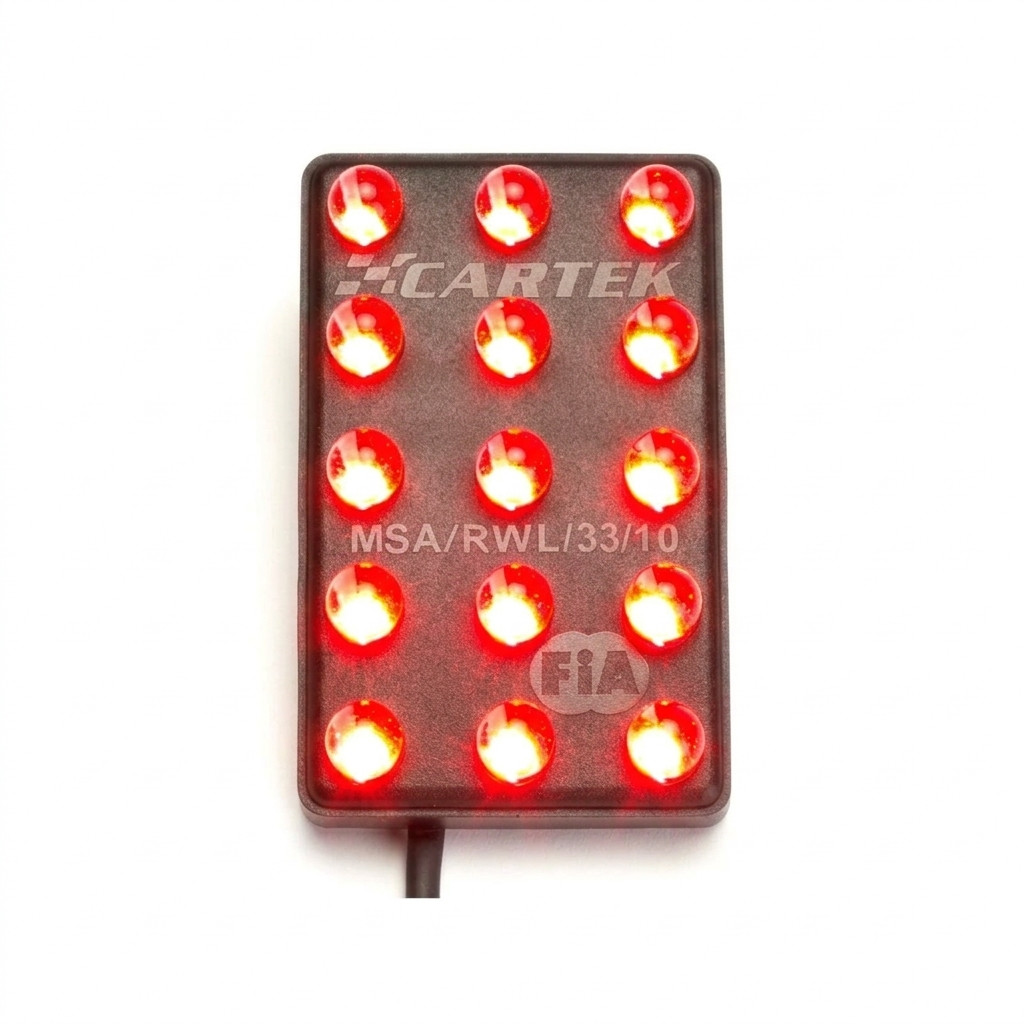

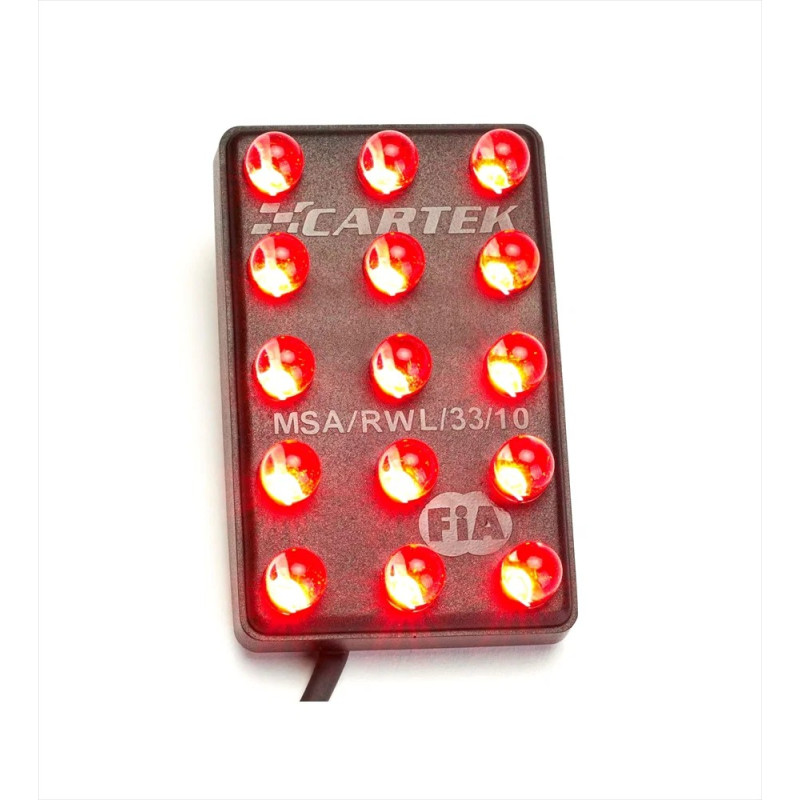

The Cartek LED rain light for vertical mounting is designed for rear signaling on competition vehicles. Part number CK-LR-15-V emits a steady red light and receives approval according to FIA 2008 specifications, in accordance with FIA Technical List No. 19.

Its 15 LEDs, arranged in a 5 × 3 configuration, provide a minimum luminous intensity of 250 cd along the shaft. Its one-piece resin construction combines a compact size with a design suited to the environment of a race car.

Operation and Use

This version produces a continuous light when powered. It is intended for vertical installation at the rear of the vehicle to serve as a rain light.

Technical Specifications

• Brand: Cartek.
• Manufacturer Part Number: CK-LR-15-V.
• Type: Rectangular LED rain light.
• Mounting orientation: vertical.
• Operation: steady light.
• Light color: red.
• Light sources: 15 multi-component LEDs, arranged in a 5 × 3 configuration.
• Approval: 2008 FIA specifications, Technical List No. 19.
• Homologation number: MSA/RWL/33/10.
• Minimum luminous intensity along the shaft: 250 cd.
• Sizes specified by Cartek: 91 × 56.5 × 17 mm.
• Weight: 145 g.
• Supply voltage: 9 to 16 V.
• Construction: one-piece resin mold.
• Mounting: two M6 stainless steel studs.
• Connection: 190 mm cable suitable for use in vehicles.

Mounting and Connection

Install the light in a vertical position using the two rear M6 studs. Connect the red wire to the positive terminal of the power supply via a switch and the black wire to ground, as shown in the Cartek diagram.
