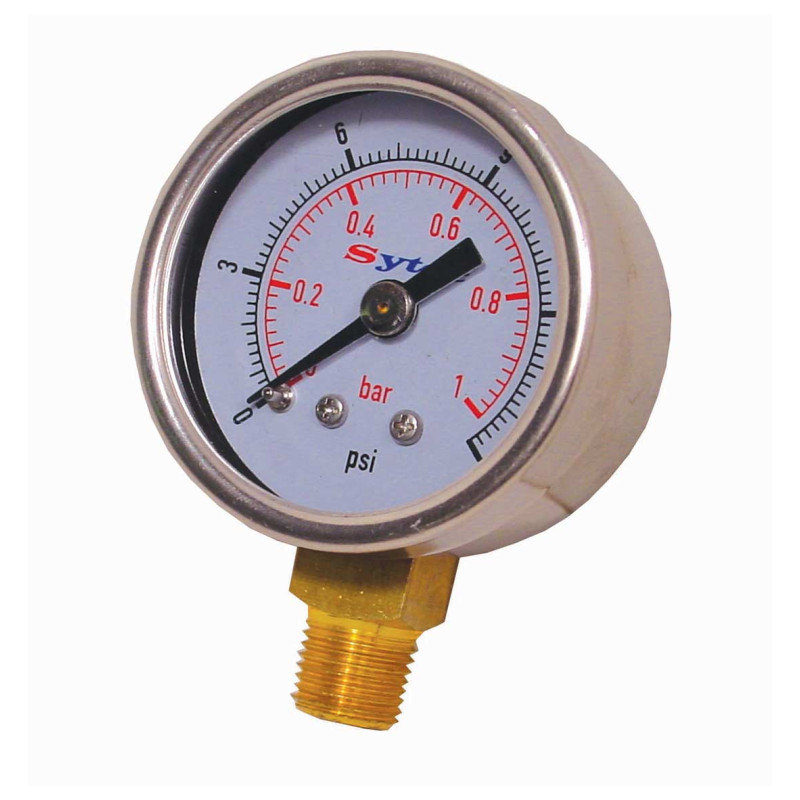

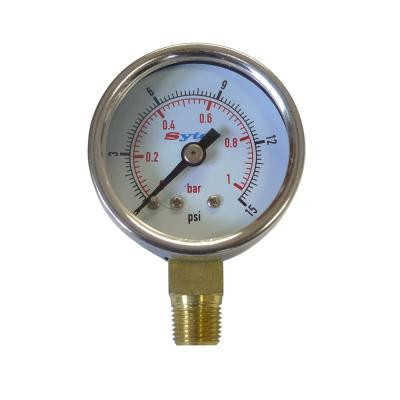

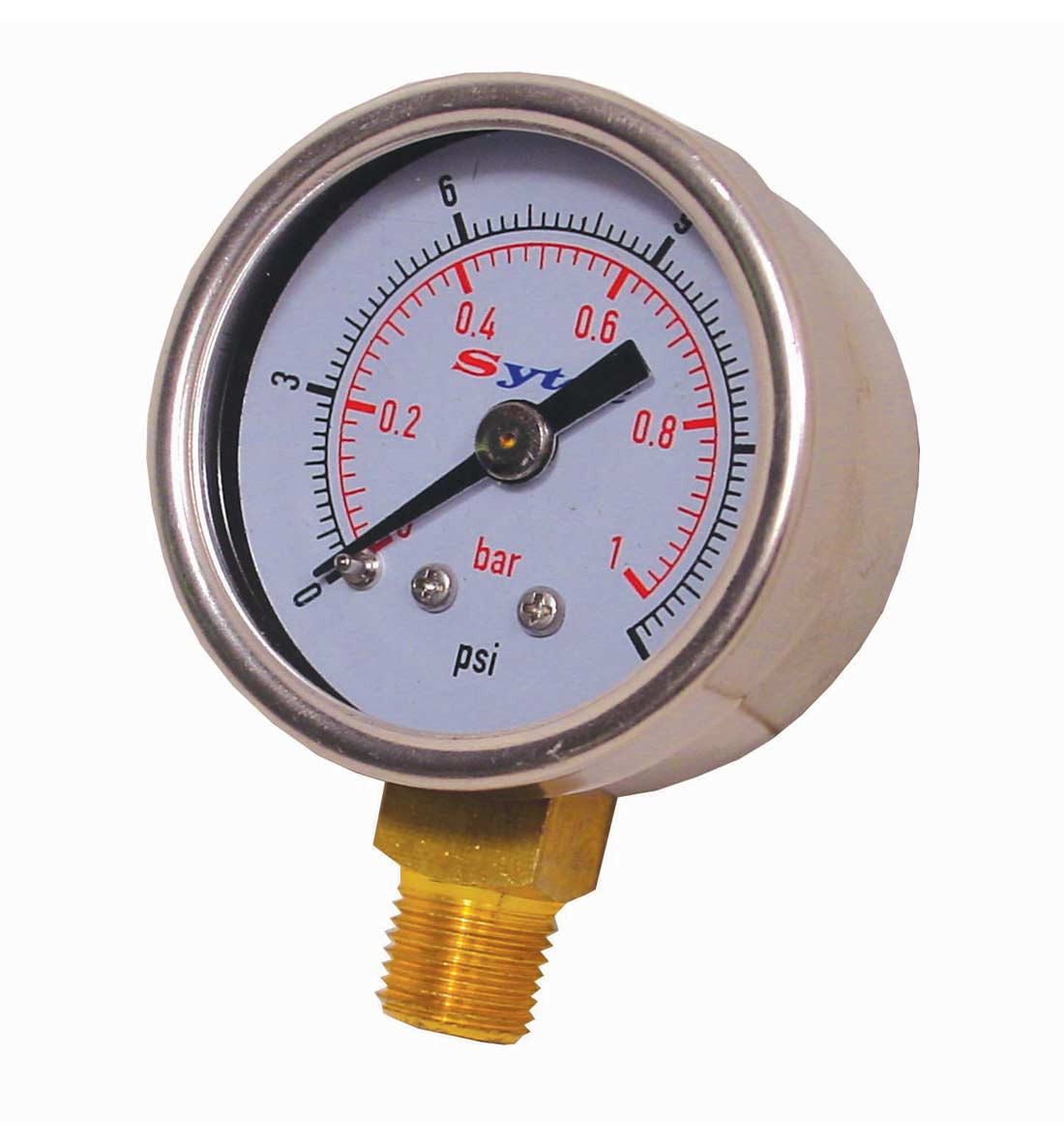

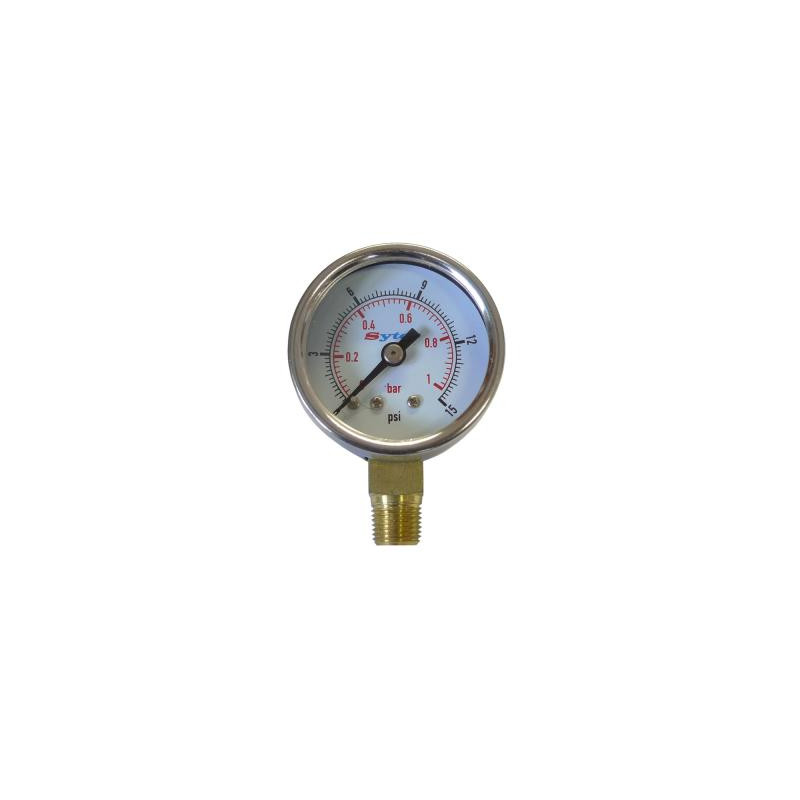

Sytec Fuel Pressure Gauge 0 to 1 bar

The Sytec fuel pressure gauge for carburetors allows you to monitor the feed pressure in low-pressure systems. Its measurement range of 0 to 1 bar / 0 to 15 psi is suitable for checking the pressure delivered to carburetors and for adjusting a fuel pressure controller.

Its 42-mm-diameter dial features dual graduations in bar and psi. The fitting at the bottom has a 1/8 NPTF thread for connection to a pressure tap or a compatible adapter.

This gauge is intended for testing purposes only: it must not remain permanently installed in the fuel system.

Technical Specifications

• Brand: Sytec
• Manufacturer Part Number: FPG001
• Type: Low-pressure fuel pressure gauge
• Application: carburetor fuel systems
• Specified measurement range: 0 to 1 bar / 0 to 15 psi
• Scale: dual scale (bar and psi)
• Diameter: 42 mm
• Overall length: 58 mm
• Accuracy: ±2.5% of full scale
• Position of the connection: bottom
• Thread: 1/8 NPTF
• Declared compliance: BS EN 837-1
• Use: Temporary monitoring only; not for permanent installation

Compatibility and Precautions for Use

The Sytec FPG001 is suitable for carburetor systems where the pressure remains within its measurement range. To test a fuel injection system requiring a higher pressure range, choose the Sytec FPG002, which is calibrated from 0 to 7 bar.

Mounting requires a pressure tap or an adapter compatible with the 1/8 NPTF thread. Connect and disconnect the gauge on a depressurized system, then check for leaks before testing. After use, remove the gauge and reseal the system.

Information on the Needle Position

The manufacturer notes that a slight deviation of the needle from neutral may occur after shipping, without affecting the gauge’s operation or accuracy.
