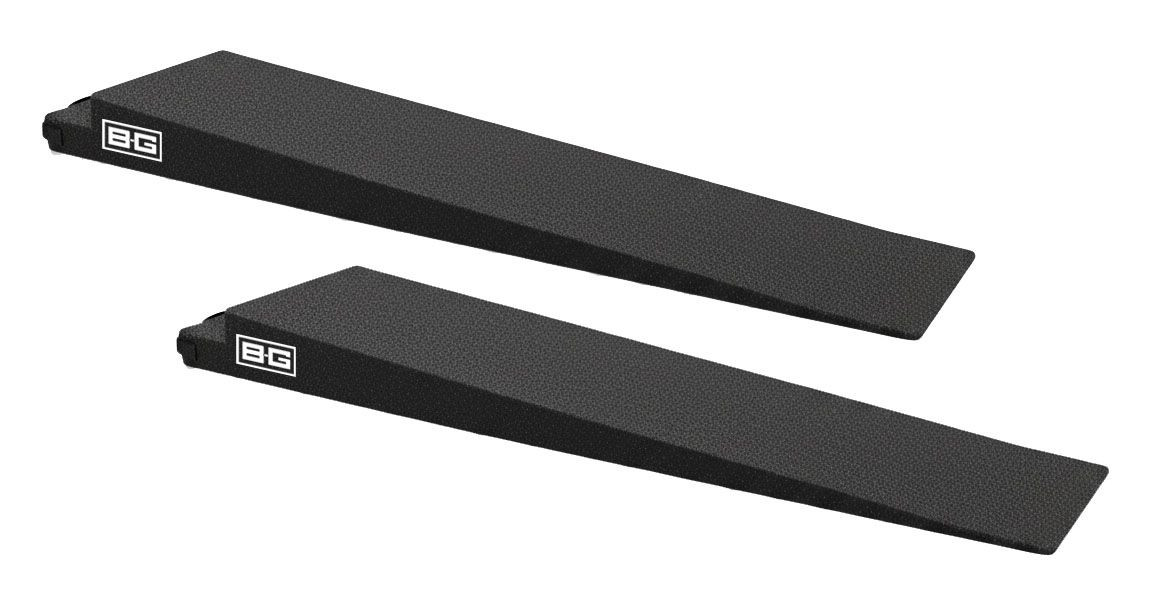

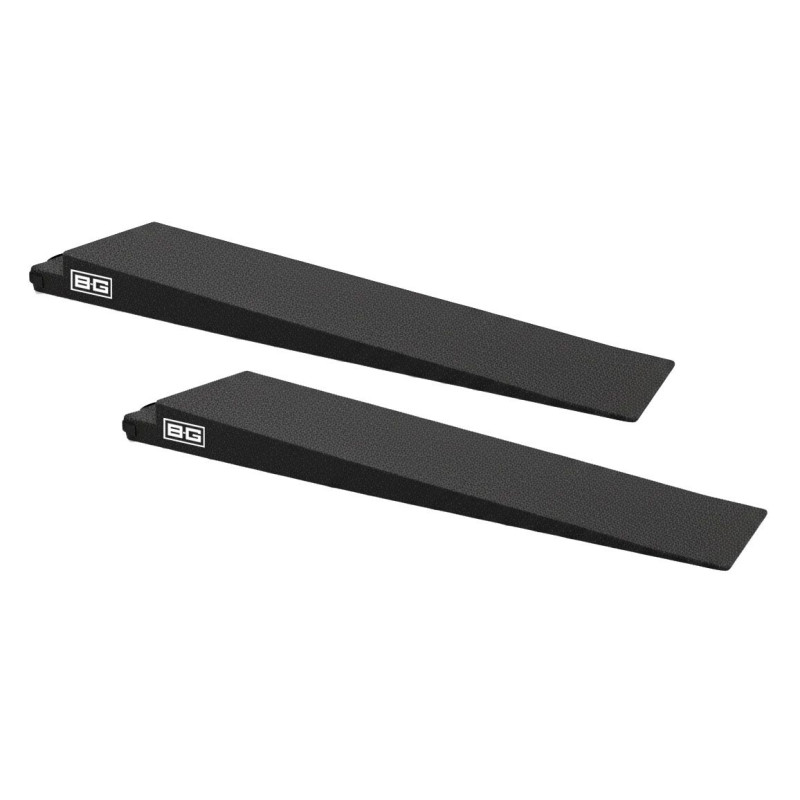

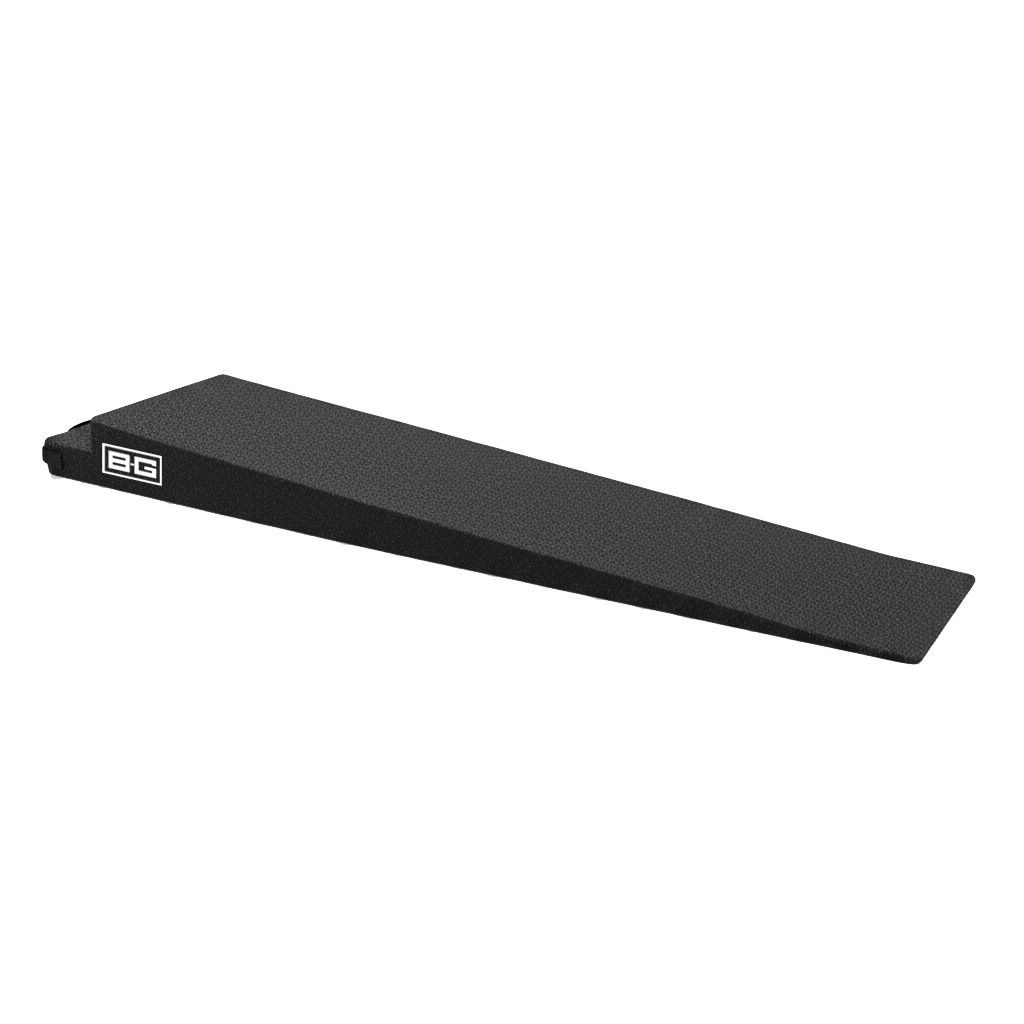

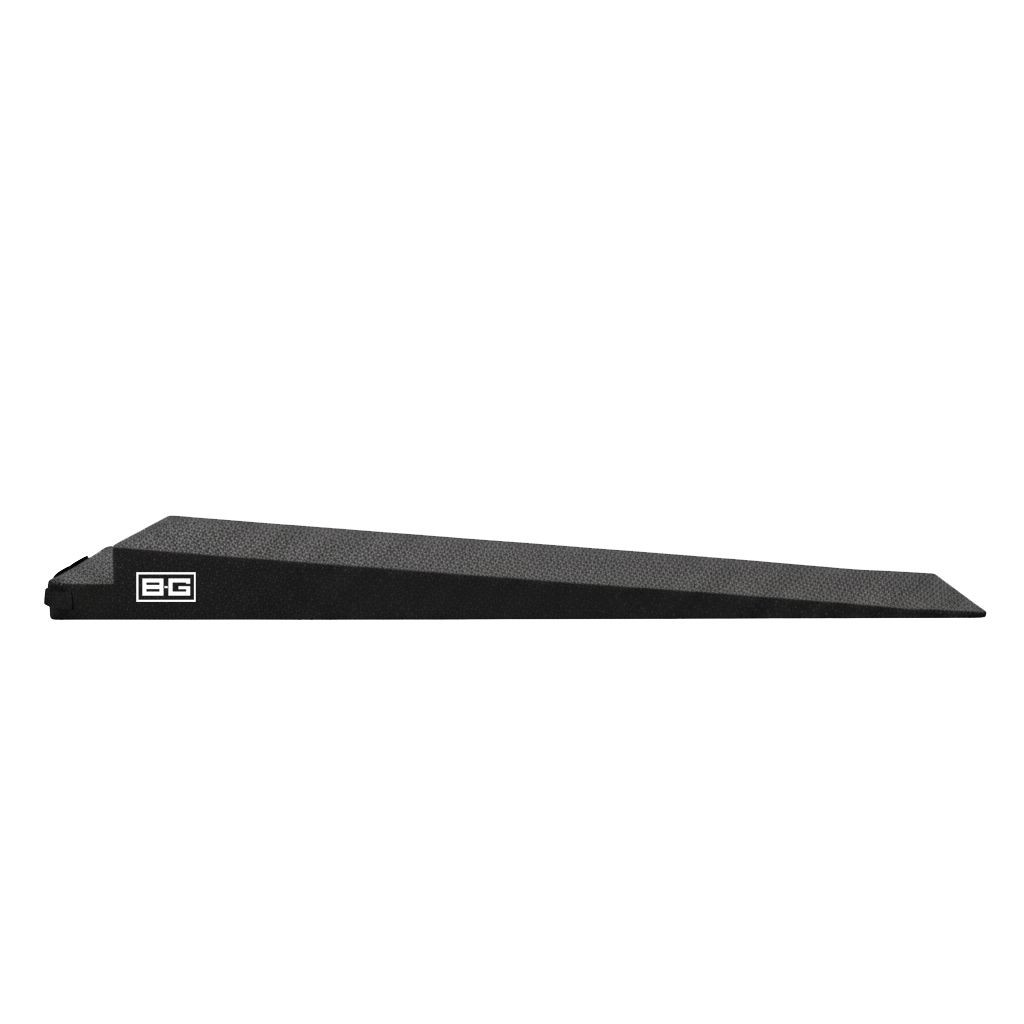

Pair of BG Racing 6° Loading Ramps, 188 x 35 x 18 cm

The BG Racing BG6504 pair of loading ramps is designed to facilitate access for race cars, sports cars, and low-slung vehicles onto a trailer. Positioned under the tailgate or existing ramps, they reduce the approach angle and thus minimize the risk of contact with the spoiler, rocker panels, or underbody during loading and unloading.

With a length of nearly 188 cm and an incline angle of just 6°, the BG6504 ramps create a gradual access slope that is particularly well-suited for vehicles with low ground clearance. They reach a maximum height of 17.8 cm.

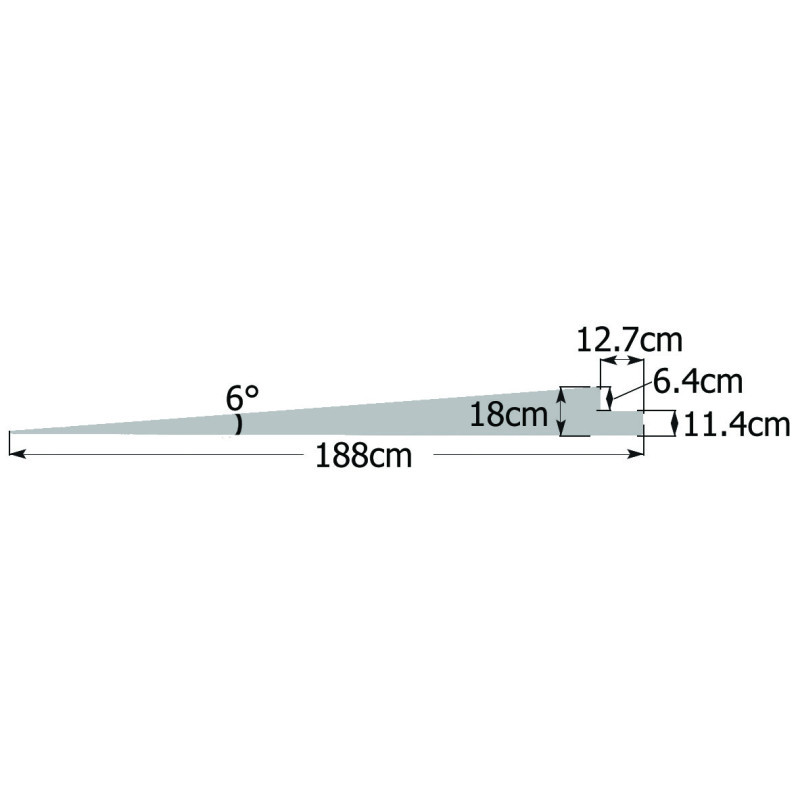

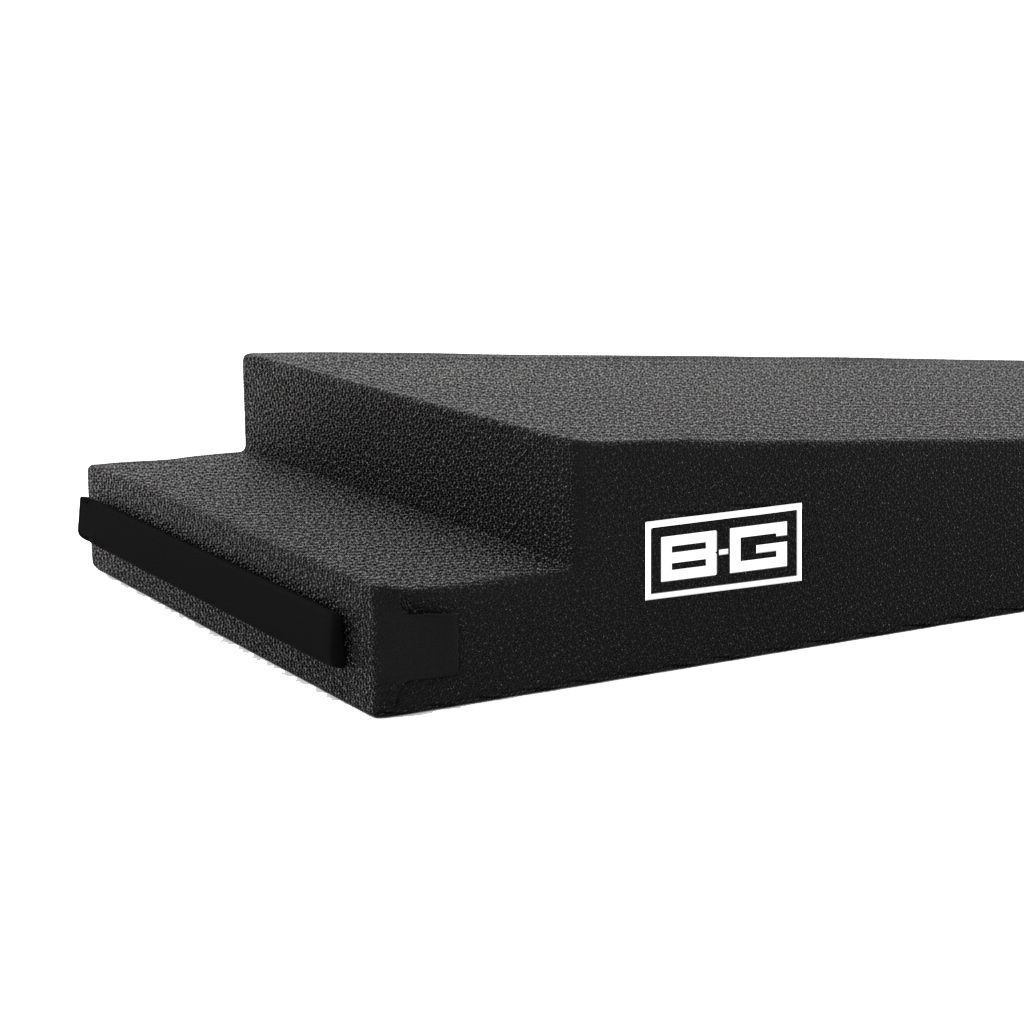

A 12.7 cm long and 6.4 cm high notch is integrated into the upper end of each ramp. The trailer door or ramp can rest on this notch to ensure a smooth transition as the vehicle drives up.

Made of high-density, closed-cell EPS foam, these ramps combine resistance and lightness for easy handling on the track and in the paddock. Their water-resistant polyurea trim allows for use in a variety of weather conditions. The pair can support a maximum combined load of 2,265 kg.

Technical Specifications

Brand: BG Racing
Manufacturer Part Number: BG6504
Type: Trailer loading ramps
Packaging: pair
Length: 187.9 cm
Width: 35.5 cm
Maximum height: 17.8 cm
Angle of inclination: 6°
Notch length: 12.7 cm
Notch height: 6.4 cm
Construction: high-density closed-cell EPS foam
Color: black
Finish: textured
Trim: water-resistant polyurea resistance
Weight: 14.5 kg per pair
Maximum load: 2,265 kg per pair
