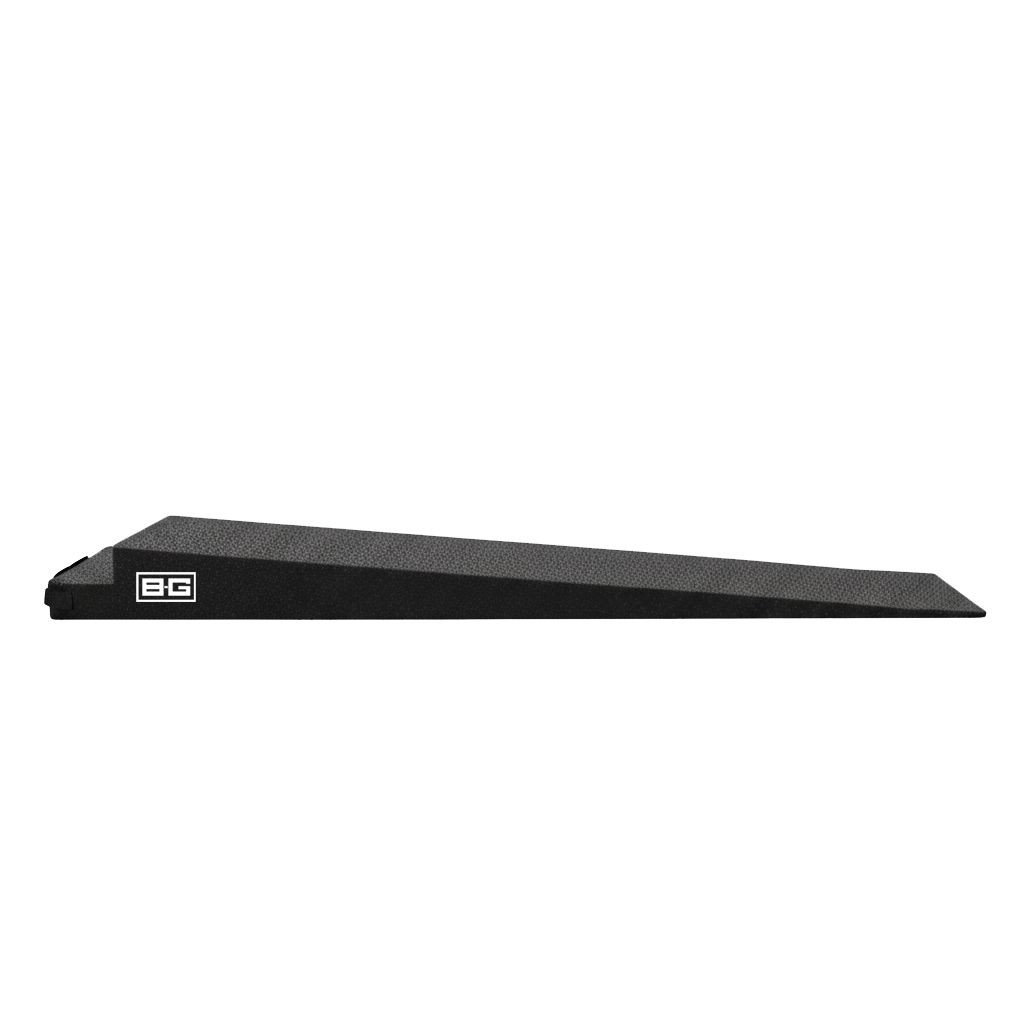

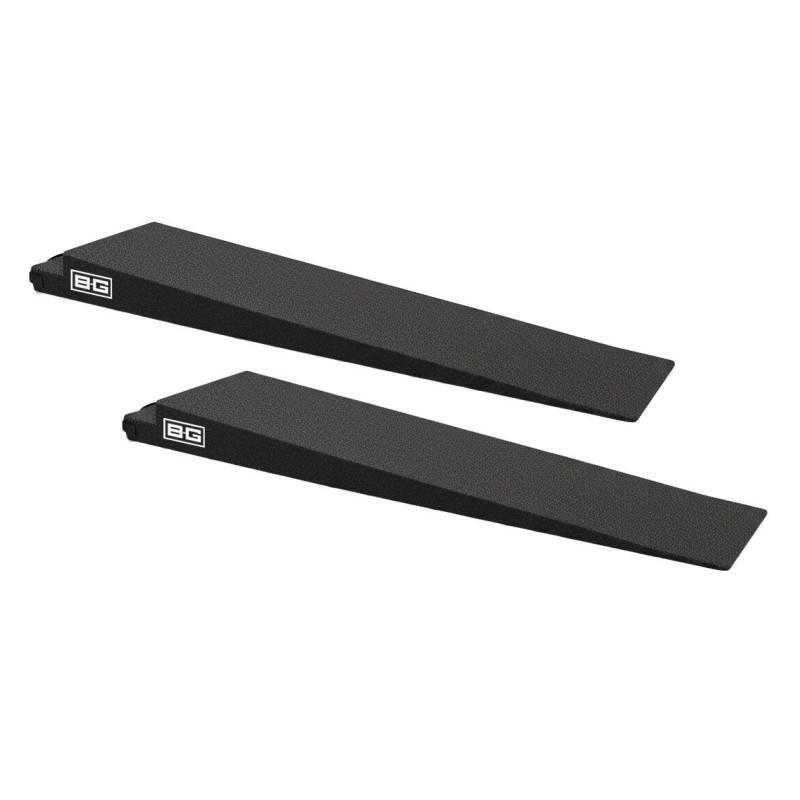

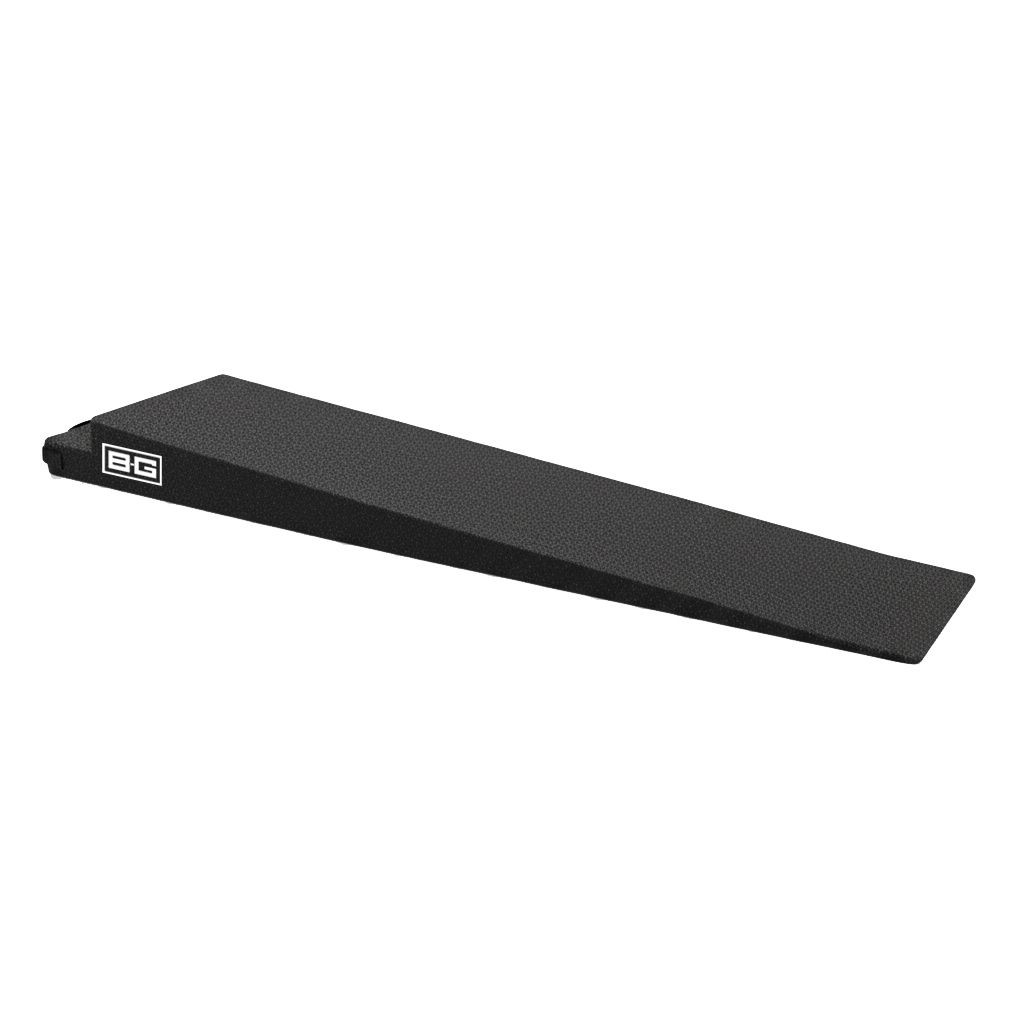

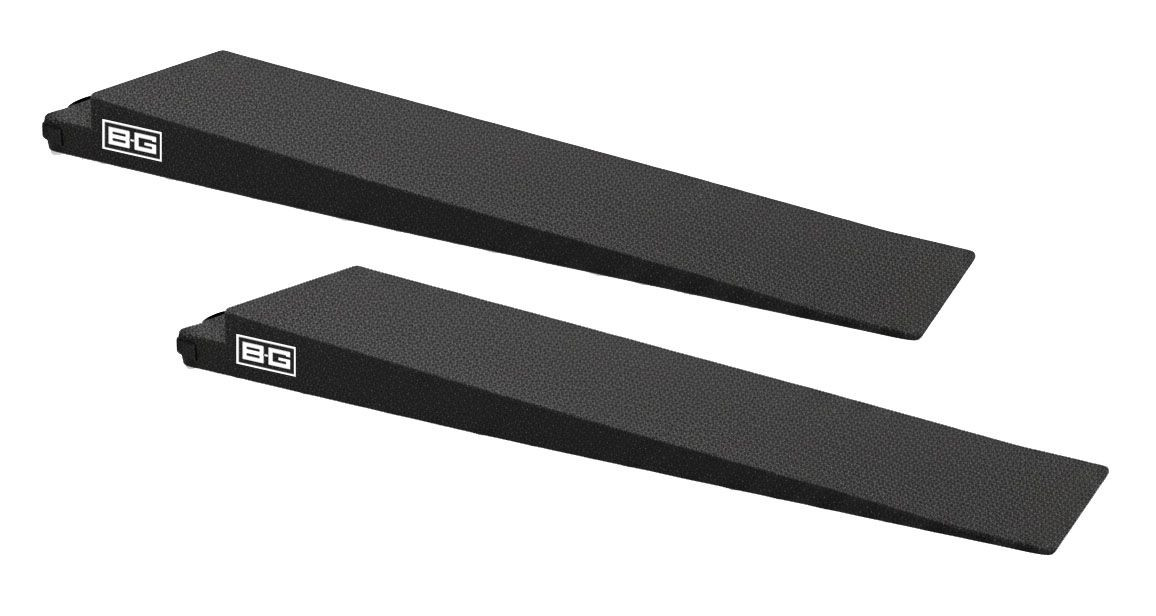

Pair of BG Racing 6° Loading Ramps, 107 x 35 x 11 cm

The BG Racing BG6500 loading ramps are designed to facilitate the loading and unloading of race cars and low-slung vehicles onto a trailer or transporter. Their low 6° angle of inclination reduces the access slope, thereby minimizing the risk of the spoiler, rocker panels, or underbody coming into contact with the loading ramp.

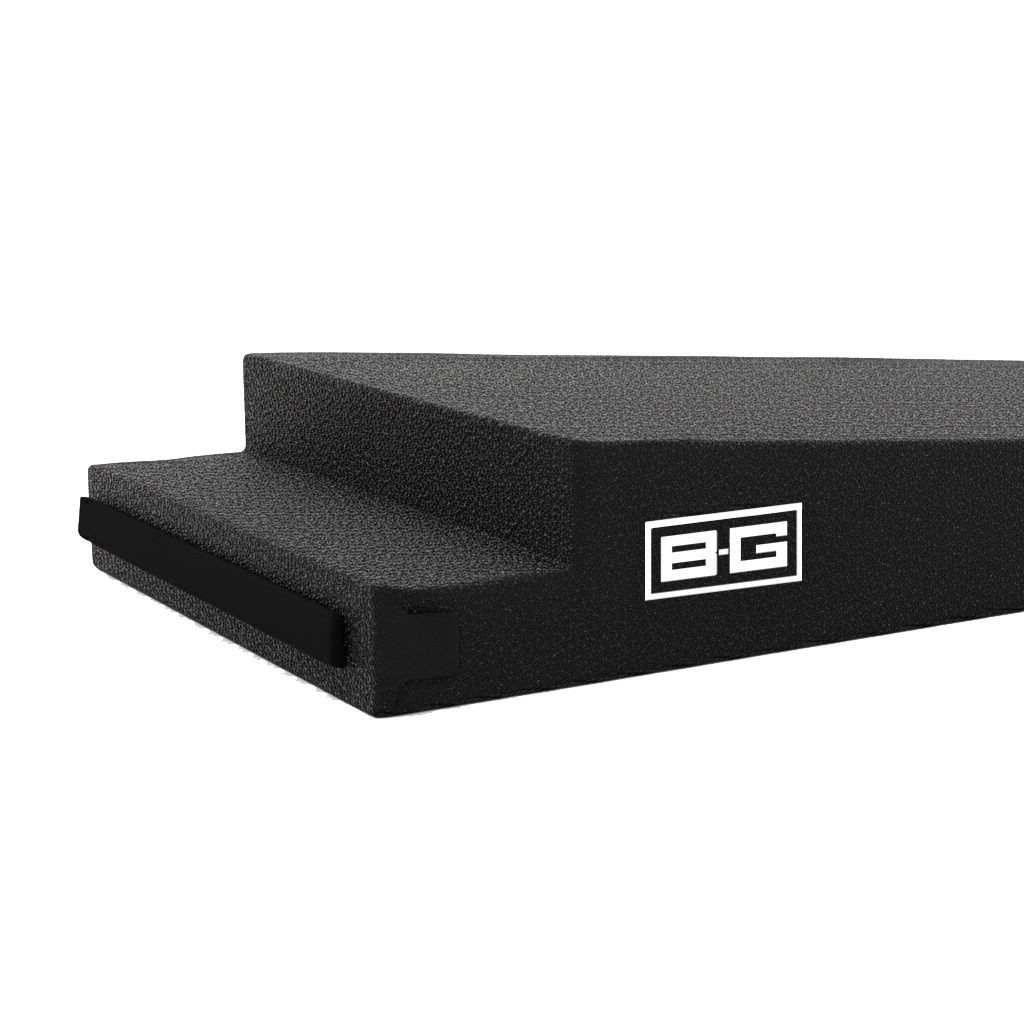

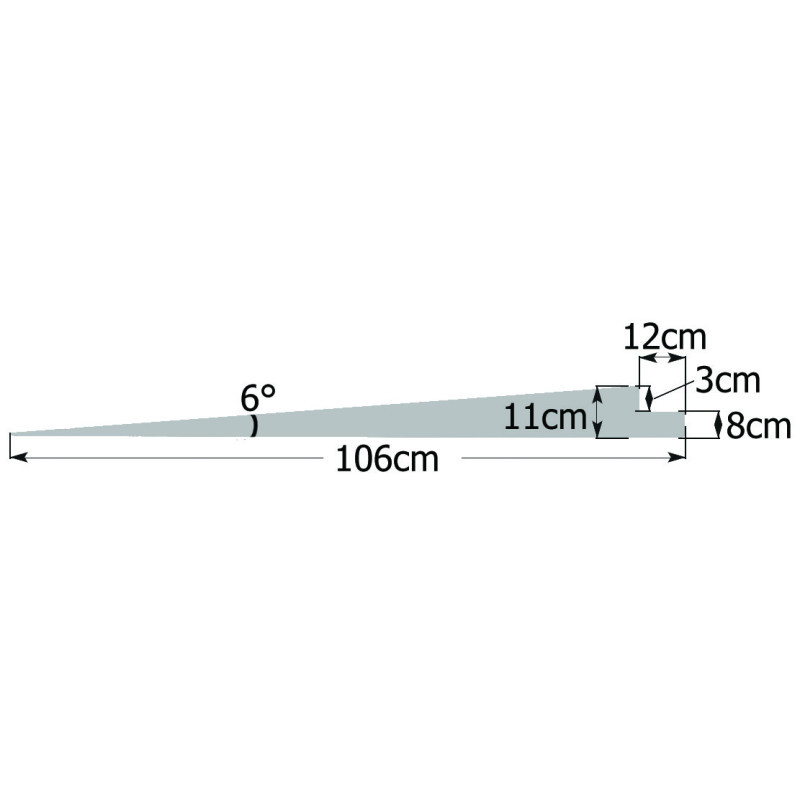

Each ramp measures 107 cm long by 35 cm wide and is approximately 11.4 cm high. A 12.7 cm long and 3.2 cm high notch allows the trailer door or ramp to be positioned over the BG Racing ramps, creating a smoother transition for the vehicle.

The ramps are made of high-density, closed-cell EPS foam. This construction provides a sturdy structure while keeping the weight low to facilitate handling in the paddock. A water-resistant polyurea trim protects their surface and allows for use in various weather conditions.

The pair can support a maximum combined load of 2,265 kg and is a solution particularly well-suited for vehicles with low ground clearance.

Technical Specifications

Brand: BG Racing
Manufacturer Part Number: BG6500
Type: vehicle loading ramps
Packaging: pair
Length: 107 cm
Width: 35 cm
Height: approximately 11.4 cm
Angle of inclination: 6°
Notch length: 12.7 cm
Notch height: 3.2 cm
Structure: high-density closed-cell EPS foam
Trim: water-resistant polyurea resistance
Maximum load: 2,265 kg per pair
