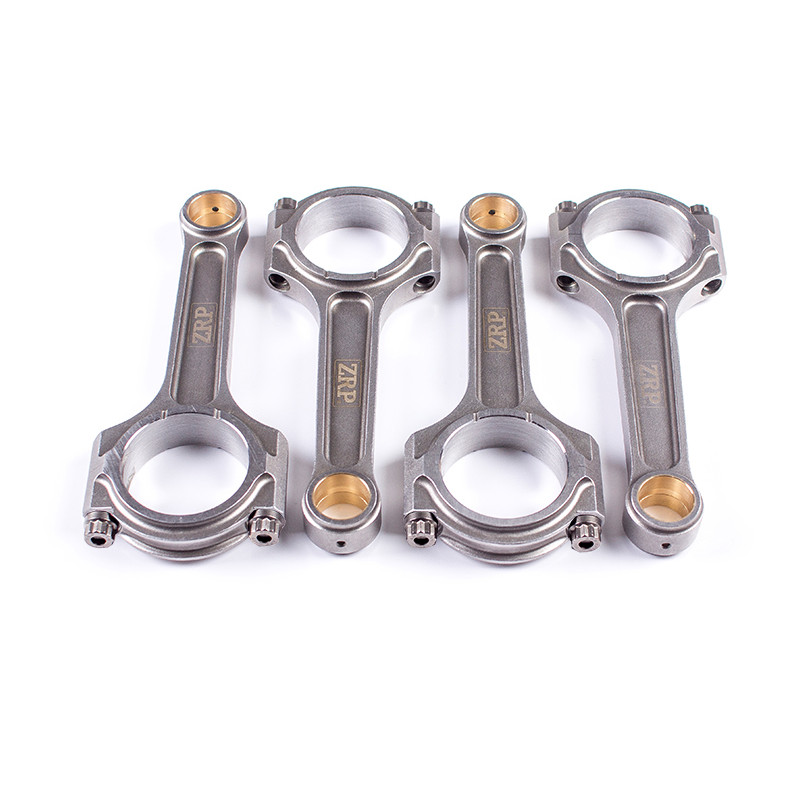

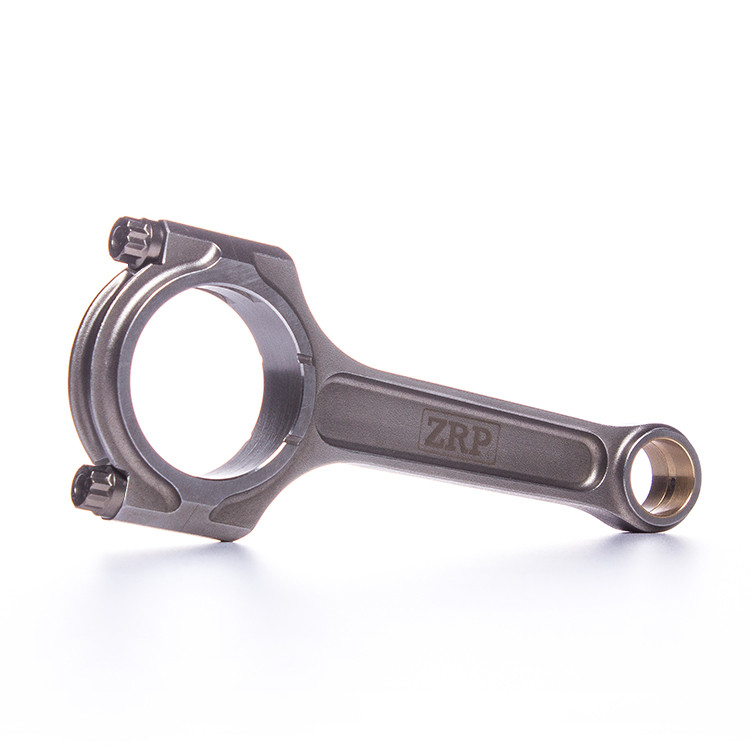

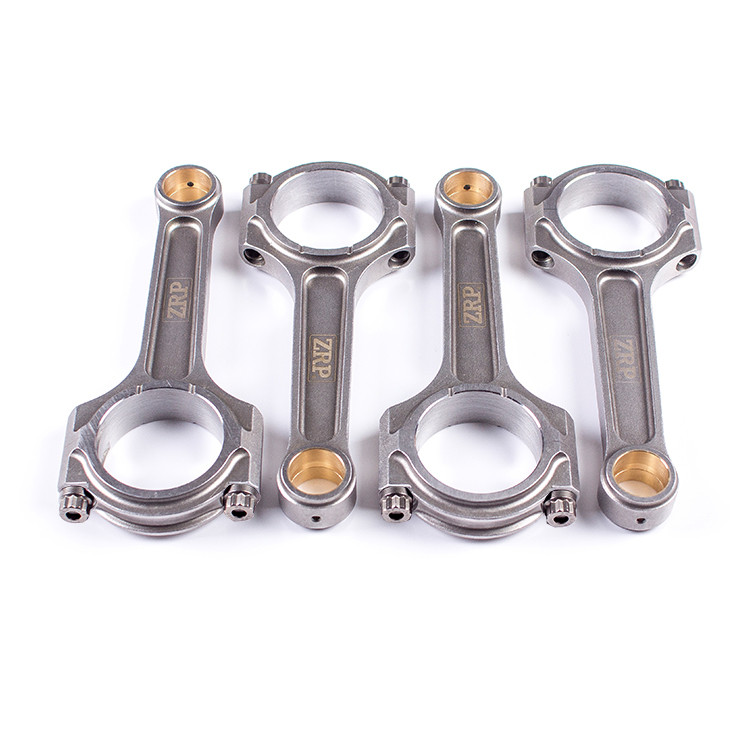

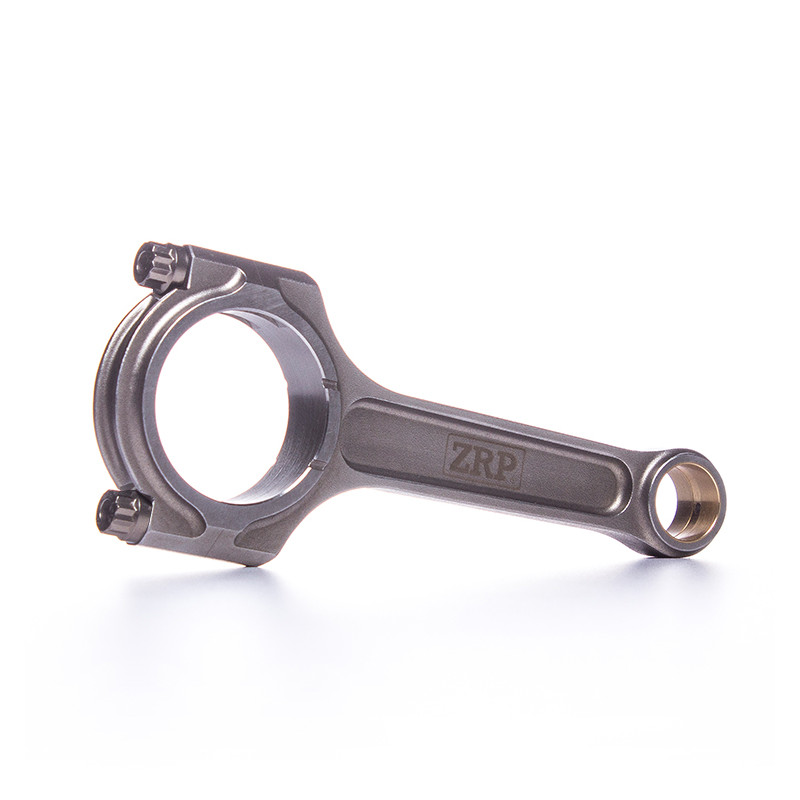

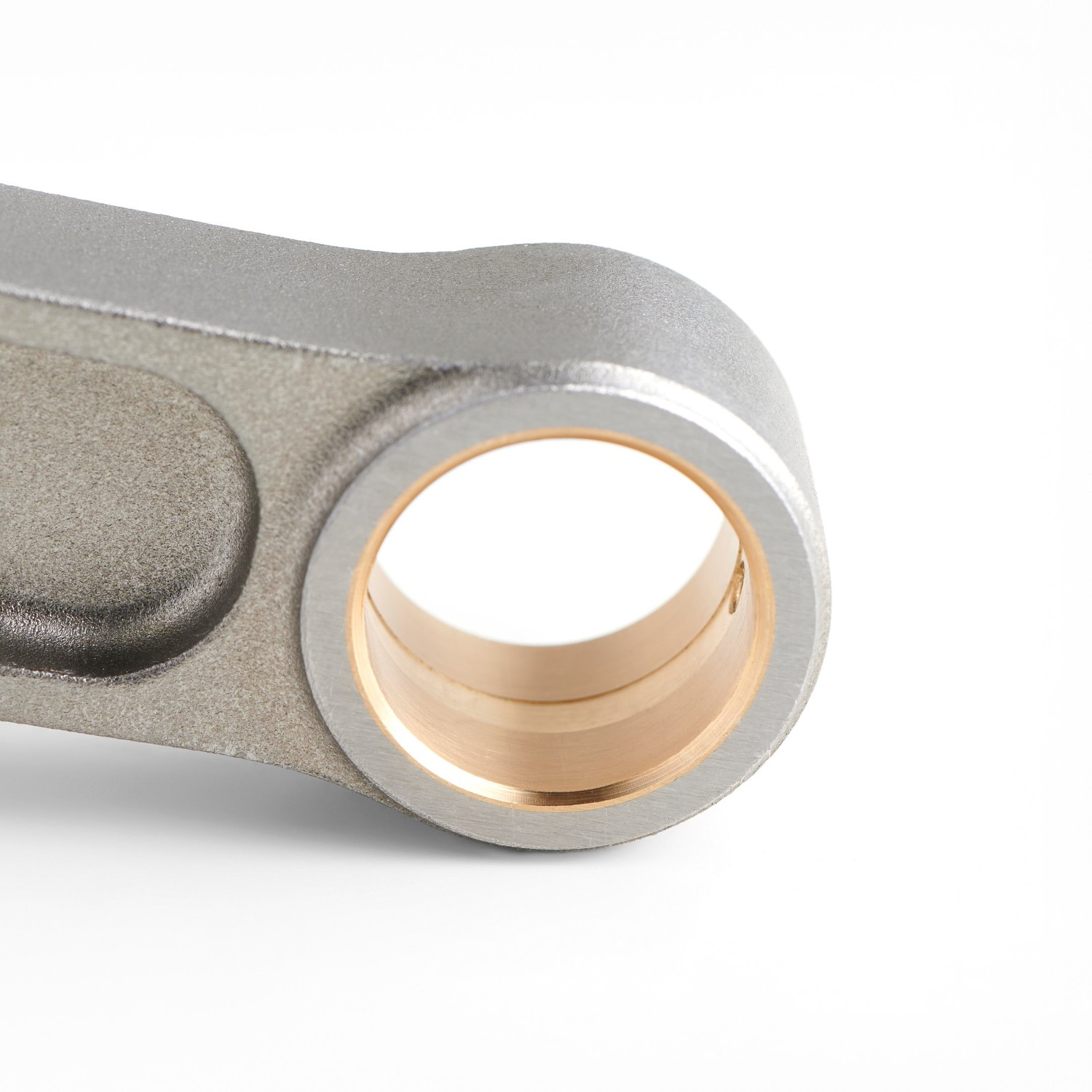

ZRP I-Beam Forged Connecting Rods for Alfa Romeo 1750 TBi - R-ALF-005-I
Reference:
ZRP-R-ALF-005-I
Supplier Ref.:
R-ALF-005-I
The ZRP I-Beam connecting rods for Alfa Romeo 1750 TBi engines (159, Brera, Giulietta & 4C) are designed for high-performance engine builds and demanding rebuilds.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The I-Beam profile delivers an excellent balance of strength and reduced weight.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for Alfa Romeo 1750 TBi engines.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The I-Beam profile delivers an excellent balance of strength and reduced weight.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for Alfa Romeo 1750 TBi engines.
-
Engine code939B1000
940A1000
940B2000
CAVD -
Weight in kg0,50
-
Vehicle makeALFA ROMEO
-
Conrod ShapeH-Beam Conrod
-
Center-to-center length in mm148,04
-
Piston pin diameter in mm22,00
-
Conrod head diameter in mm51,37
-
Conrod head width in mm21,94
-
Threads on conrod bolts3/8"
-
Type of fasteners includedARP2000
-
Type of conrodReinforced Forged Conrod
