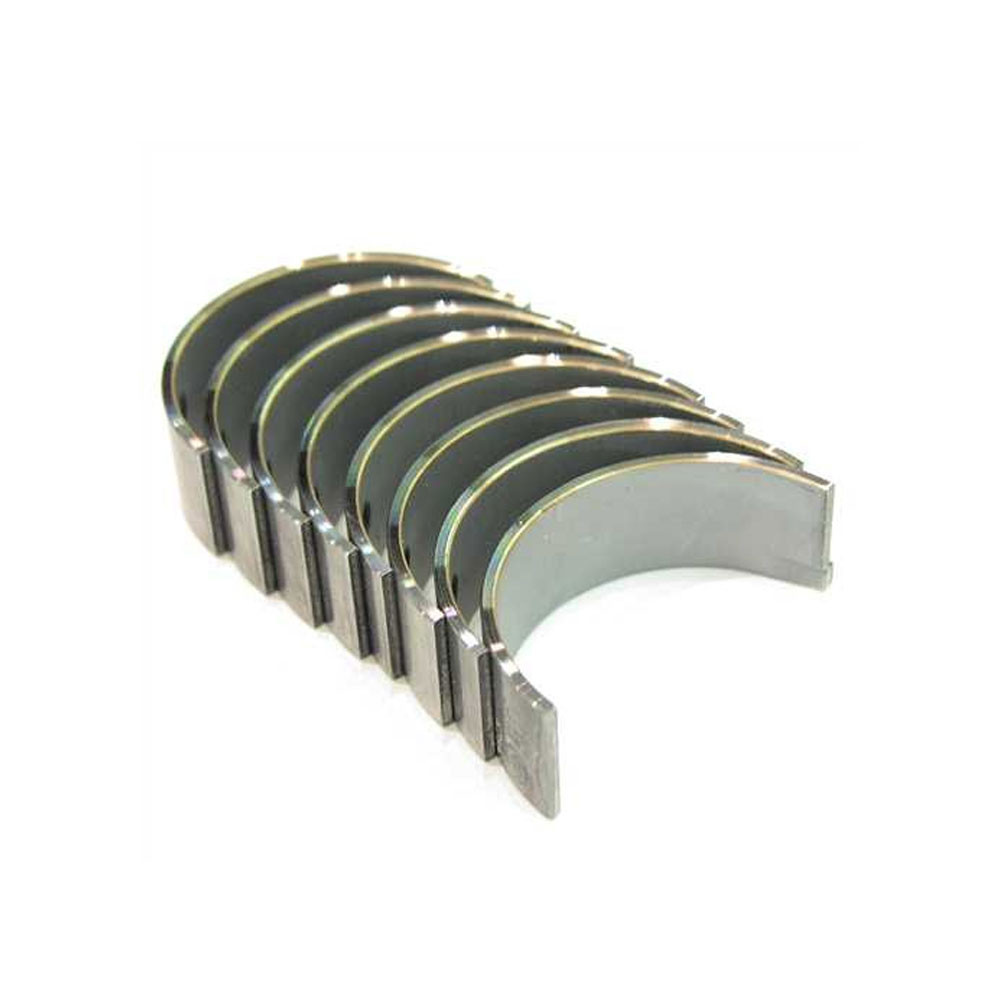

ACL - Main bearing set for Renault F4R R3, version : 0.25

ACL Race Series bearings with a 0.25 mm repair rib are designed for Renault F4R R3 engines with a slightly ground crankshaft. Their tri-metal alloy composition (hardened steel, copper, lead/tin) makes them extremely robust and able to withstand the extreme stresses encountered in competition use.

Designed for even oiling, reduced friction and efficient heat dissipation, these bearings ensure maximum low-end engine life, even at high revolutions per minute.

Why choose ACL bearings with a 0.25 mm rib?

• Ideal for engines that have been lightly ground after crankshaft wear

• Perfect heat resistance for racing applications

• Motorsport quality for demanding prepared engines

• Strict compliance with factory tolerances for surprise-free assembly


Technical specifications :

• Supplier reference: ACL-5M7819H-025

• Tolerance: Repair -0.25 mm

• Material: Tri-metal alloy (steel + copper + lead/tin)

• Finish : Competition specification, high manufacturing precision

• Application: Rally, trackday, prepared engines, endurance


Key benefits :

• Perfect for crankshafts ground to -0.25 mm

• Excellent heat and pressure resistance

• Controlled clearance for optimum oiling

• Durable material in the face of wear

• Adapted to the constraints of Renault sports engines


Dimensions :

Maximum overall length: 19.05 mm

Maximum axle size: 51.745 mm

Maximum tunnel size: 51.715 mm

Max vertical oil clearance: 54.035 mm

Max wall to crown: 54,000 mm

Minimum axle size: 0.063 mm

Minimum tunnel size: 0.025 mm

Minimum vertical oil clearance: 1.145 mm

Warning: These values are given as a guide only. It is imperative to check the clearance using a plastigauge or micrometer during assembly.

Compatibility:

RENAULT

-F4R R3
