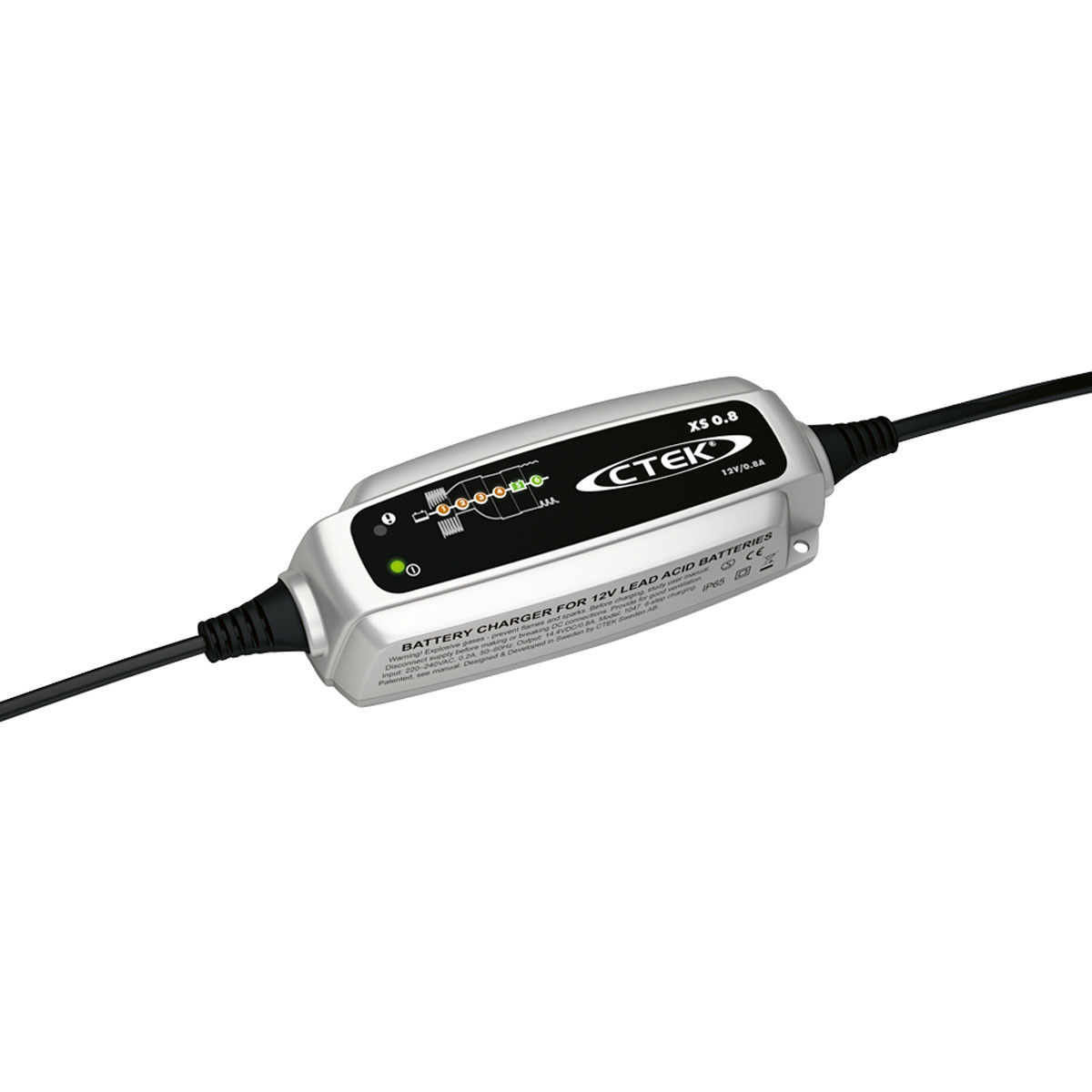

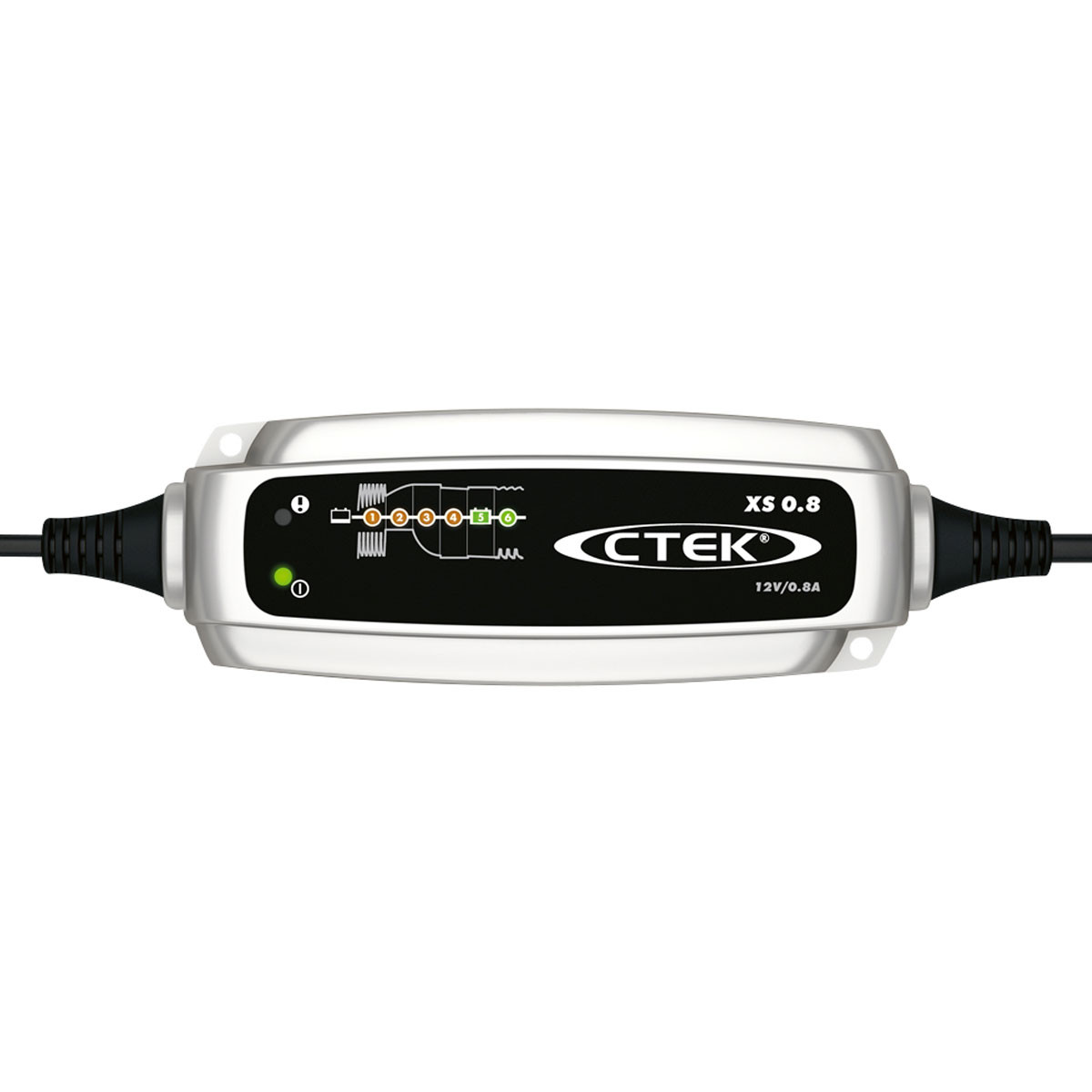

CTEK XS 0.8 12V battery charger load duration function

12V | Compact maintenance charger for small batteries

The XS 0.8, CTEK's smallest 12V charger, is suitable for charging small batteries as well as for charge maintenance of full-size automotive batteries. The XT 0.8 is a fully automatic 6-step charger that delivers 0.8 A to 12 V batteries from 1.2 to 32 Ah and provides maintenance charging up to 100 Ah. It's easy to use, and you can follow the charging process on the clear, easy-to-read display.

Features

Lightweight and compact
Fully automatic 6-step charging
Charging of 12 V batteries from 1.2 to 32 Ah
Patented maintenance charging up to 100 Ah for longer battery life
Patented desulfation function

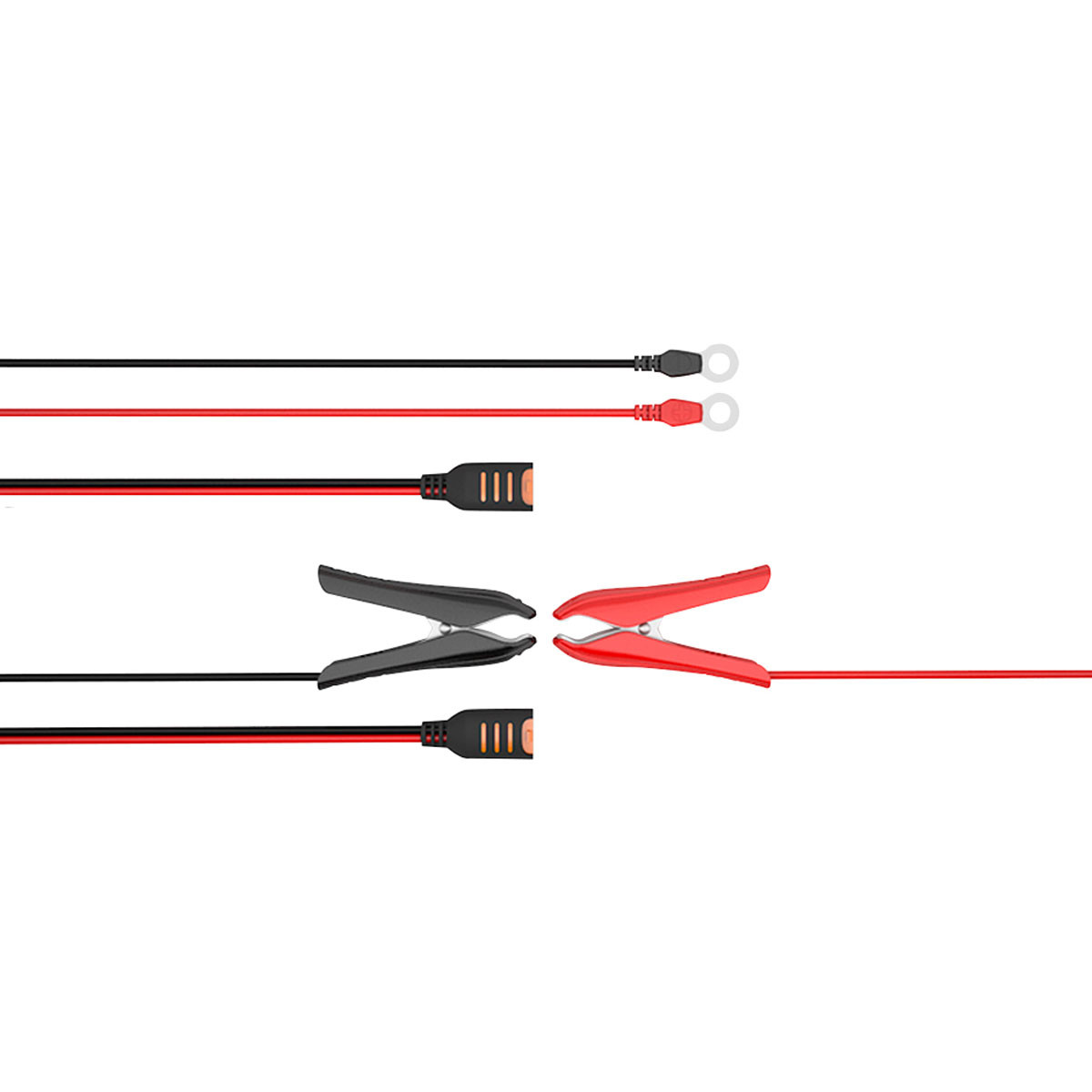

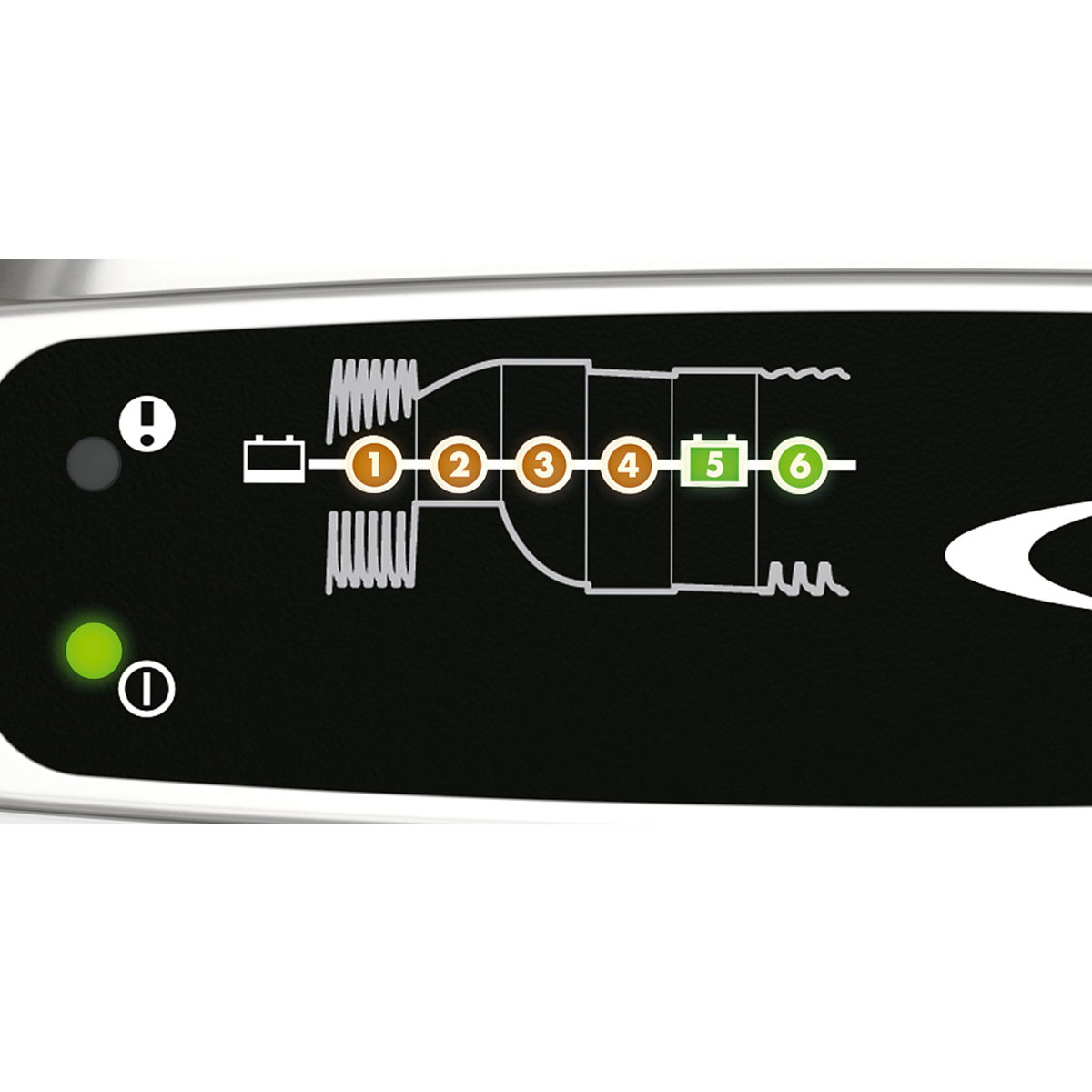

Easy-to-read LED display;*With connection accessories for different battery types
Splash-proof and dust-proof (IP65)
Safe non-sparking operation
Reverse polarity protected
Protected against short circuits
5-year warranty

Technical specs :

Charge Category: AC Charge
Input: 220–240 VAC, 50–60 Hz, 0.2 A
Output: 14.4 V, 0.8 A
Battery Chemistry: Lead-acid
Battery Types: 12 V: WET; MF; Ca/Ca; AGM; GEL
Battery Capacity: 1.2–100 Ah
Self-discharge: Less than 1 Ah/month
Battery voltage: 12 V
Operating ambient temperature: -20 °C to +50 °C
Starting voltage2.0 V
Ripple: Less than 4%
Protection rating: IP65

Warning: not compatible with lithium batteries!
