Electronical circuit breaker battery / alternator

This ARMTECH electronic circuit breaker allows to isolate quickly and safely all the electrical system of the car. It is widely used in WRC and on most kit cars.

How it works :

By pressing the green button, you put the battery in the electrical circuit: the red light comes on. A simple pressure on one of the two red buttons (big waterproof button for the outside and small button for the inside) and the battery is isolated from the electric circuit as well as the alternator. In the event that a connecting wire is cut, the circuit breaker will intervene to cut off the electrical supply to the circuit.

Advantages :

Simplicity of assembly of the system and the great reliability of the unit
Mounting close to the battery
No long cables
No complex assembly with relays
Low power cable connections
Easy to install connectors
Intensity: Supports up to 1000A peak and 250A continuous
Weight : 700 gr
Connection and power wires not included.

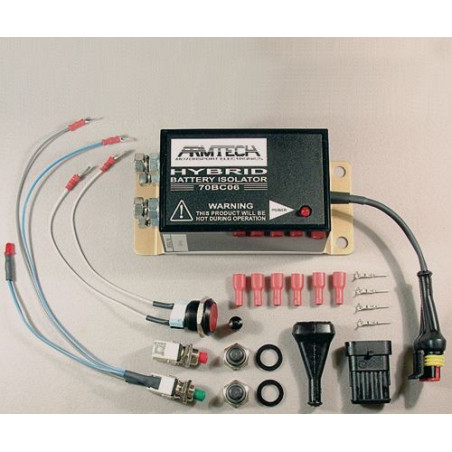

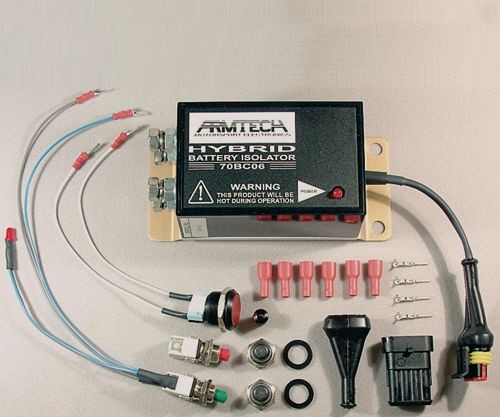

Contents of the kit :

- 1 circuit breaker box
- Waterproof socket
- 1 external aluminium switch (big button)
- Connector for box plug
- 1 interior switch (small red)
- Connector protection
- 1 interior power button + LED and its support
- Exterior "OFF" sticker (mandatory)
- Protective caps for the buttons
- Interior stickers ("ON" and "OFF")
- Wires and connectors for buttons
