Siroco Heating Valve 16mm 3bar max 100°

This Siroco Bali heating has a 12V supply for a 55W power.
2 speeds to connect to the cooling system by 16mm pipe toes.
This Siroco Bali model is used by Citroën Sport for the Saxo Challenge, the saxo kit car, and the C2R2.

Features:

- ABS heat box

- nominal air flow: 130 m3*h

- heated volume: 1 to 2 m3

- weight: 1.2kg

- pipe diameter: 16mm

- 2 45mm warm air outputs to connect with a pipe

- heat output: 2.4kW

Less detail

Rotary switch with 2 speeds (3 positions with 'OFF' included) in ABS to control the Siroco Bali heating.

Maximum intensity: 20A

Less detail

This ventilation pipe in PVC has a high resistant steel helix combining flexibility, lightness and humidity proof.
In accordance with the norm DIN 4102, it's also a fireproof pipe and allows a connection to the Sirocco Minox or Bali heating.

Length: 1m
Diameter: 45mm

Less detail

2 bruches plate with diameter 45mm in injected resine, for mounting with swerved Siroco heating.
It can be used, for example, in the entry of the demisting circuit of the dashboard to receive the two 45mm boas which come from a Siroco heating placed further.

Trick: just make a simple interface adaptation to be fixed on the circuit entry.

Less detail

Cable heating rotative control to control the stop valve of the Siroco heating.
To use with the 500mm or 1000mm cable.

Less detail

Cable for Siroco valve control.
Length: 1m.

With duct and duct stops.

Less detail

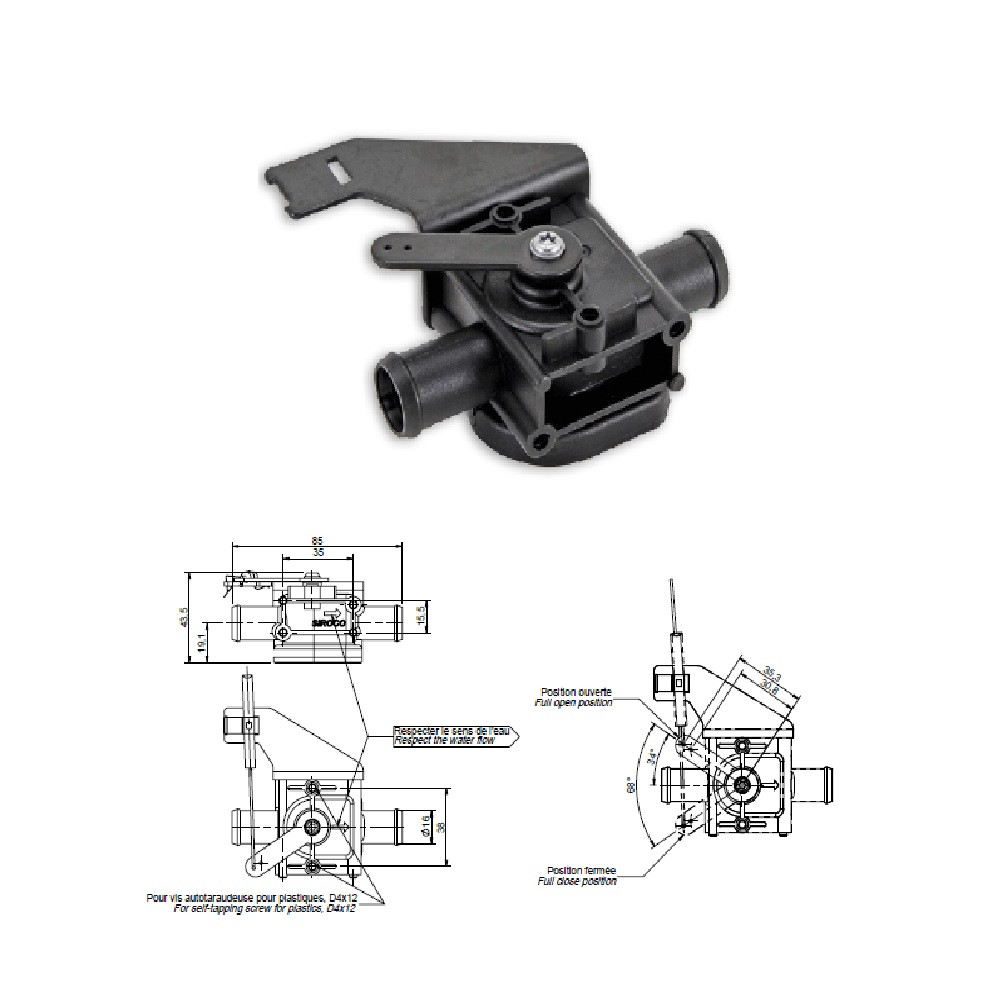

Siroco heating stop valve in plastic with mechanical control.
With cable fixing clip.
Straight toes of 16mm and gradual closure.

Technical datas :

• Maximum pressure use: 3bar

• Maximum temperature: 100°C to 3bar

Less detail

This Siroco Minox heating has a 12V supply for a 150W power.
3 speeds to connect to the cooling system by 16mm pipe toes.
This Siroco Minox model is used by Citroën Sport for the DS3 WRC, and the C2R2 max.

Features:

- ABS heat box

- nominal air flow: 290 m3/h

- weight: 1.5kg

- pipe diameter: 16mm

- 2 45mm warm air outputs to connect with a pipe

- heat output: 5.5kW

Less detail

This high-quality switch offers precise regulation of ventilation speed to maintain a comfortable indoor climate in your vehicle, whatever the weather conditions.

With its 4 positions (OFF, speed 1, speed 2, speed 3) this switch lets you choose the ideal ventilation level to suit your needs. Made from robust ABS, it's designed to withstand the rigors of automotive use.

Less detail

This ventilation pipe in PVC has a high resistant steel helix combining flexibility, lightness and humidity proof.
In accordance with the norm DIN 4102, it's also a fireproof pipe and allows a connection to the Sirocco Minox or Bali heating.

Length: 1m
Diameter: 45mm

Less detail

2 bruches plate with diameter 45mm in injected resine, for mounting with swerved Siroco heating.
It can be used, for example, in the entry of the demisting circuit of the dashboard to receive the two 45mm boas which come from a Siroco heating placed further.

Trick: just make a simple interface adaptation to be fixed on the circuit entry.

Less detail

Cable heating rotative control to control the stop valve of the Siroco heating.
To use with the 500mm or 1000mm cable.

Less detail

Cable for Siroco valve control.
Length: 1m.

With duct and duct stops.

Less detail

Siroco heating stop valve in plastic with mechanical control.
With cable fixing clip.
Straight toes of 16mm and gradual closure.

Technical datas :

• Maximum pressure use: 3bar

• Maximum temperature: 100°C to 3bar

Less detail
