This set of 4 Ellis Engineering wheel lock nuts enhances protection against unauthorized removal of the wheels. It replaces a standard wheel nut on each of the vehicle’s four wheels and requires the use of the specific wrench provided for mounting and removal.
Several threads are available to accommodate different hub configurations.
Extra protection for your rims

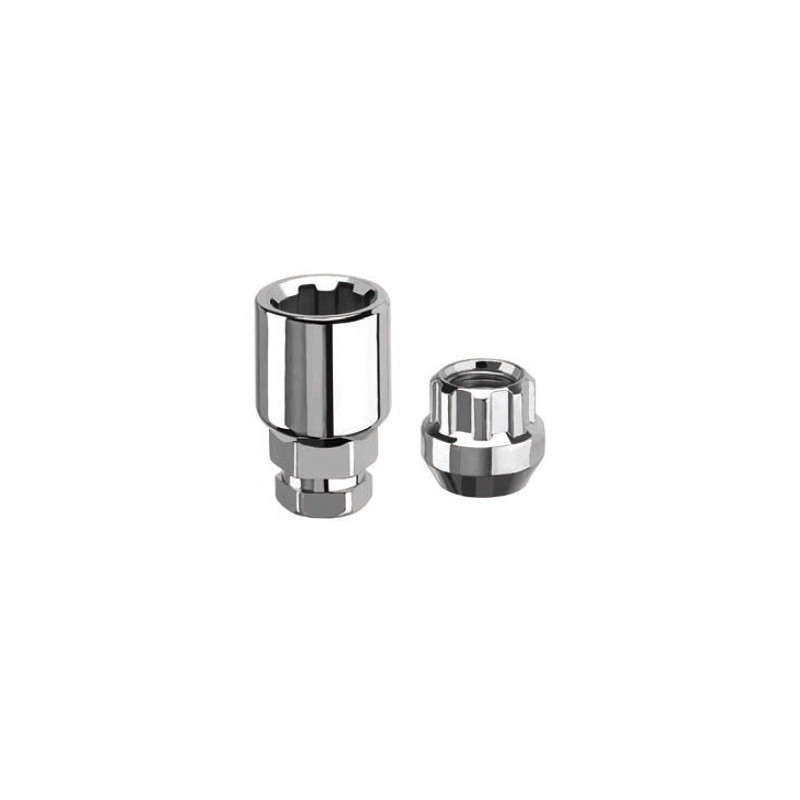

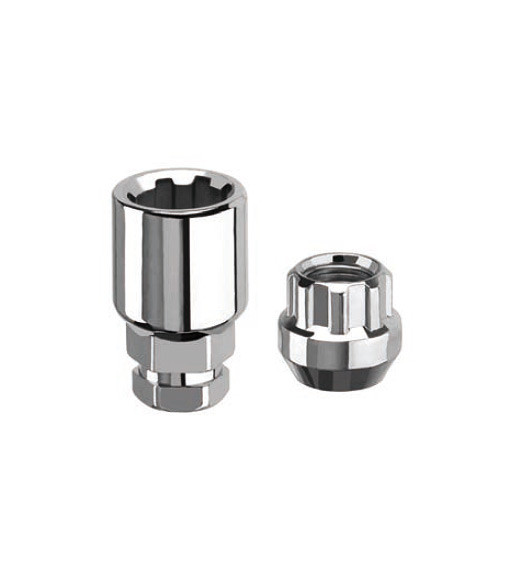

Each nut features a unique anti-theft design, making it more difficult to remove with conventional tools. The kit includes 4 anti-theft nuts and 1 wrench/adapter—one anti-theft nut for each wheel on the vehicle.
The included adapter features a 19/21 mm drive, allowing it to be used with a compatible tightening tool.
Multiple thread sizes available
This range of anti-theft lug nuts is available with different thread sizes. The correct version must be selected based on the specifications of the vehicle’s wheel hub and wheel mounting.
- 1/2 UNF
- M12 x 1.25
- M12 x 1.50
- M14 x 1.50

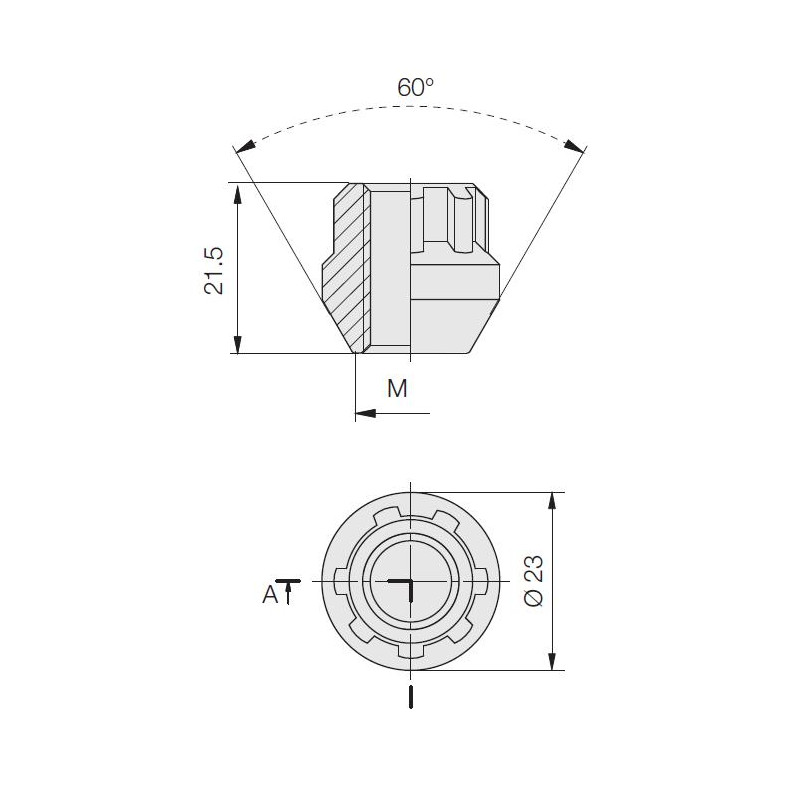

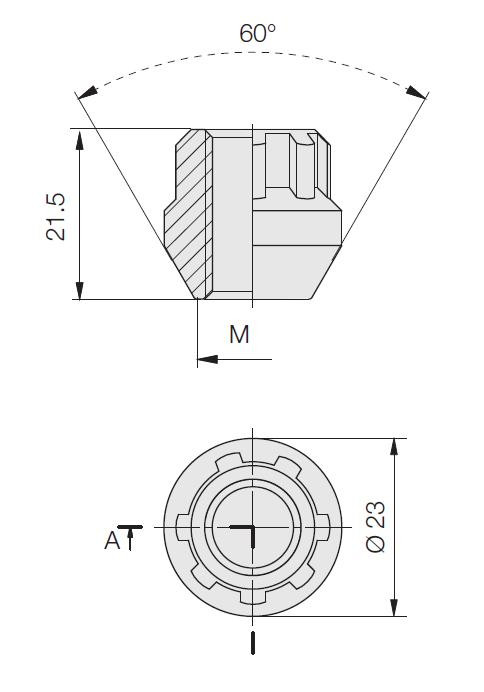

Specifications
- Type: Wheel lock nuts

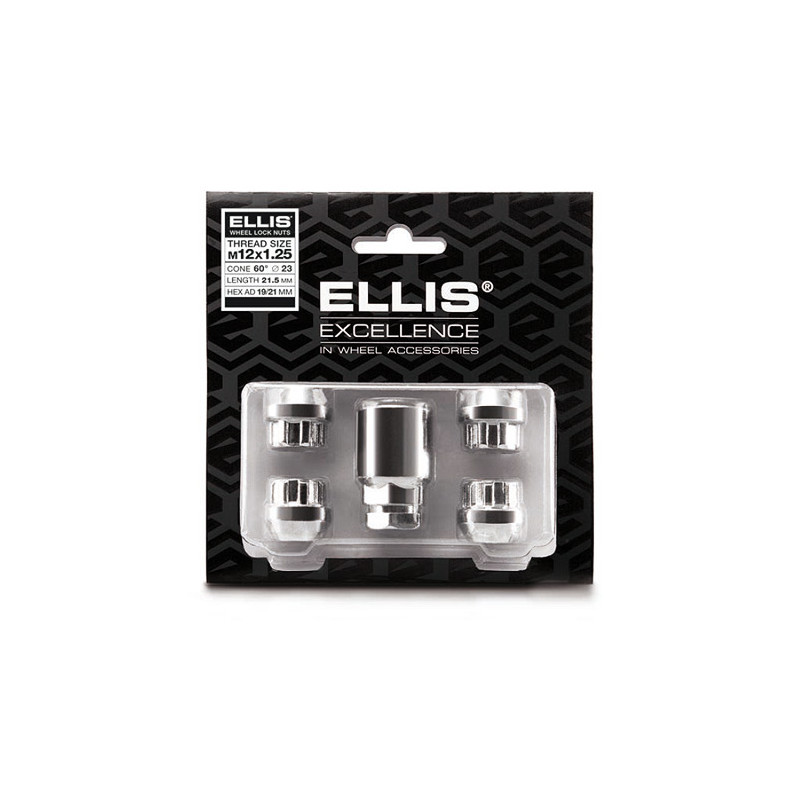

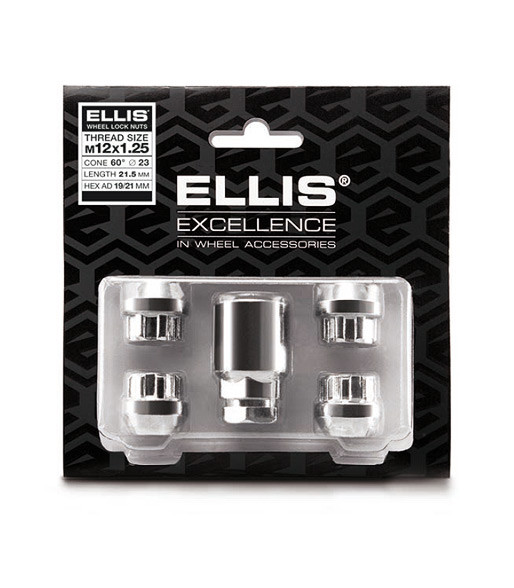

- Package contents: 4 anti-theft nuts + 1 wrench/adapter
- Nut type: open
- Angle: 60° conical
- Height: 21.5 mm
- Adapter: 19/21 mm
- Finish: galvanized
- Multiple thread sizes available
- Manufacturer: Ellis Engineering
Mounting Tips
Before selecting a specific model, be sure to verify that the diameter and pitch of the thread, as well as the 60° tapered shank, match the vehicle’s mounting points and the seats on the rims.
Compatibility of the taper is particularly important to ensure proper contact between the nut and the rim. During mounting, also follow the tightening specifications recommended by the vehicle or rim manufacturer.
