Set of 4 60° conical-reach wheel locks

Secure your wheels with this Ellis Engineering anti-theft bolt kit, designed to replace one standard mounting bolt on each wheel and minimize the risk of unauthorized removal of the rims.

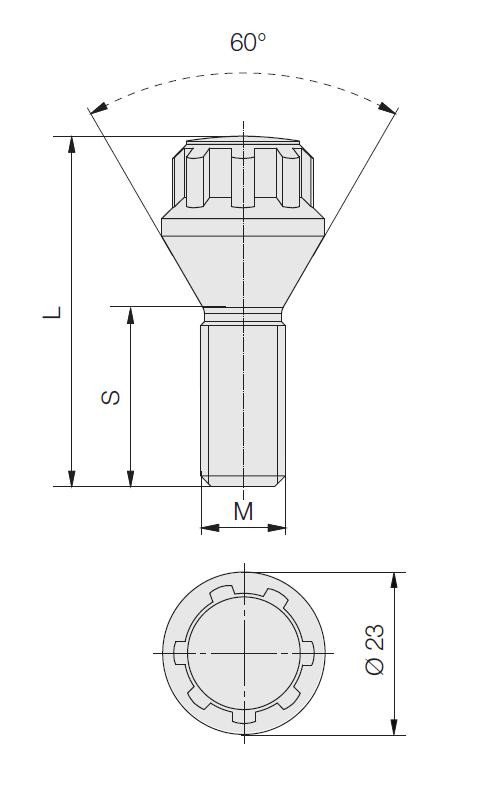

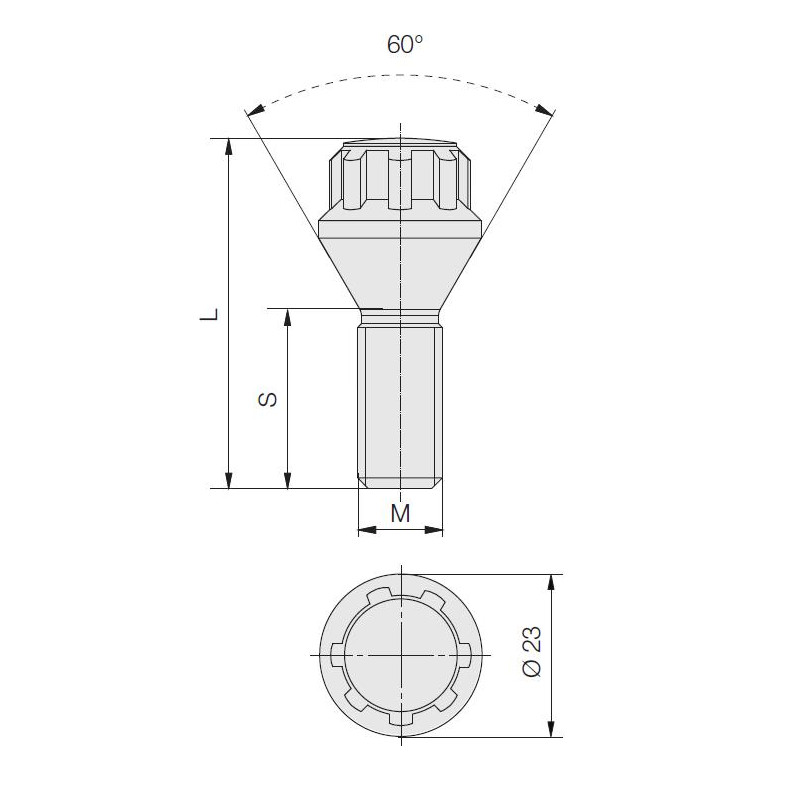

Each bolt features a 60° tapered shank and uses a proprietary anti-theft drive that requires the key included in the kit. This design enhances wheel security while maintaining a secure fit for rims that use this type of shank.

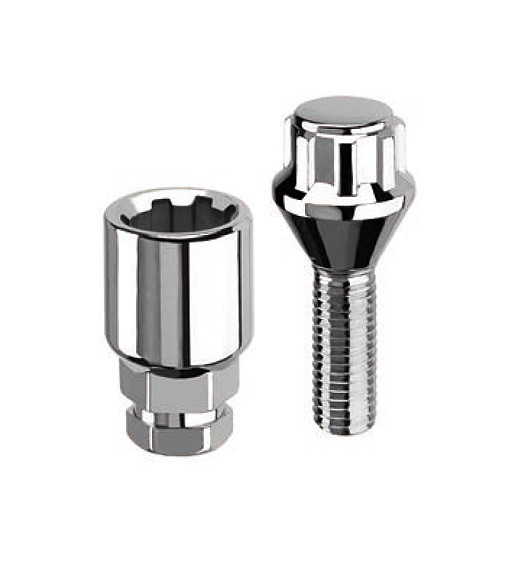

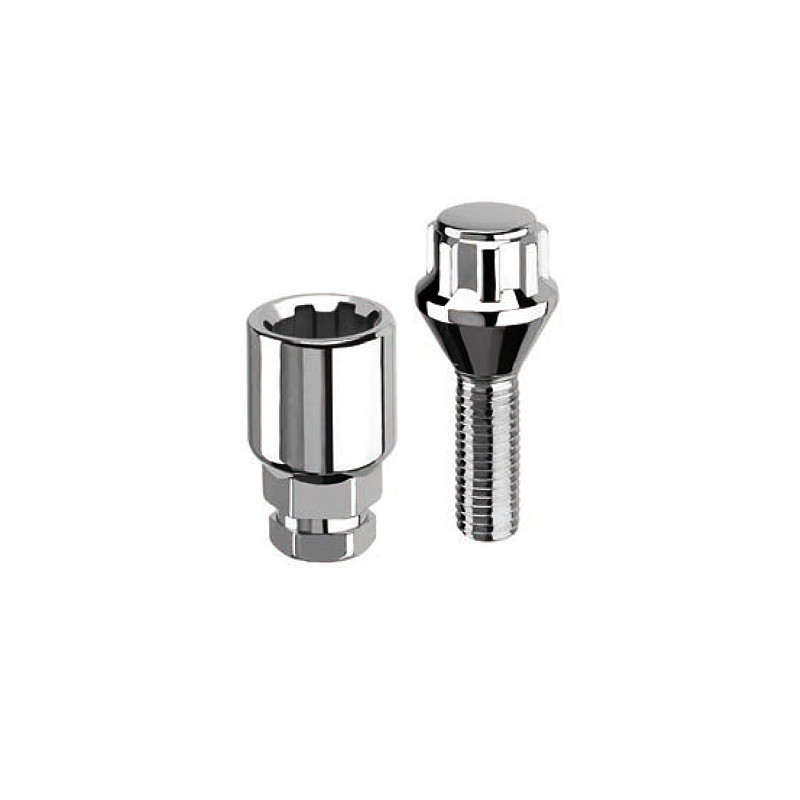

Complete kit with anti-theft key

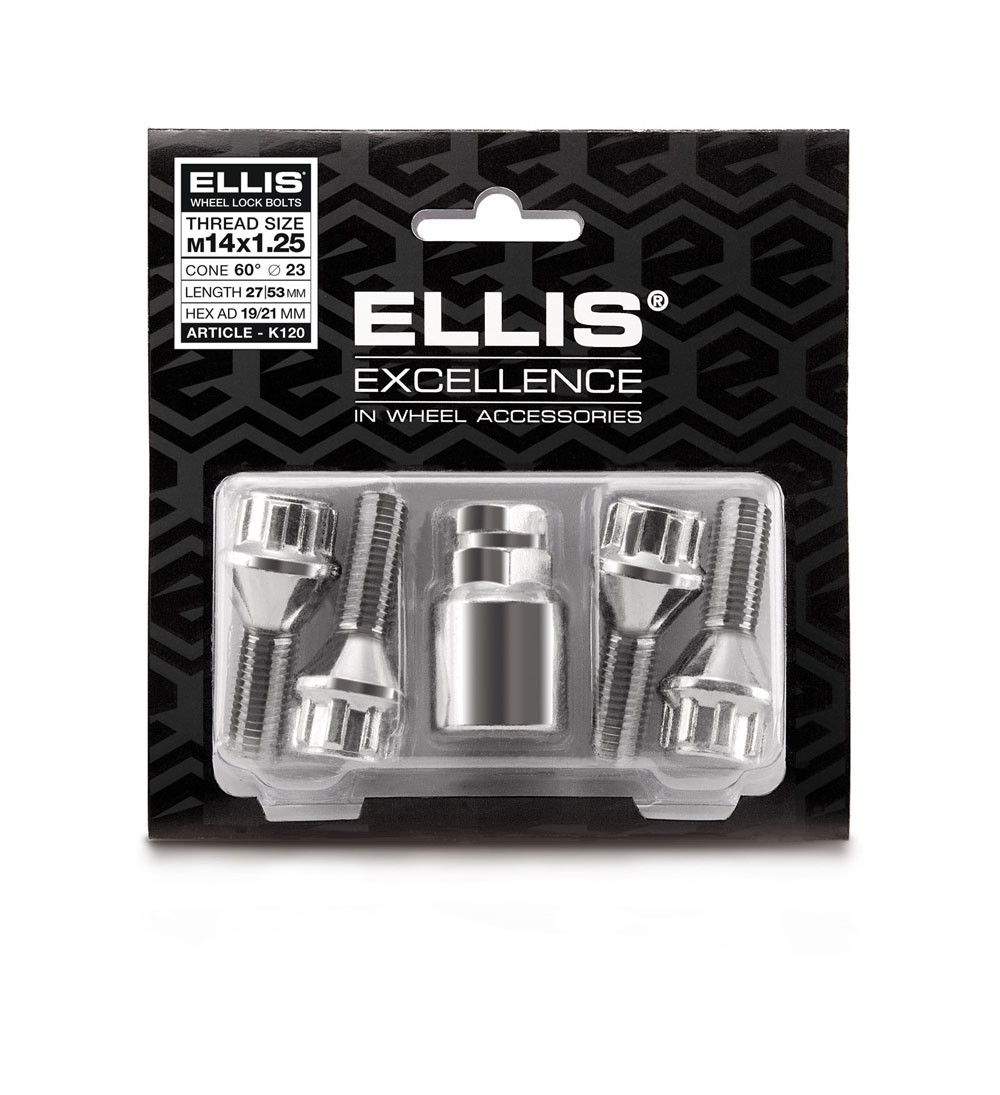

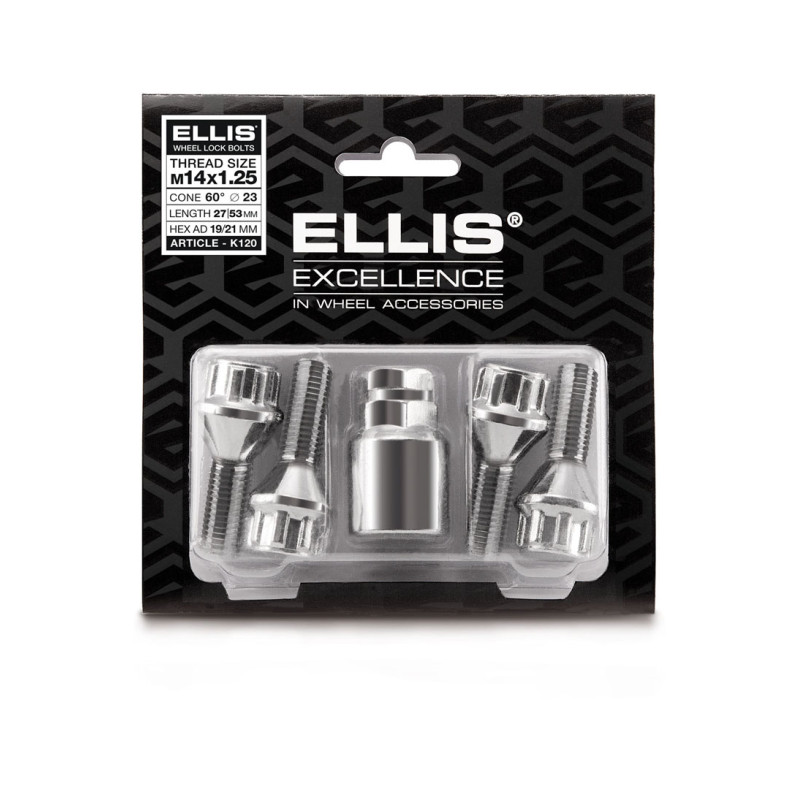

The kit includes 4 anti-theft bolts and 1 key/adapter. This allows one anti-theft bolt to be installed on each of the vehicle’s four wheels.

The special key provided allows for the mounting and removal of the bolts using the appropriate tools. The system is designed for a 17/19 mm hex drive.

Several sizes available

This product is available in several variants to accommodate different hub and rim configurations. It is essential to select the thread size and length that exactly match the vehicle’s mounting.

• M12 x 1.25 – threaded length 50 mm
• M12 x 1.50 – threaded length 40 mm
• M14 x 1.50 – threaded length 50 mm

Features

• Type: wheel lock bolts
• Packaging: 4 anti-theft bolts + 1 wrench/adapter
• Threading: 60° tapered
• Resistance class: 10.9
• Finish: galvanized
• Adapter drive: 17/19 mm
• Various threads and lengths available
• Manufacturer: Ellis Engineering

Mounting Instructions

Before mounting, it is essential to verify that the diameter, thread pitch, threaded length, and type of flange match the specifications of the vehicle and the rims being used.

In particular, the 60° taper must be compatible with the rim seat. An incorrect length or taper may prevent the wheel from being properly tightened. Also, follow the torque specifications recommended by the vehicle or rim manufacturer.
