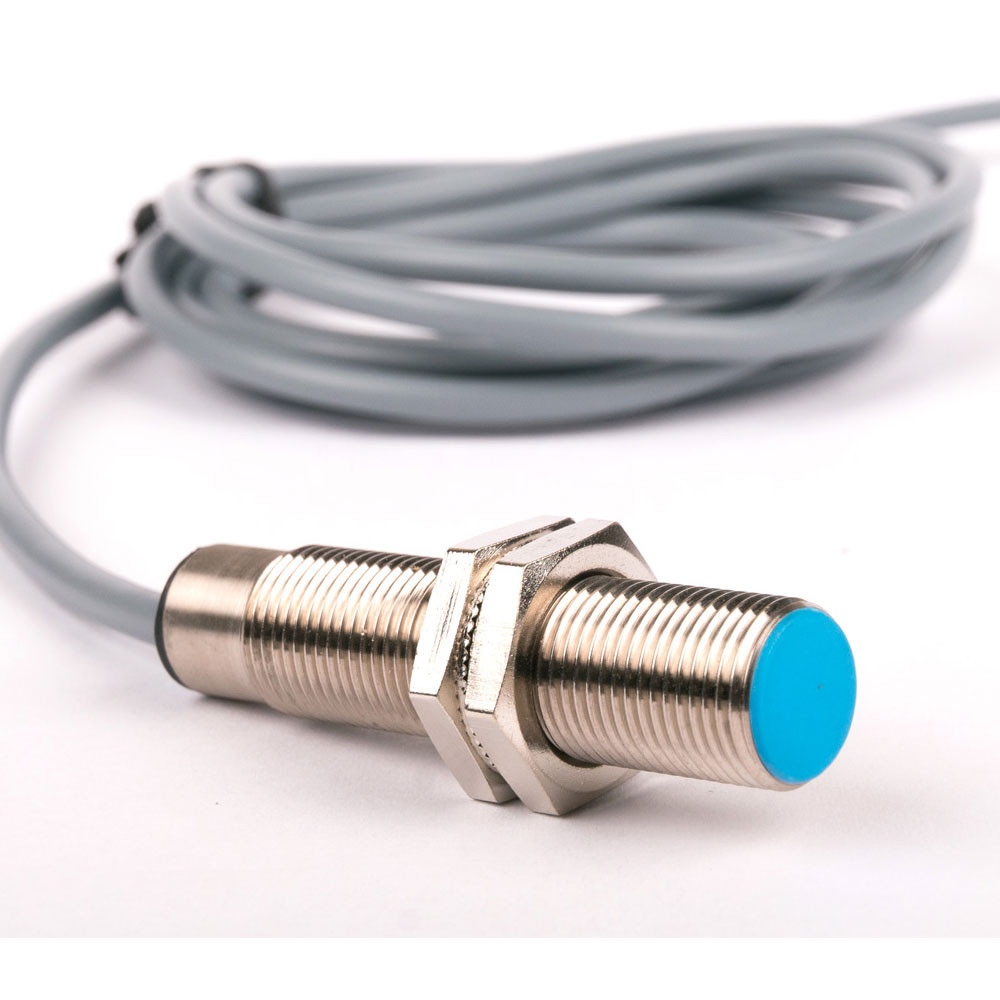

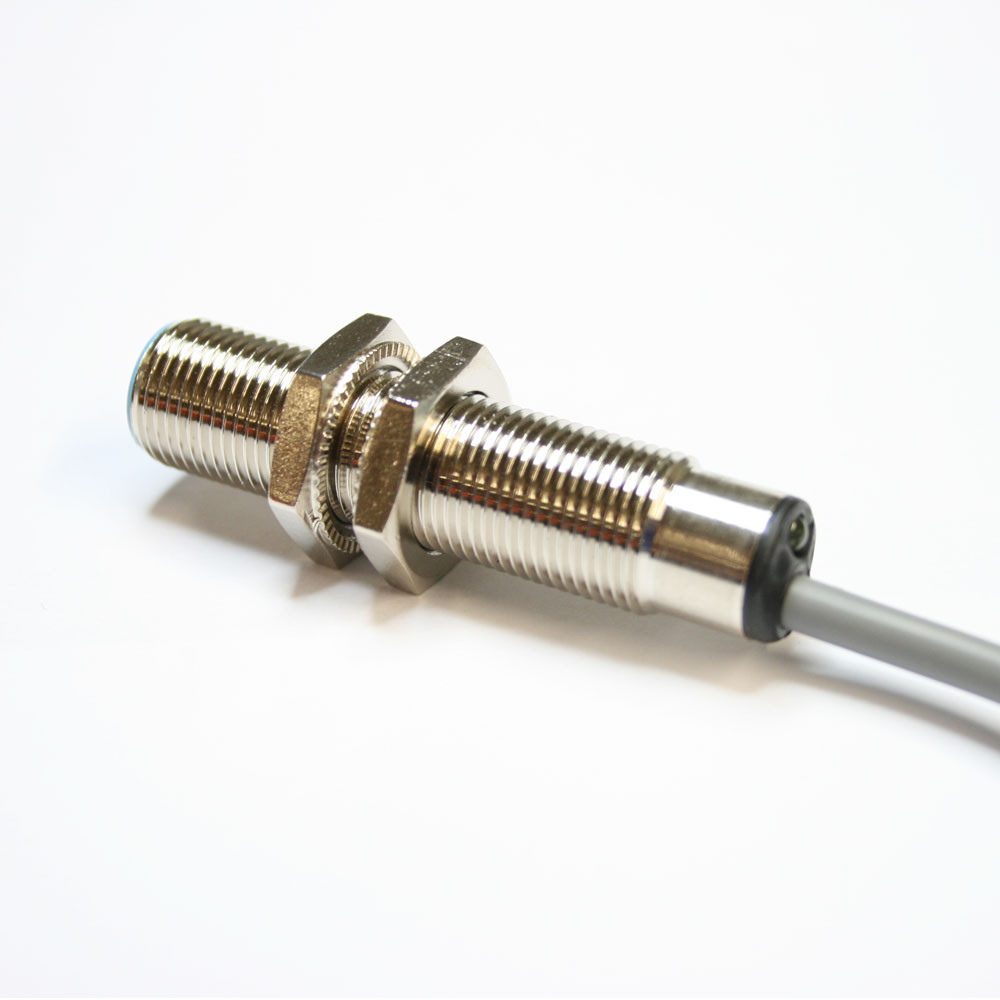

Wheel sensor for Monit on-board computer

The Monit inductive wheel probe works by detecting the presence of metal as it is brought near the end of the sensor.

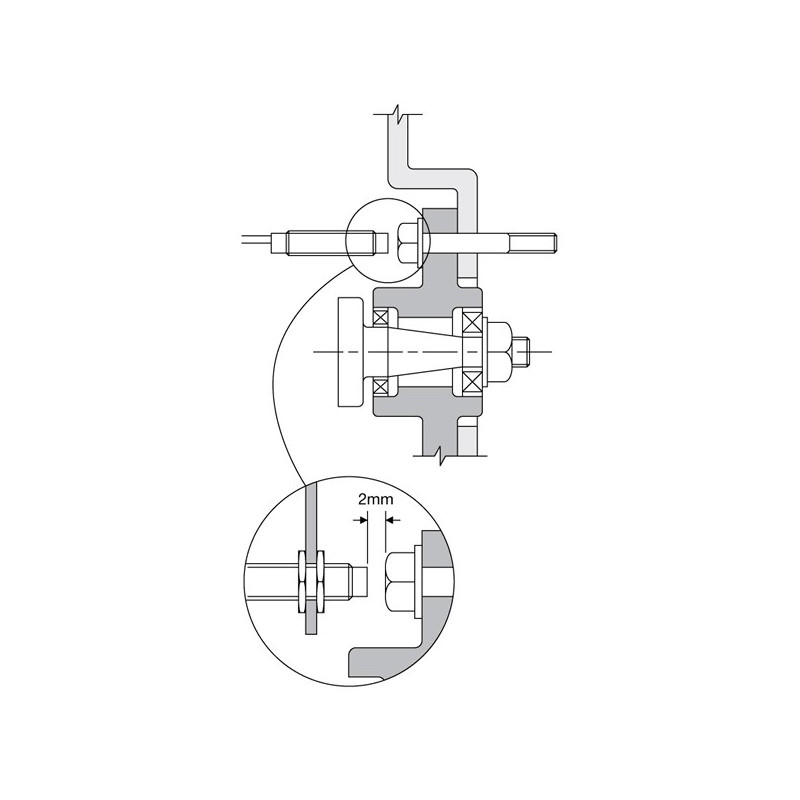

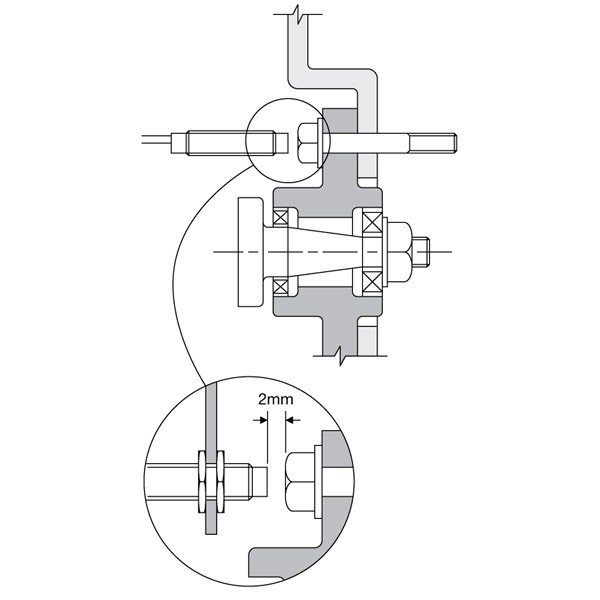

Mounting is standard, and requires the manufacture of a bracket for attachment to the caliper bracket or hub.
It is typically fitted to a vehicle’s wheel hub so that it senses the back of the wheel studs or other metal detection targets as they rotate past.
In this way, it can be used to measure speed and distance on a wide variety of modern, classic and historic vehicles.

Suitable for all types of vehicles that do not have a factory fitted speed sensor.

Technical datas :

Cable length: 2m
Max. detection frequency: 500Hz
Max space between target and sensor: 1-2mm
Operating temperature : -25°C to +75°C

Note: the probe installation guide can be downloaded from the 'Document' section of the product data sheet. (in French or English)
