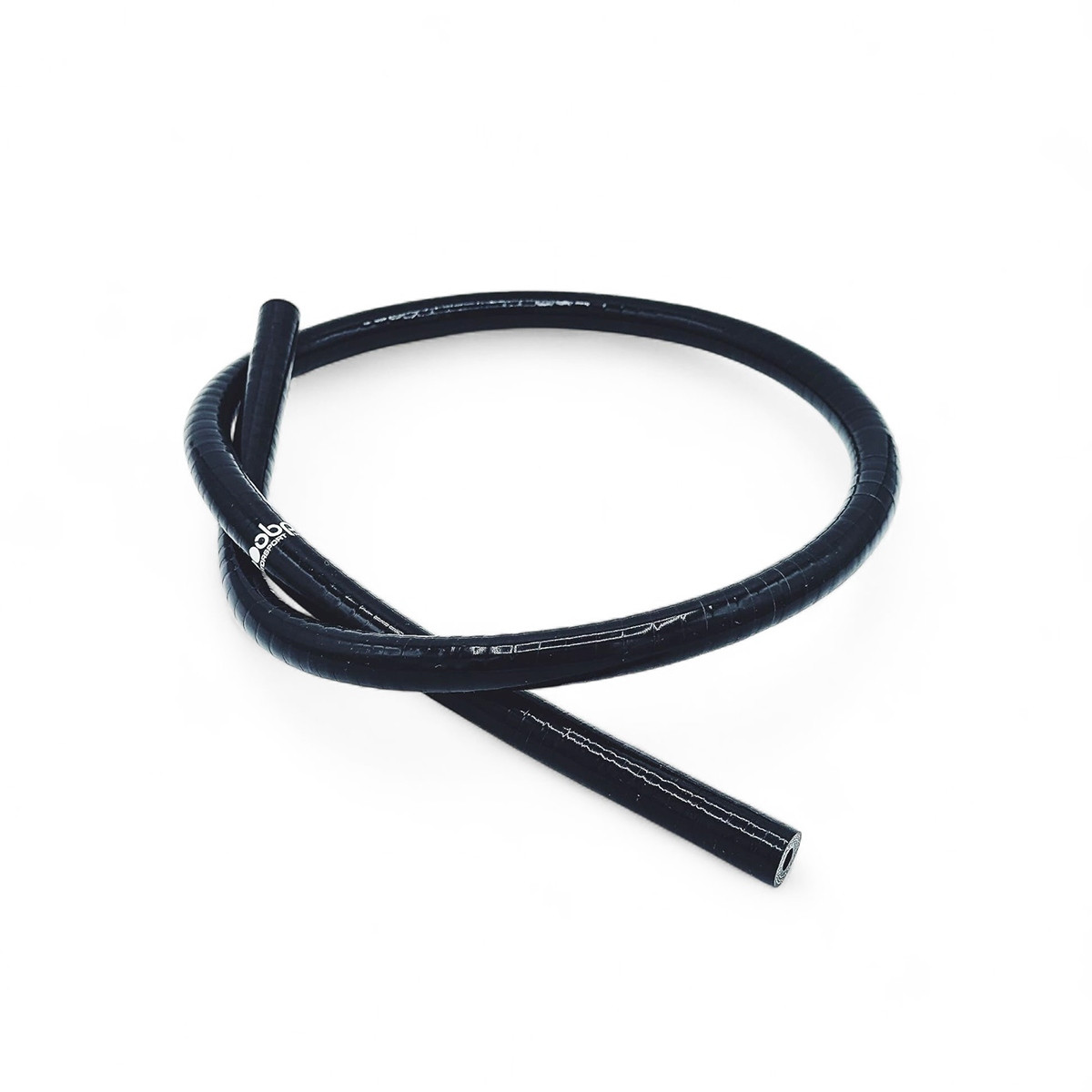

Superflex OBP straight silicone tube (length 1m)
Reference:
OBP-SH-FL.N.16
Supplier Ref.:
OBPSH-FL-16
1 metre length Superflex silicone straight tubes from OBP Motorsport
Discover the OBP Motorsport range of silicone hoses, designed to deliver performance, durability and reliability in demanding applications.
Manufactured from high-quality reinforced silicone for superior strength and long life. All hoses are produced in accordance with SAE J20 standards, ensuring exceptional heat resistance, pressure tolerance and reliability for use on the road, on the track and in motorsport.
Specifications:
- Internal diameter: 16 - 35 mm
- Length: 1 metre
- Material: Reinforced silicone
- Flexible
- Operating temperature range: -60°C to +220°C
- Burst pressure: between 12 and 27 bar (depending on the number of plies)
- Reinforcement: varies depending on the construction of the plies for increased durability
- Compliance: meets or exceeds SAE J20 standards
Available in black or blue
| Ø INTERNAL | PLY | THICKNESS (MM) | WORKING PRESSURE (BAR) | BURST PRESSURE (BAR) | LENGTH (MM) | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| 16 | 3 | 4 | 8 | 24 | 1000 | 0,322 |
| 19 | 3 | 4 | 8 | 24 | 1000 | 0,392 |
| 22 | 3 | 4 | 8 | 24 | 1000 | 0,435 |
| 32 | 3 | 4 | 7 | 21 | 1000 | 0,576 |
| 35 | 3 | 4 | 7 | 21 | 1000 | 0,604 |
-
Angle in °0
-
Main materialSilicone
-
Length in mm1000
-
Main colorBlack
Blue
