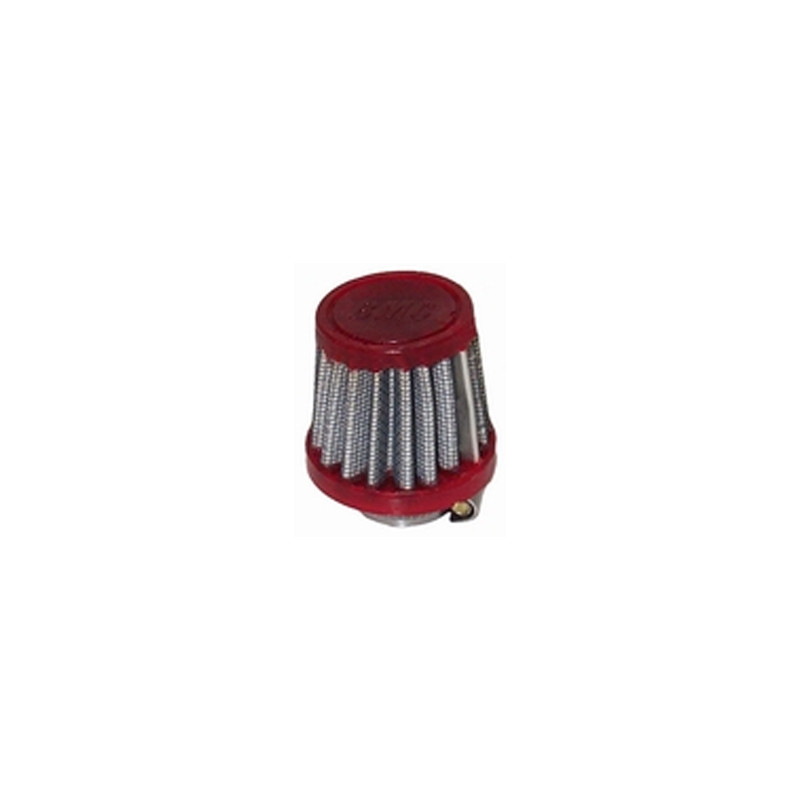

BMC conical air filter diameter 1: 28mm H2: 78mm
BMC conical filters for direct air intake can be installed on most types of engines by removing the original air box.
BMC direct induction conical filters are made from a distinctive red rubber that provides a particularly strong connection between the intake and the engine, withstanding mechanical and thermal stresses without deforming under high temperatures.
The special filter mesh allows the production of filters that can withstand power up to 700 horsepower without deformation problems.
This BMC conical filter is sold in the SA (Single Air) version: with a single side air flow and plastic finish.
Features:
Filter material: Oiled cotton gauze
Flange type: Centred
Flange angle: 0°
Type: Single Air (single flow)
Washable: Yes
Dimensions:
— Flanges: 1
— Flange length: 16 mm
— Inner flange diameter Ø1: 28 mm
— Outer base diameter Ø2: 58 mm
— Height - H2: 78 mm
— Height - H1: 62 mm
— Upper outer diameter Ø3: 53 mm
— Upper material - Plastic finish
