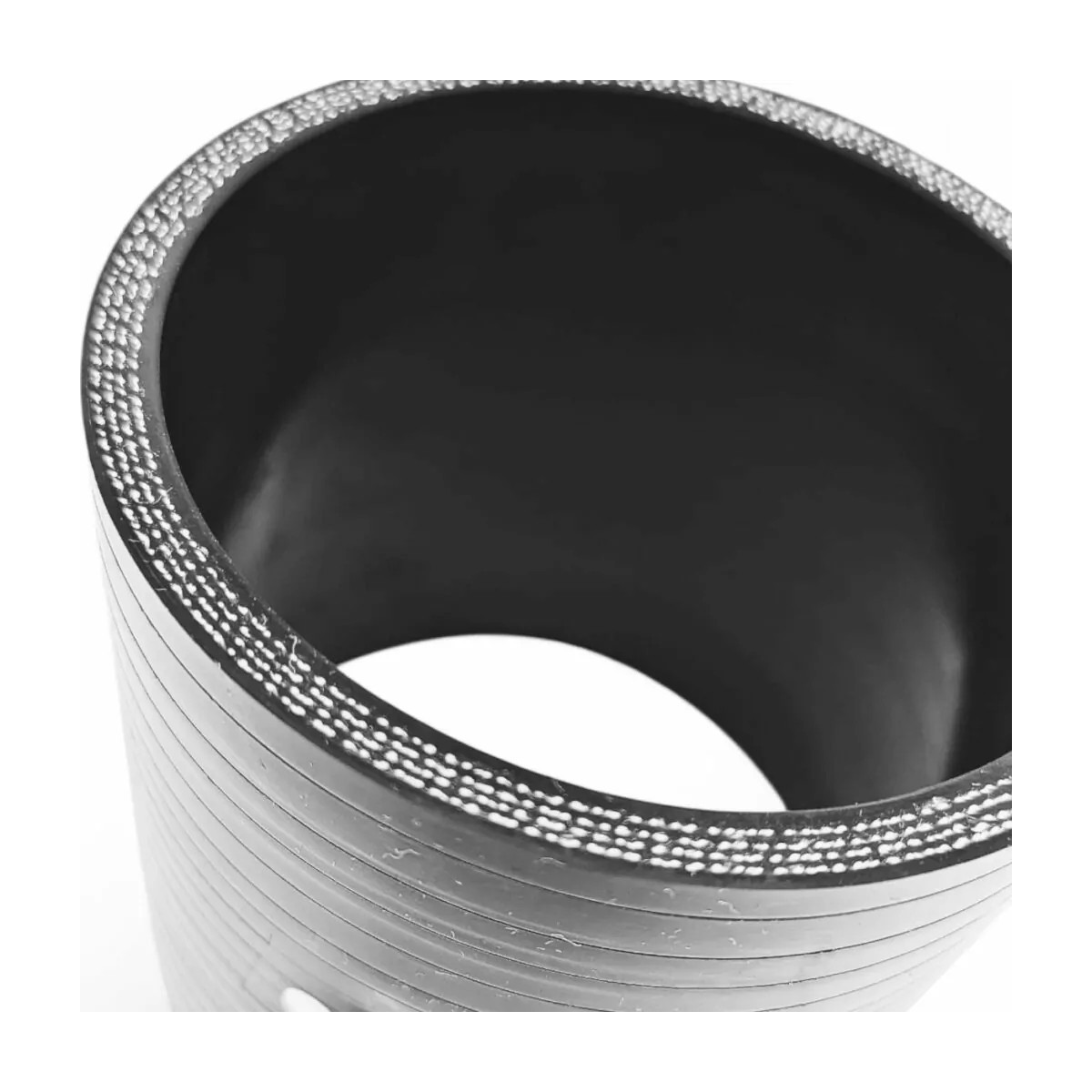

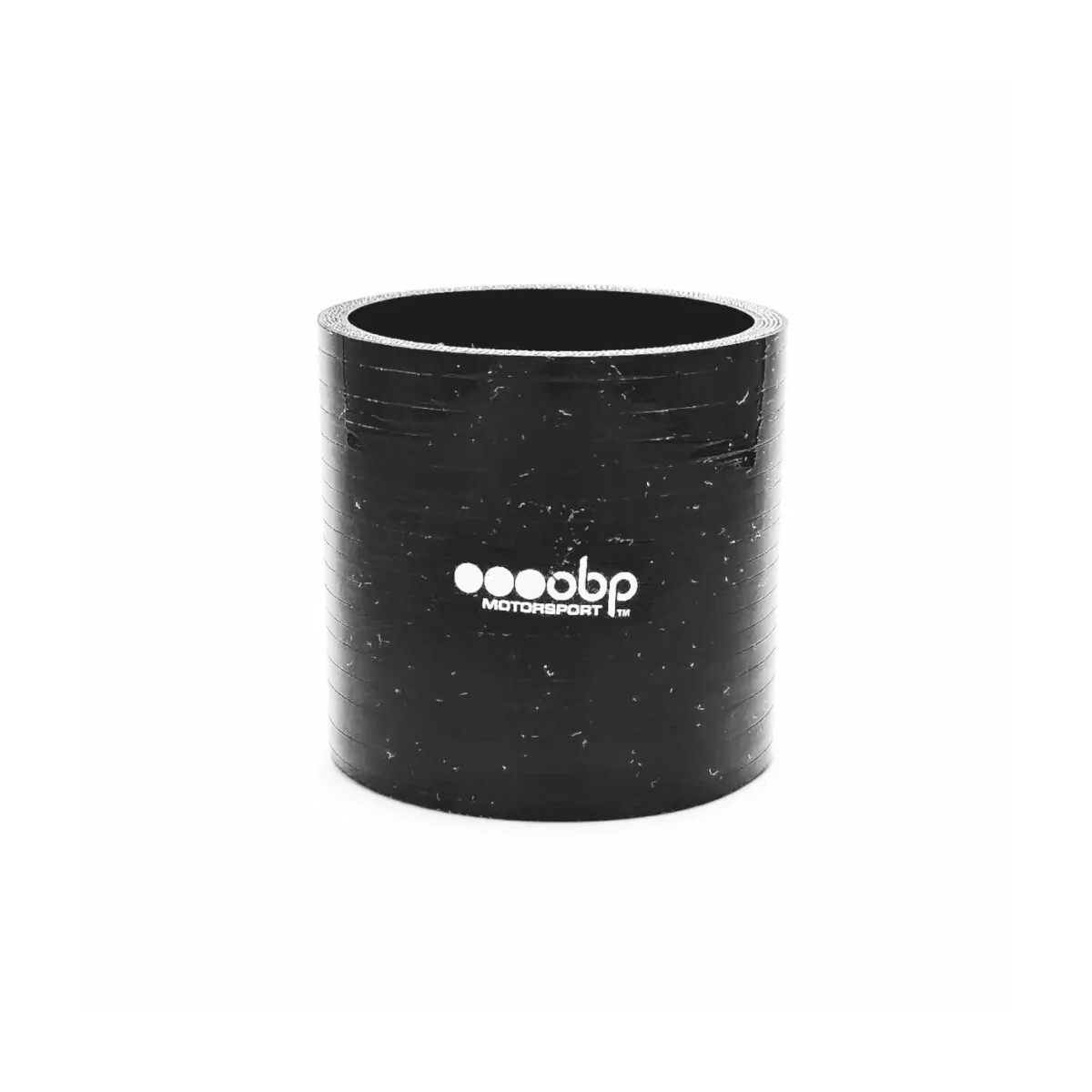

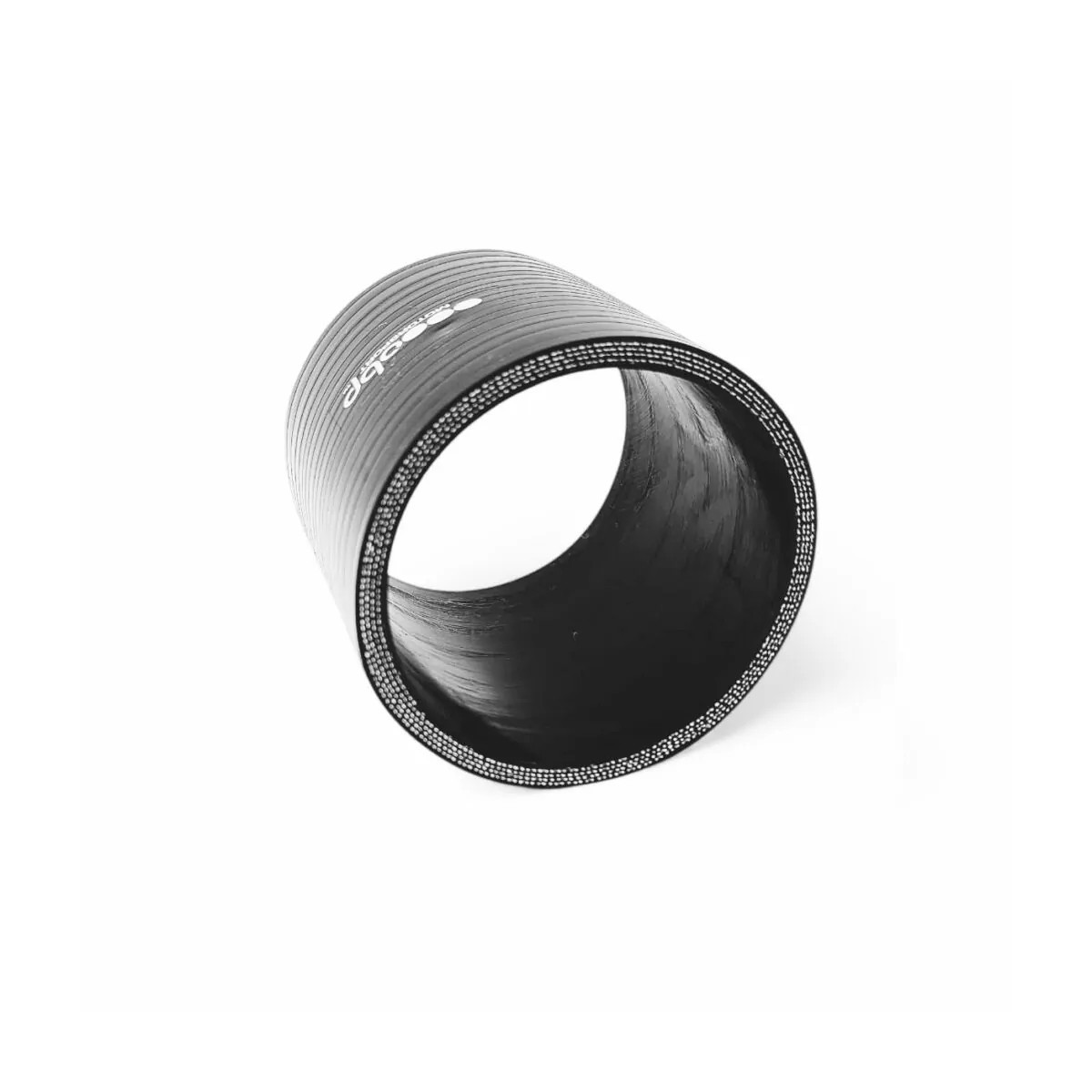

OBP Motorsport Silicone Coupler
OBP Motorsport Silicone Connecting Tube is designed for air and fluid transfer applications. It offers superior flexibility, strength and long-term reliability. Perfect for cooling systems, intercooler setups and custom automotive projects, this hose delivers consistent performance in both motorsport and high-performance road vehicles.
Made from premium reinforced silicone, each connecting hose meets or exceeds SAE J20 standards, offering excellent resistance to heat, pressure and wear in harsh conditions.
Specifications:
- Internal diameter: 6 - 102 mm
- Length: 76 mm
- Material: Reinforced silicone
- Operating temperature range: -60°C to +220°C
- Burst pressure: 12–36 bar (depending on the number of plies)
- Reinforcement: varies depending on the construction of the plies for increased durability
- Compliance: Meets or exceeds SAE J20 standards
Available in black or blue
| Ø INTERNAL | PLY | THICKNESS (MM) | WORKING PRESSURE (BAR) | BURST PRESSURE (BAR) | LENGTH (MM) | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| 6 | 3 | 4 | 12 | 36 | 76 | 0,015 |
| 8 | 3 | 4 | 11,5 | 34,5 | 76 | 0,018 |
| 10 | 3 | 4 | 11,5 | 34,5 | 76 | 0,02 |
| 12 | 3 | 4 | 9 | 27 | 76 | 0,025 |
| 14 | 3 | 4 | 8 | 24 | 76 | 0,026 |
| 16 | 3 | 4 | 7 | 21 | 76 | 0,027 |
| 18 | 3 | 4 | 6 | 18 | 76 | 0,031 |
| 20 | 3 | 4 | 8 | 24 | 76 | 0,032 |
| 22 | 3 | 4 | 8 | 24 | 76 | 0,03 |
| 25 | 3 | 4 | 8 | 24 | 76 | 0,035 |
| 28 | 3 | 4 | 8 | 24 | 76 | 0,04 |
| 30 | 3 | 4 | 8 | 24 | 76 | 0,04 |
| 32 | 3 | 4 | 7 | 21 | 76 | 0,043 |
| 35 | 3 | 4 | 7 | 21 | 76 | 0,046 |
| 38 | 3 | 4 | 7 | 21 | 76 | 0,05 |
| 41 | 4 | 5 | 7 | 21 | 76 | 0,053 |
| 45 | 4 | 5 | 7 | 21 | 76 | 0,061 |
| 48 | 4 | 5 | 7 | 21 | 76 | 0,063 |
| 51 | 4 | 5 | 6 | 18 | 76 | 0,088 |
| 55 | 4 | 5 | 6 | 18 | 76 | 0,09 |
| 57 | 4 | 5 | 5 | 15 | 76 | 0,091 |
| 60 | 4 | 5 | 5 | 15 | 76 | 0,1 |
| 63 | 4 | 5 | 5 | 15 | 76 | 0,105 |
| 65 | 4 | 5 | 5 | 15 | 76 | 0,111 |
| 68 | 4 | 5 | 5 | 15 | 76 | 0,108 |
| 70 | 4 | 5 | 5 | 15 | 76 | 0,114 |
| 76 | 4 | 5 | 5 | 15 | 76 | 0,131 |
| 80 | 4 | 5 | 4 | 12 | 76 | 0,135 |
| 83 | 4 | 5 | 4 | 12 | 76 | 0,147 |
| 89 | 4 | 5 | 4 | 12 | 76 | 0,156 |
| 102 | 4 | 5 | 4 | 12 | 76 | 0,156 |
-
Angle in °0
-
Main materialSilicone
-
Length in mm76
-
Main colorBlack
Blue
