FFSA 2015 rollcage reinforcements kit

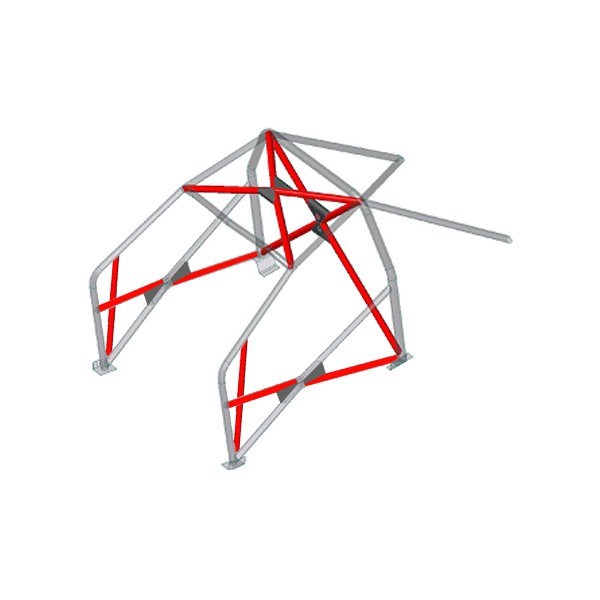

The kit was specially designed to be adaptable on standard roll bars, tubes in steel FE45.

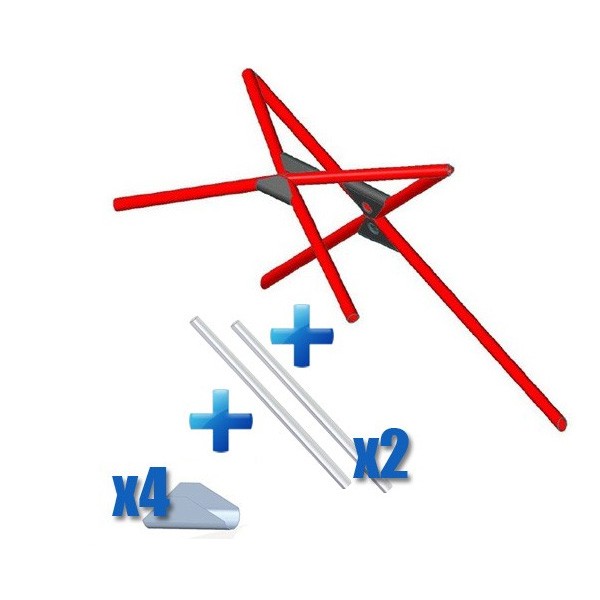

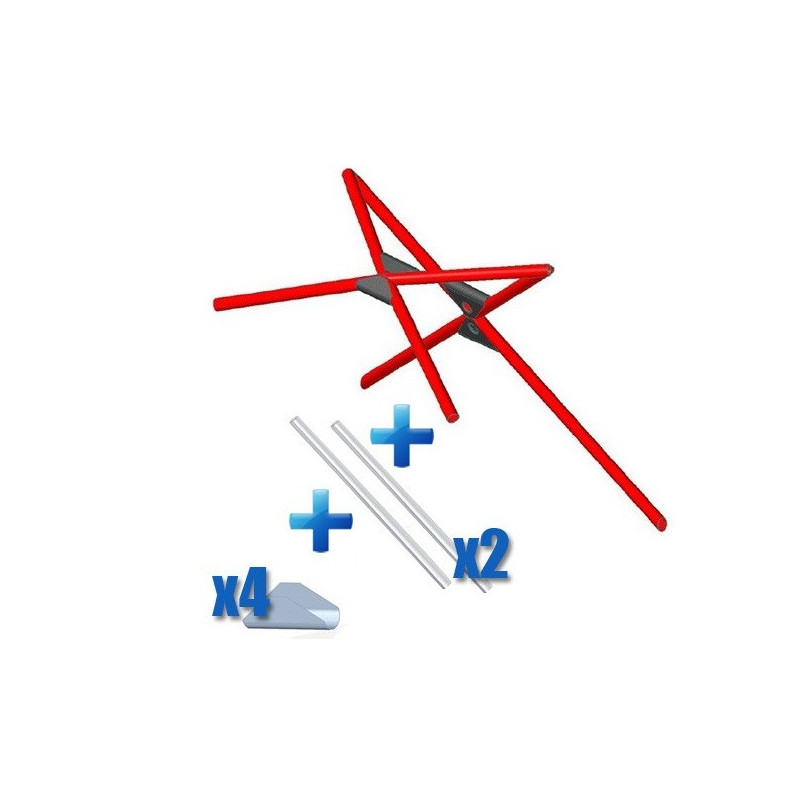

This reinforcement kit is composed of:

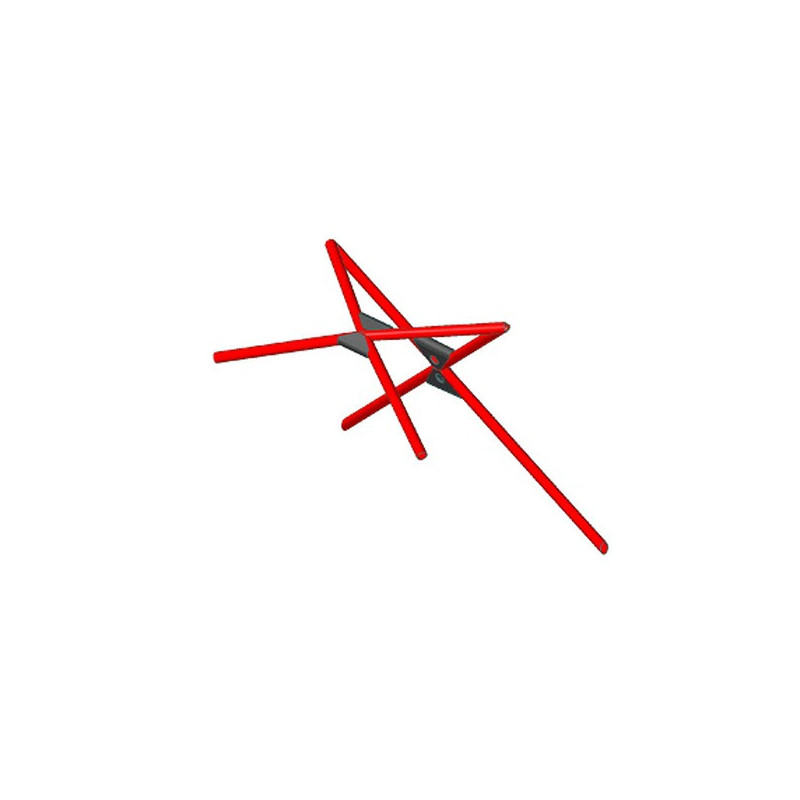

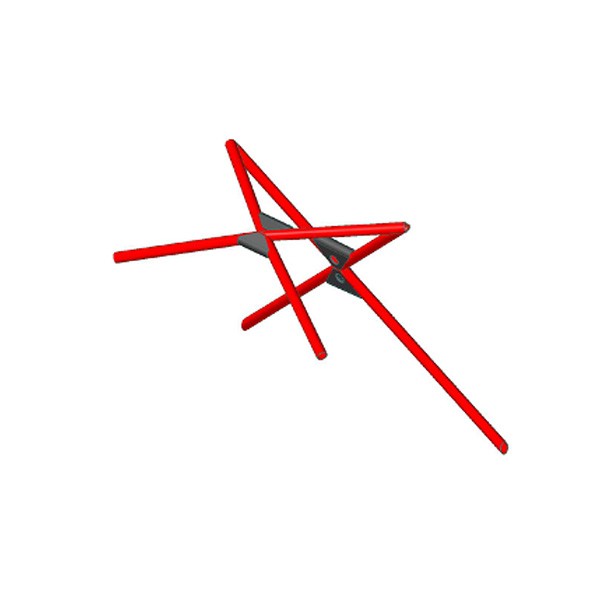

1 principal roll bar cross (behind the seats) + 1 roof cross :

- 1 tube 40 x 2mm, length 1.5m

- 1 tube 40 x 2mm, length 85cm

- 1 tube 40 x 2mm, length 65cm

- 1 tube 40 x 2mm, length 1m with central wrinkle around 7°

- 2 tubes 40 x 2mm, length 50cm

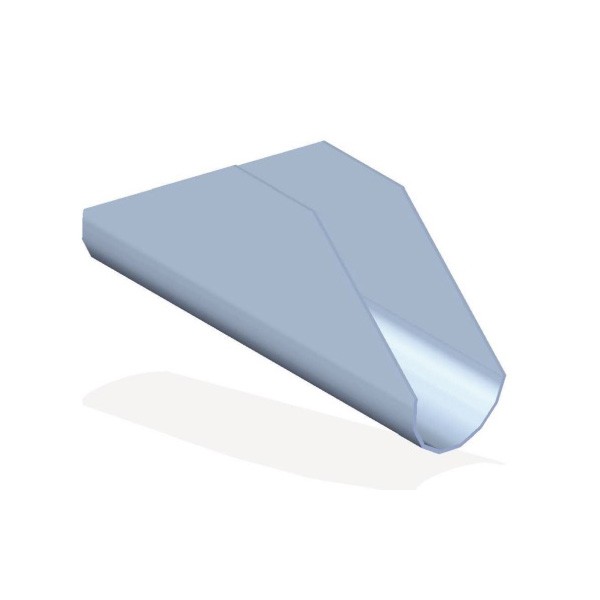

- 4 gussets angle reinforcements

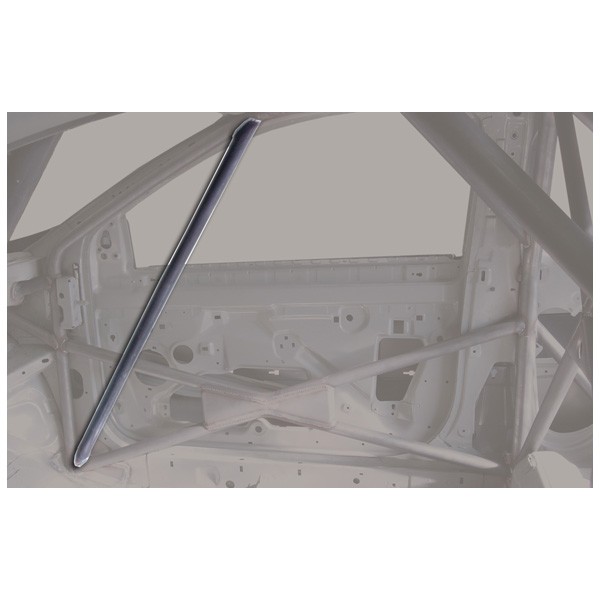

2 door half-cross:

- 2 universal door bars (40 x 2mm)

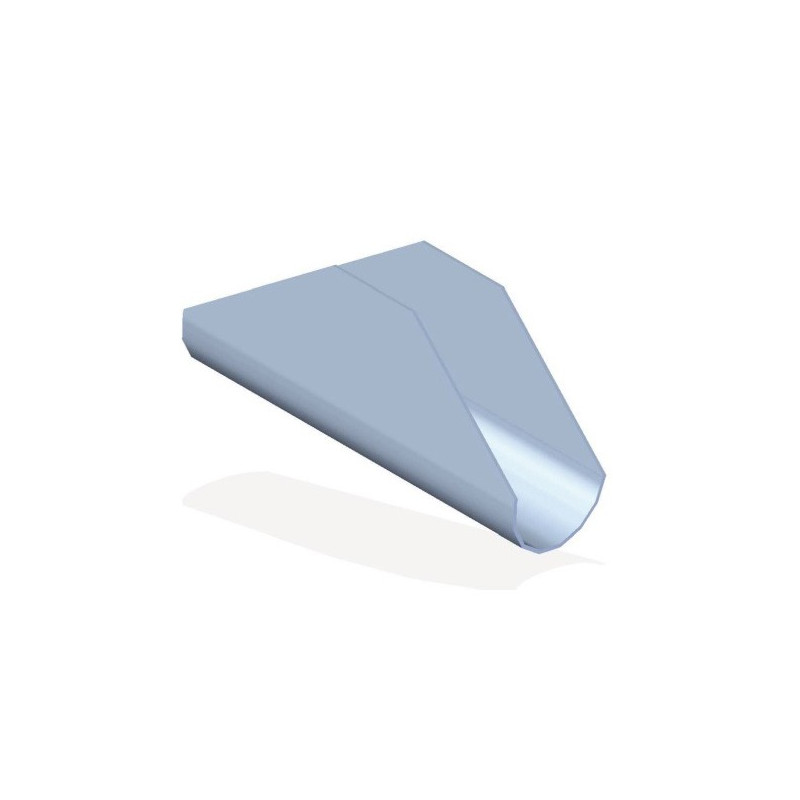

- 4 gusset angle reinforcements (100 x 170mm)

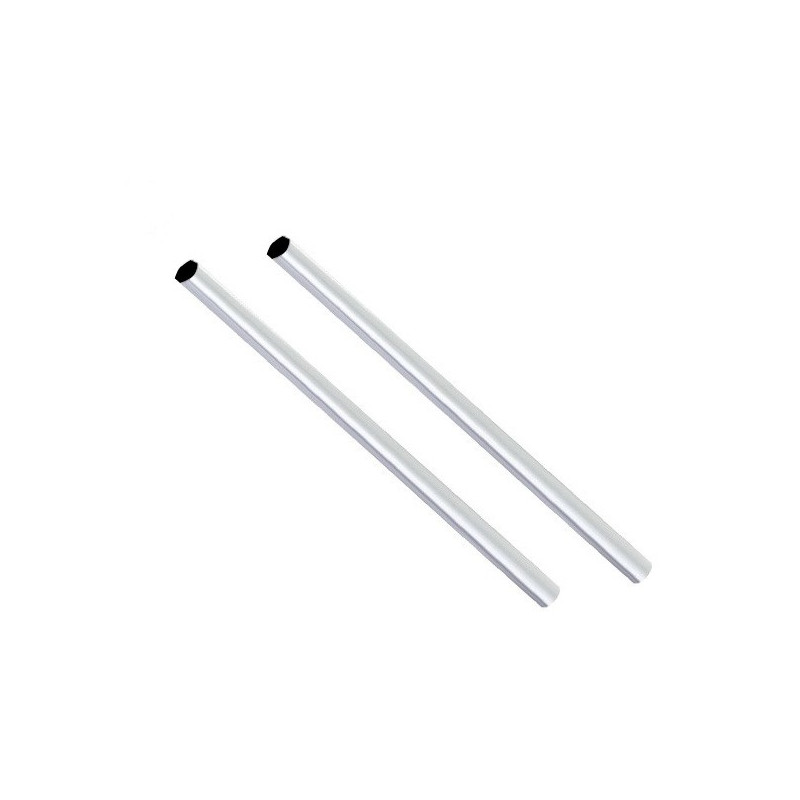

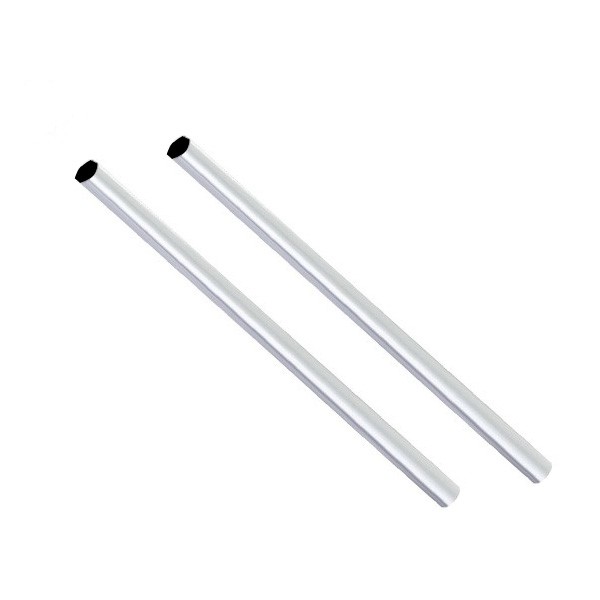

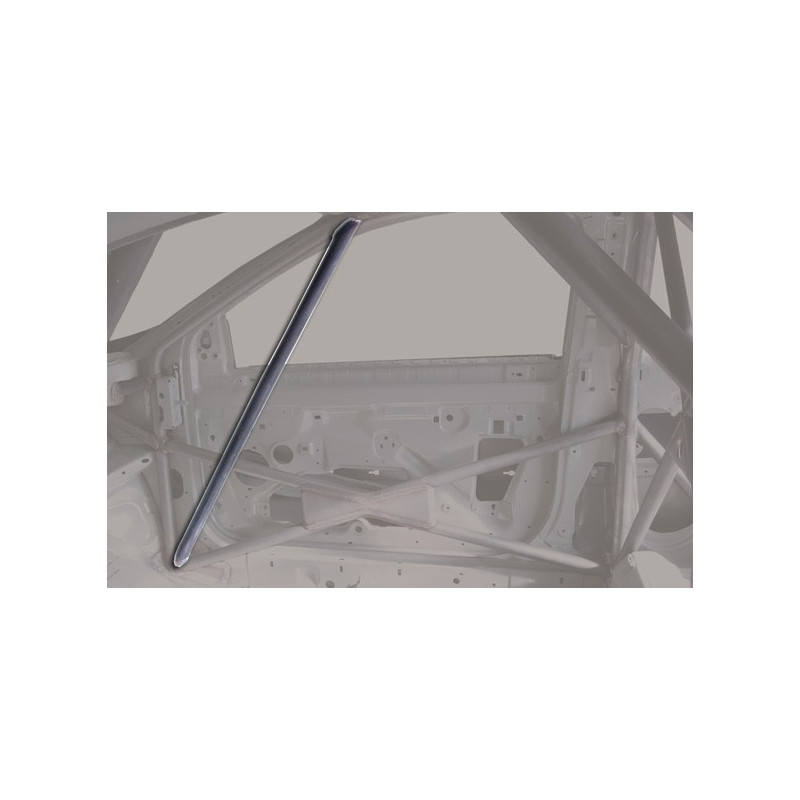

2 mount reinforcements:

- 2 tubes 40 x 2mm, length 1.2m to cut to be adaptable on your roll bar.
