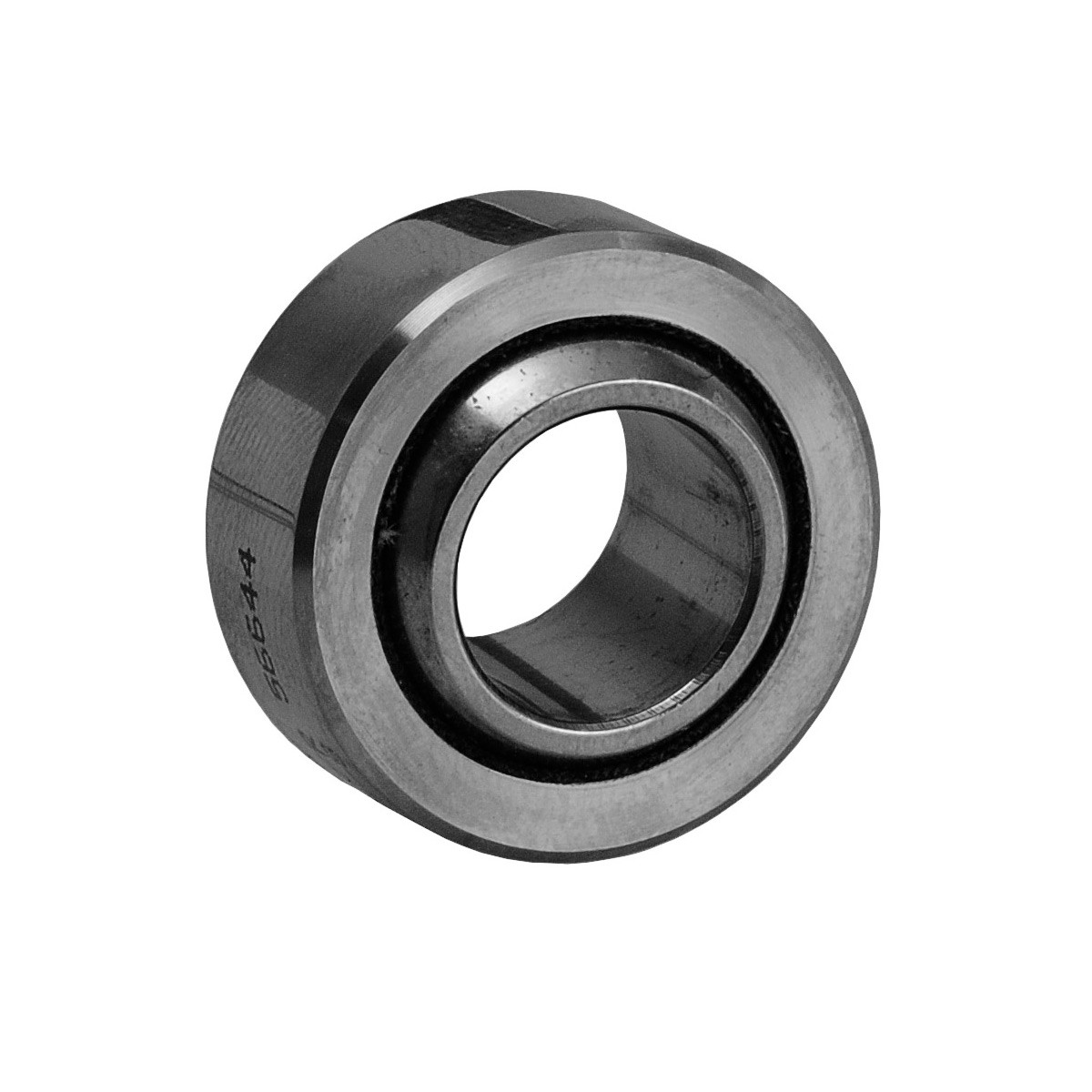

Aurora Spherical Bearing 5/8” 1.1875 ext.

Reference: RO-PWB-10TG

Supplier Ref.: PWB-10TG

Learn more

€108.80 Tax included

€128.00 -15% Discount

Promotion ends in: 03 H 01 M 27 S

Available to order

Unavailable in store (Montpellier)

Within 20 days on average.

€128.00 -15%

€108.80 (tax incl.)

Earn 108 loyalty points

Carbon footprint: 0.22 kg CO₂

Aurora's spherical bearings are manufactured to meet the following specifications: small size to save space, high load capacity, wear resistance, long service life, resistance to environmental conditions; last but not least, AURORA products are economical.

Technical data:

Ball - Alloy steel, heat treated, hard chrome plated.

Race - 17-4 PH (AMS 5643) stainless steel, heat treated.

PTFE liner - (AT 3200)

Permanently bonded to race inside diameter.

Complies with SAE-AS81820 (formerly MIL-B-81820)

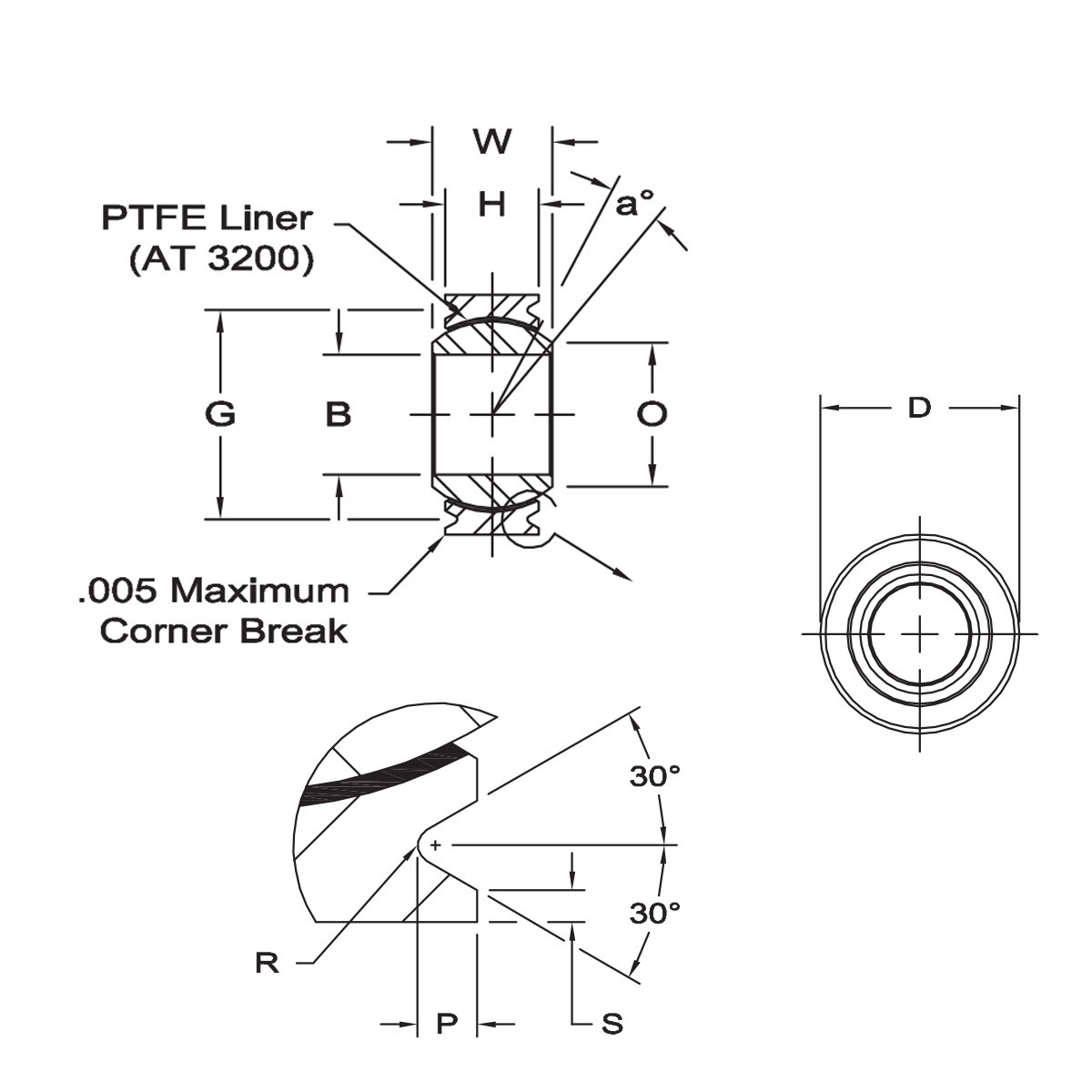

Eye diameter: 5/8“

External diameter (D): 30.16mm (1.1875")

Cage thickness (H): 14.40mm (0.567")

Rod end thickness (W): 19.05mm (0.750")

Radial load: 2900 daN

B : 15.875mm (0.6250")

O : 18.974mm (0.747")

P : 0.889mm (0.035")

S : 0.5080mm (0.020")

G : 27.610mm (1.087")

R : 0.381mm (0.015")

a° : 12°

Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
