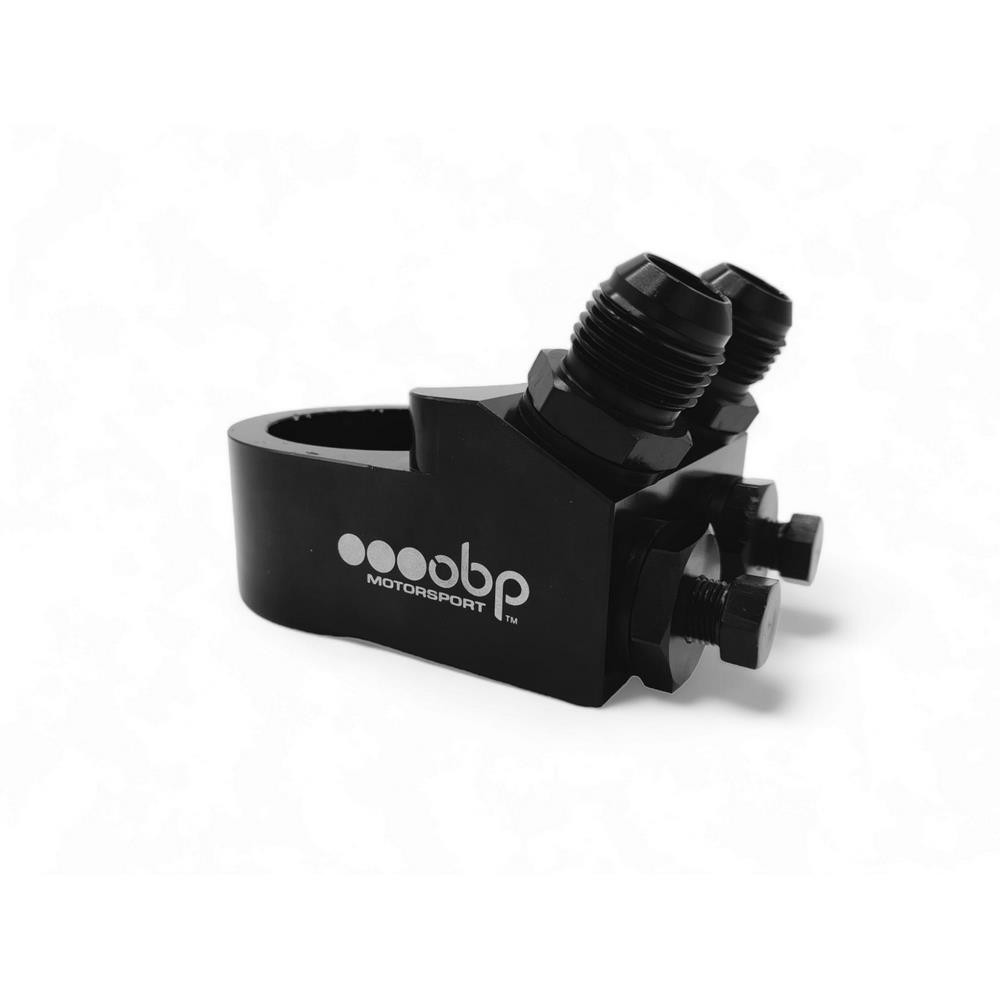

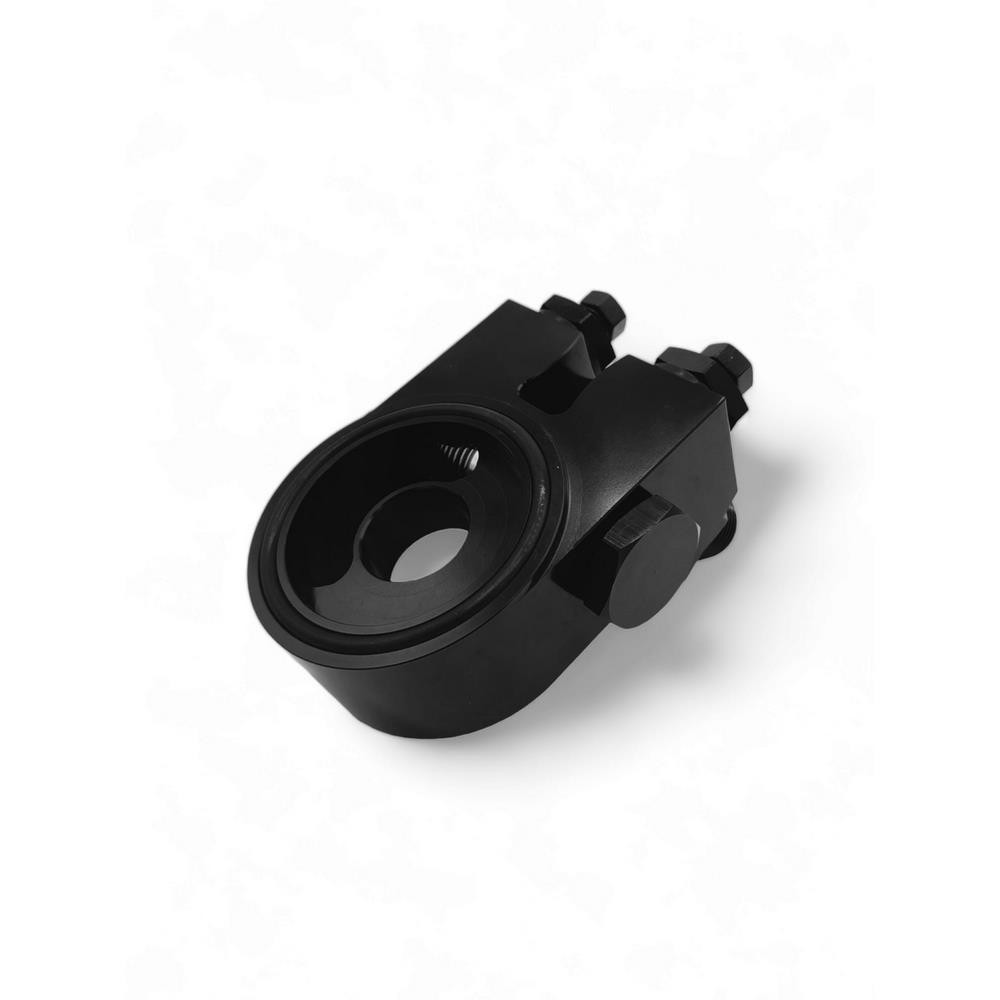

OBP multi angle aluminium thermostatic sandwich plate - 2 Dash10 male outlets

OBP oil circuit sandwich plates in CNC machined aluminium are the solution for extracting oil from the oil filter head to the oil cooler.

The sandwich plate operates via an integrated thermostat. When the engine oil reaches a temperature of 82°C, the valve opens and allows the oil to flow to the oil cooler, giving you total control over the oil temperature.

Sandwich plates are fitted as standard with AN10 male adapters and are also supplied with 2 M20x1.5 and 3/4x16 UNF extension screws.

• 4 multi-angle outlets
• 2 Dash10 male outlets (7/8x14 JIC/UNF)
• 2 built-in Dash10 blanking plugs with 1/8 NPT adapters
• built-in 82°C thermostat
• 2 extension screws supplied in M20x1.5 and 3/4x16 JIC/UNF
• 1 O-ring 65x3mm
