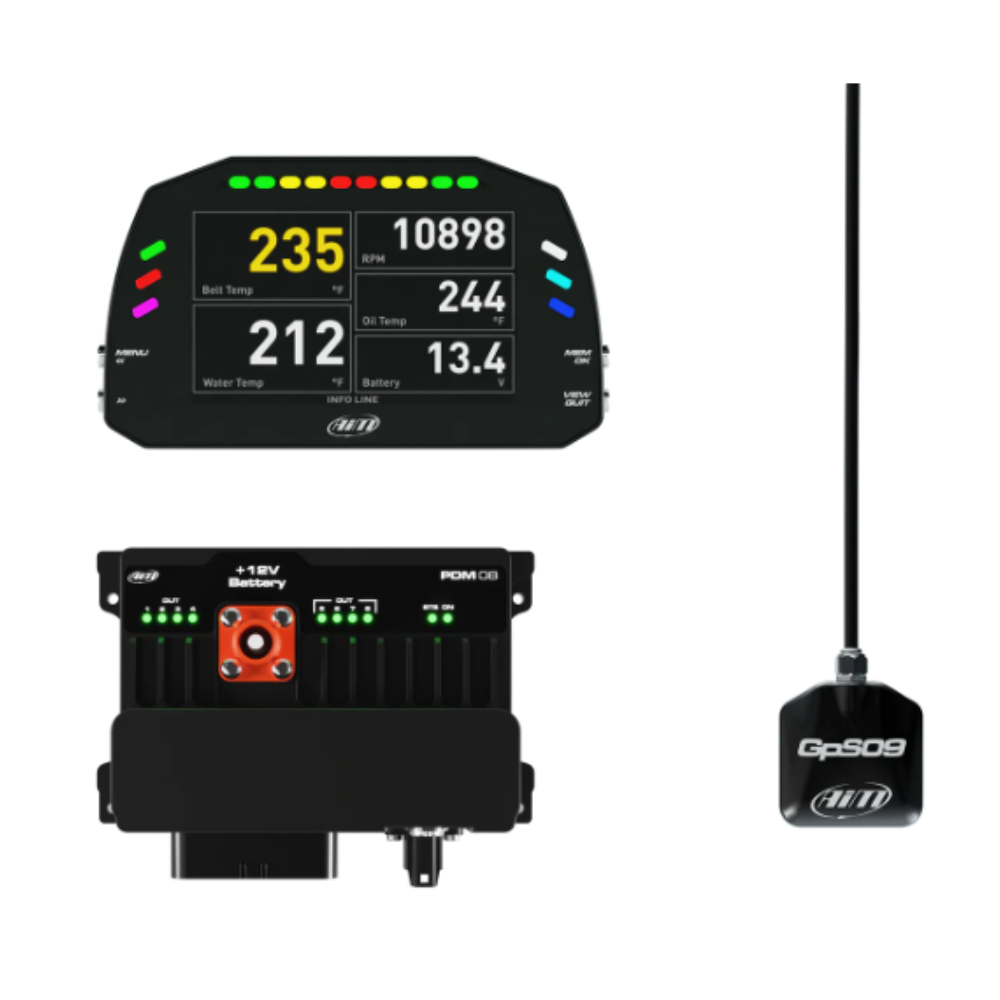

AIM PDM 8 data logger kit with 5" Race-type display

Enhance your vehicle's performance with the AIM PDM 8 data logger kit, combined with a 5" display specially designed for racing.

Featuring 9 RGB LEDs, as well as PDM ON and PDM STS indicators, this kit offers clear, intuitive visual control.

With an input speed of 2, this system provides a fast, precise response to your vehicle's data. The 3 integrated CAN connections allow easy integration with other electronic systems in your vehicle. What's more, the 4GB internal memory guarantees reliable recording of race data.

With a resolution of 800x480 pixels and dimensions of 189.6x106.4x24.9mm, this display offers clear, detailed visualization of race data.

Cable available in standard versions: 0.5m, 1.3m, 2m and 4m, as well as roof versions: 2m and 4m.

Features :

• LEDs: 8 RGB LEDs + 1 PDM ON + 1 PDM STS (status)
• Inputs:
• Six fully configurable inputs, max. 500 Hz each
• Pullup + 12V, + 5V, analog/digital
• Pull down
• Speed IN: 2
• Power outputs :
• 1 with series diode up to 20 A
• 1 up to 25 A
• 6 up to 15 A
• Protection against: overvoltage, undervoltage, undercurrent, overtemperature
• All outputs have an internal freewheeling diode.
• Maximum total current: 100 A
• Lin bus: 1
• CAN connections: 3
• Internal platform: 3-axis accelerometer ±5G + 3-axis gyroscope + 3-axis magnetometer
• Internal memory: 4 GB
• External modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Handwheel, Remote I/O Pushbutton Module
• External analog camera input: NO
• Connectors: 1 AMP connector + 1 Amphenol Surlok connector + 1 Rosenberger connector
• Remote display connection: 1 AiM flow output
• Body: Anodized aluminum
• Dimensions: 161 x 100.6 x 50.6 mm 161 x 100.6 x 50.6 mm
• Weight: 500g
• Water resistance: IP65
• AiM PDM Dash 5
• Display: 5" TFT
• Resolution: 800 x 480 pixels
• Contrast: 600:1
• Brightness: 700cd/m2 - 1000 Lumen
• Ambient light sensor : Yes
• Device status information LED: 5
• Gear change illumination LED: 10
• Body: Anodized aluminum
• Push-buttons: Metal
• Connectors: LVDS Link 4-pin Rosenberger male
• Dimensions: 189.6 x 106.4 x 24.9mm 189.6 x 106.4 x 24.9 mm
• Weight: 640g
• Power consumption: 150 mA
• Water resistance: IP65
• GPS module
• 5-pin Binder connection
• Dimensions: 64.8 x 53.2 x 19.7 mm 64.8 x 53.2 x 19.7 mm
• Weight: 60.5 g
