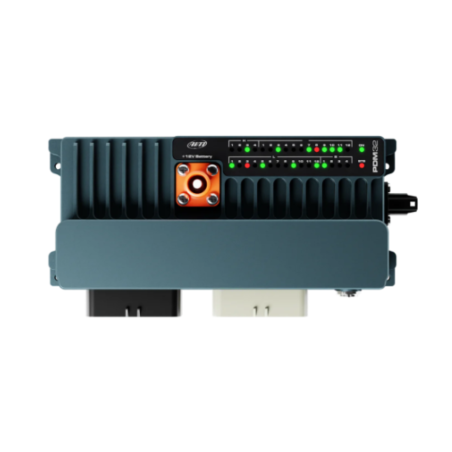

PDM 32 AIM module with GPS (without display)

The AIM PDM32 power distribution module is designed to provide advanced power management in competition vehicles.

With its 14 configurable inputs, it can capture data at up to 500Hz each, enabling precise control of various electrical systems. With a wide range of power outputs, from 4 to 35 A, this module ensures reliable and secure power supply for essential vehicle components.

Thanks to its 3 CAN connections, the PDM32 can be easily integrated into your car's existing communication system, enabling even more extensive monitoring and control. Its 4GB internal memory guarantees data storage, while its IP65 protection rating makes it resistant to harsh environmental conditions.

With its compact dimensions of 234.5x84.6x49.5 and a weight of 761g, this module can be discreetly installed in your vehicle.

Available in standard versions of 0.5m, 1.3m, 2m and 4m.
And in 2m and 4m roof versions.

Features :

• Inputs :
• 14 fully configurable, max. 500 Hz each :
• 8 analog/digital
• 4 digital inputs
• 2-speed input
• Power outputs :
• 4 up to 20 A (high power)
• 12 up to 15 A (low power)
• 12 up to 10 A (low bridge)
• 4 up to 35 A (half-bridge)
• Protection: overvoltage, undervoltage, overcurrent, overtemperature
• Maximum total current: 120 A
• LEDs: 32 RGB LEDs + 1 PDM ON + 1 PDM STS (Status)
• Lin bus: 1
• CAN connections: 3
• Internal platform: 3-axis accelerometer ±5G + 3-axis gyroscope + 3-axis magnetometer
• Remote display connection: 1 AiM stream output
• Connectors: 2 AMP connectors + 2 Binder connectors + 1 Amphenol Surlok connector + 1 Rosenberger connector
• Internal memory: 4 GB
• External modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Handwheel, Remote I/O Pushbutton Module
• External analog camera input: 2
• Body: Anodized aluminum
• Waterproofing: IP65
• Dimensions: 234.5 x 94.6 x 49.5 mm 234.5 x 94.6 x 49.5 mm
• Weight: 761g
