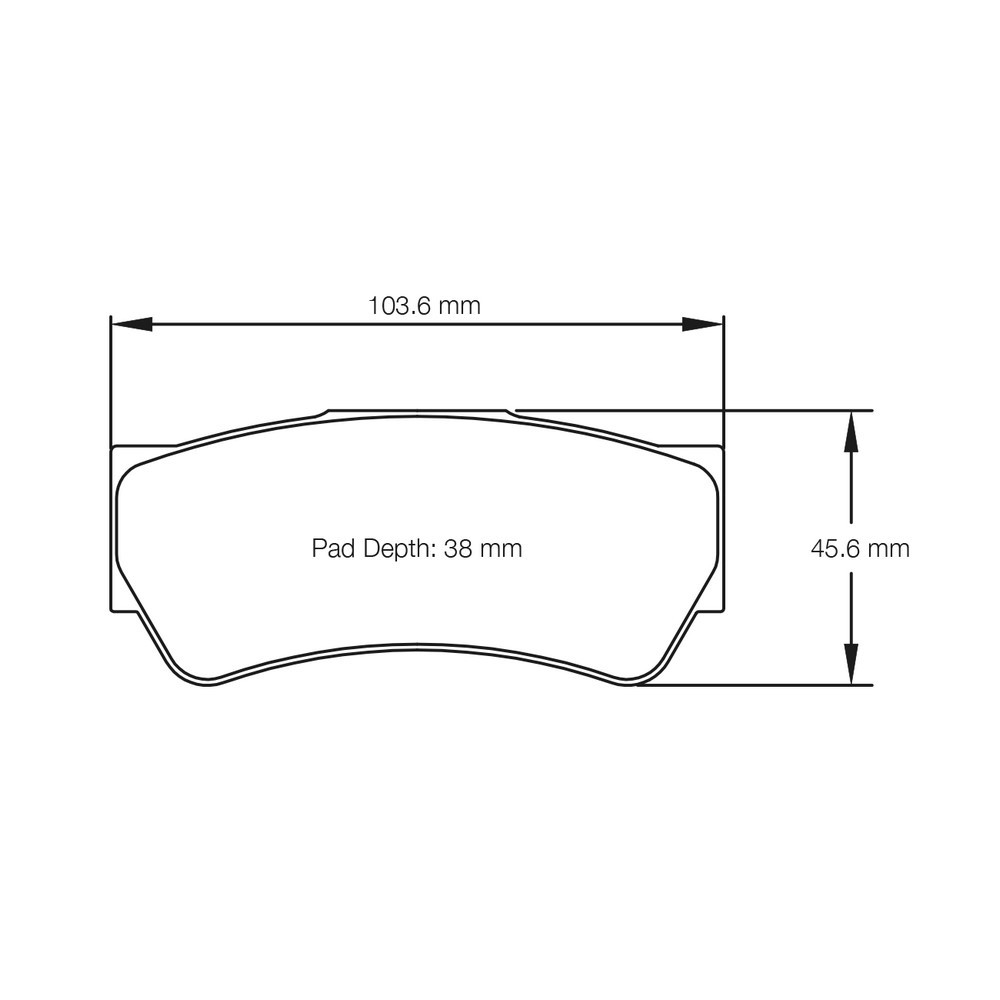

Pagid brake pads S8049 RS34,RS36,RS42
Reference:
PA-8049-RS.42
Supplier Ref.:
S8049R42001

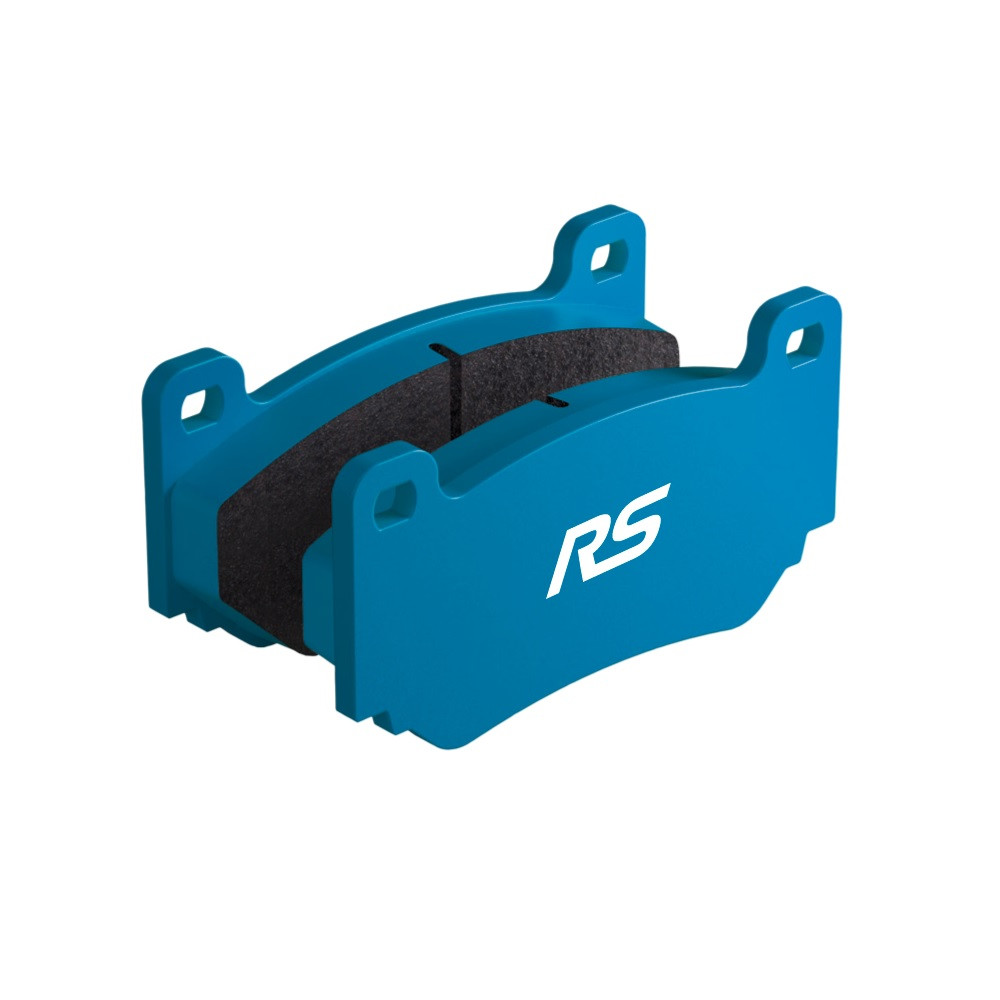

Pagid brake pads RS blue

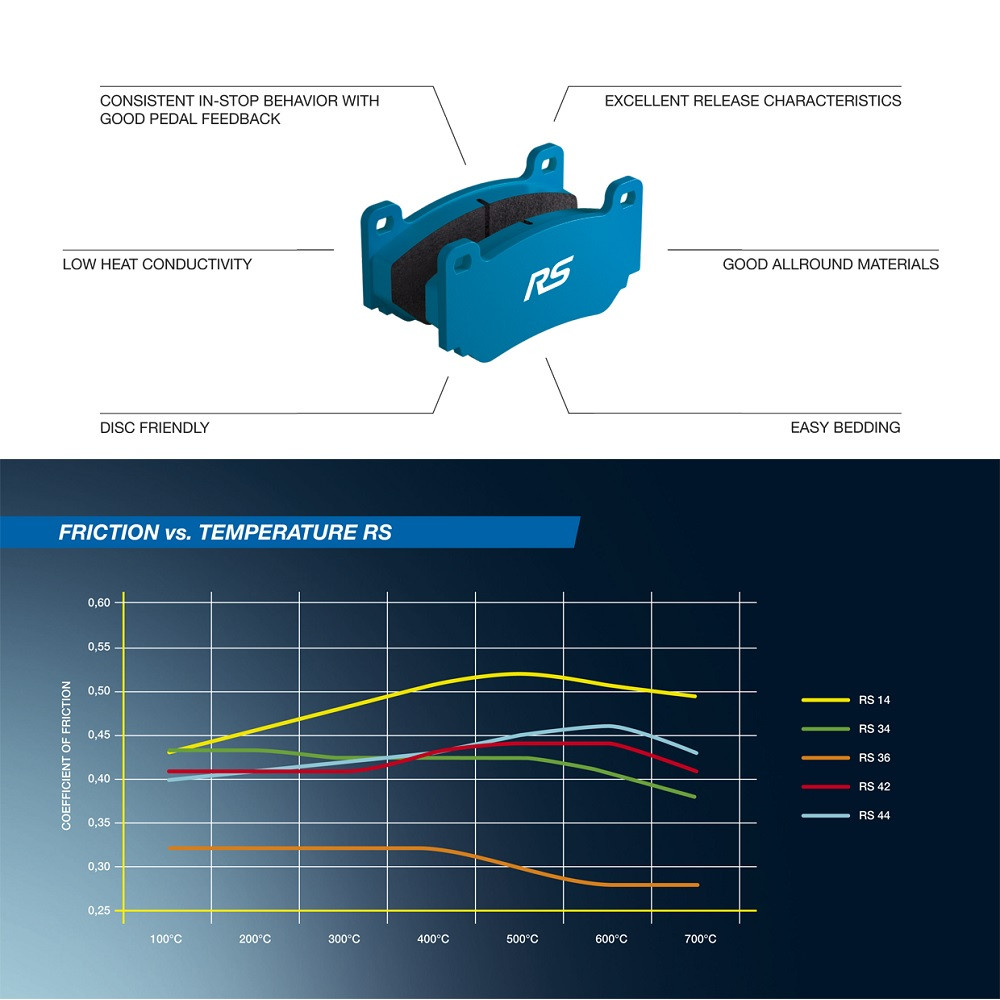

Pagid RS34 application :
Formula cars and single seaters with cast iron brake discs.
Description :
RS 34 is a compound specifically developed for formula cars and single seaters with a considerable level of aerodynamic downforce. Its high friction level and optimized shape of friction curve contribute to an excellent controllability with a contained pad wear, which both remain consistent characteristics.
Pagid RS36 application :
Formula cars and single seaters with cast iron brake discs.
Description :
RS 36 is a compound specifically developed for formula cars and single seaters with a considerable level of aerodynamic downforce. The characteristic shape of its friction curve contributes to modulation, while protecting the disc.
Pagid RS42 application :
Classic rally pad and also very popular in small formula and Touring cars.
Description :
RS 42 is a low metallic resin bonded material containing steel and aramid fibers. The characteristics make this material appropriate for small formula cars.
| Application | FRONT | REAR |
|---|---|---|
| Brembo 07.A262.xx F3 (type B10 family) 16.0 mm | ||
| Brembo XA6.S0.01/02 (F3 caliper) 16.0 mm | ||
| Brembo XA6.S0.03/04 (F3 caliper) 16.0 mm | ||
| Brembo XA6.S0.21/22 HRB version (F3 caliper) 16.0 mm | ||
| Brembo XA6.S0.23/24 HRB version (F3 caliper) 16.0 mm | ||
| Dallara F308 (Formula F3) Brembo Caliper 08-11 | X | |
| X | ||
| Dallara F312 (Formula F3) Brembo Caliper 12-16 | X | |
| X | ||
| Dallara F317 (Formula F3) Brembo Caliper 17 - | X | |
| X |
