The Monit G-100+ tripmaster with built-in global positioning system/GNSS is an on-board computer designed for rally navigation and reconnaissance. It allows the driver or co-driver to accurately measure distances traveled and vehicle speed, with simplified installation thanks to the global positioning system receiver integrated directly into the unit.
The G-100+ simultaneously uses the global positioning system (GPS), GLONASS, and Galileo satellite systems. This extended GNSS coverage improves measurement accuracy in environments where satellite reception may be more difficult, such as narrow valleys, tree-lined roads, or urban areas surrounded by buildings. The system also accounts for vertical variations in distance.
The tripmaster features two independent 5-digit distance counters that can be set to count up or drop. The distance can be quickly adjusted up or down, and a high-resolution mode allows for measurements accurate to the meter. The G-100+ also displays instantaneous speed and records the maximum speed. A built-in stopwatch rounds out the rally-friendly features and can be controlled via a programmable input.
The global positioning system calibration can be adjusted to match the distances displayed by the Monit with those measured by the event organizer. The G-100+ can also operate with a traditional speed sensor or wheel sensor. The global positioning system/GNSS can be completely disabled when its use is not permitted by event regulations.

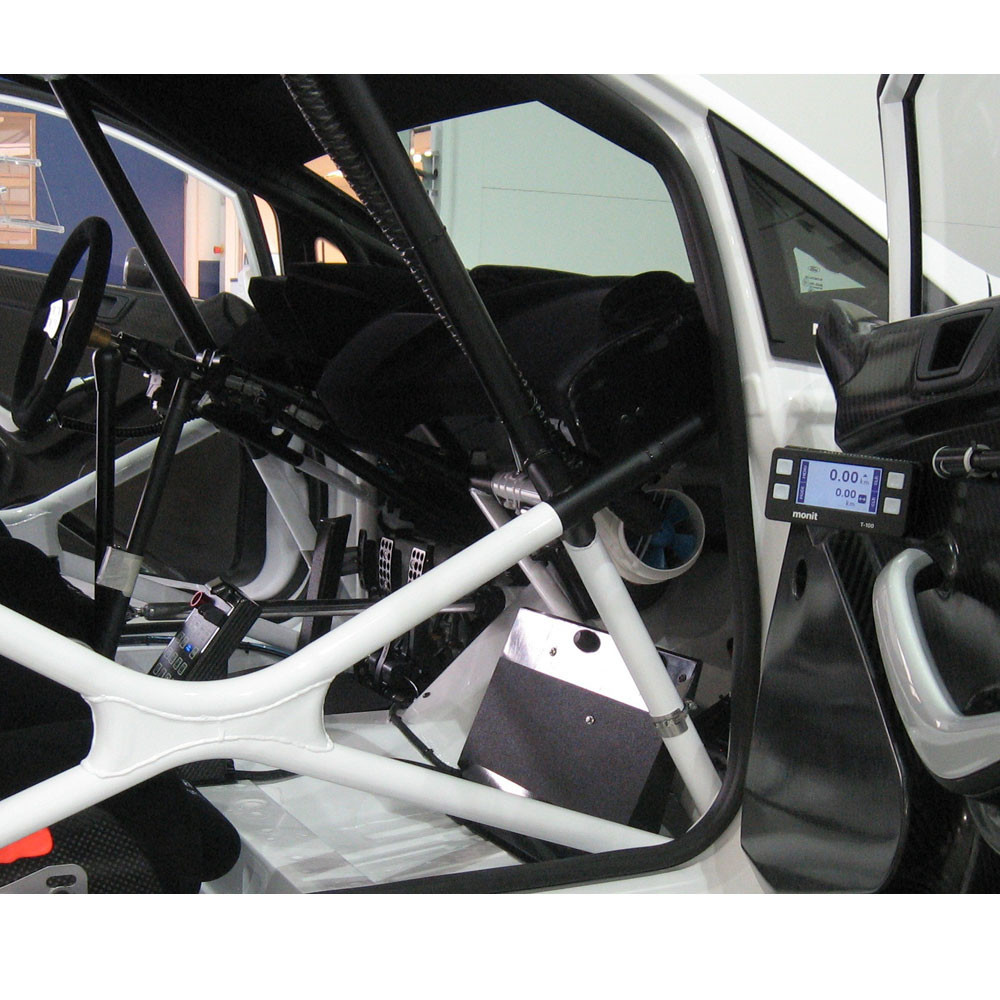

Compact and lightweight, the Monit G-100+ is suitable for modern, classic, or historic rally cars and can also be used in a reconnaissance vehicle for note-taking. Its interface can be configured in French, English, Spanish, or Italian, and the display can be set to kilometers or miles.
Please note: The Monit external antenna required for global positioning system/GNSS operation is not included with the G-100+ and must be ordered separately.
Technical Specifications of the Monit G-100+ tripmaster with built-in global positioning system/GNSS
- Brand: Monit
- Manufacturer Part Number: G100+
- Type: Tripmaster / rally on-board computer
- Usage: Rally, reconnaissance, modern, classic, and historic vehicles
- Satellite receiver: Built-in global positioning system/GNSS
- Satellite systems: Simultaneous reception of the global positioning system (GPS), GLONASS, and Galileo
- Alternative operation: Compatible with speed sensor or wheel sensor
- Global positioning system deactivation: Yes
- Distance counters: 2 independent 5-digit counters
- Counting direction: Ascending or descending
- Quick distance correction: Up or drop
- High-resolution mode: Measures down to the meter
- Instantaneous speed: Yes
- Maximum speed storage: Yes
- Stopwatch: Yes
- Performance measurement: 0 to 100 km/h
- Programmable inputs: 2 for manual or foot controls
- Units: Kilometers or miles
- Languages: French, English, Spanish, and Italian

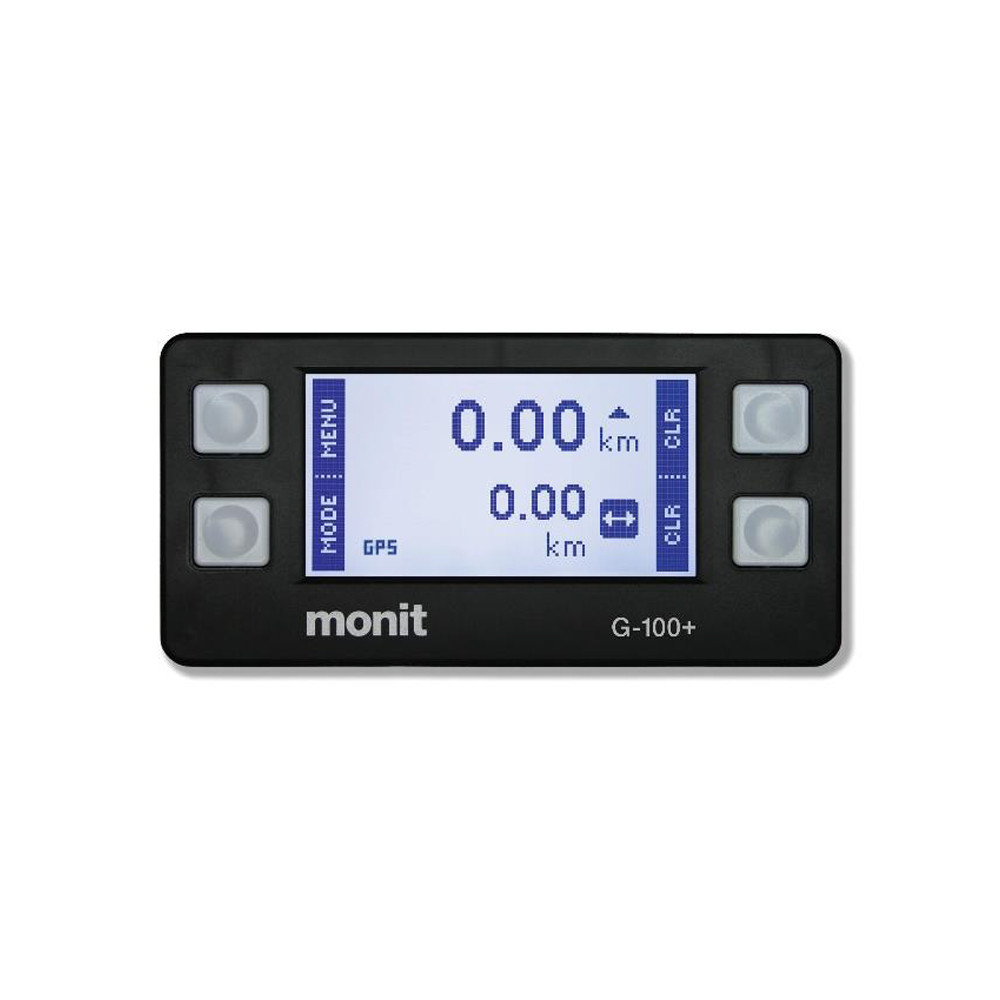

- Display: 2.9-inch transflective LCD, 128 x 64 pixels
- Backlight: White LED with brightness adjustment
- Screen protection: Anti-glare film with scratch-resistant resistance
- Sizes: 116 x 57 x 20 mm
- Weight: 100 g (unit only)

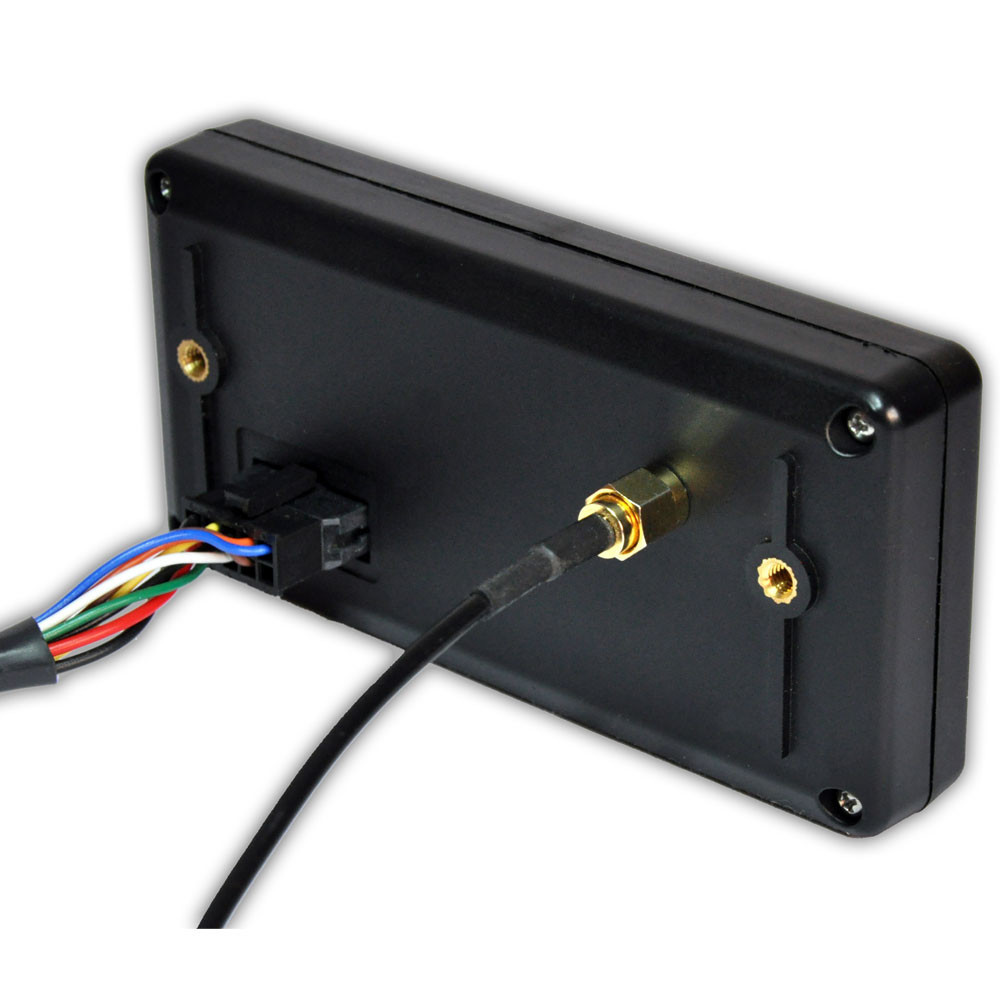

- Rear mounting: 2 M4 brass threaded inserts
- Operating voltage: 11 to 15 V
- Operating consumption: 20 to 120 mA
- Standby consumption: less than 5 mA
- Operating temperature: -10 to 70 °C
- Storage temperature: -20 to 80 °C
- External global positioning system/GNSS antenna: Not included; must be ordered separately
Key features of the Tripmaster Monit G-100+ with built-in global positioning system/GNSS
- Tripmaster designed for rallying and particularly well-suited for reconnaissance runs.
- Global positioning system/GNSS receiver directly integrated into the housing.
- Simultaneous reception of the global positioning system (GPS), GLONASS, and Galileo satellites.
- Two independent 5-digit distance counters with rapid correction.
- Adjustable global positioning system calibration to match the distance with that measured by the organizer.
- Option to completely disable the global positioning system and use a traditional speed sensor.
- Compact size: 116 x 57 x 20 mm and weighing only 100 g.
- Interface available in French and three other languages.
- Suitable for modern, classic, and historic rally cars.
This kit for your MONIT G Series on-board computer will enable you to install your on-board computer quickly and easily according to your preference.
The new RAM Twist-Lock suction cup mount offers more adjustment options than the previous version.
The kit consists of
- a suction cup holder
- pre-wired cigarette lighter cable with basic 1-button remote control
- an on-board computer holder
Cable length: 1600mm
Total weight: 250g
Monit G-100 Recognition Pack + gps antenna + suction cup holder
Reference:
pack-monit-reco
This Reconnaissance package is designed for the quick installation of a Monit tripmaster in a co-driver configuration, featuring a global positioning system (GPS) solution and a mobile mounting suitable for support, reconnaissance, or competition vehicles. It includes a Monit G-100 on-board computer with built-in GPS, designed to display and track navigation and distance information when used as a tripmaster. The integrated global positioning system simplifies setup and allows for immediate use of positioning-related functions, depending on the Monit G-100 configuration. The package also includes a magnetic global positioning system antenna compatible with the Monit G100 and G200 on-board computers. The magnetic base makes it easy to position the unit on a metal surface of the vehicle to optimize reception, while allowing for a reversible installation—convenient for switching vehicles or quick setups. Finally, the suction cup support kit with tripmaster power supply allows for drill-free mounting and direct power from the vehicle’s 12 V outlet. This solution is particularly well-suited for temporary mountings, testing, or vehicles that cannot accommodate a permanent mount, while ensuring quick installation and removal of the tripmaster. Vehicle compatibility: Not specified. Mounting: passenger side. Package contents: Monit G-100 (built-in global positioning system) + magnetic gps antenna (G100/G200) + suction cup holder with cigar lighter power supply.
