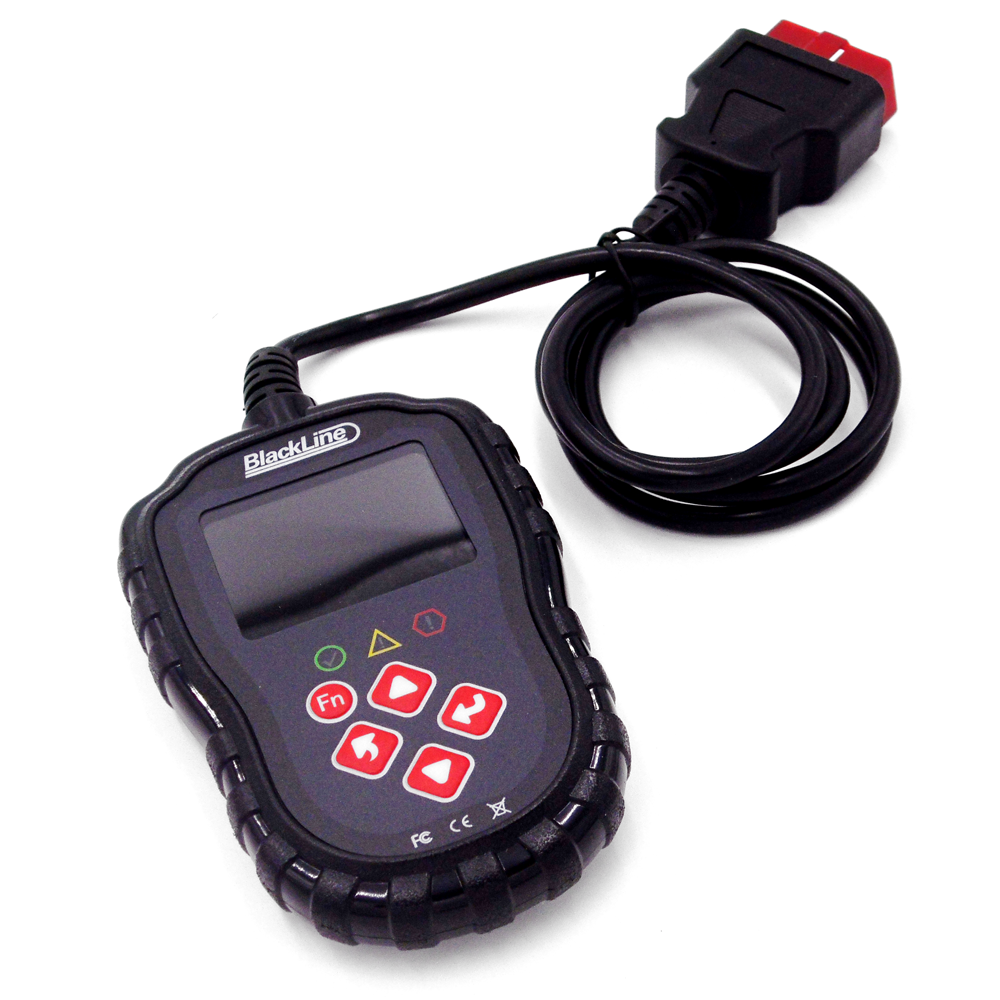

OBDII diagnostic tool - 2,4" color screen

OBD II DIAGNOSTIC TOOL WITH 2.4" COLOR SCREEN

It is the essential tool specially designed to read/erase codes, read live data, retrieve frozen data and request information on OBDII compliant vehicles sold worldwide since 2000 by simply connecting to your vehicle through its data link connector (standard 16-pin interface located in the cockpit).

Functions :

Reading of the anomaly codes.
Clears error codes and turns off the check engine light.
Professional codes and analysis database.
Tests the starting system and the charging system of the cars.
Display of frozen data.
Visualization of data flows in real time.

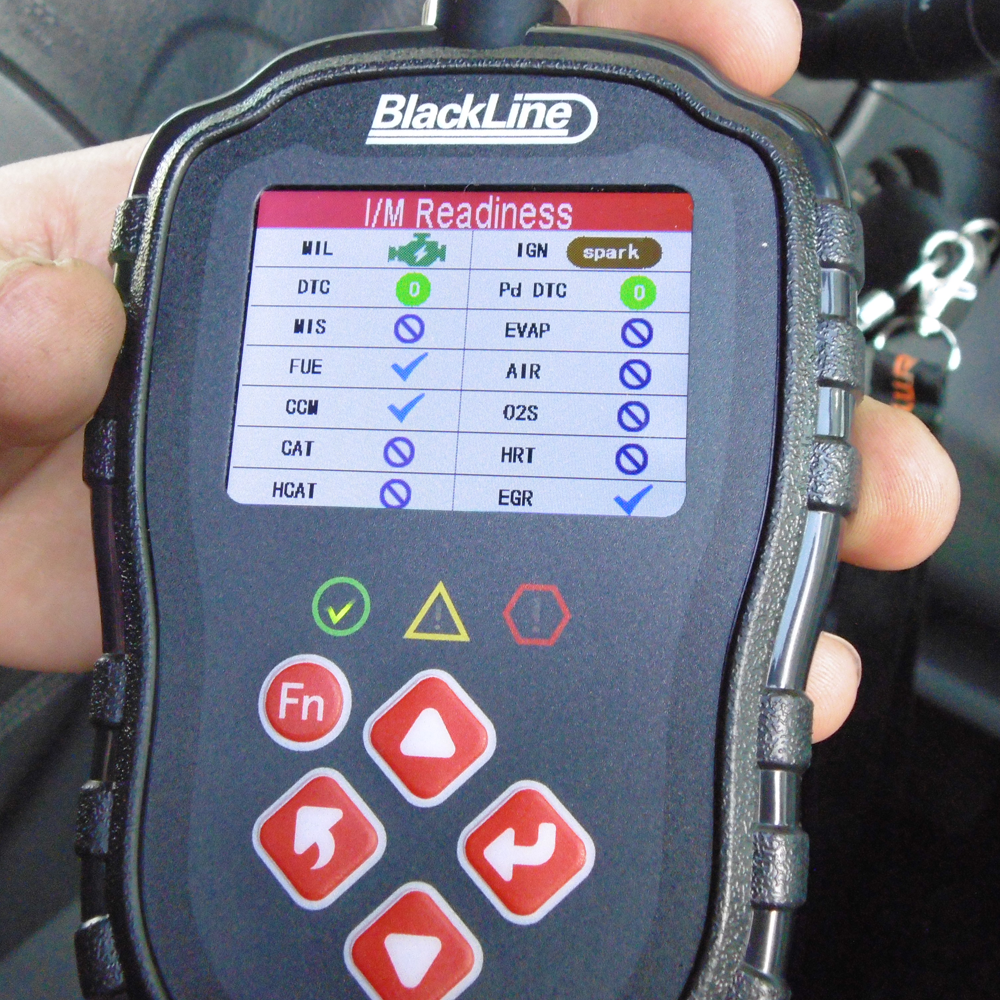

Reading status data I/M.
Displays vehicle information (VIN, etc...).

Features :

Support for data stream type : 249
Fault code analysis number: 16929
Operating voltage: 8V to 25V
Operating current: 52mA (Max)
Operating temperature: from -20°C to 70°C (-4°F to 158°F)
Storage temperature: -30°C to 80°C (-22°F to 176°F)
Display : TFT 2,4 inches (6.096 cm) color screen
Dimensions: (L) 132 mm x (l) 85 mm x (H) 22 mm

Support for protocols OBD II :

1. SAE J1850 VPW
2. SAE J1850 PWM
3. ISO 9141-2
4. ISO 14230-4 (KWP FAST)
5. ISO 14230-4 (KWP 5BAUD)
6. ISO 15765-4 (CAN 11/250)
7. ISO 15765-4 (CAN 11/500)
8. ISO 15765-4 (CAN 29/250)
9. ISO 15765-4 (CAN 29/500)
