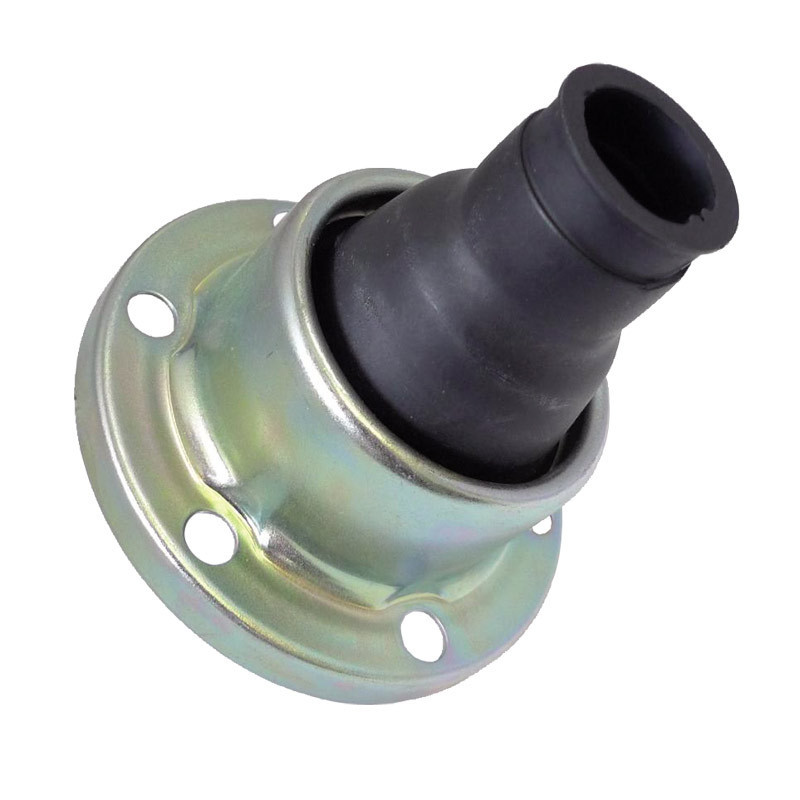

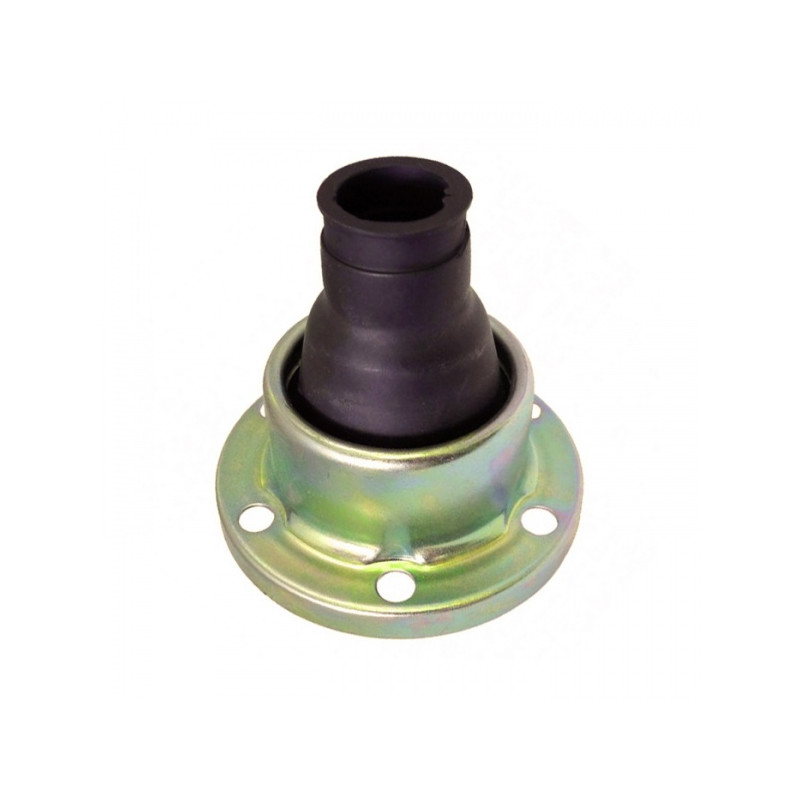

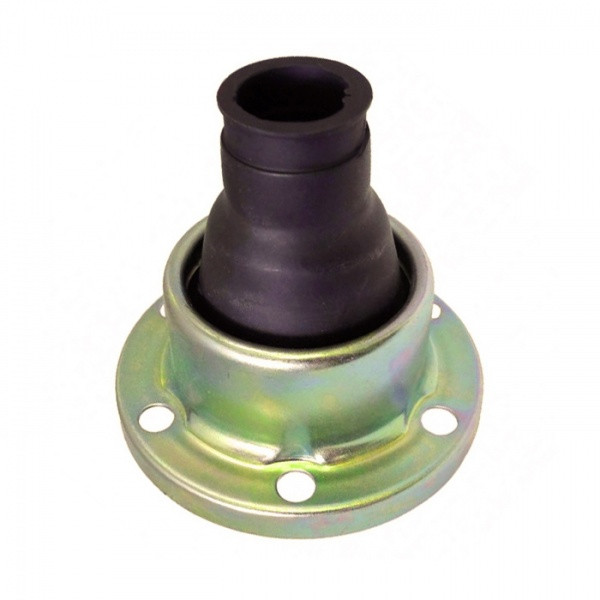

Lobro GKN Motorsport Size 15 Wide-Angle Protective Gasket Bellows

The GKN Motorsport “Scatra Fast Boot” wide-angle protective boot is designed for size 15 lobro cv joints and tripod gaskets used in motorsports. It consists of an outer steel flange with a passivated zinc finish and an aerodynamic reinforced rubber boot, offering excellent resistance and durability in competition.
Compatible with 108 mm diameter joints featuring 6 mounting holes with a center distance of 94 mm, this model features a Scatra Fast Boot design optimized for high rotational speeds. Its wide-angle design allows for use with a shaft angle of up to 14°, meeting the demands of competition drivetrains.
Technical Specifications
Brand: GKN Motorsport
Type: Scatra Fast Boot wide-angle protective boot
Compatible gasket diameter: 108 mm
Compatible size: 15
Mounting Center Distance (pcd): 94 mm
Number of bolt holes: 6
Maximum shaft angle: 14°
Construction:


• Outer steel flange with passivated zinc finish
• Aerodynamic bellows made of reinforced rubber

Compatibility:


• GKN Motorsport lobro cv joint gaskets, size 15
• GKN Motorsport size 15 tripod gaskets

Key Features


• Designed for motorsports and racing applications
• Wide-angle version compatible with shaft angles up to 14°
• Scatra Fast Boot aerodynamic design optimized for high rotational speeds
• Passivated zinc finish for greater durability
• Compatible with lobro cv joints and size 15 GKN Motorsport tripods
