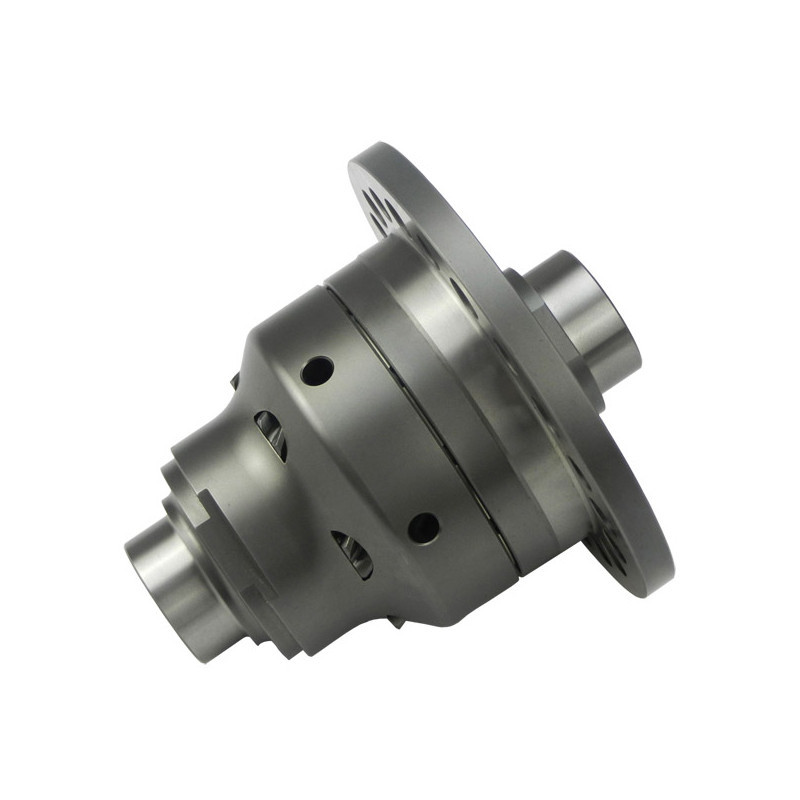

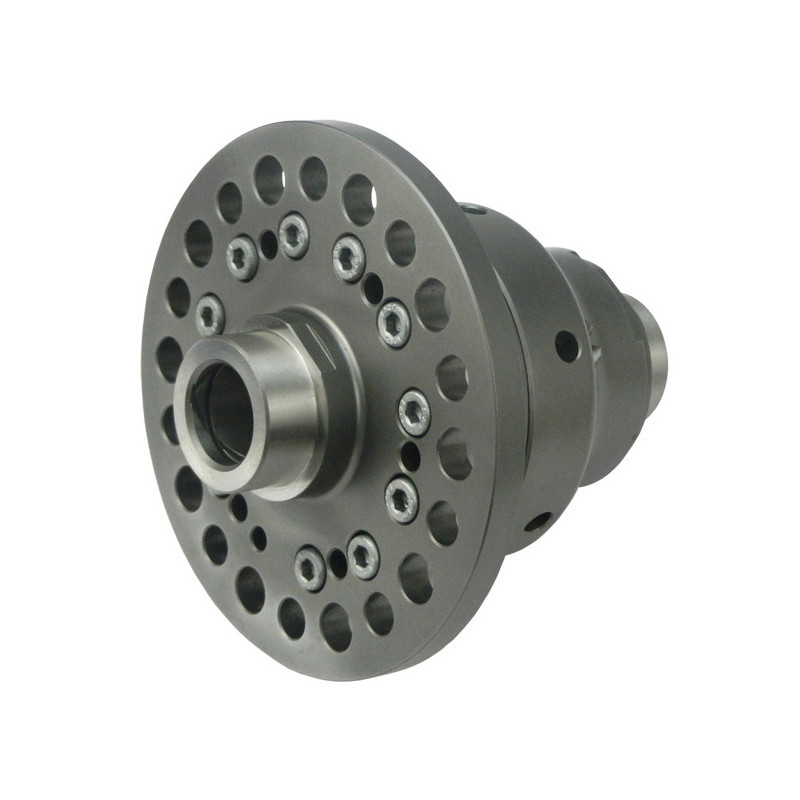

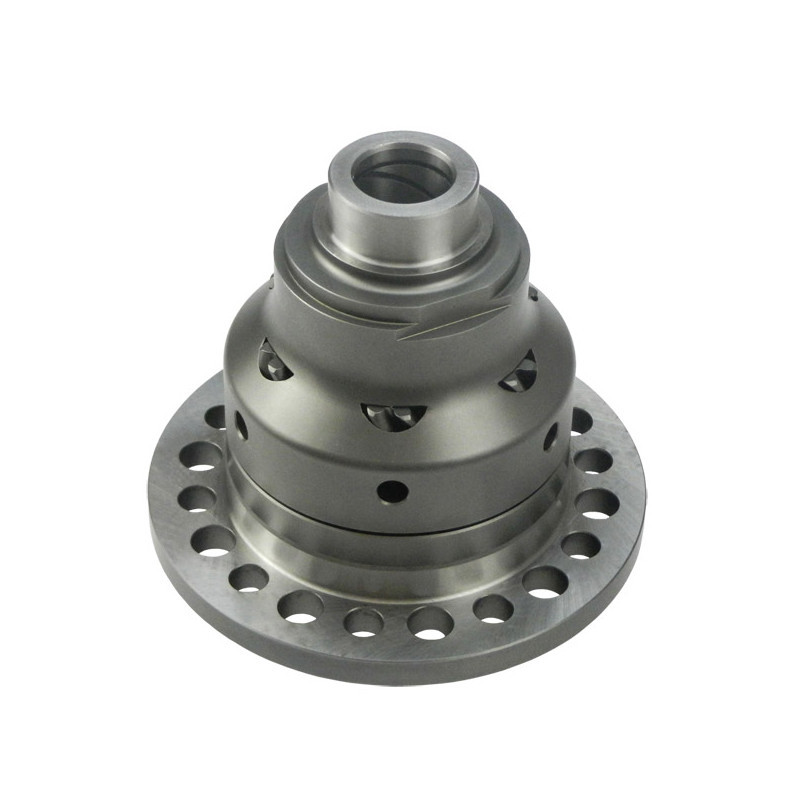

The Blackline limited slip differential for BMW E24, E28, E30, E34, E36, Z1, and Z3 models with differential 188, also known as an LSD (limited slip differential), improves traction by distributing torque between the two-wheel drive systems based on available grip.
Its helical gear design allows the limited slip differential to transmit more torque to the wheel with the best traction. As torque increases, the gears exert pressure against the differential housing and generate the internal friction necessary for this torque distribution. The system can thus handle a significant difference in drive force between the two wheels, particularly during heavy acceleration out of a turn or when traction is limited.
Under light loads, the helical limited slip differential maintains smooth, progressive, and quiet operation. The wheels can continue to rotate at different speeds when necessary, particularly when cornering. This feature improves traction during spirited driving while maintaining handling suitable for road use.
The Blackline limited slip differential uses a parallel-shaft helical gear architecture optimized to distribute forces. Its 5:1 torque split means that when one wheel loses traction, the wheel with the most traction can receive up to five times the torque transmitted to the spinning wheel.
As with any helical-gear limited slip differential, a minimum amount of resistance must remain on the wheel with the least traction to allow torque transfer. Its effectiveness is therefore optimal when both wheels maintain a minimum level of traction. This technology also works particularly well in combination with modern ABS systems.
The Blackline HLF022 limited slip differential is designed for various BMW models equipped with the Type 188 differential. Specific compatibility depends on the model, engine, and transmission type. It installs as a direct replacement for the original differential on compatible vehicles. Its housing and gears are made of high-strength 8620 steel.

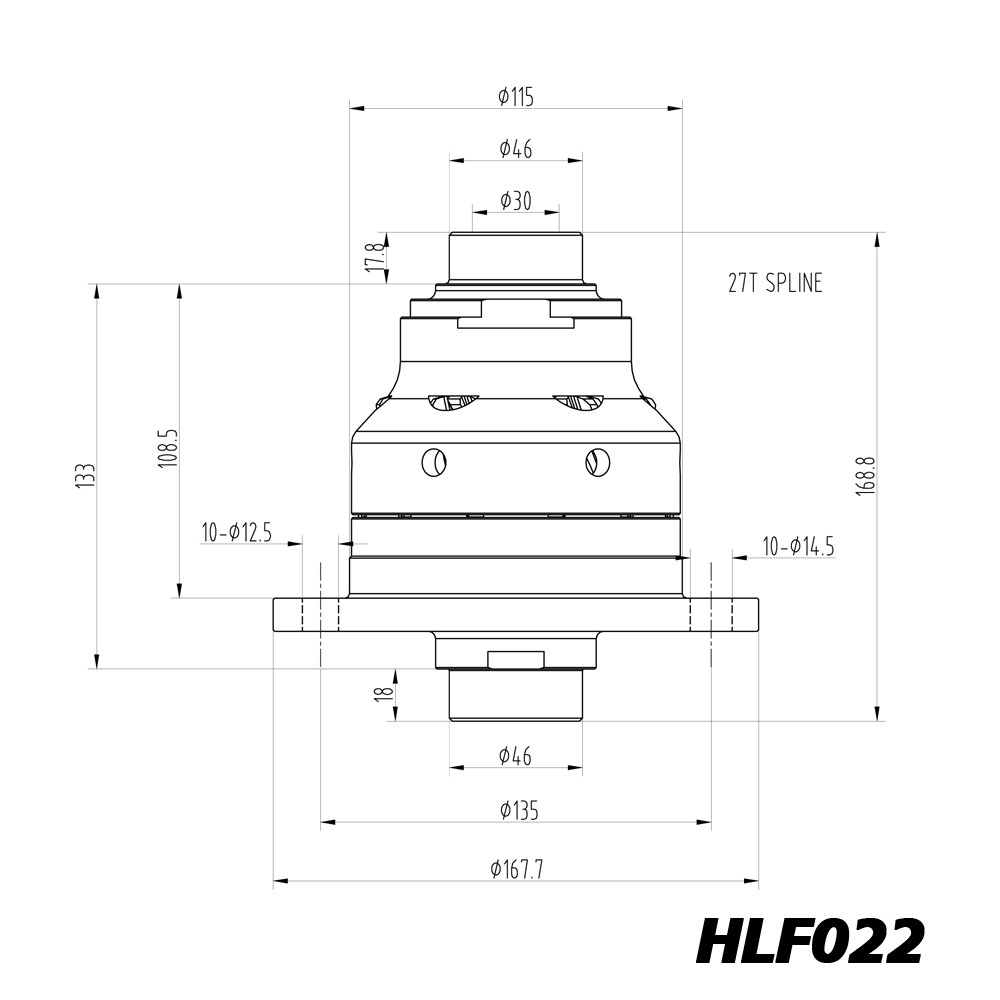

Technical Specifications of the Blackline limited slip differential for BMW E24, E28, E30, E34, E36, Z1, and Z3
Manufacturer Part Number: HLF022
Quaife Application Equivalent: QDF2N
Type: Helical-gear limited slip differential
Compatibility with BMW E24:
- BMW E24 633 CSi
- BMW E24 635 CSi
BMW E28 Compatibility:
- BMW E28 518i
- BMW E28 525i
- BMW E28 535i
- BMW E28 528i - mechanical transmission
BMW E30 Compatibility:
- BMW E30 325i - mechanical transmission
- BMW E30 325ix - mechanical transmission - rear differential
- BMW E30 M3
Compatibility with BMW E34:
- BMW E34 524td - mechanical transmission
- BMW E34 525i - automatic gearbox - Australian specification
- BMW E34 525i - mechanical transmission
- BMW E34 530i
- BMW E34 535i
BMW E36 compatibility:
- BMW E36 323i - automatic gearbox
- BMW E36 325i - mechanical transmission or automatic gearbox
- BMW E36 328i - automatic gearbox
- BMW E36 M3 3.0
- BMW E36 M3 Evo 3.2 with rear axle part number 2227453
- BMW E36 M3 (U.S. spec)
BMW E36 Compatibility: Not compatible with rear axle part number 1428373
BMW Z1 Compatibility: All versions
BMW Z3 Compatibility:
- BMW Z3 M Coupe
- BMW Z3 M Roadster

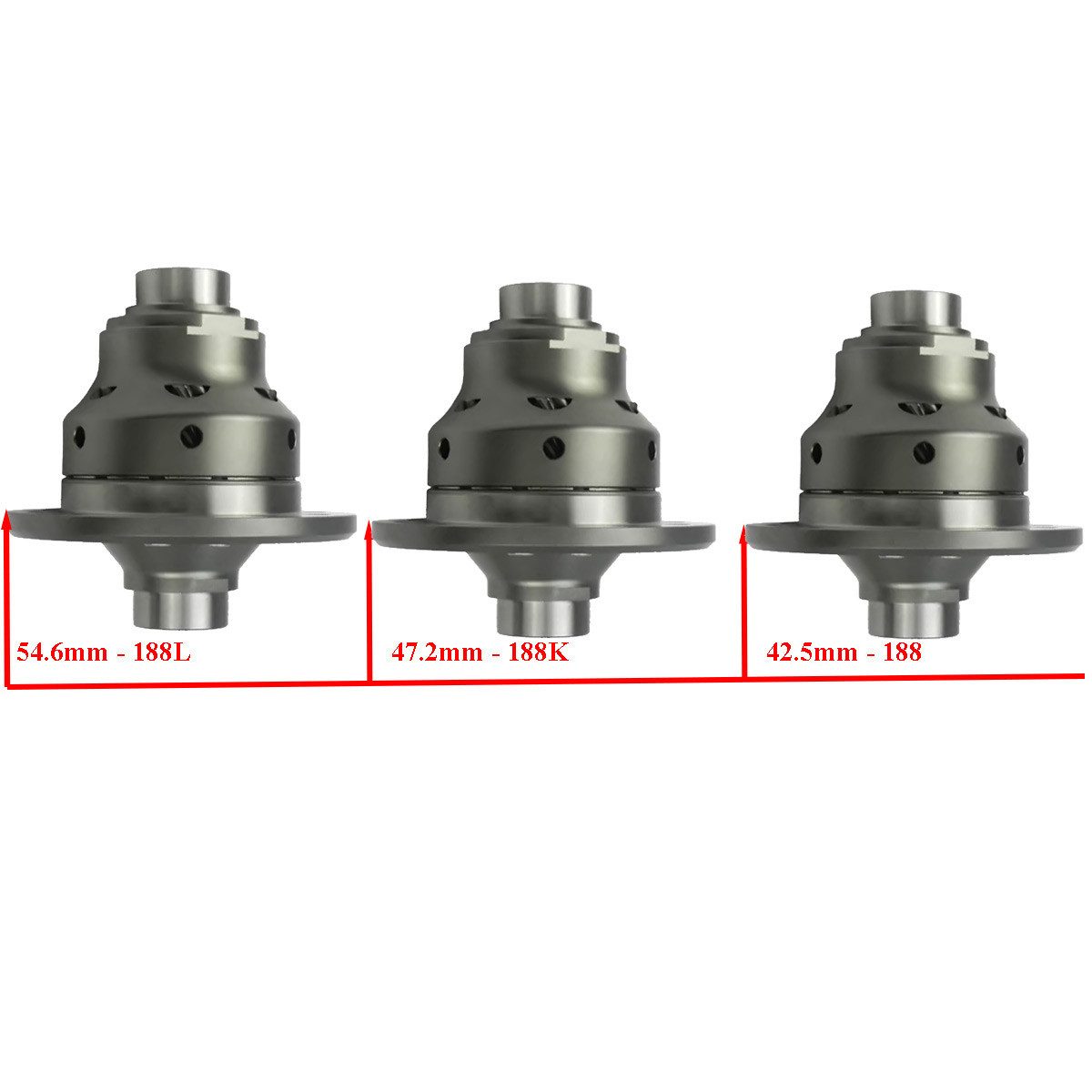

Differential type: BMW 188
Torque split ratio: 5:1
Housing and gear material: High-resistance 8620 steel
Mounting: Direct replacement for the original differential on compatible models
Key Features of the Blackline Limited Slip Differential for BMW with 188 Differential
- Torque split between the wheels based on available traction.
- Delivers more torque to the wheel with the best traction.
- Immediate and progressive reaction to changes in traction.
- Smooth, progressive, and quiet operation.
- No friction discs for reduced maintenance requirements.
- Power delivery that is easily controllable, especially during spirited driving and drifting.
- Housing and gears made of high-resistance 8620 steel.
- Direct mounting for the original differential.
Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
