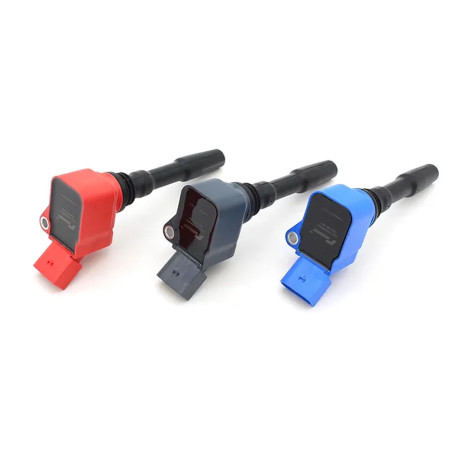

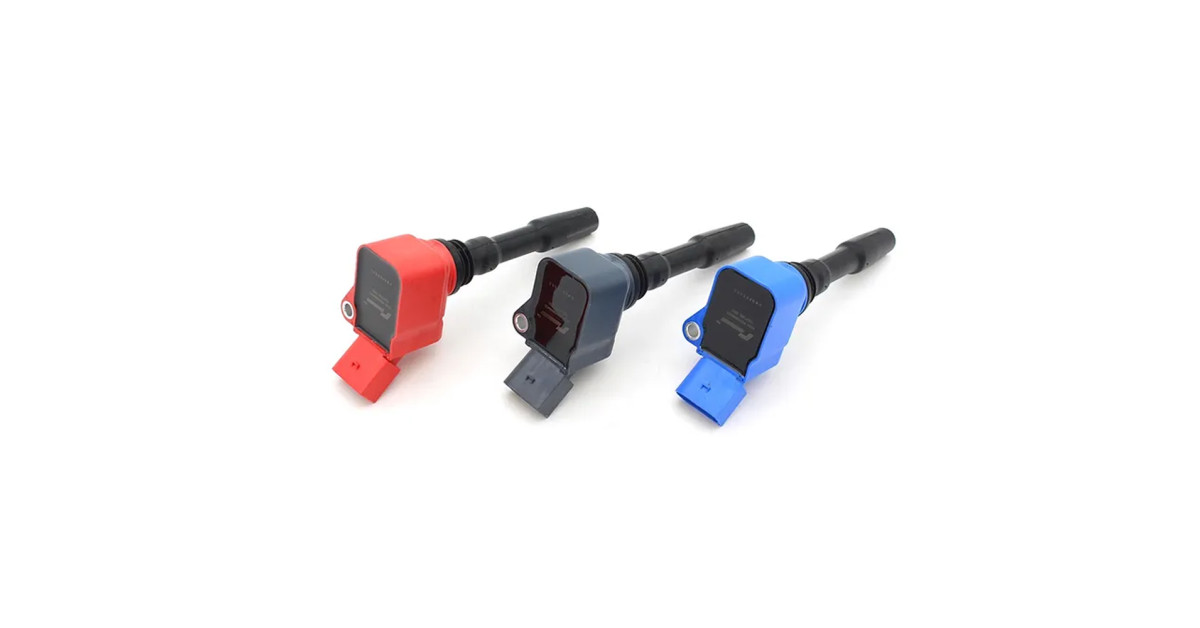

RacingLine reinforced ignition coil for all VW Group MQB evo/MQB 2.0 TSI, 1.8 TSI, 2.5 TFSI

RacingLine high-performance ignition coils deliver more power, ensuring a stronger and more consistent ignition spark.
Available in three colors, this coil is a simple plug-and-play upgrade over the stock coils.

Sold individually

The mounting of these coils must be performed using dielectric grease to facilitate removal, and in a clean spark plug well. Failure to follow these recommendations may result in difficulty during removal or even damage to the rubber.

What does this coil do?

RacingLine ignition coils are a direct plug-and-play upgrade for your stock ignition coils. Whether your engine is stock or Stage 3 tuned, it will immediately benefit from increased power and a stronger, more consistent ignition spark generated by a set of these RacingLine coils.

RacingLine high-performance ignition coils offer a 10% increase in output power compared to the original equipment. This high performance is perfect for drivers looking to maximize their car’s performance, whether it’s stock or modified.

RacingLine chose a 10% increase in output power because this is the optimal level of increase for VWG TSI engines. Beyond this, no additional benefits are gained, and the internal temperatures of the coil begin to rise significantly.


Thus, at this level, the coil voltage under load is maintained with little or no drop, operating consistently from idle through to the point of gear change.

The replacement is particularly beneficial on older engines that still use the original coils. A new set of coils is an excellent preventive maintenance measure to avoid the risk of misfires caused by ageing and gradual degradation of the original coils.

Mounting couldn’t be easier. It’s a simple “plug-and-play” replacement. Remove the original coils and replace them with these higher-performance versions.

What does the coil do?

The function of a coil is to transform the 12-volt output from the car’s battery into a much higher voltage. This amplified electrical power provides a more reliable power source for your spark plugs, improving engine performance by igniting the fuel-air mixture more efficiently.

Developing and optimizing a coil’s power levels was a key step in ensuring control over operating temperatures. Throughout the coil pack’s lifespan, this thermal management will help prevent future failures.

Coils that generate more than 10% more power than the original equipment overheat and deteriorate over time. RacingLine has therefore increased the power output gain to a level that will allow the coils to remain as cool as possible for as long as possible.

This level of increase represents the “sweet spot” where the diminishing returns of the additional power that can benefit spark power are balanced against the rapid rise in internal temperatures, ensuring long-term reliability and performance.

Sold individually

The mounting of these coils must be performed using dielectric grease to facilitate removal, and in a clean spark plug well. Failure to follow these recommendations may result in difficulty during removal or even damage to the rubber.


Equivalent to NGK coil part number U5154, APR coil MS100192 / MS100203, and MSD plasma coil 87164 - C0618

Vehicle compatibility:

Suitable for all vehicles equipped with the following engines:
1.8 TSI: EA888.3
2.0 TSI: EA888.3 & 3B
2.0 TSI: EA888.4
2.5 TFSI: EA855 EVO
3.0 V6 TFSI: EA839
2.9 V6 TFSI: EA839
4.0 V8 TFSI: EA825

The most popular models include:


> 2020+ VW Golf 8
> VW Golf 7 & 7.5 2013–2020
> VW Passat B8 2015+
> VW Arteon 2017+
> VW T-Roc 2017+
> VW Tiguan II 2016+
> VW Jetta / GLI 7 2018+
> VW Polo 5 GTI 1.8 TSI 6-door 2015–2018
> VW Polo 6 AW 2017+

> Audi S1 2.0 TFSI 2015–2018
> Audi A1 GB 2019+
> Audi S3 8Y 2020+
> Audi A3 8Y 2020+
> Audi S3 8V 2013–2020
> Audi A3 8V 2013–2020
> Audi RS3 2.5 TFSI 8V.2 evo 2017-2020
> Audi TT 3 8S 2014+
> Audi TTRS 2.5 TFSI 8S 2017+
> Audi SQ2 2018+
> Audi Q2 2017+
> Audi SQ5 2017+
> Audi A4 / S4 / RS4 B9 2015+
> Audi A5 / S5 / RS5 B9 2015+
> Audi A6 / S6 / RS6 C8 2018+
> Audi A7 / S7 / RS7 C8 4K8 2018+
> Audi Q3 2019+
> Audi Q8 4M8 50 TDI & 45 TDI 2018+
> Audi RSQ8 / SQ8 / Q8 4M8 2018+
> Audi Q7 / SQ7 4M 2016–2019

> SEAT Ibiza Cupra 1.8TSI 6J 2017-2018
> SEAT Ibiza 6F 2017+
> Cupra Leon IV FW 2020+
> SEAT Leon III Cupra 5F 2014–2020
> Cupra Ateca 2018+
> Cupra Formentor 2020+

> Skoda Octavia IV NX 2020+
> Skoda Octavia III 5E 2014-2020
> Skoda Superb III 3V 2015+
> Skoda Kodiaq 2018+

> Porsche Panamera 970 2010–2017
> Porsche Macan 2014+
> Porsche Cayenne 2019+

> Lamborghini Urus 2018–2021

> Bentley Bentayga 2016–2021
