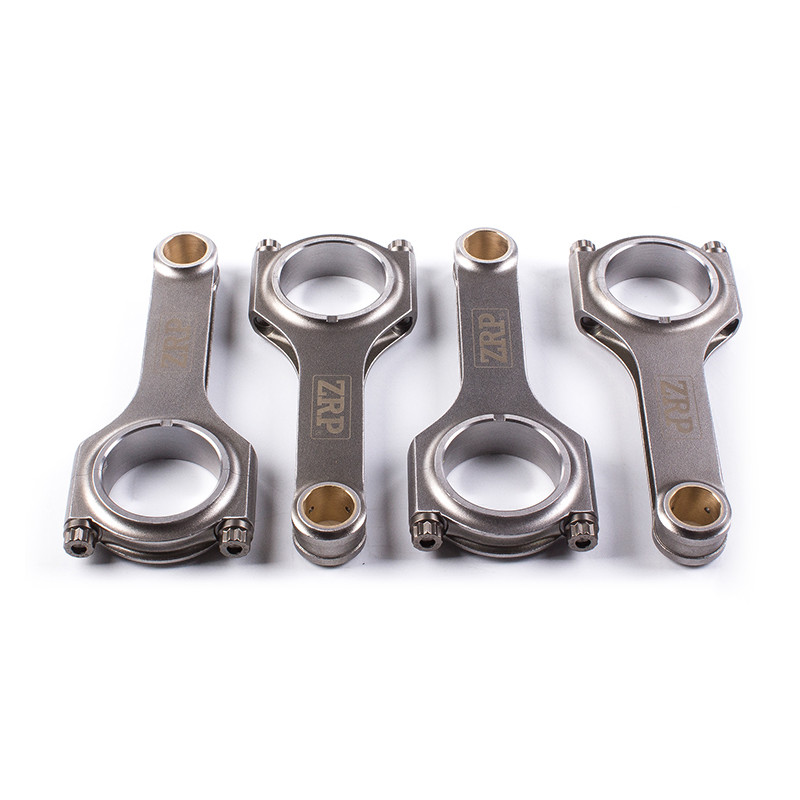

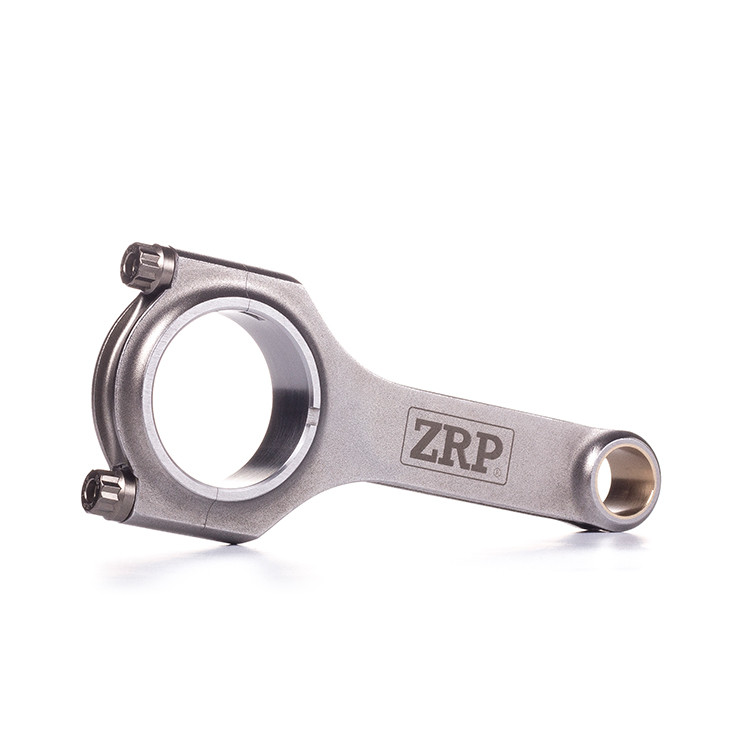

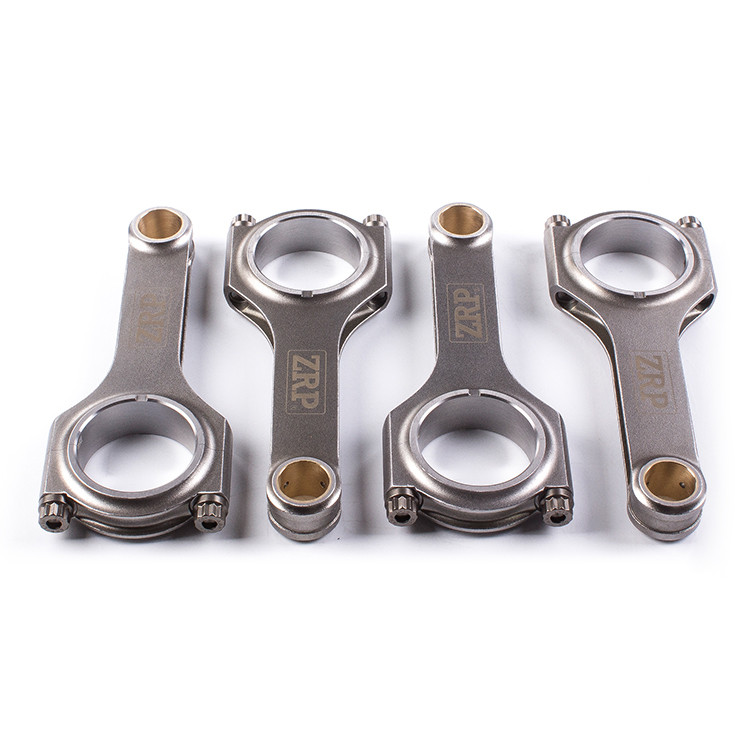

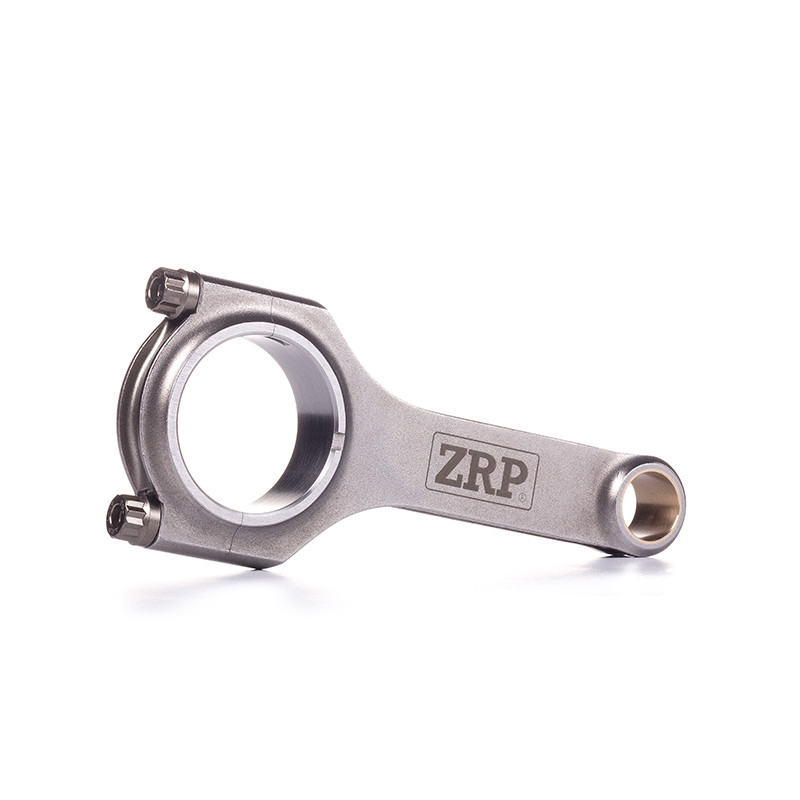

ZRP H-Beam Forged Connecting Rods for Mazda MX-5 1.8L - R-MAZ-001-H
Reference:
ZRP-R-MAZ-001-H
Supplier Ref.:
R-MAZ-001-H
The ZRP H-Beam connecting rods for Mazda MX-5 1.8L engines are designed for high-performance engine builds and demanding rebuilds.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The H-Beam profile offers excellent rigidity and durability for demanding engine builds.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for Mazda MX-5 1.8L engines.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The H-Beam profile offers excellent rigidity and durability for demanding engine builds.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for Mazda MX-5 1.8L engines.
-
Engine codeBP
BPT
Note -
Weight in kg0,42
-
Vehicle makeMAZDA
-
Conrod ShapeH-Beam Conrod
-
Center-to-center length in mm132,80
-
Piston pin diameter in mm20,00
-
Conrod head diameter in mm48,00
-
Conrod head width in mm21,84
-
Threads on conrod bolts3/8"
-
Type of fasteners includedARP2000
-
Type of conrodStandard Forged Conrod
