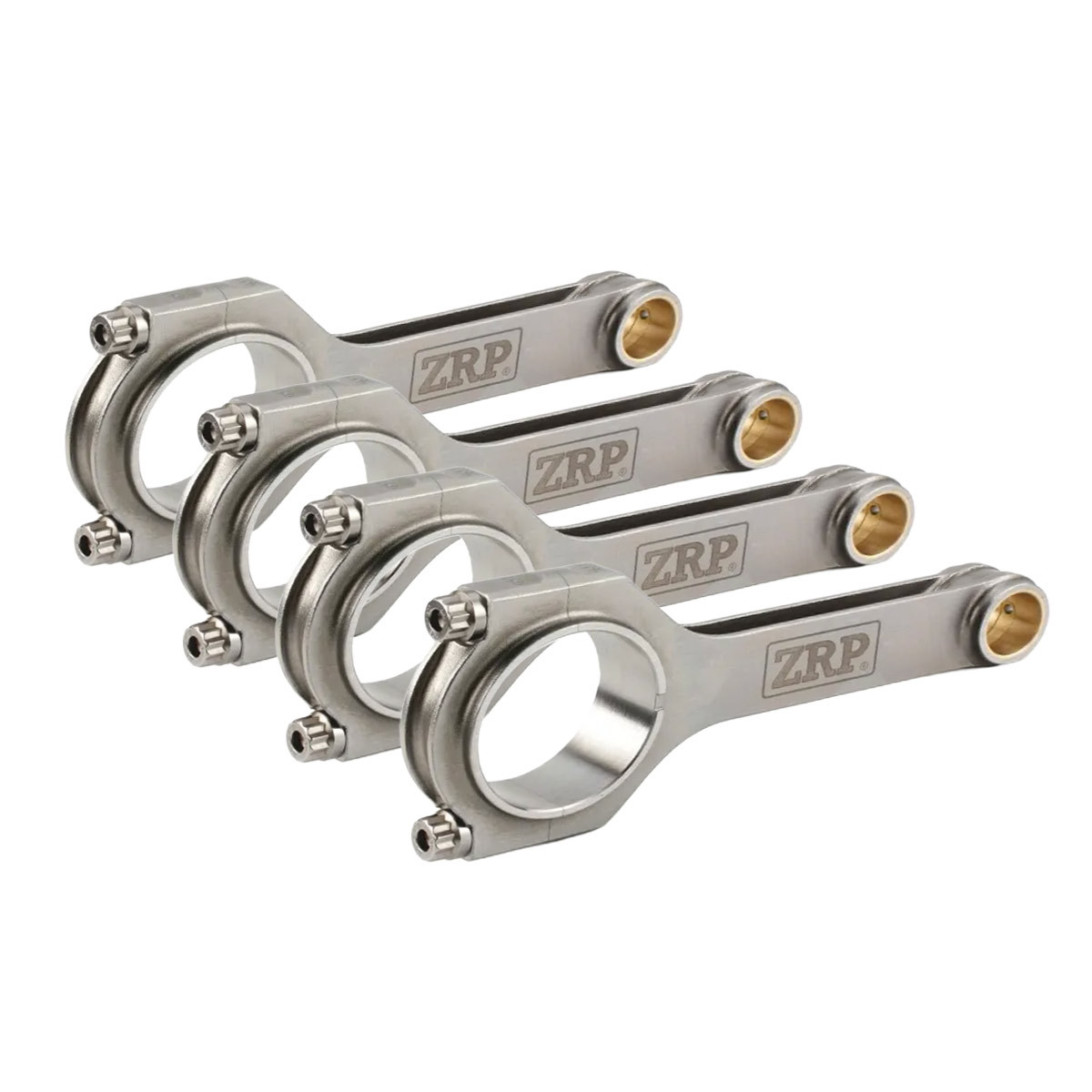

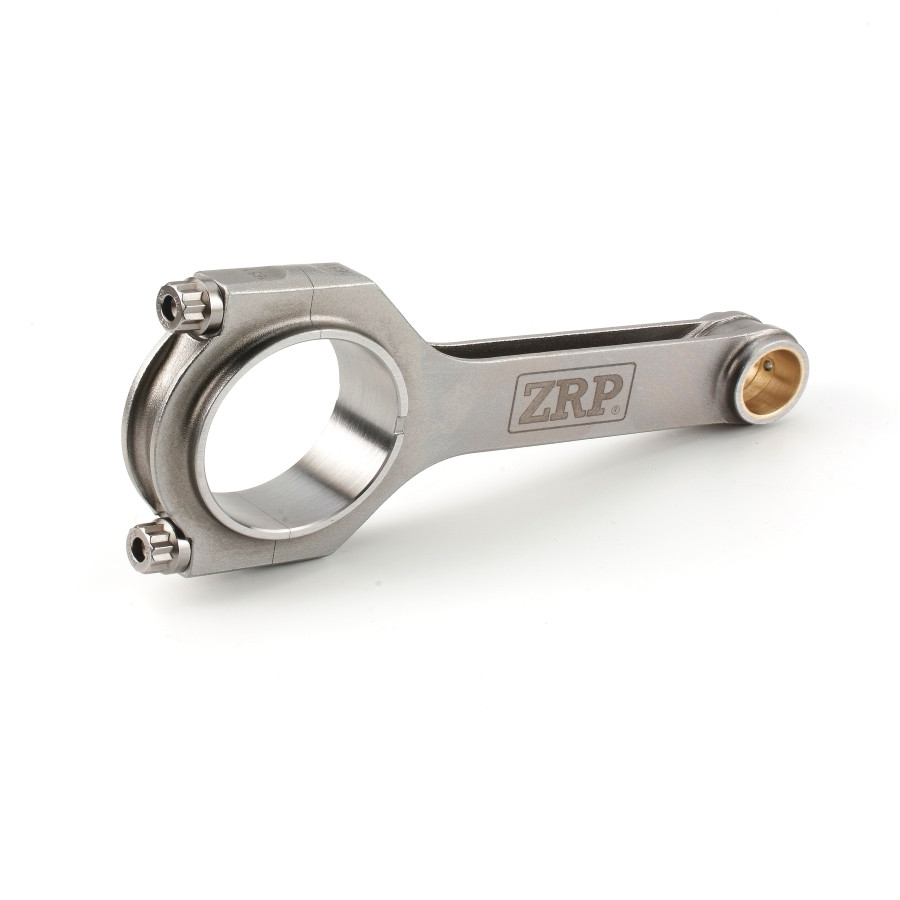

ZRP H-shaped forged connecting rods for Citroën Peugeot TU5J4 and TU5JP4 R-PEU-001H
Reference:
ZRP-R-PEU-001H
Supplier Ref.:
R-PEU-001H
ZRP forged connecting rods with an H-profile for Citroën and Peugeot TU5J4 & TU5JP4 engines are designed for engine tuning that requires reliable reinforcement of the lower engine block.
Their forged design is engineered to withstand the high mechanical stresses generated by engine tuning, high RPMs, and high power outputs. Their H-profile ensures excellent rigidity in the most demanding applications.
Manufactured with high precision, ZRP connecting rods meet the expectations of specialized engine tuners and manufacturers.
They are an ideal solution for TU5J4 and TU5JP4 engines.
-
Engine codeTU2J2
TU3J2
TU5J2
TU5J4
TU5JP4 -
Weight in kg0,46
-
Vehicle makeCITROEN / PEUGEOT
-
Conrod ShapeH-Beam Conrod
-
Center-to-center length in mm133,60
-
Piston pin diameter in mm18,00
-
Conrod head diameter in mm48,66
-
Conrod head width in mm23,91
-
Threads on conrod bolts3/8"
-
Type of fasteners includedARP2000
-
Type of conrodStandard Forged Conrod
