LIFELINE Zero 275L fire extinguisher FIA EX.033.23 CLASS V-E75 & E85

Ultra-lightweight Lifeline Zero 275L fire extinguisher with EX.033.23 certification (CLASS V-E75 & E85), mandatory for vehicles running on E85 ethanol.

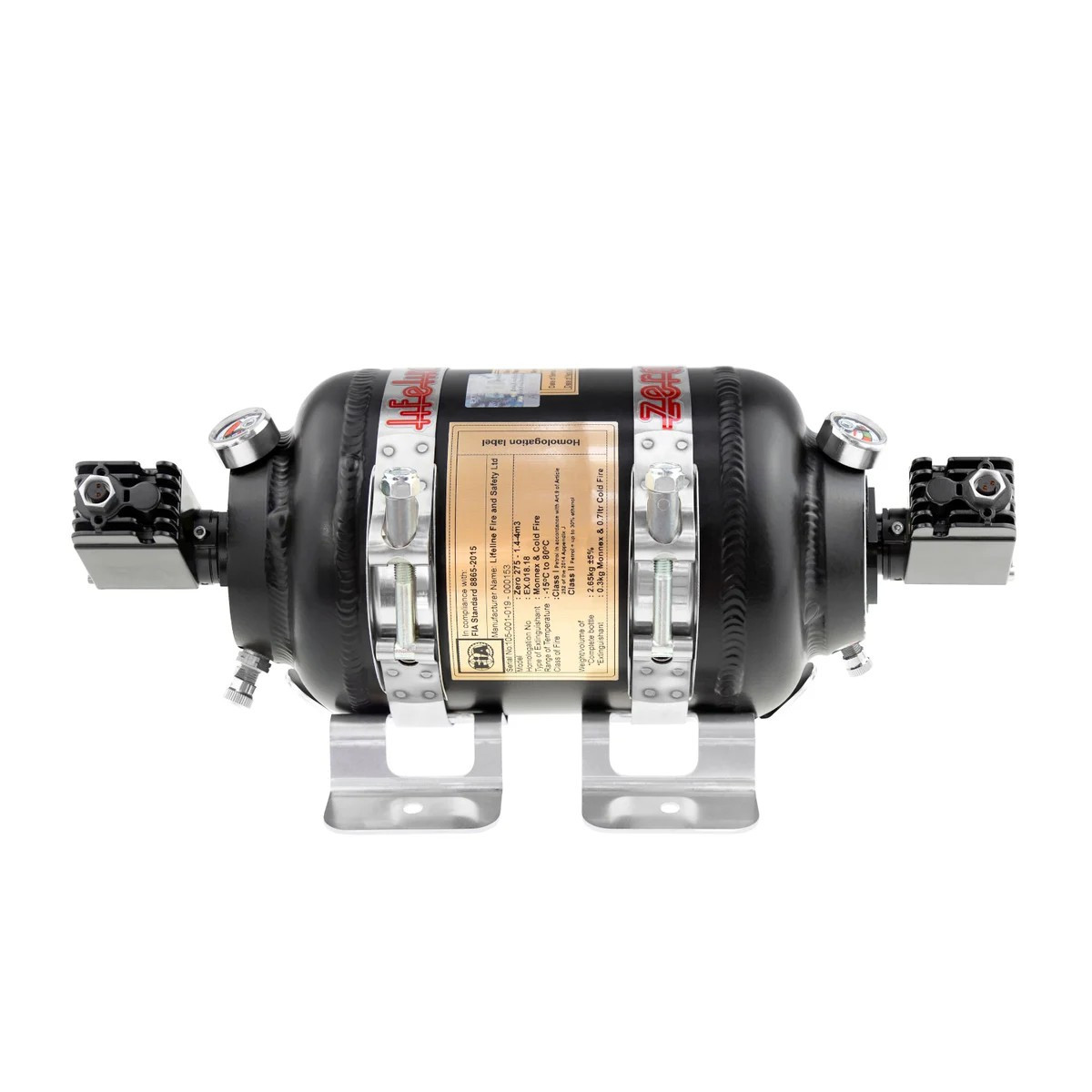

Electrically operated, this fire extinguisher has an aluminium cylinder with a diameter of 125 mm and a total height of 404 mm.

Approved to FIA8865-2015, this type of fire extinguisher is used on many Rally 2 cars running on E85 ethanol, such as the C3 Rally 2, Hyundai I20 Rally 2 and Skoda Fabia RS Rally 2.

During development, Lifeline used advanced fluid dynamics testing to take a significant step forward in driver safety. The result is efficient use of the extinguishing agent, allowing the nozzle to be mounted on the floor, helping to lower the vehicle's overall centre of gravity. In the engine compartment, three exits and the use of new materials significantly reduce the volume of extinguishing agent compared to previous 8865-2015 systems.

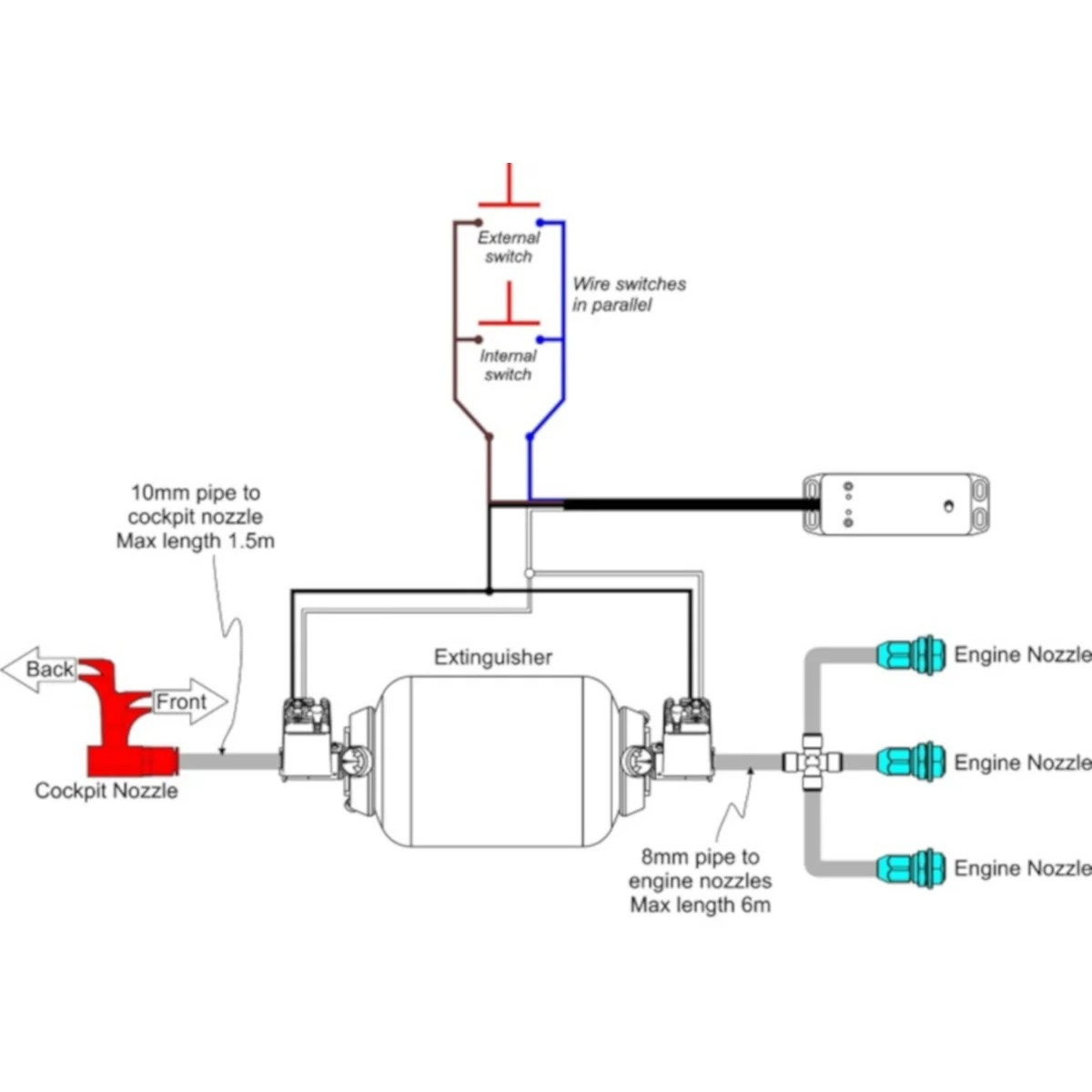

Lifeline has developed a simple installation kit and electronic control system that make the Zero 275 the ideal solution for competitors looking to reduce weight, price, complexity and bulk while improving fire protection over previous generations of 8865 systems.

The box requires a 6LR61 battery, not included (not a 6F22).

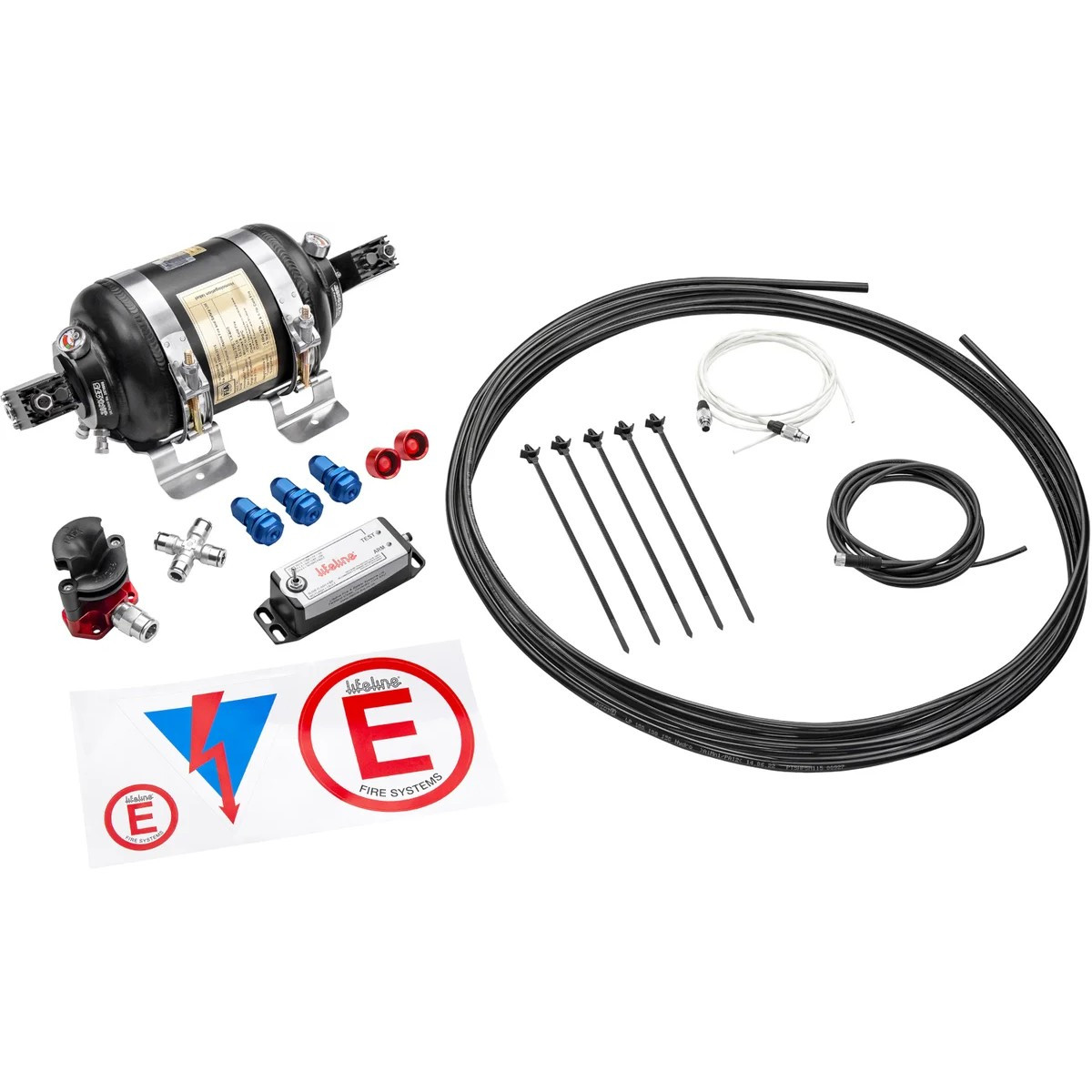

This extinguisher comes with:

- anti-torpedo brackets and straps

- control box

- electrical harnesses

- 2 waterproof indoor/outdoor switches

- 6m of semi-rigid tube, 8mm diameter

- 6m of fire-resistant sheathing

- 1 x 8mm diameter cross connector

- 3 diffusers

Cylinder diameter: 125mm

Total height: 404 mm

Cylinder weight: 2.6kg

Total weight: 3.5kg

Approval: FIA 8865-2015

FIA fire class classification:

Class I - Petrol in accordance with Article 9 of Article 252 of Annex J of 2021

Class II - Petrol + up to 30% ethanol

Class III - Diesel in accordance with Article 9 of Article 252 of Annex J 2021

Class IV - Ethanol up to 100% or methanol up to 100%

Class V - Any other specific fuel
