CATCAMS - Camshaft for Hyundai 4 cylinders 2.0L 16v DOHC G4GF 317°-305°,270°-262°,13.50mm-13.00mm,5.25mm-4.70mm

Reference: CC-2701850

Supplier Ref.: 2701850/S

Learn more

€948.00 Tax included

Available to order

Unavailable in store (Montpellier)

Within 30 days on average.

€948.00 (tax incl.)

Earn 948 loyalty points (that is €40.00 in vouchers)

Carbon footprint: 11 kg CO₂

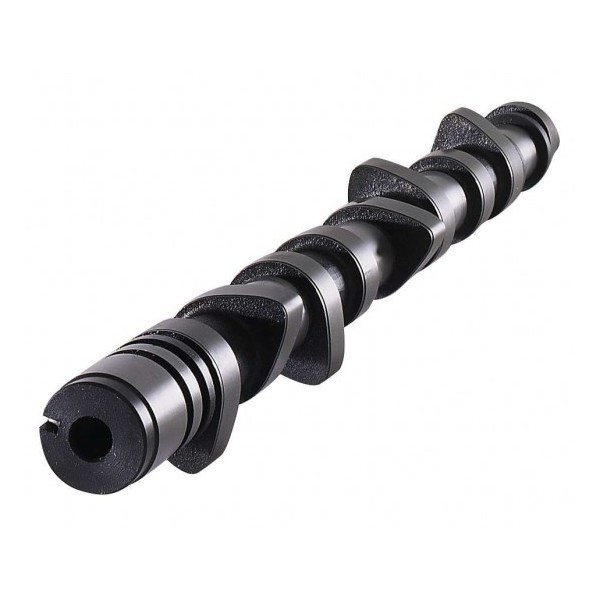

Camshaft Cat Cams 317° engine code G4GF for Hyundai 2.0 16v Beta 2.

The camshaft is a key part of your engine, enabling you to significantly increase the performance of your competition vehicle.

When tuning, you can modify two characteristics derived from the shape of the camshaft: valve lift and valve opening angle (duration).

The higher the valve lift, the more air-fuel mixture is admitted to the cylinders, and therefore the more power is obtained at high revs.

The greater the valve opening angle, the greater the "air current" created, which encourages the air-fuel mixture to enter the cylinder: this helps get more air-fuel mixture into the cylinders, and therefore more power.

Application: rally - sport

Duration at 0.1mm: 317° / 305°.

Duration at 1.0mm: 270° / 262°.

Max. valve lift Intake/Exhaust: 13.50 / 13.00mm

Lift at TDC Intake/Exhaust: 5.25mm / 4.70mm

Pulley: /

Follower: CC-CC002

Valve lash: CC-TS101-1-40X6M

Exterior spring: CC-PAC-E12009

Interior spring: CC-PAC-I12009

Vehicle affectation :

Make	Engine	Engine Code
Hyundai	4 cylindres 2.0L 16v DOHC (DTH/DTH)	G4GF

Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
