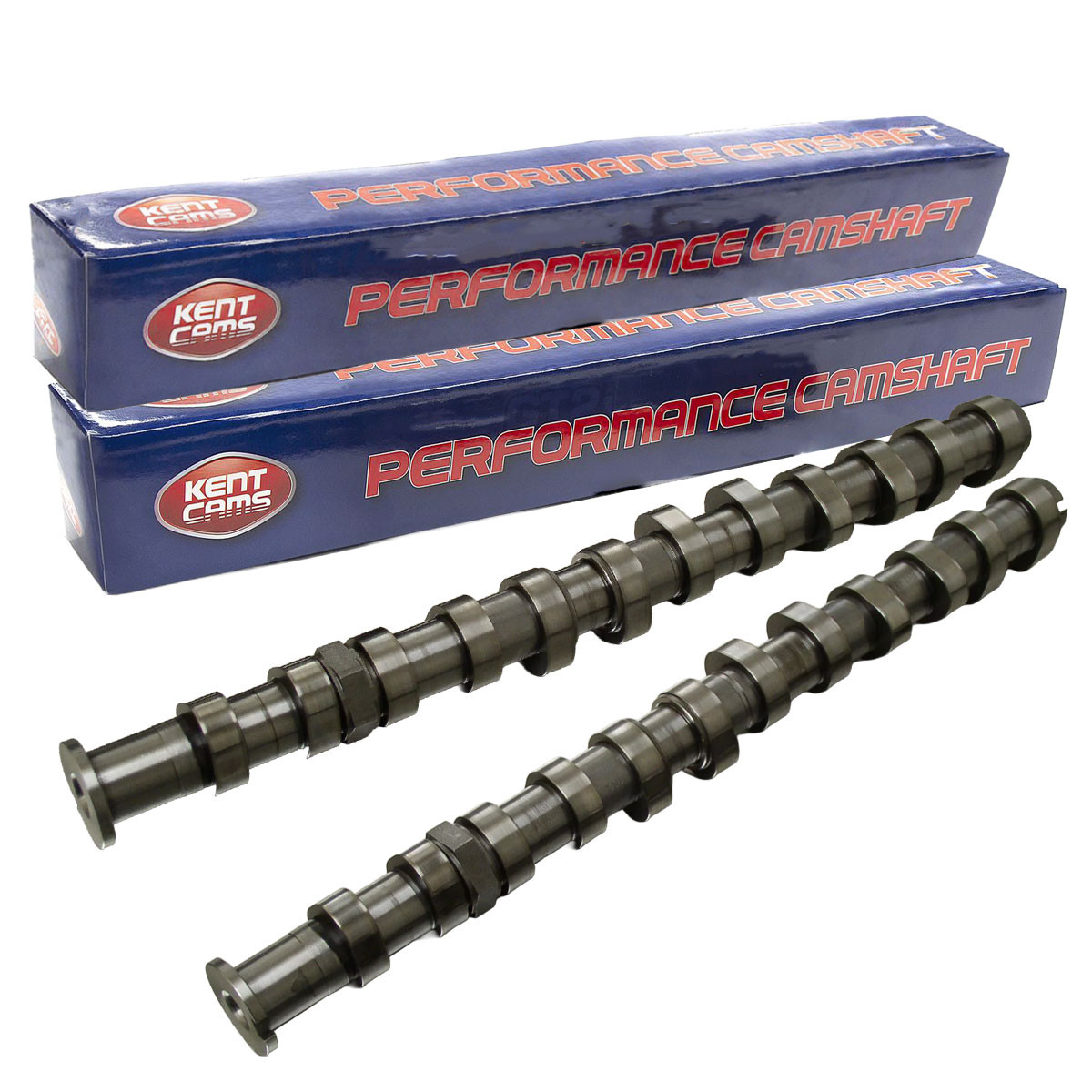

KENT CAMS PT78B Camshafts for Peugeot and Citroën
Reference:
KC-PT78B
Supplier Ref.:
PT78B
Installing KENT CAMS PT78B camshafts on your engine allows you to adjust valve lift and valve duration, whether for increased torque and/or power.
Kent Cams profiles improve cylinder filling and gas flow for superior engine performance.
Their design delivers a more responsive throttle response and a broader operating range. Each profile allows you to fully exploit the potential of your engine build, whether for the road, the track, rally, or any other motorsport discipline.
Mounting is a direct replacement for the original; in some cases, machining may be required.
However, mounting these parts on your engine requires appropriate technical skills.
GT2i is the official distributor of Kent Cams in France. Manufacturers note: Competition / Mounting on TU5JP4 Engine Important information: Tamac Rally
-
Engine codeTU5JP4
-
Quantity per set2
-
Make (Engine)Peugeot/Citroën
-
Cam ProfileCOMPETITION
-
Power Band (rpm)4000-8750
-
Cam Lift (I/E) in mm12,95
-
Valve Lift (I/E) in mm12,7
-
Valve Duration in °314
-
Valve Timing I/E in °53/81 - 81/53
-
Duration @ 1mm271
-
Full Lift Duration in °104 - 104
-
Operating Clearance I/E (mm)0,25
-
TDC Lift (I/E) in mm4,73 / 4,73
