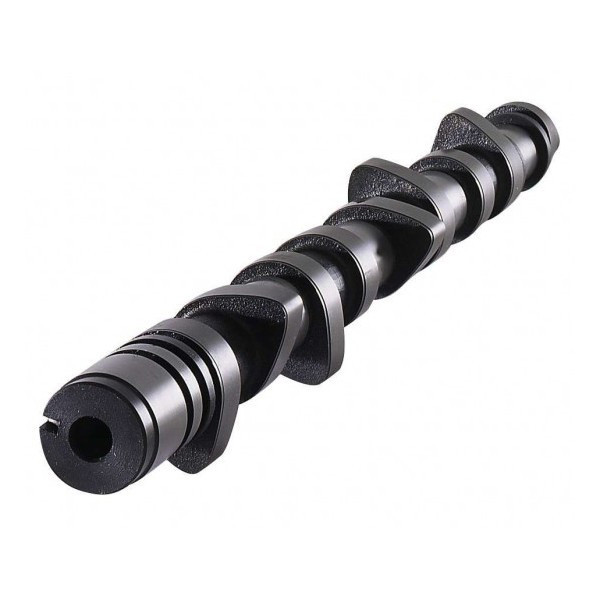

Cat Cams camshaft BMW 2.0 6-cylinder M50 275/268°

Cat Cams 275° camshaft for BMW M50 2.0 6-cylinder.

The camshaft is a key component of your engine that will allow you to significantly inc rease the performance of your competition vehicle.

During preparation, two characteristics of the camshaft shape can be modified: the valve lift and the valve opening angle (length of time).

The more the valve lift is increased, the more air-fuel mixture is admitted into the cylinders, and therefore the more power is obtained at high revs.

The more the valve opening angle is increased, the more a kind of “air current” is created, which promotes the entry of the air-fuel mixture into the cylinder: this helps to bring more air-fuel mixture into the cylinders and therefore to obtain more power.

Use: rally racing - athletic

Degree of opening at 0.1mm: 275° / 268°

Degree of opening at 1.0mm: 237° / 230°

Max. valve lift Intake/Exhaust: 11.15 / 10.45mm

Lift at TDC Intake/Exhaust: 2.30mm / 1.75mm

Cam wheel: /

Follower: original

Valve lash: original

Outer spring: original

Inner spring: original

Vehicle affectation:

BMW M50 6-cylinder 2.0 24v DOHC 150hp without camshaft
