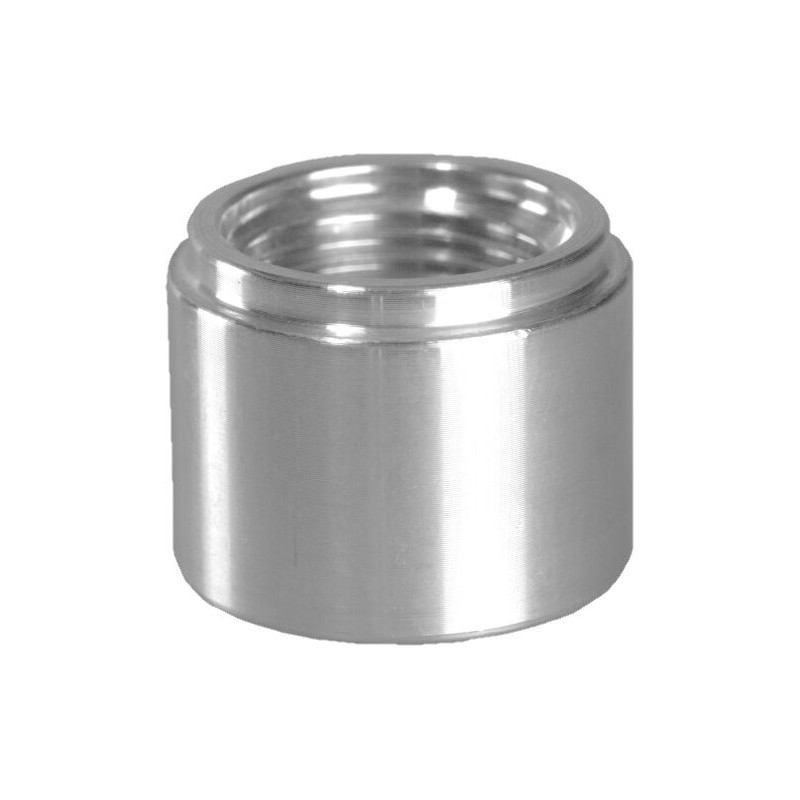

This OBP female fitting is a self-welded component that can be used in all tank constructions specific to a particular Race Car application.
This product is made from 6082 aluminum, a heat-treatable alloy with medium to high strength.
It has very good corrosion resistance and weldability, although strength in the weld area is reduced.
Made from high-quality, easy-to-weld aluminum.
Technical data:
Thread: AN/JIC20 / 1 5/8x12UNF
Outer diameter (A): 57
Height (B): 41
Shoulder diameter (C): 50.60
Shoulder height (D): 3
Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
