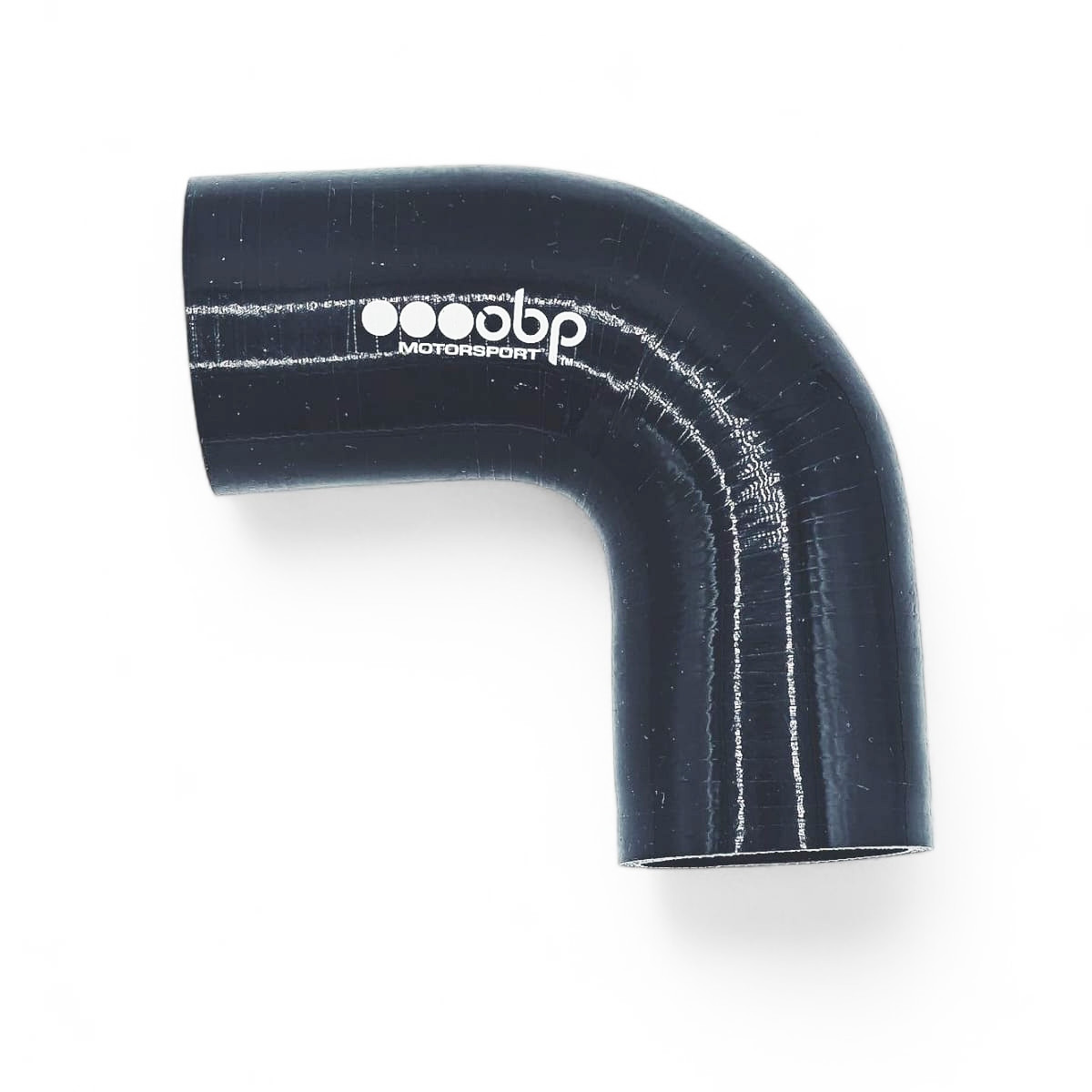

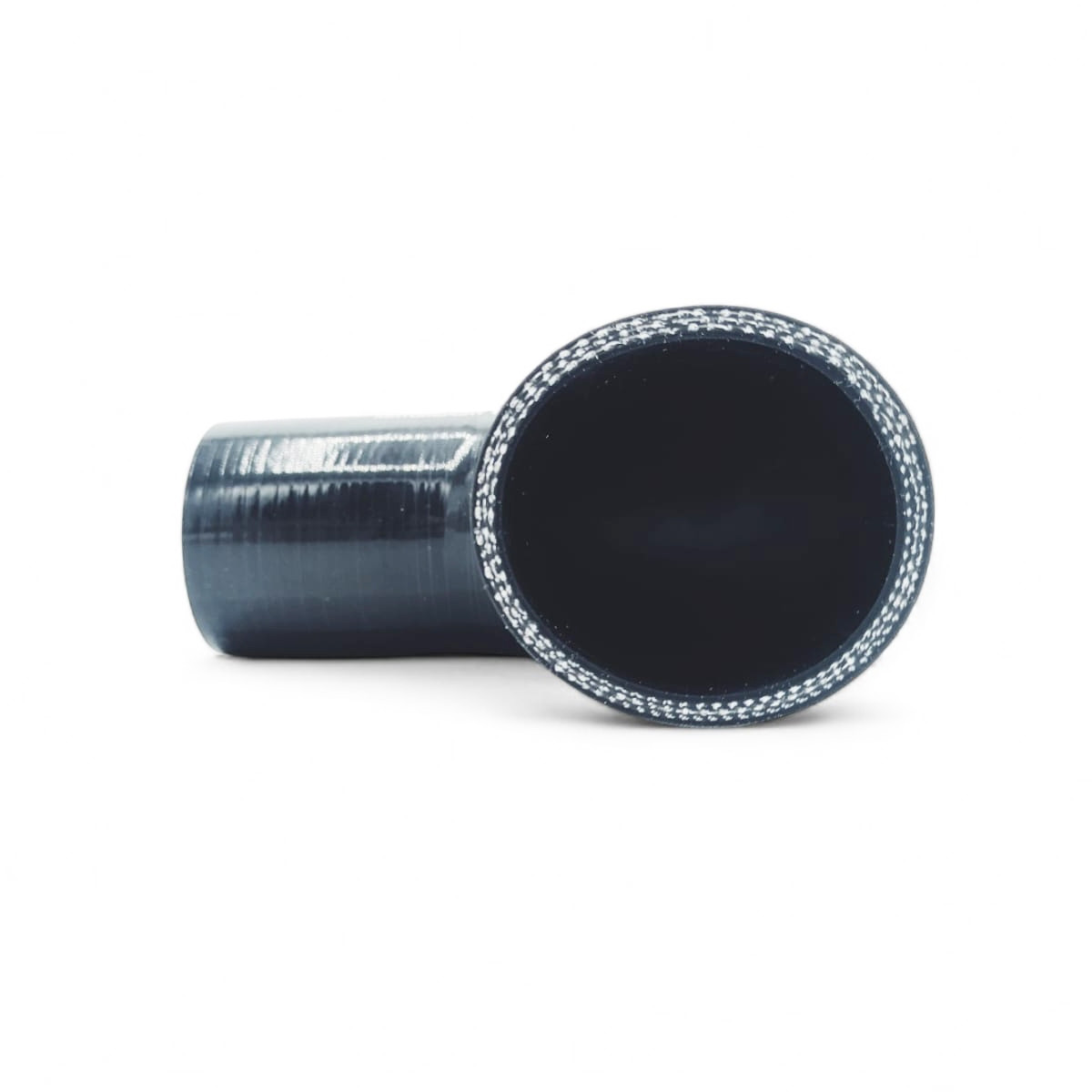

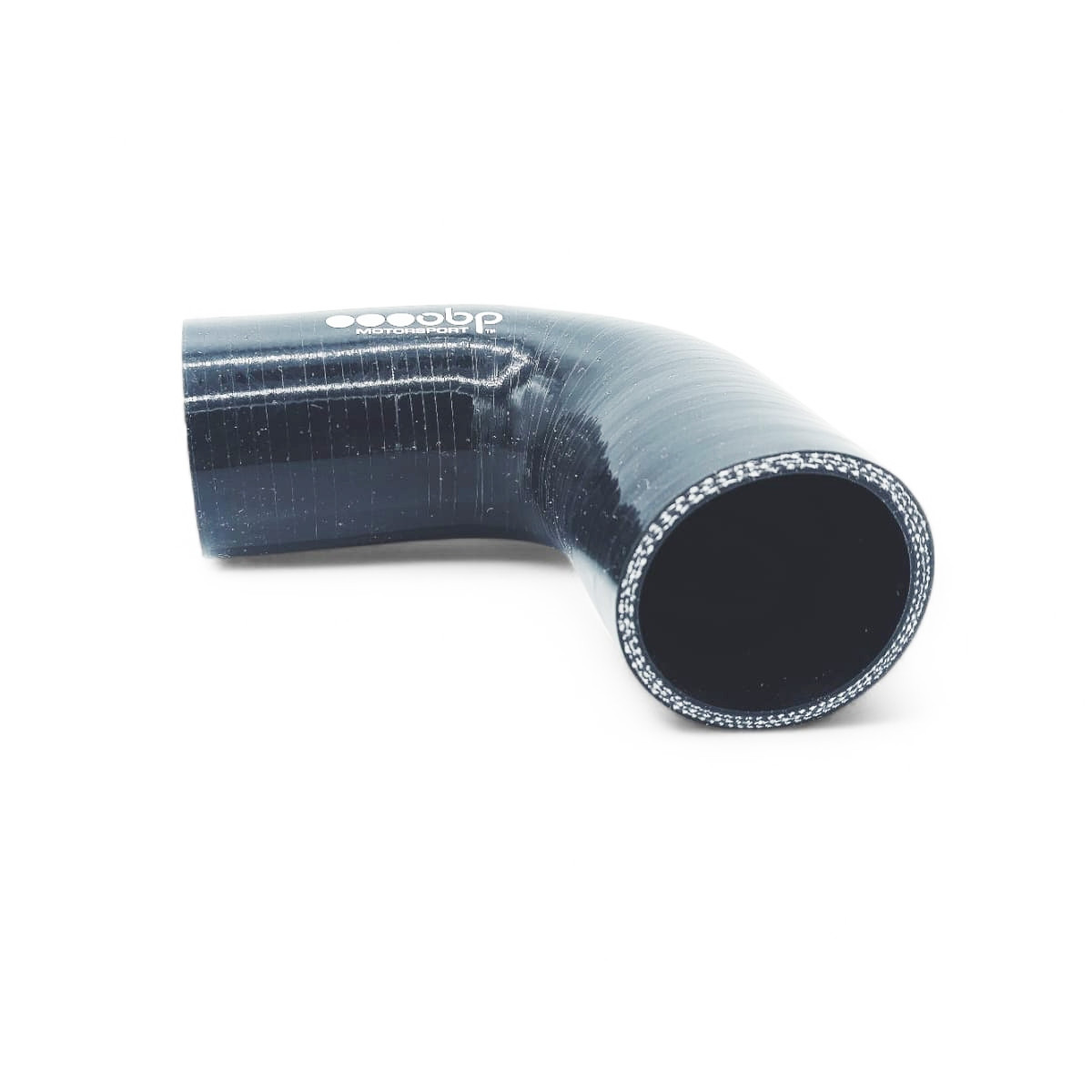

OBP Motorsport 90° silicone elbow
The OBP Motorsport 90° silicone elbow is designed for air and fluid transfer applications. It offers superior strength, flexibility and long-term reliability. Perfect for cooling systems, intercooler setups and custom builds, this hose works perfectly in both motorsports and high-performance road vehicles.
Made from premium reinforced silicone, each hose is designed to meet or exceed SAE J20 standards, offering exceptional resistance to heat, pressure and wear in harsh conditions.
Specifications:
- Internal diameter: 6 -102 mm
- Angle: 90°
- Leg length: 102 mm / 120 mm (depending on diameter)
- Material: Reinforced silicone
- Operating temperature range: -60 °C to +220 °C
- Burst pressure: 12–36 bar (depending on the number of folds)
- Reinforcement: varies depending on the construction of the folds for increased durability
- Compliance: meets or exceeds SAE J20 standards
Available in black or blue
| Ø INTERNAL | PLY | THICKNESS (MM) | WORKING PRESSURE (BAR) | BURST PRESSURE (BAR) | LENGTH (MM) | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| 6 | 3 | 4 | 12 | 36 | 102x102 | 0,041 |
| 8 | 3 | 4 | 12 | 36 | 102x102 | 0,049 |
| 10 | 3 | 4 | 11 | 33 | 102x102 | 0,045 |
| 13 | 3 | 4 | 8,5 | 25,5 | 102x102 | 0,06 |
| 16 | 3 | 4 | 7 | 21 | 102x102 | 0,061 |
| 19 | 3 | 4 | 6,5 | 19,5 | 102x102 | 0,069 |
| 22 | 3 | 4 | 5,5 | 16,5 | 102x102 | 0,085 |
| 25 | 3 | 4 | 5,5 | 16,5 | 102x102 | 0,102 |
| 28 | 3 | 4 | 5 | 15 | 102x102 | 0,102 |
| 30 | 3 | 4 | 5 | 15 | 102x102 | 0,096 |
| 32 | 3 | 4 | 5 | 15 | 102x102 | 0,109 |
| 35 | 3 | 4 | 5 | 15 | 102x102 | 0,139 |
| 38 | 3 | 4 | 5 | 15 | 102x102 | 0,139 |
| 42 | 3 | 4 | 4,5 | 13,5 | 102x102 | 0,147 |
| 45 | 3 | 4 | 4,5 | 13,5 | 102x102 | 0,149 |
| 48 | 3 | 4 | 4,5 | 13,5 | 102x102 | 0,149 |
| 51 | 4 | 5 | 6 | 18 | 102x102 | 0,201 |
| 55 | 4 | 5 | 6 | 18 | 120x120 | 0,222 |
| 57 | 4 | 5 | 5 | 15 | 120x120 | 0,234 |
| 60 | 4 | 5 | 5 | 15 | 120x120 | 0,219 |
| 64 | 4 | 5 | 5 | 15 | 120x120 | 0,232 |
| 68 | 4 | 5 | 5 | 15 | 120x120 | 0,26 |
| 70 | 4 | 5 | 5 | 15 | 120x120 | 0,282 |
| 76 | 4 | 5 | 5 | 15 | 120x120 | 0,285 |
| 80 | 4 | 5 | 4 | 12 | 120x120 | 0,31 |
| 83 | 4 | 5 | 4 | 12 | 120x120 | 0,341 |
| 89 | 4 | 5 | 4 | 12 | 120x120 | 0,332 |
| 102 | 4 | 5 | 4 | 12 | 120x120 | 0,581 |
-
Angle in °90
-
Main materialSilicone
-
Length in mm102
120 -
Main colorBlack
Blue
