OBDII cable and AIM external power supply

The AIM OBDII external power cable is a professional-grade accessory designed to provide reliable power to your equipment while giving you convenient access to your vehicle's engine data.

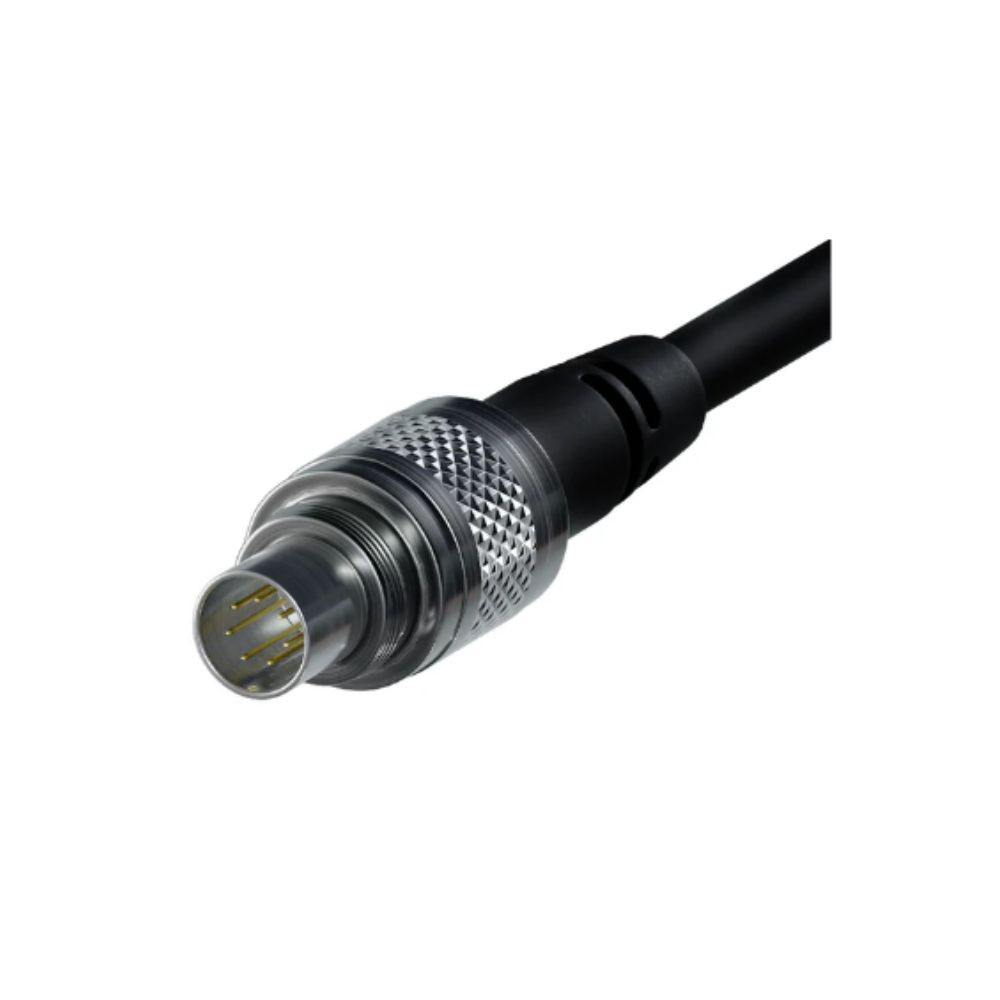

Featuring a 7-pin type 712 male connection, this cable is compatible with a wide range of AIM devices.

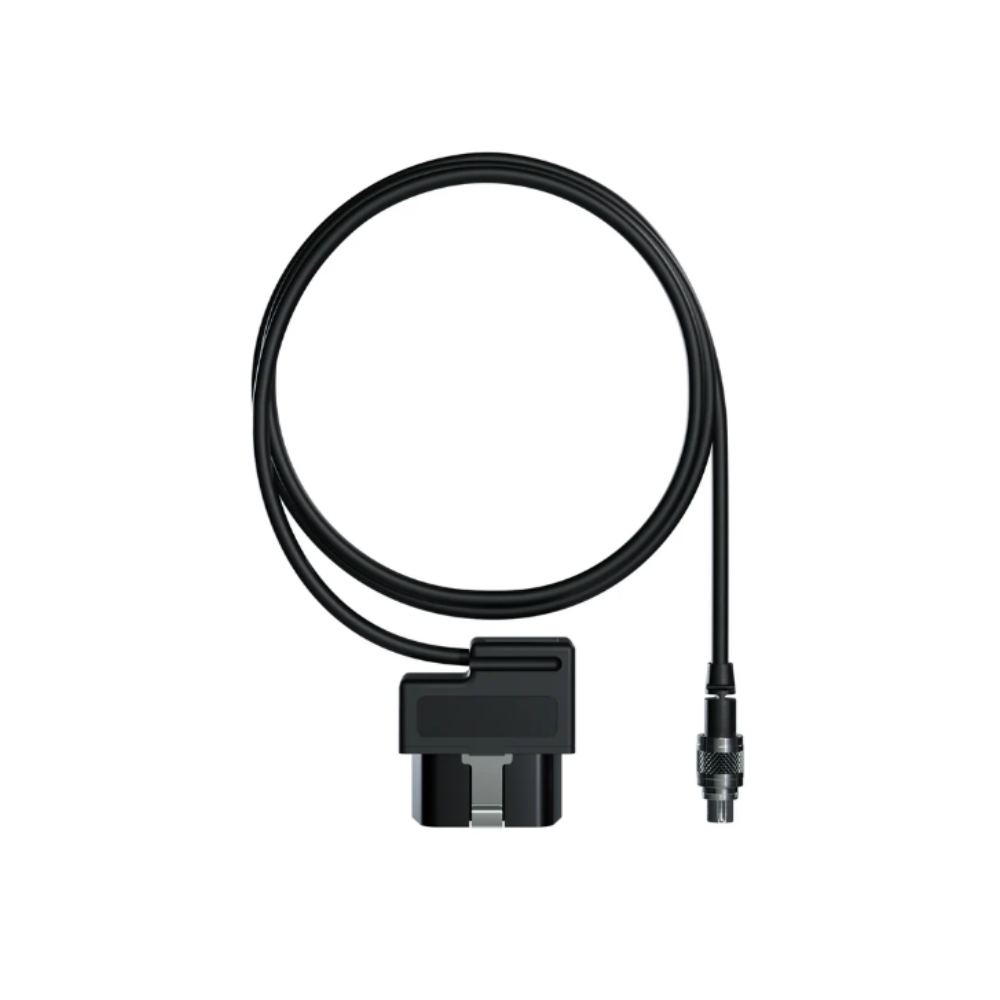

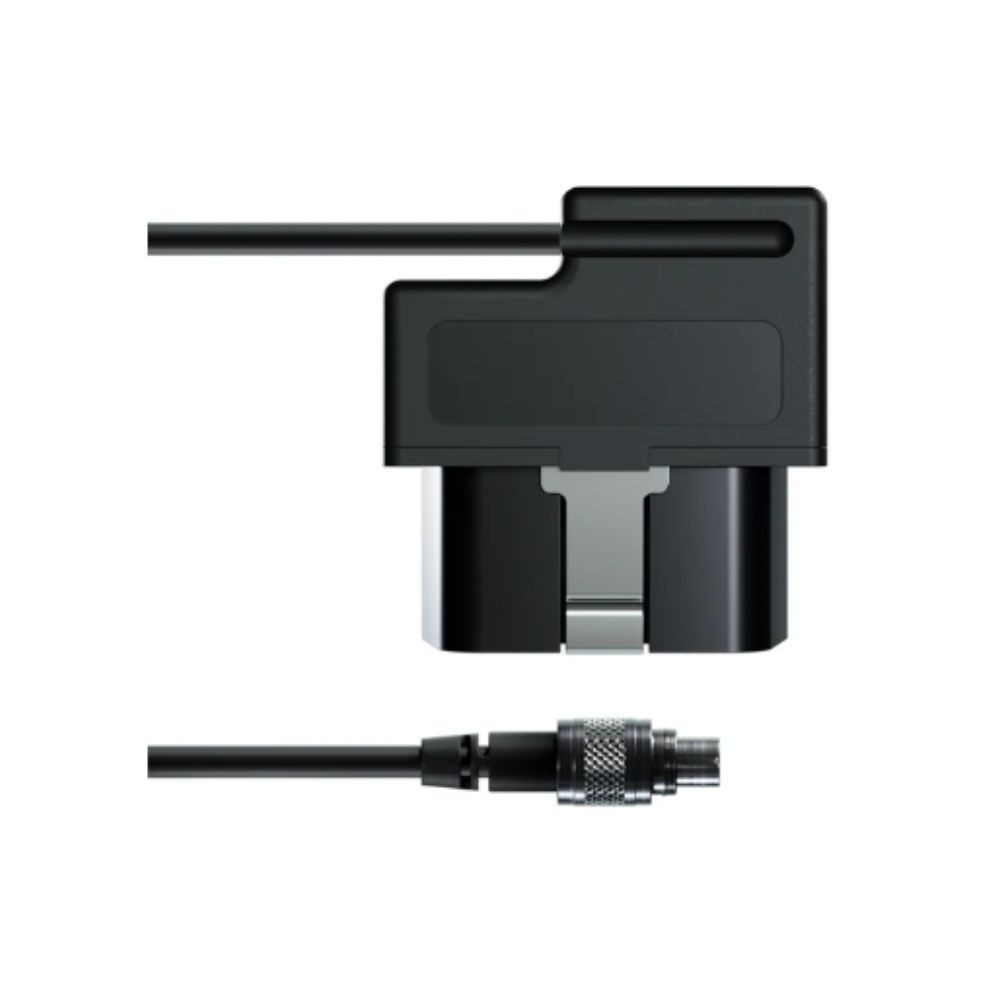

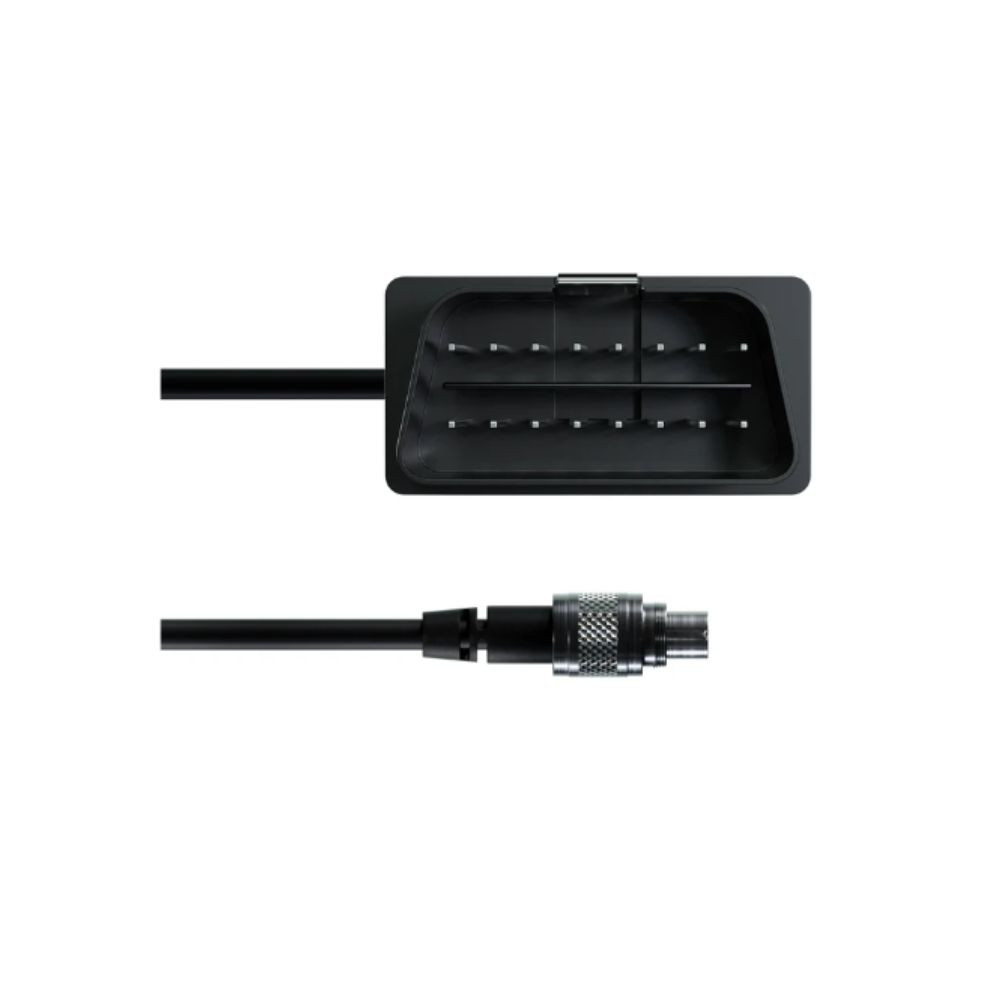

With a cable length of 2 meters, this cable offers ample flexibility for positioning your equipment, and is also equipped with an OBDII connector offering plug-and-play connectivity with your vehicle's OBDII port.

Features :

• 7-pin connector - 712 male
• 2 m cable
• OBDII Pin :
• 2 - Positive bus line - SAE J1850 protocol: not supported by AiM devices
• 4 - Chassis GND
• 5 - Signal GND
• 6 - CAN High - ISO 15765-4 and SAE J2234 protocols
• 7 - K line - ISO 9141-2 and ISO 14230-4 protocols
• 10 - Negative bus line - SAE J18050 protocol: not supported by AiM devices
• 14 - CAN low - ISO 15765 and SAE J2234 protocols
• 15 - L line - ISO 9141-2 and ISO 14230-4 protocols
• 16 - Battery power supply
