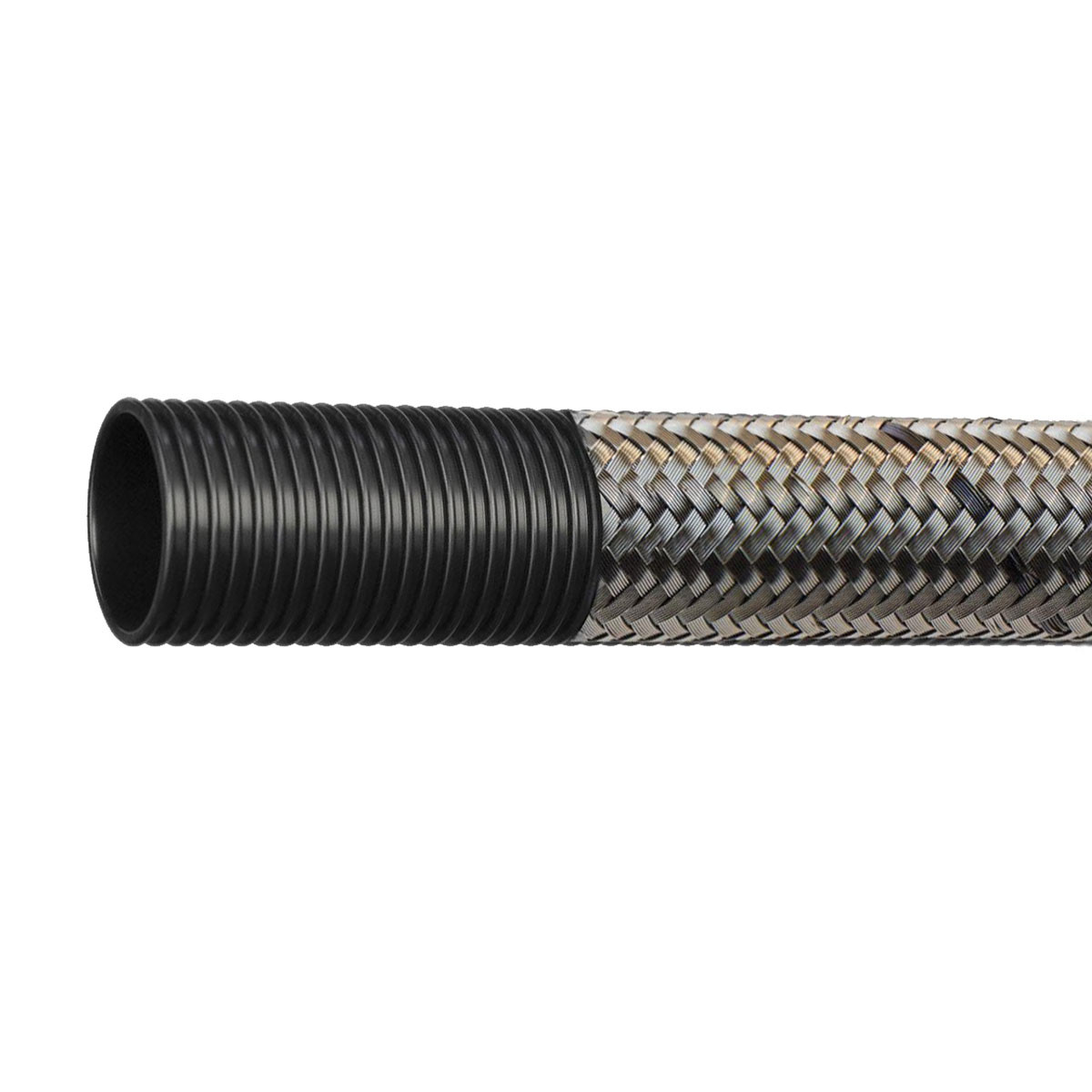

Goodridge G Line XF 811 fuel/oil AN-10 stainless steel hose (the LM)

This Goodridge G-Line XF 811 hose for fuel and/or oil is designed for applications requiring high flow rates, weather resistance, tight bend radii, and low weight.
The G-Line XF 811 series is the stainless steel braided equivalent of the G-Line XF 910.

The hose features an antistatic PTFE liner with a smooth inner surface, externally machined and carbon-filled, all covered by a stainless steel braid.

In addition to 711 crimp fittings and 4000 series crimp/expand fittings, the G-Line XF 811 hose can also be assembled with 811 reusable fittings without requiring special tools.

Please note: Temperature affects the maximum working pressure as indicated. For temperatures above 130 °C, the working pressure must be reduced by 0.75% per additional degree. Maximum temperature: 260 °C.

Technical data:

Dash size: AN-10
Length: 1 linear meter
Outer diameter: 20.60 mm (0.81")
Working pressure: 65 bar (924 psi)
Burst pressure: 260 bar (3770 psi)
Weight: 0.333 kg (0.2241 lb/ft)
Minimum bend radius: 50 mm (1.97")

Operating temperature: -70°C to +260°C (-94/+500°F)

Type of fitting to use: crimp / reusable
Applications: Fuel, oil, water, methanol, pneumatic
